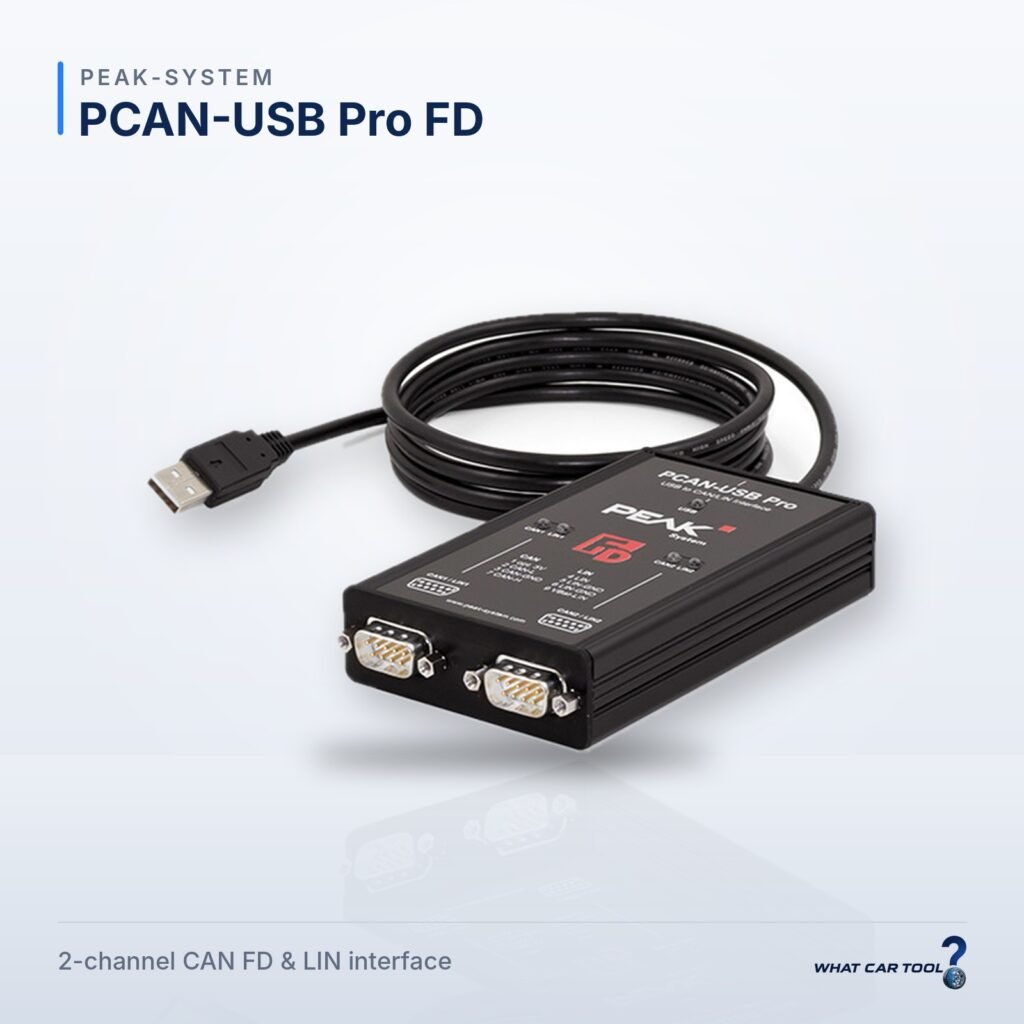

2-channel CAN FD & LIN interface
Model code: IPEH-004061 Manufacturer: PEAK-System (HMS)
The PCAN-USB Pro FD connects CAN FD and LIN networks to a computer over High-speed USB 2.0. It has two D-Sub connectors, each usable for CAN FD or LIN, so two fieldbus connections can run at once (up to four with suitable adapter cables). CAN FD supports ISO and non-ISO modes, bit rates up to 1 Mbit/s nominal and 12 Mbit/s in the data field. LIN runs at 1 to 20 kbit/s in master or slave mode (up to LIN 2.2). Each CAN channel is galvanically isolated up to 500 V. The aluminium housing suits mobile use. PCAN-View, PLIN-View Pro, PCAN-Basic and PLIN-API are included. This is a general-purpose interface, not a ready-made vehicle diagnostic tool. OEM diagnostic software and licences are not included.
| Product type | Device with software installed on a computer / tablet / phone |
|---|---|
| For which vehicle | Cars |
| Operating system | Windows 10, Windows 11 |
| Can be installed on a mobile phone | No |
| Connection with computer / tablet / phone | USB |
| Supported protocols | CAN, CAN FD |
| Other protocols (details) | LIN (up to 2.2) |
No compatibility data yet.
General-purpose 2-channel USB interface for CAN / CAN FD and LIN networks (CAN FD up to 12 Mbit/s in the data field; LIN 1 to 20 kbit/s, up to LIN 2.2). PEAK-System does not publish a list of supported vehicle makes, models or years for this product, so no vehicles are listed in the compatibility section. The adapter connects a PC to any CAN, CAN FD or LIN network through two D-Sub connectors; a vehicle needs a suitable cable or adapter. Included: PCAN-View and PLIN-View Pro (monitors), PCAN-Basic and PLIN-API, and APIs for automotive protocols. Brand-specific diagnostic functions (coding, resets, service functions) are not included and depend on third-party software.
There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.
PEAK-System Technik GmbH, part of HMS Networks, develops and manufactures hardware and software for connecting to CAN, CAN FD and LIN networks. Its product range includes USB and PCI interfaces, handheld CAN bus diagnostic tools, and the PCAN-Basic programming interface. The company is based in Darmstadt, Germany, and its products are used in automotive, industrial and embedded development.
https://www.peak-system.com/ ↗
