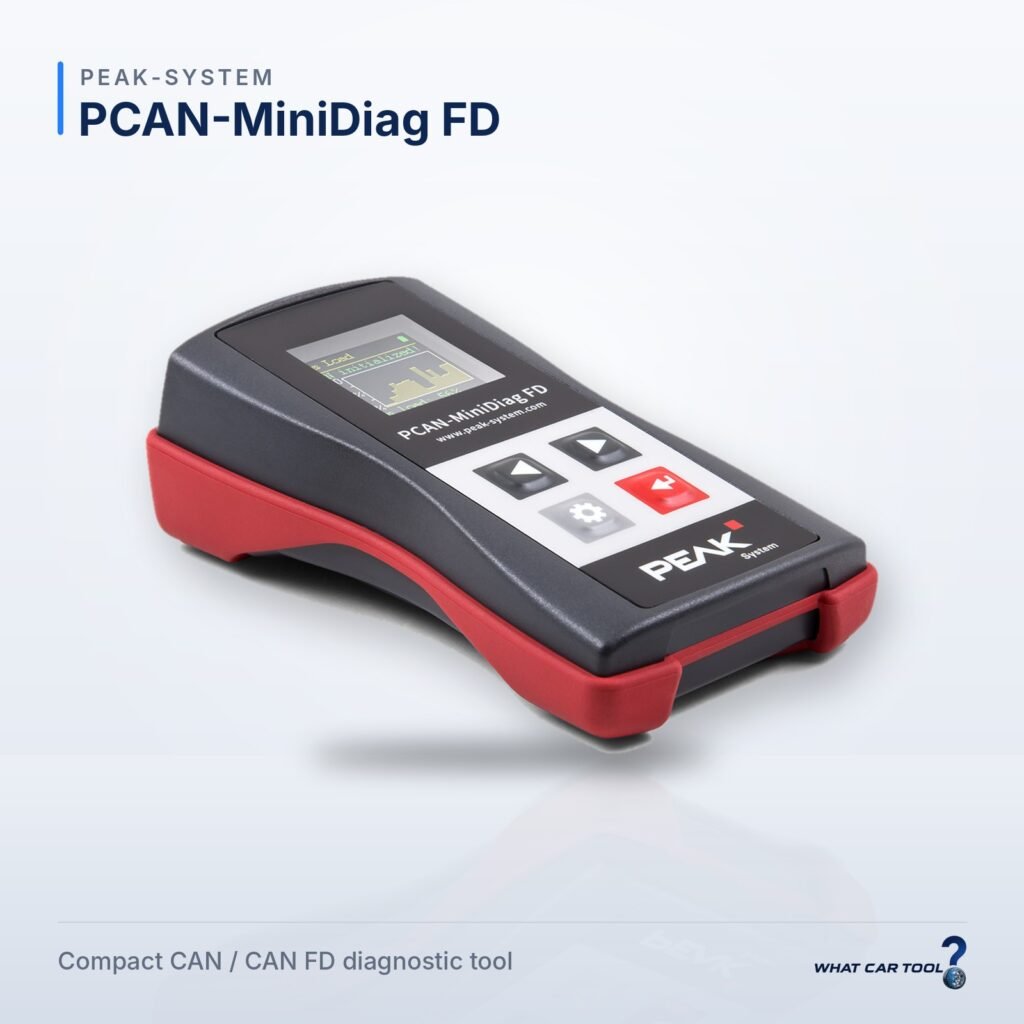

Compact CAN / CAN FD diagnostic tool
Model code: IPEH-003070 Manufacturer: PEAK-System (HMS)
The PCAN-MiniDiag FD is a compact, low-cost handheld device for basic checks of CAN and CAN FD buses. It detects the nominal and the data bit rate automatically (or can be set manually) and measures termination, bus load and voltage levels at the CAN connector. Counters show CAN, CAN FD and error frames, and a listen-only mode keeps it from influencing the bus. It has a 128 x 128 pixel OLED display, a four-key membrane keypad and a plastic IP42 housing (122 x 69 x 44 mm), and runs on replaceable AAA batteries. Firmware updates use PEAK-Flash 3 on a PC. This is a CAN bus tester, not a manufacturer-specific vehicle diagnostic tool. OEM diagnostic software and licences are not included.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| For which vehicle | Cars |
| Supported protocols | CAN, CAN FD |
No compatibility data yet.
Compact handheld CAN / CAN FD bus tester: automatic bit rate detection, termination, bus load and voltage level measurement, frame counters, listen-only mode. PEAK-System does not publish a list of supported vehicle makes, models or years for this product, so no vehicles are listed in the compatibility section. It checks a CAN bus through a D-Sub 9 connector (CiA 106) and is not a manufacturer-specific vehicle diagnostic tool: it does not read fault codes, reset services or code control units of specific makes.
There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.
PEAK-System Technik GmbH, part of HMS Networks, develops and manufactures hardware and software for connecting to CAN, CAN FD and LIN networks. Its product range includes USB and PCI interfaces, handheld CAN bus diagnostic tools, and the PCAN-Basic programming interface. The company is based in Darmstadt, Germany, and its products are used in automotive, industrial and embedded development.
