TopDiag T100

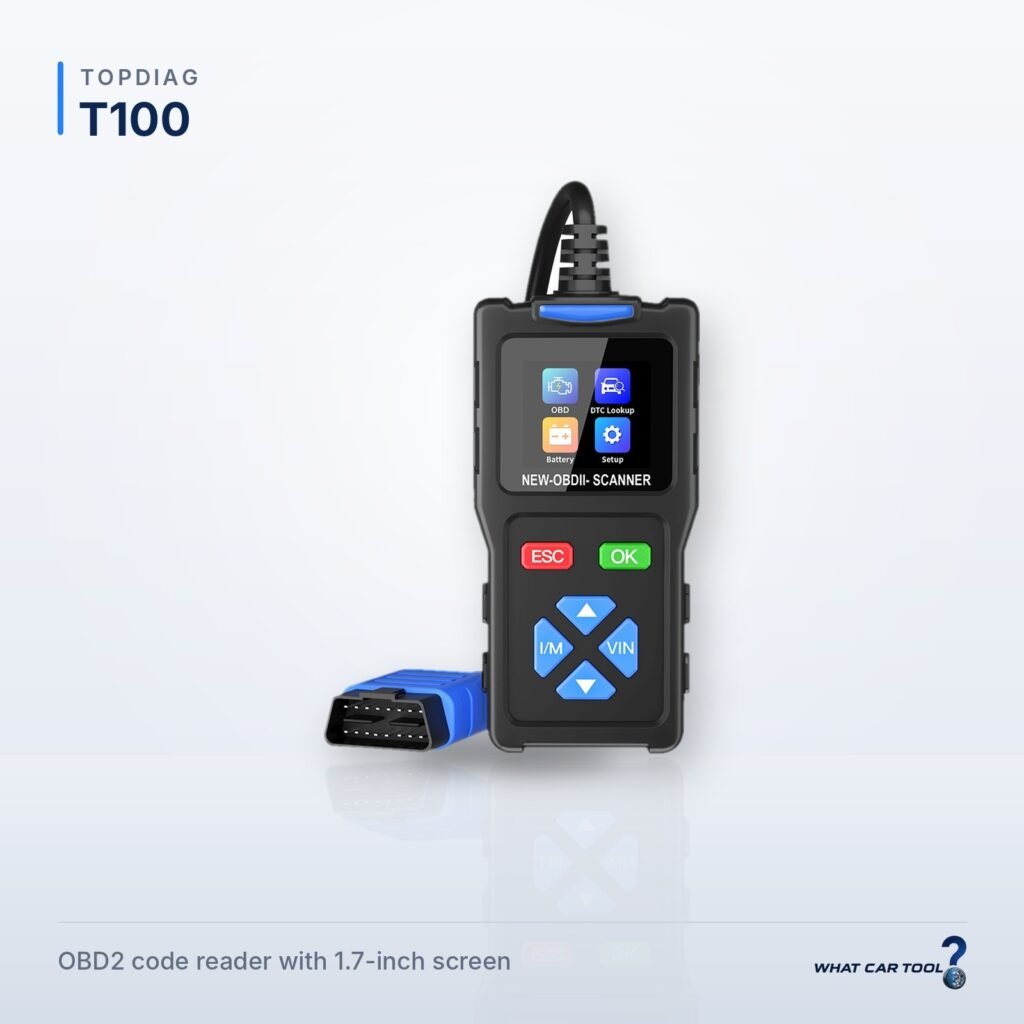

OBD2 code reader with 1.7-inch screen

Model code: T100 Manufacturer: Jdiagtools

Device forumAsk questions & share experience

Description

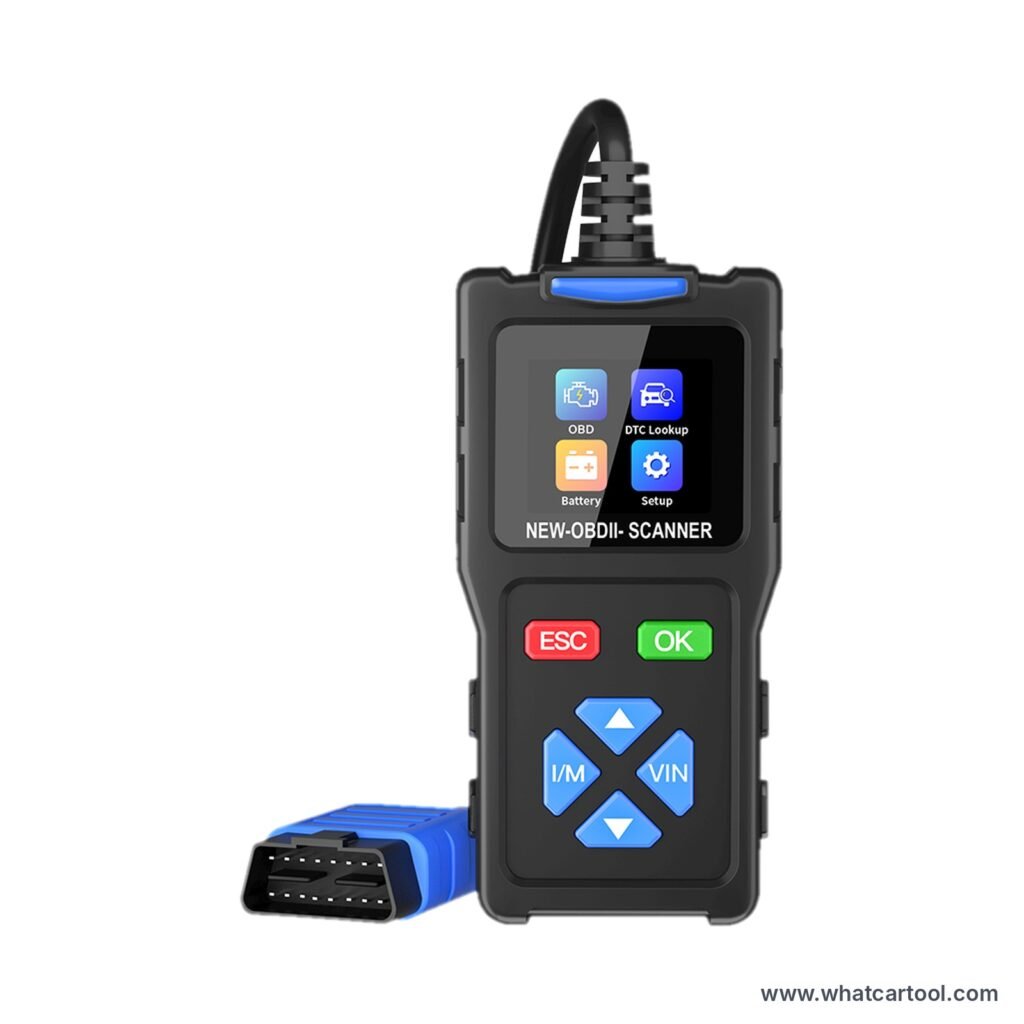

TopDiag T100 is a compact OBD2 code reader with a 1.7-inch screen for cars from 1996 onwards (OBD2 / EOBD).

Reads and clears generic and manufacturer-specific engine codes (P0/P2/P3/U0, P1/P3/U1, pending and permanent), turns off the check engine light, shows I/M readiness, live data (numeric and graph), freeze frame, O2 sensor test, Mode 6, Mode 8 EVAP test, vehicle information (VIN, CIN, CVN), battery voltage monitoring and a built-in DTC library. It also checks OBD pin voltages.

Supports all OBD2 protocols: ISO 9141-2, SAE J1850 PWM/VPW, ISO 14230-4 KWP2000 and ISO 15765-4 CAN. Powered from the OBD port, software upgrades via USB-C.

Specifications

Product type	Device with pre-installed software (standalone)
For which vehicle	Cars
Connection with computer / tablet / phone	USB
Vehicle power supply system	12V
Supported protocols	K-line, KWP2000, SAE J1850, CAN, J1979
Other protocols (details)	ISO 9141-2, ISO 14230-4, ISO 15765-4, SAE J1850 PWM/VPW
Frequency of new updates	Software updates via USB
Menu language	English
Other language (details)	Multi-language menu (see manufacturer)

Supported functions (12)

Advanced Diagnostics

O2 sensor data i (O2 sensor data.)
DTC lookup i (Built-in DTC lookup.)
Voltage reading i (Battery / OBD voltage reading.)

Diagnostics

Reading the VIN i (VIN / vehicle information.)
Read fault codes (DTC) i (Generic and pending emission codes.)
Clear fault codes (DTC) i (Turns off the check engine light.)
Live data stream i (Live data stream.)
Freeze frame data i (Freeze frame data.)
I/M readiness monitors i (I/M readiness status.)
EVAP system test i (OBD2 Mode 08 (component test), where supported.)
On-board monitor test (Mode 06) i (On-board monitor test (OBD2 Mode 06).)
ECU information i (Vehicle information (calibration IDs, CVN).)

Conditions for specific vehicles (1)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Alpine (1)

Alpine
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Citroen (1)

Citroen
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Cupra (1)

Cupra
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

DS (1)

DS
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Dacia (1)

Dacia
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Daihatsu (1)

Daihatsu
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Lancia (1)

Lancia
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

MG (1)

MG
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Opel (1)

Opel
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Peugeot (1)

Peugeot
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Ravon (1)

Ravon
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Renault (1)

Renault
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Rover (1)

Rover
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

SEAT (1)

SEAT
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Skoda (1)

Skoda
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

SsangYong (1)

SsangYong
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Vauxhall (1)

Vauxhall
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Compatibility disclosure

Generic OBD2/EOBD functions on OBD2-compliant cars and light vehicles (JDiag: up to 97% of models; USA 1996+, EU 2001+ petrol and 2004+ diesel). No manufacturer-specific systems (ABS, SRS, transmission) and no service resets. Handheld code reader with online software upgrade.

Compatible vehicles (72 makes)

Check if it fits your vehicle:

Abarth (all models)

All models of this make (1996–…)

Acura (all models)

All models of this make (1996–…)

Alfa Romeo (all models)

All models of this make (1996–…)

Alpine (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Aston Martin (all models)

All models of this make (1996–…)

Audi (all models)

All models of this make (1996–…)

BMW (all models)

All models of this make (1996–…)

Bentley (all models)

All models of this make (1996–…)

Bugatti (all models)

All models of this make (1996–…)

Buick (all models)

All models of this make (1996–…)

Cadillac (all models)

All models of this make (1996–…)

Chevrolet (all models)

All models of this make (1996–…)

Chrysler (all models)

All models of this make (1996–…)

Citroen (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Cupra (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

DS (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Dacia (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Daewoo (all models)

All models of this make (1996–…)

Daihatsu (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Dodge (all models)

All models of this make (1996–…)

Ferrari (all models)

All models of this make (1996–…)

Fiat (all models)

All models of this make (1996–…)

Ford (all models)

All models of this make (1996–…)

GMC (all models)

All models of this make (1996–…)

Genesis (all models)

All models of this make (1996–…)

Honda (all models)

All models of this make (1996–…)

Hummer (all models)

All models of this make (1996–…)

Hyundai (all models)

All models of this make (1996–…)

Infiniti (all models)

All models of this make (1996–…)

Isuzu (all models)

All models of this make (1996–…)

Jaguar (all models)

All models of this make (1996–…)

Jeep (all models)

All models of this make (1996–…)

Kia (all models)

All models of this make (1996–…)

Lamborghini (all models)

All models of this make (1996–…)

Lancia (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Land Rover (all models)

All models of this make (1996–…)

Lexus (all models)

All models of this make (1996–…)

Lincoln (all models)

All models of this make (1996–…)

Lotus (all models)

All models of this make (1996–…)

MG (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Maserati (all models)

All models of this make (1996–…)

Mazda (all models)

All models of this make (1996–…)

McLaren (all models)

All models of this make (1996–…)

Mercedes-Benz (all models)

All models of this make (1996–…)

Mercury (all models)

All models of this make (1996–…)

Mini (all models)

All models of this make (1996–…)

Mitsubishi (all models)

All models of this make (1996–…)

Nissan (all models)

All models of this make (1996–…)

Oldsmobile (all models)

All models of this make (1996–…)

Opel (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Peugeot (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Plymouth (all models)

All models of this make (1996–…)

Pontiac (all models)

All models of this make (1996–…)

Porsche (all models)

All models of this make (1996–…)

RAM (all models)

All models of this make (1996–…)

Ravon (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Renault (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Rolls-Royce (all models)

All models of this make (1996–…)

Rover (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

SEAT (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Saab (all models)

All models of this make (1996–…)

Saturn (all models)

All models of this make (1996–…)

Scion (all models)

All models of this make (1996–…)

Skoda (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Smart (all models)

All models of this make (1996–…)

SsangYong (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Subaru (all models)

All models of this make (1996–…)

Suzuki (all models)

All models of this make (1996–…)

Toyota (all models)

All models of this make (1996–…)

Vauxhall (all models)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Volkswagen (all models)

All models of this make (1996–…)

Volvo (all models)

All models of this make (1996–…)

Where to buy

Jdiagtools.com
No reviews yet — be the first
TopDiag T100
Go to the shop ↗

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Jdiagtools

JDiag / TopDiag is a diagnostic tool manufacturer based in Shenzhen, China (Longhua District). Under the JDiag brand it makes universal motorcycle diagnostic scanners – handheld M100–M300 and M208 series, the MOTOSYS M10 Bluetooth adapter and the MOTOSYS M400 Android tablets – covering European, Japanese, American, Indian and Chinese motorcycle brands, with built-in battery, injector and relay tests. Under the TopDiag brand it makes OBD2 scanners (T series, M60), TPMS programming tools (PS series), automotive circuit testers (P series), battery testers and jump starters. Products are sold worldwide through the official store jdiagtools.com and distributors.

https://jdiagtools.com/ ↗
