JDiag M100

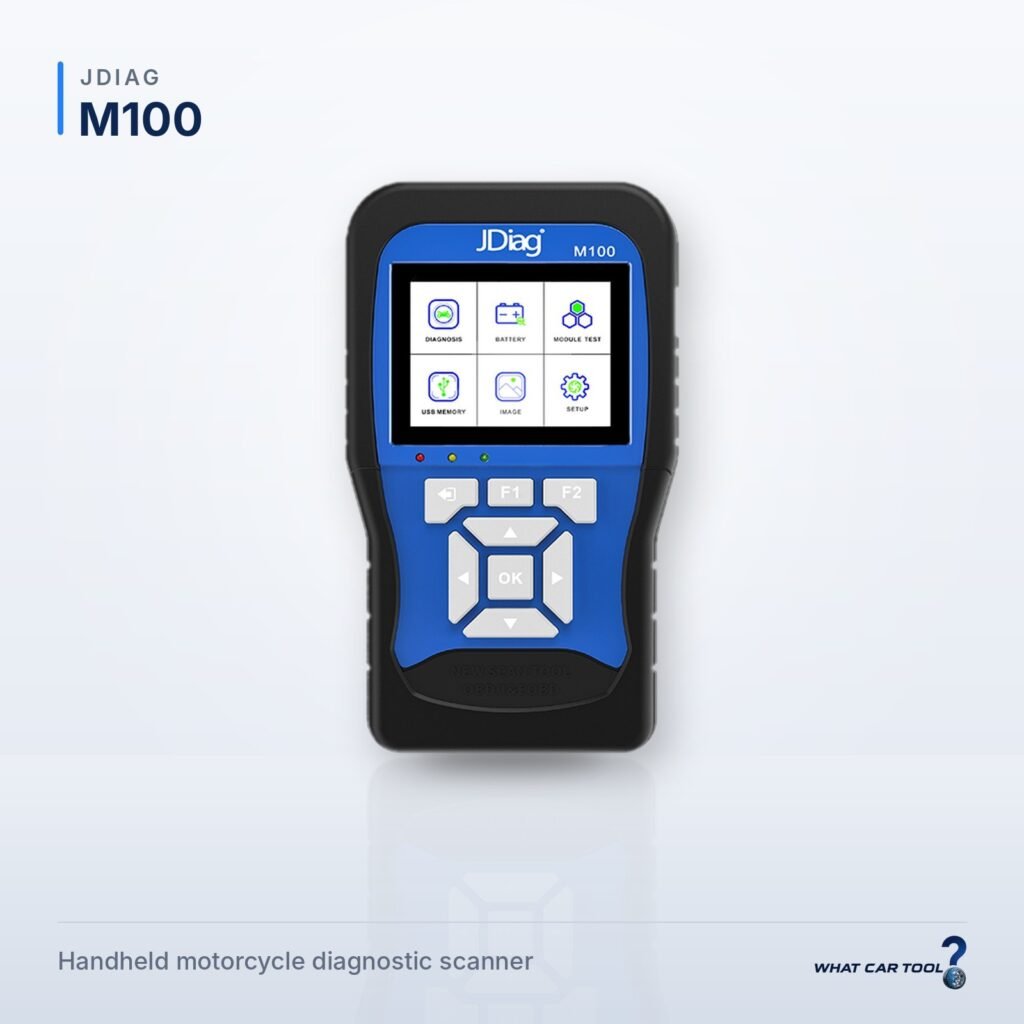

Handheld motorcycle diagnostic scanner

Model code: M100 Manufacturer: Jdiagtools

Device forumAsk questions & share experience

Description

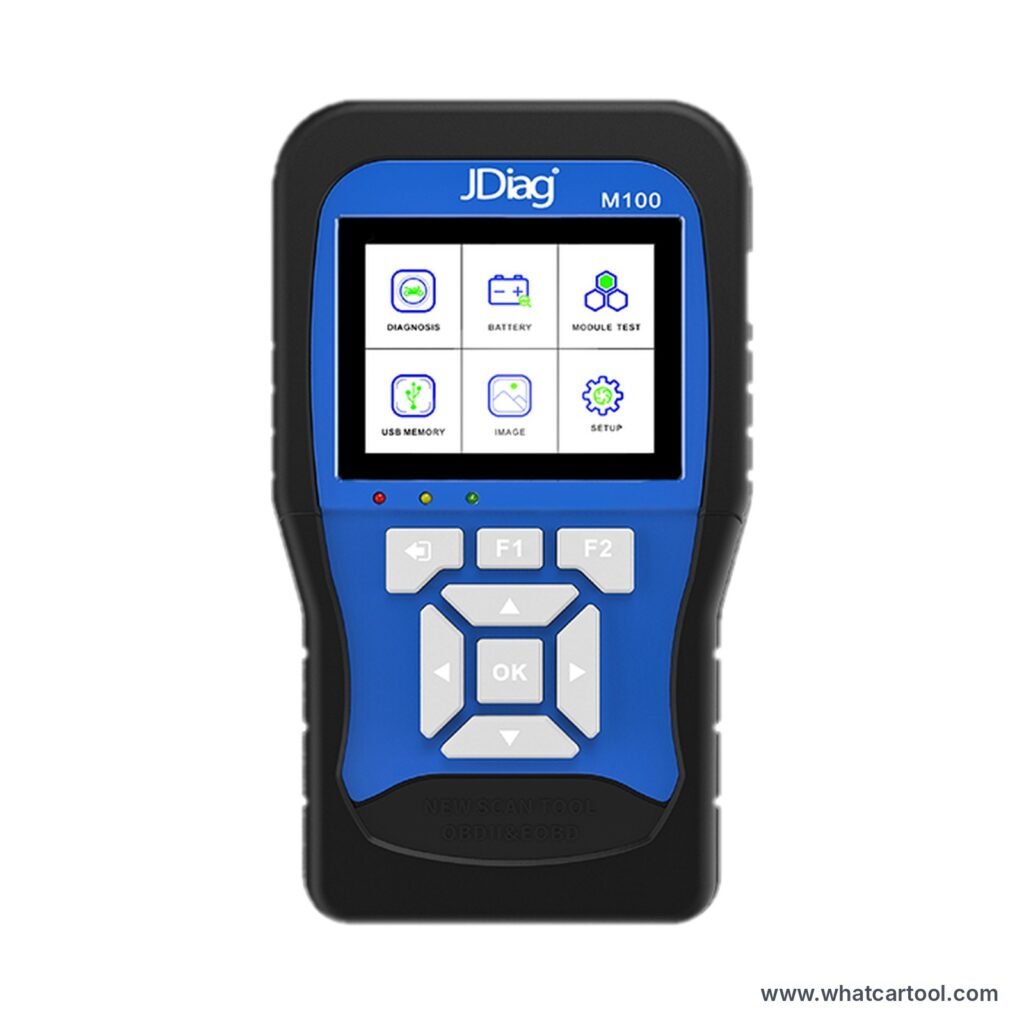

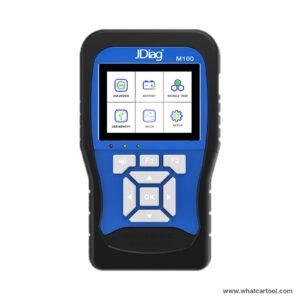

JDiag M100 is a handheld universal motorcycle scanner with a 3.2-inch colour screen. It reads system information, live data (numeric and waveform), freeze frame data, reads and clears fault codes, runs ABS tests and CO / idle speed adjustment, and helps with service procedures such as TPS reset and adaptation reset.

Coverage: OBD2 plus Adiva, Aeon, Aprilia, Arctic Cat, Bajaj, Benelli, BMW, Brixton, Bombardier, CFMoto, Hartford, Honda, Hyosung, Hero, Indian, Kawasaki, KTM, Kymco, Modenas, PGO, Piaggio, Royal Enfield, Suzuki, SYM, TVS, Triumph, Vespa, Yamaha and more. Sold in OBD2, Standard and Full versions (the versions differ in the set of motorcycle connector cables).

Power 10–15 V DC, USB updates, data stored on an SD card. The user manual and software updates are available from JDiag (jdiagtools.com).

Specifications

Product type	Device with pre-installed software (standalone)
For which vehicle	Motorcycles
Price (USD)	$122 – $149
Connection with computer / tablet / phone	USB
Vehicle power supply system	12V
Supported protocols	K-line, KWP2000, CAN, J1979
Other protocols (details)	Manufacturer-specific motorcycle protocols (adapter cables per brand)
Frequency of new updates	Software updates via USB; update files published on jdiagtools.com
Menu language	English, Spanish, French, Thai, Turkish, Vietnamese, Indonesian, Portuguese, Japanese, Korean, German
Other language (details)	Chinese (Traditional), Cambodian

Supported functions (9)

Actuation / bidirectional control

ABS pump / valve test (ABS system test, as named by JDiag; supported systems depend on the model.)

Coding / adaptation

Reset learned values (Reset of auto-adaptive parameters, as listed in the M100 description on jdiagtools.com.)

Diagnostics

Reading fault codes (DTCs)
Clearing fault codes (DTCs)
Live data (Live data stream (numeric and waveform).)
Freeze frame data (Freeze data.)
ECU information (Read system information (ECU / system version).)

Service reset

Throttle body / idle adaptation (CO / idle speed adjustment, as named by JDiag.)
TPS reset / throttle position calibration (Throttle position sensor (TPS) adjustment, as listed in the M100 description on jdiagtools.com.)

Conditions for specific vehicles (13)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

AEON (1)

AEON
Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

APRILIA (1)

APRILIA
Aprilia 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

ARCTIC CAT (1)

ARCTIC CAT
JDiag does not publish model years for this make; check your model and the connector before buying.

BAJAJ (1)

BAJAJ
JDiag does not publish model years for this make; check your model and the connector before buying.

BENELLI (1)

BENELLI
Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

CAN-AM/ BRP (1)

CAN-AM/ BRP
Listed by JDiag as "Bombardier" (Can-Am / BRP). JDiag does not publish model years for this make; check your model and the connector before buying.

CFMOTO (1)

CFMOTO
JDiag does not publish model years for this make; check your model and the connector before buying.

HARTFORD (1)

HARTFORD
Hartford 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

HERO (1)

HERO
JDiag does not publish model years for this make; check your model and the connector before buying.

HONDA (1)

HONDA
Honda 4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

HYOSUNG (1)

HYOSUNG
JDiag does not publish model years for this make; check your model and the connector before buying.

INDIAN (1)

INDIAN
JDiag does not publish model years for this make; check your model and the connector before buying.

KAWASAKI (1)

KAWASAKI
Connector 1 (8-pin) is included in the Standard and Full versions; connectors 2–6 (4/6-pin) only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KTM (1)

KTM
KTM 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KYMCO (1)

KYMCO
Kymco 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

MODENAS (1)

MODENAS
JDiag does not publish model years for this make; check your model and the connector before buying.

PGO (1)

PGO
PGO 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

PIAGGIO (1)

PIAGGIO
JDiag does not publish model years for this make; check your model and the connector before buying.

ROYAL ENFIELD (1)

ROYAL ENFIELD
JDiag does not publish model years for this make; check your model and the connector before buying.

SUZUKI (1)

SUZUKI
Suzuki connectors I/II (4-pin) and III (6-pin) are included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

SYM (1)

SYM
SYM 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

TRIUMPH (1)

TRIUMPH
JDiag does not publish model years for this make; check your model and the connector before buying.

VESPA (1)

VESPA
JDiag does not publish model years for this make; check your model and the connector before buying.

YAMAHA (1)

YAMAHA
Yamaha 3/4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

Compatibility disclosure

Motorcycle scanner. Coverage is entered by make only: JDiag does not publish models or model years, so check your model and connector before buying. Sold as OBD2/Basic, Standard and Full versions: the Basic/OBD2 version has only the OBD2 16-pin cable, Standard adds brand connectors (Aprilia, Honda, Suzuki, SYM, Kymco, PGO, Aeon/Benelli, Kawasaki 1, Yamaha), Full also adds Hartford, Kawasaki 2-6 and KTM. Not covered by a function entry (see the device description): battery, charging and start-up tests, relay test and sensor signal output where the device has them. The OBDII menu entry is for OBD2-equipped motorcycles only. JDiag menu brands not yet in the WhatCarTool vehicle database: Adiva, Brixton, FIT, Rojo, TVS, Yiben. ABS test, CO/idle adjustment, TPS and adaptive-parameter reset are listed generally by JDiag; support depends on the make and model.

Compatible vehicles (24 makes)

Check if it fits your vehicle:

AEON (all models)

All models of this make (1996–…) ✎ Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

APRILIA (all models)

All models of this make (1996–…) ✎ Aprilia 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

ARCTIC CAT (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

BAJAJ (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

BENELLI (all models)

All models of this make (1996–…) ✎ Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

CAN-AM/ BRP (all models)

All models of this make (1996–…) ✎ Listed by JDiag as "Bombardier" (Can-Am / BRP). JDiag does not publish model years for this make; check your model and the connector before buying.

CFMOTO (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

HARTFORD (all models)

All models of this make (1996–…) ✎ Hartford 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

HERO (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

HONDA (all models)

All models of this make (1996–…) ✎ Honda 4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

HYOSUNG (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

INDIAN (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

KAWASAKI (all models)

All models of this make (1996–…) ✎ Connector 1 (8-pin) is included in the Standard and Full versions; connectors 2–6 (4/6-pin) only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KTM (all models)

All models of this make (1996–…) ✎ KTM 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KYMCO (all models)

All models of this make (1996–…) ✎ Kymco 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

MODENAS (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

PGO (all models)

All models of this make (1996–…) ✎ PGO 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

PIAGGIO (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

ROYAL ENFIELD (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

SUZUKI (all models)

All models of this make (1996–…) ✎ Suzuki connectors I/II (4-pin) and III (6-pin) are included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

SYM (all models)

All models of this make (1996–…) ✎ SYM 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

TRIUMPH (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

VESPA (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

YAMAHA (all models)

All models of this make (1996–…) ✎ Yamaha 3/4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.
