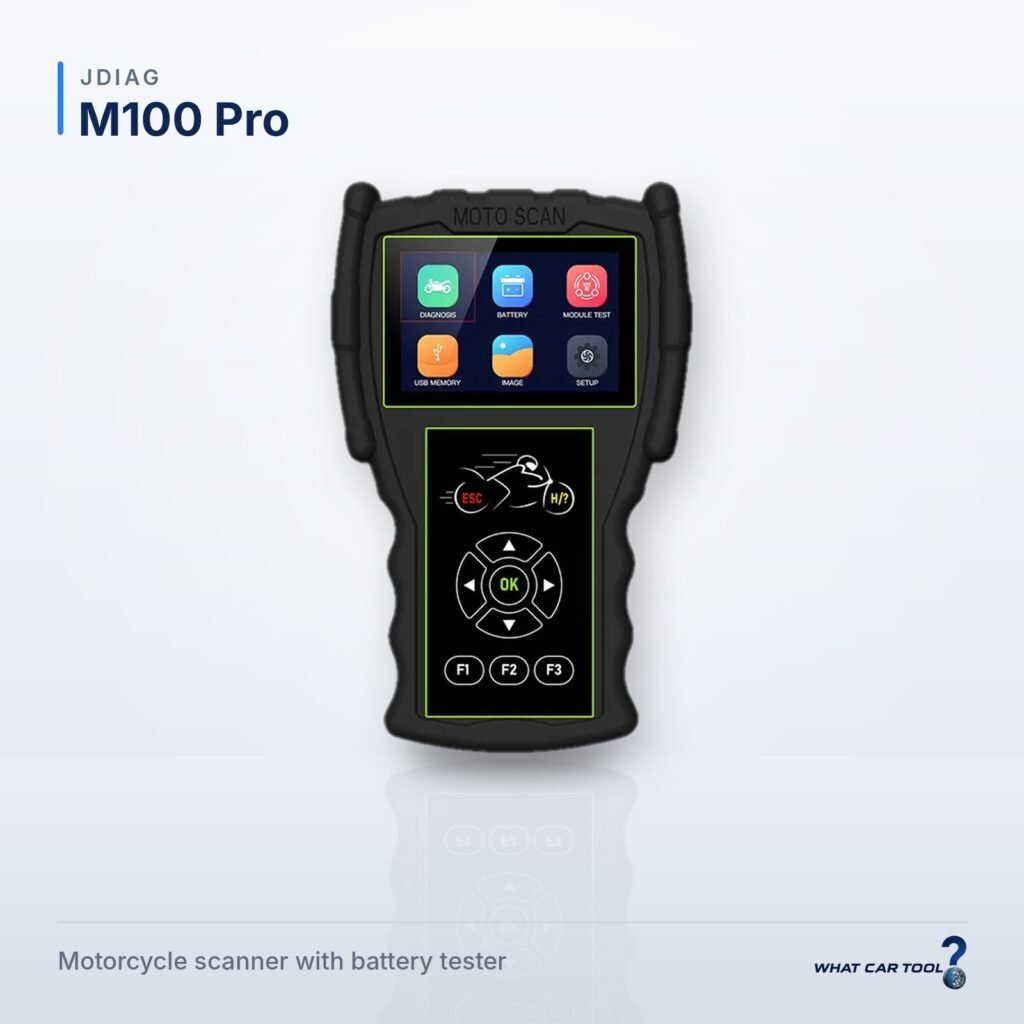

JDiag M100 Pro

Motorcycle scanner with battery tester

Model code: M100Pro Manufacturer: Jdiagtools

Device forumAsk questions & share experience

Description

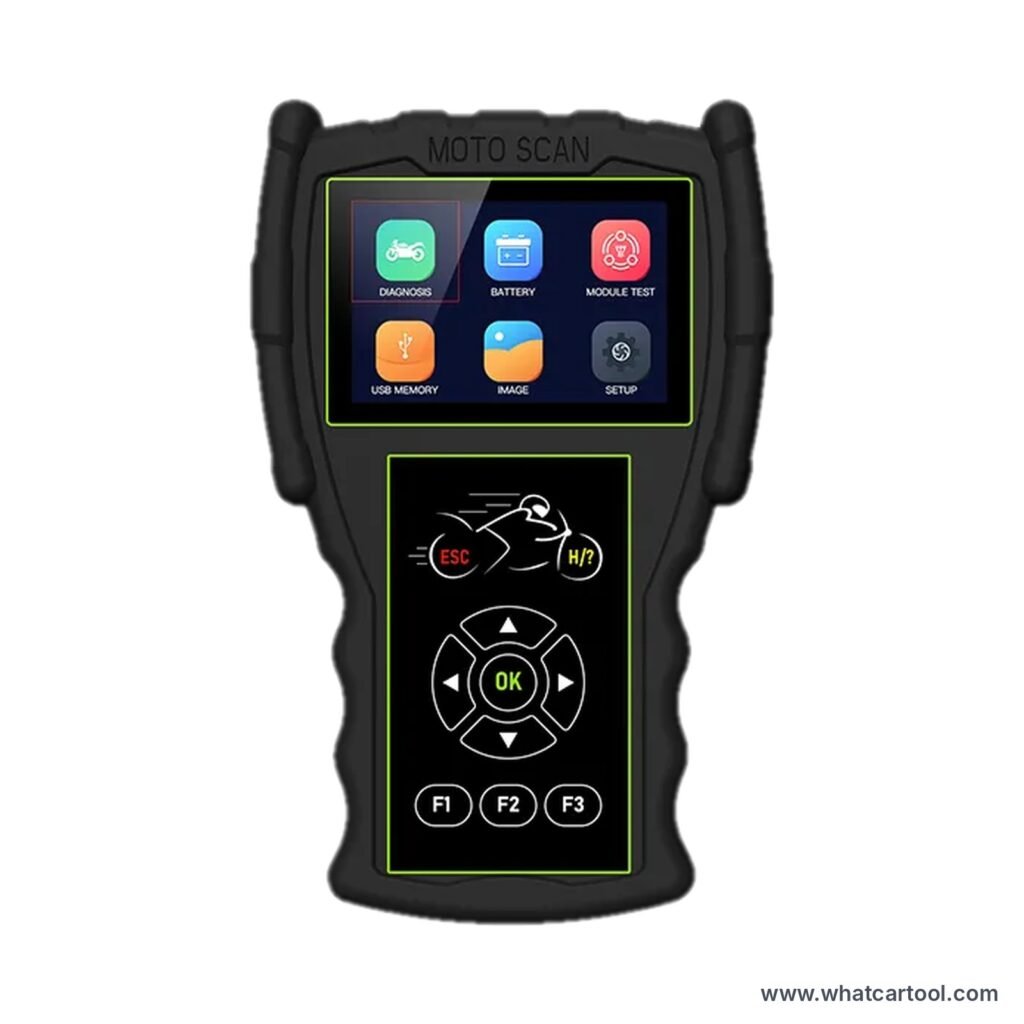

JDiag M100 Pro is a handheld motorcycle scanner with a built-in battery tester (dual system: motorcycle diagnostics + battery test). 3.5-inch colour screen, live data in numeric and waveform form, freeze frame, read/clear fault codes, ABS test and CO / idle speed adjustment.

Coverage: OBD2 plus Adiva, Aeon, Aprilia, Arctic Cat, Bajaj, Benelli, BMW, Brixton, Bombardier, CFMoto, Hartford, Honda, Hyosung, Hero, Indian, Kawasaki, KTM, Kymco, Modenas, PGO, Piaggio, Royal Enfield, Suzuki, SYM, TVS, Triumph, Vespa, Yamaha and more. Available as Basic, Standard and Full versions (more connector cables in the higher versions).

Power 8–30 V DC, updates via Wi-Fi or USB. The user manual and software updates are available from JDiag (jdiagtools.com).

Specifications

Product type	Device with pre-installed software (standalone)
For which vehicle	Motorcycles
Price (USD)	$152 – $186
Connection with computer / tablet / phone	USB, Wi-Fi
Vehicle power supply system	12V
Supported protocols	K-line, KWP2000, CAN, J1979
Other protocols (details)	Manufacturer-specific motorcycle protocols (adapter cables per brand)
Frequency of new updates	Software updates via USB / Wi-Fi; update files published on jdiagtools.com
Menu language	English, Spanish, French, Thai, Turkish, Vietnamese, Indonesian, Portuguese, Japanese, Korean, German, Italian, Polish
Other language (details)	Chinese (Traditional), Cambodian

Supported functions (7)

Actuation / bidirectional control

ABS pump / valve test (ABS system test, as named by JDiag; supported systems depend on the model.)

Diagnostics

Reading fault codes (DTCs)
Clearing fault codes (DTCs)
Live data (Live data stream (numeric and waveform).)
Freeze frame data (Freeze data.)
ECU information (Read system information (ECU / system version).)

Service reset

Throttle body / idle adaptation (CO / idle speed adjustment, as named by JDiag.)

Conditions for specific vehicles (13)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

AEON (1)

AEON
Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

APRILIA (1)

APRILIA
Aprilia 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

ARCTIC CAT (1)

ARCTIC CAT
JDiag does not publish model years for this make; check your model and the connector before buying.

BAJAJ (1)

BAJAJ
JDiag does not publish model years for this make; check your model and the connector before buying.

BENELLI (1)

BENELLI
Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

BMW (1)

BMW
JDiag does not publish model years for this make; check your model and the connector before buying.

CAN-AM/ BRP (1)

CAN-AM/ BRP
Listed by JDiag as "Bombardier" (Can-Am / BRP). JDiag does not publish model years for this make; check your model and the connector before buying.

CFMOTO (1)

CFMOTO
JDiag does not publish model years for this make; check your model and the connector before buying.

HARTFORD (1)

HARTFORD
Hartford 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

HERO (1)

HERO
JDiag does not publish model years for this make; check your model and the connector before buying.

HONDA (1)

HONDA
Honda 4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

HYOSUNG (1)

HYOSUNG
JDiag does not publish model years for this make; check your model and the connector before buying.

INDIAN (1)

INDIAN
JDiag does not publish model years for this make; check your model and the connector before buying.

KAWASAKI (1)

KAWASAKI
Connector 1 (8-pin) is included in the Standard and Full versions; connectors 2–6 (4/6-pin) only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KTM (1)

KTM
KTM 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KYMCO (1)

KYMCO
Kymco 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

MODENAS (1)

MODENAS
JDiag does not publish model years for this make; check your model and the connector before buying.

MOTO MORINI (1)

MOTO MORINI
JDiag does not publish model years for this make; check your model and the connector before buying.

PEUGEOT (1)

PEUGEOT
JDiag does not publish model years for this make; check your model and the connector before buying.

PGO (1)

PGO
PGO 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

PIAGGIO (1)

PIAGGIO
JDiag does not publish model years for this make; check your model and the connector before buying.

ROYAL ENFIELD (1)

ROYAL ENFIELD
JDiag does not publish model years for this make; check your model and the connector before buying.

SUZUKI (1)

SUZUKI
Suzuki connectors I/II (4-pin) and III (6-pin) are included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

SYM (1)

SYM
SYM 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

TRIUMPH (1)

TRIUMPH
JDiag does not publish model years for this make; check your model and the connector before buying.

VESPA (1)

VESPA
JDiag does not publish model years for this make; check your model and the connector before buying.

YAMAHA (1)

YAMAHA
Yamaha 3/4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

Compatibility disclosure

Motorcycle scanner. Coverage is entered by make only: JDiag does not publish models or model years, so check your model and connector before buying. Sold as OBD2/Basic, Standard and Full versions: the Basic/OBD2 version has only the OBD2 16-pin cable, Standard adds brand connectors (Aprilia, Honda, Suzuki, SYM, Kymco, PGO, Aeon/Benelli, Kawasaki 1, Yamaha), Full also adds Hartford, Kawasaki 2-6 and KTM. Not covered by a function entry (see the device description): battery, charging and start-up tests, relay test and sensor signal output where the device has them. The OBDII menu entry is for OBD2-equipped motorcycles only. JDiag menu brands not yet in the WhatCarTool vehicle database: Adiva, Brixton, FIT, Rojo, TVS, Yiben, GPX. Dual system: motorcycle diagnostics plus battery testing.

Compatible vehicles (27 makes)

Check if it fits your vehicle:

AEON (all models)

All models of this make (1996–…) ✎ Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

APRILIA (all models)

All models of this make (1996–…) ✎ Aprilia 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

ARCTIC CAT (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

BAJAJ (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

BENELLI (all models)

All models of this make (1996–…) ✎ Aeon / Benelli 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

BMW (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

CAN-AM/ BRP (all models)

All models of this make (1996–…) ✎ Listed by JDiag as "Bombardier" (Can-Am / BRP). JDiag does not publish model years for this make; check your model and the connector before buying.

CFMOTO (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

HARTFORD (all models)

All models of this make (1996–…) ✎ Hartford 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

HERO (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

HONDA (all models)

All models of this make (1996–…) ✎ Honda 4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

HYOSUNG (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

INDIAN (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

KAWASAKI (all models)

All models of this make (1996–…) ✎ Connector 1 (8-pin) is included in the Standard and Full versions; connectors 2–6 (4/6-pin) only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KTM (all models)

All models of this make (1996–…) ✎ KTM 6-pin connector is included only in the Full version. JDiag does not publish model years for this make; check your model and the connector before buying.

KYMCO (all models)

All models of this make (1996–…) ✎ Kymco 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

MODENAS (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

MOTO MORINI (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

PEUGEOT (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

PGO (all models)

All models of this make (1996–…) ✎ PGO 6-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

PIAGGIO (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

ROYAL ENFIELD (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

SUZUKI (all models)

All models of this make (1996–…) ✎ Suzuki connectors I/II (4-pin) and III (6-pin) are included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

SYM (all models)

All models of this make (1996–…) ✎ SYM 3-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

TRIUMPH (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

VESPA (all models)

All models of this make (1996–…) ✎ JDiag does not publish model years for this make; check your model and the connector before buying.

YAMAHA (all models)

All models of this make (1996–…) ✎ Yamaha 3/4-pin connector is included in the Standard and Full versions. JDiag does not publish model years for this make; check your model and the connector before buying.

Where to buy

Jdiagtools.com
No reviews yet — be the first
JDiag M100 Pro
Go to the shop ↗
Amazon.com
No reviews yet — be the first
JDiag M100 Pro
Go to the shop ↗

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Jdiagtools

JDiag / TopDiag is a diagnostic tool manufacturer based in Shenzhen, China (Longhua District). Under the JDiag brand it makes universal motorcycle diagnostic scanners – handheld M100–M300 and M208 series, the MOTOSYS M10 Bluetooth adapter and the MOTOSYS M400 Android tablets – covering European, Japanese, American, Indian and Chinese motorcycle brands, with built-in battery, injector and relay tests. Under the TopDiag brand it makes OBD2 scanners (T series, M60), TPMS programming tools (PS series), automotive circuit testers (P series), battery testers and jump starters. Products are sold worldwide through the official store jdiagtools.com and distributors.

https://jdiagtools.com/ ↗
