Model code: JLR PRO EAN: 123456789 Manufacturer: JLR tool

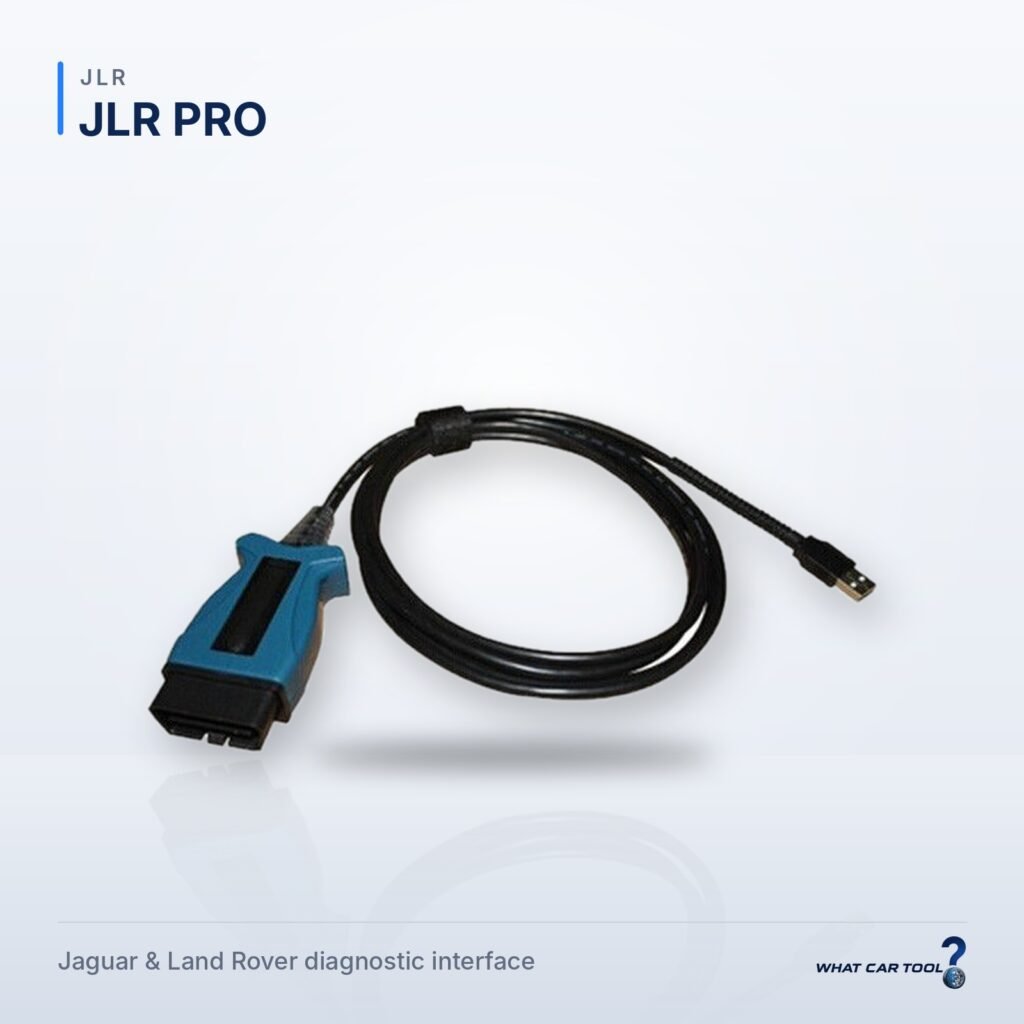

The JLR PRO diagnostic interface is a J2534 pass-thru tool for Jaguar and Land Rover vehicles. It connects the car's OBD2 socket to a Windows computer by USB and runs the manufacturer's own diagnostic software: SDD (Symptom Driven Diagnostics), IDS and WDS. This page shows which Jaguar and Land Rover models and model years it covers, which software version you need and what it does not cover.
Which software does the JLR PRO use?
Jaguar Land Rover has used several generations of dealer diagnostic software, and the right one depends on the model year of the car:
- WDS: the oldest system, used for vehicles from roughly 2000 and earlier.

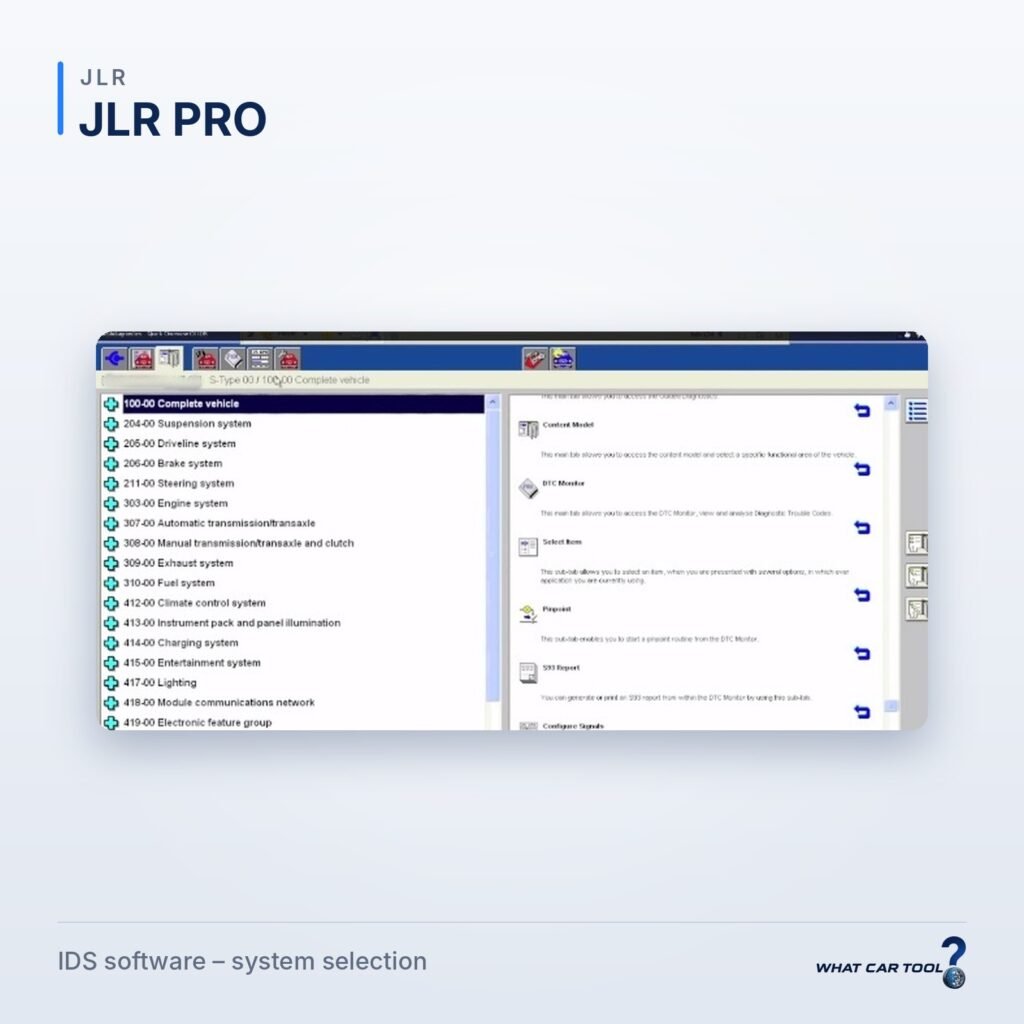

- IDS: the successor to WDS, used from about 2005 and for many older Jaguar and Land Rover models.

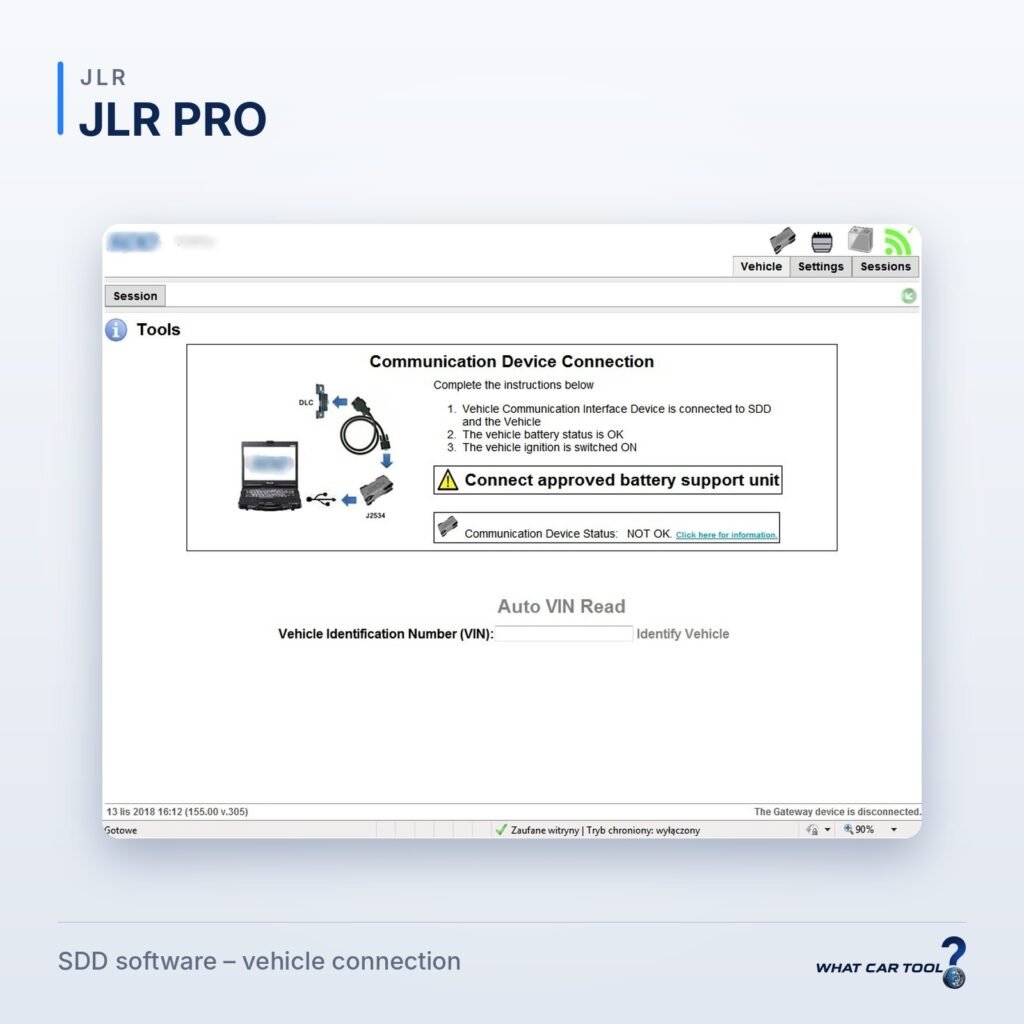

- SDD v131: the last offline SDD release (2012). It does not need an online TOPIx account and is the one to use for cars up to 2012.
- SDD v168: a later SDD version for cars up to about 2017. Some functions, such as module programming, may require an online account unless you already have your own calibration files.
Supported vehicles
The JLR PRO is intended for Jaguar and Land Rover models up to around the 2016-2017 model year. The compatibility list below names each model and year range, with a note on the software version to use. Newer vehicles that use DoIP, supported by JLR through its Pathfinder and TOPIx Cloud system, are not covered by this interface.
Functions and limits
Typical functions in SDD and IDS include reading and clearing fault codes, live data, actuator tests, service functions and module programming where the software allows it. The exact set of functions depends on the vehicle and the software version, so check the compatibility table and the disclosure on this page before you buy. Not sure whether it fits your car? Use the WhatCarTool device search to compare diagnostic tools by make, model and year, or ask other owners and workshops in the WhatCarTool community forum.
Technical details
Multi Languages:
English, Dutch, Spanish, Italian, Chinese, Korean, German, Portuguese, Russian, French, Japanese
Operation System:
Windows 7/Vista/8 and Windows 10/11 Pro (x32/64bit)
It doesn't work on Windows HOME version
2GB RAM or more.
Software Version:
Land Rover & Jaguar SDD PRO v168
FULL No time limitation = software will not expire
Latest Version - Activated with login & Password
For online codding/account you need to use your own details
The software comes with easy to follow VIDEO installation instruction.
Supported Vehicles:
168V works with Jaguar, Land/Range Rover 2005 - 2017
131V - this version is the last one which doesn't require online account and you can use programming functions offline. It covers Jaguar 1996-2012 and Land Rovers 2005 - 2012.
131V works only on XP Pro but if you don't have this old system then we can send you preinstalled version on VMware. Let us know if you need 131V.
We only sell high quality cables, which we check before shipping to our customers. Unfortunately, most sellers sell low-quality cables - (so consider beforehand whether you want to save money and follow the "buy cheap, buy twice" rule)
We are the only seller to supply not only the native 168v programme with the cable, but also the 131v native version (on XP pro) and a pre-installed version on VMware.
We are the only seller to provide video instructions of our production, showing in a very clear way how to install the 168v and 131v.
We are the only seller to supply the cable in a plastic box filled with foam for better cable protection.
We respond to all messages within a maximum of 24 hours (except Sundays) which is why we are so trusted on ebay.
Functions:
Fault Code Reading / Resetting analyzing for repairs
Service Lights
Read / Clear / Reset Air bag Light codes
Read / Clear / Reset ABS Light codes
Programming Modules (online account is required, or you can use 131v for cars up to 2012)
For more details please send me a message
Cable + Diagnostics SOFTWARE for Jaguar, Land Rover cars.
For Jaguar / Land Rover & Symptom Driven Diagnostic.
For JLR SDD Land Rover/Jaguar is a dealer diagnostic program for Land Rover/Jaguar.This software works with Land Rover/Range Rover since 2005 and Jaguars from 1995.It is enhanced WDS software that was modified to run on a standard laptop platform & utilizes the VCM and VMM. Moving program to a laptop helps technicians by integrating access to both diagnostics and service information on a single, powerful machine.
For the Jaguar, Land Rover Integrated Diagnostic System (IDS) the only equipment that provides complete diagnostic coverage of current and future Jaguar, Land Rover vehicles.
What comes with this set:
- For JLR PRO (full chip) cable.
- 168v software
- 131v (native + VMware version)
- CCF tool v4.6
- Video installation instruction
- Plastic box filled with foam
It is not dificult to install the software but if you don't have a basic computer skills then please do not buy it.
1. This is NOT Electronically delivered goods. This is a physical device send by a courier.
2. This is NOT all tuners device or software that can modify vehicle performance and it does not remap the ECU or ECM
3. This is NOT Mongoose device.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| For which vehicle | Cars |
| EAN number | 123456789 |
| Price (USD) | $90 – $125 |
| Connection with computer / tablet / phone | USB |
| Vehicle power supply system | 12V |
| Supported protocols | K-line, J2534 standard API passthru |
| Months of free updates | 12 |
| Subscription model (description) | 22 |
| Menu language | Chinese (Mandarin), Dutch, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish |
| Warranty (months) | 10 |
Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.
What this device covers
JLR is a Jaguar / Land Rover diagnostic and programming interface used with JLR dealer software: SDD (Symptom Driven Diagnostics) for cars from 2005 to 2017 (XJ up to 2019), and IDS / WDS for older Jaguars from 1995. Land Rover coverage starts in 2005.
Which software version you need
- Cars up to 2012: SDD v131. This is the last version that works fully offline, including module programming, with no JLR online account.
- Cars from 2013: SDD v168. Diagnostics, service resets and CCF configuration work without an account. Module programming, software updates and new-module setup officially need a JLR TOPIx programming subscription; owner forums report that they also work without an account when the calibration (VBF) and as-built files are stored locally. Key and security-module programming needs an online account plus Trust Center accreditation (or a purchased seed key).
- Jaguars before 2005: IDS (v118.5, v125.03 or v130-131 reported working on X300, X308, XK8, S-Type and X-Type).
Not covered
- Vehicles that use DoIP / Pathfinder: Range Rover L405, Range Rover Sport L494 and Discovery 5 from 2017, and every Jaguar and Land Rover from 2018 (Velar, E-Pace, I-Pace and others).
- Land Rover before 2005 (Defender Td5, Freelander 1, Discovery 1/2, Range Rover P38 and L322 2002-2005).
- Functions outside SDD/IDS: ADAS calibration, high-voltage battery diagnostics, oscilloscope, FCA AutoAuth.
Notes
Service functions (EPB, battery registration, DPF, air suspension and others) work only where the vehicle is equipped with them. The software version and online-account requirements come from JLR TOPIx and owner forums; there is no official JLR table of SDD v131 vs v168.
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Programming: ECU flashing / J2534 reprogramming, Offline programming
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, Key / fob programming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Programming: ECU flashing / J2534 reprogramming, Offline programming
Service reset: Throttle body adaptation
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, Key / fob programming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Programming: ECU flashing / J2534 reprogramming, Offline programming
Service reset: Throttle body adaptation
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, Key / fob programming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Offline programming
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Offline programming
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Programming: ECU flashing / J2534 reprogramming, Offline programming
Service reset: Throttle body adaptation
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, Key / fob programming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Offline programming
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Offline programming
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Offline programming
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Offline programming
Not for this vehicle: Freeze frame data, I/M readiness monitors, Topology scan / network map, Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test, Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Report export, Print / share, O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information, Live data graphing, ECU coding, Hidden features / retrofit coding, All keys lost, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Freeze frame data, I/M readiness monitors, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost, Key / fob programming
Programming: ECU flashing / J2534 reprogramming, ECU replacement / cloning, Software update / calibration update, Module initialization, Parameterization / variant coding file, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Online OE programming
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $, Offline programming
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test, Cooling fan test, A/C compressor test, EGR / throttle test, ABS pump / solenoid test, EPB motor test
Advanced Diagnostics: O2 sensor data, DTC lookup, Permanent DTC review, Voltage reading, Manufacturer-specific DTCs, Data logging / replay, Guided tests / Guided component tests, OEM repair information $, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, ECU information, Topology scan / network map
Key / immobilizer: All keys lost $, Key / fob programming $
Programming: ECU flashing / J2534 reprogramming $, ECU replacement / cloning $, Software update / calibration update $, Module initialization $, Parameterization / variant coding file, Online OE programming $
Reports: Report export, Print / share
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn, Injector coding, Airbag / SRS reset, Headlight / AFS calibration
Not for this vehicle: Offline programming
There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.
This is a JLR cable used to connect a Jaguar or Land Rover vehicle to a diagnostic computer. It allows you to read fault codes, view vehicle data, and use functions available in compatible software.
The cable is suitable for both professional workshops and independent diagnostics. Before purchasing, check that this version of the cable is compatible with your vehicle’s model and year, as well as the software you plan to use.
No topics were found here
