Embedra ONE

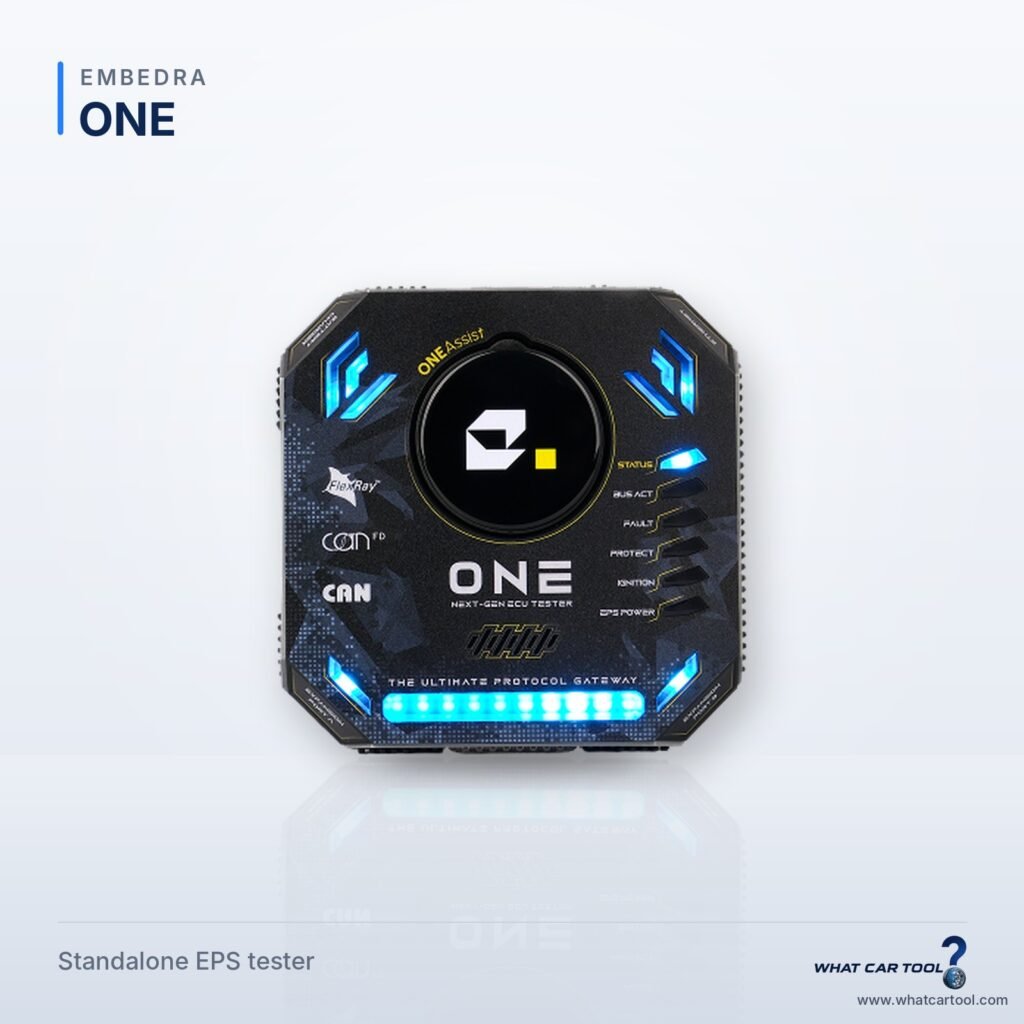

Embedra ONE eps tester front view

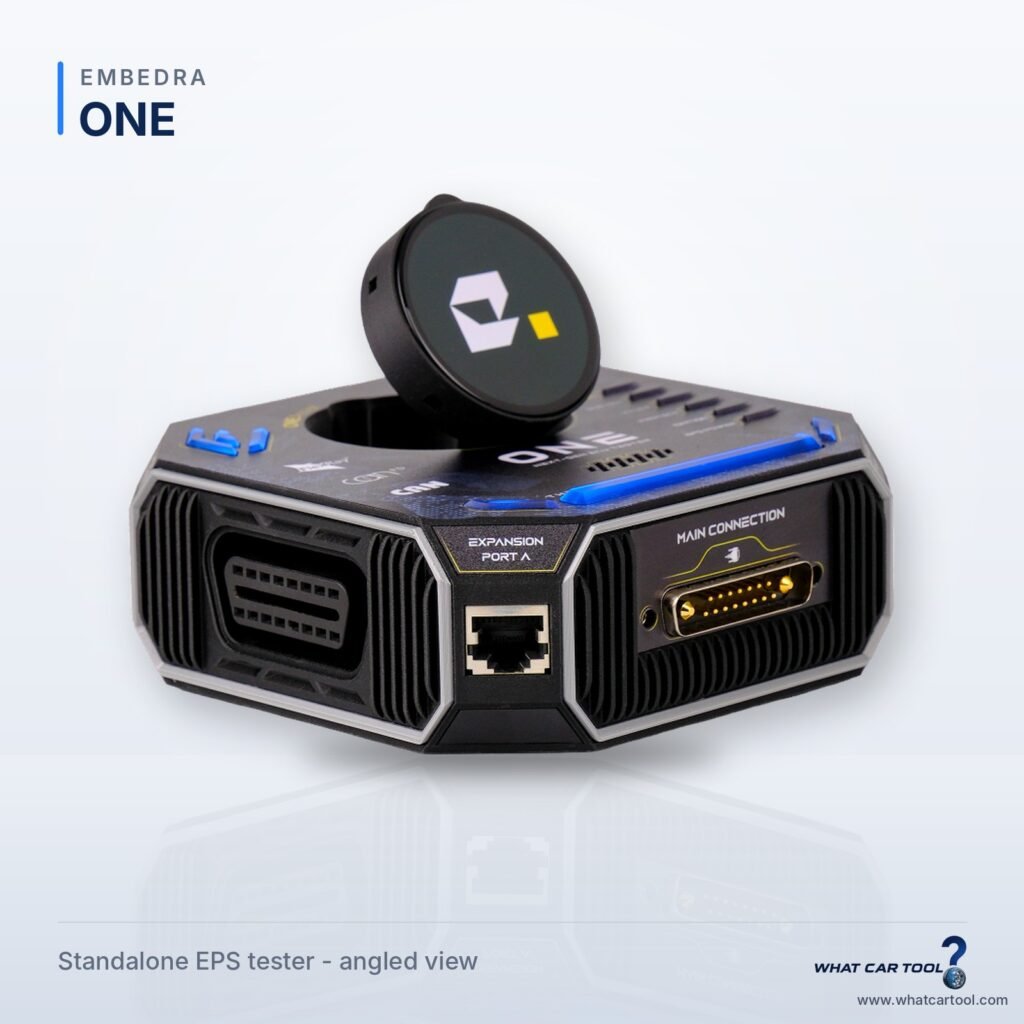

Embedra ONE eps tester front viewEmbedra ONE eps tester angled view studioEmbedra ONE eps tester dark studioEmbedra ONE eps tester bannerEmbedra ONE eps tester obd2 port studioEmbedra ONE eps tester main connection port studioEmbedra ONE eps tester touchscreen studioEmbedra ONE eps tester ethernet port studioEmbedra ONE eps tester status leds studio

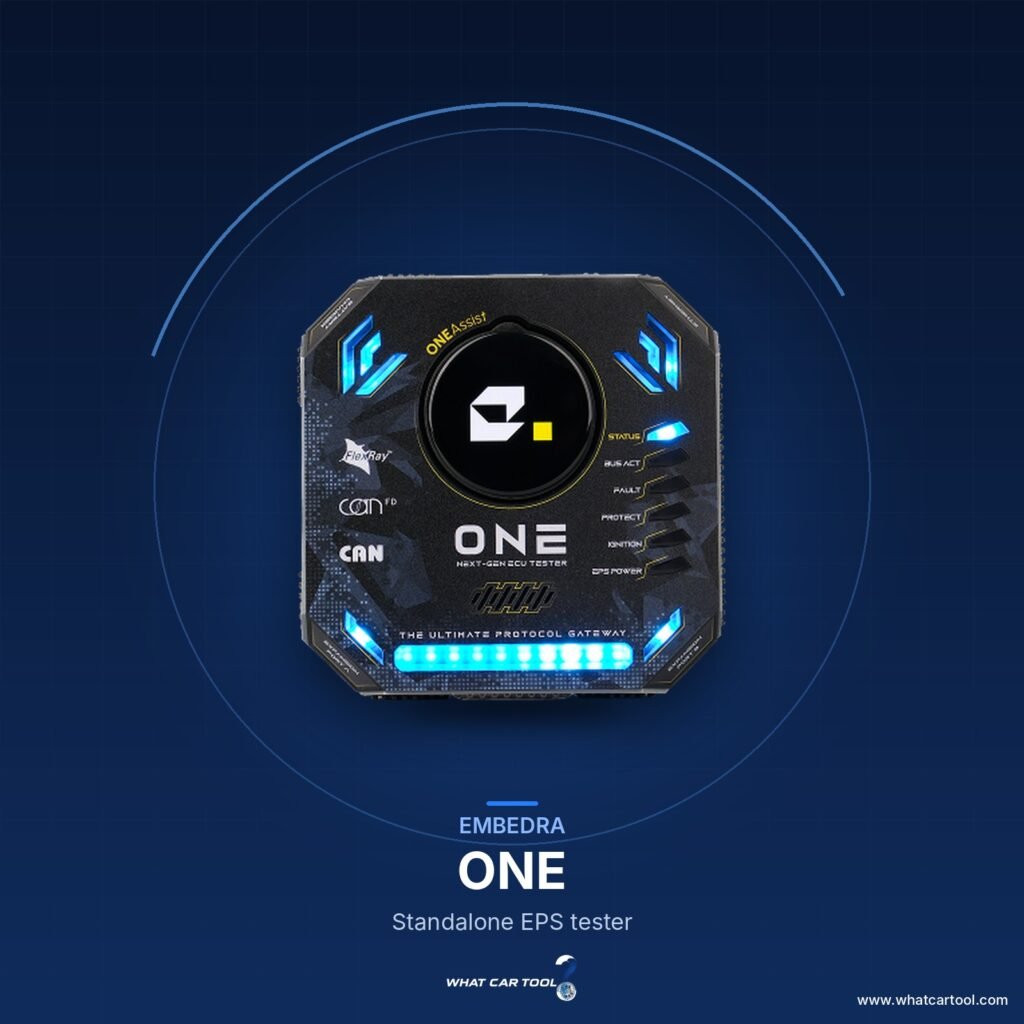

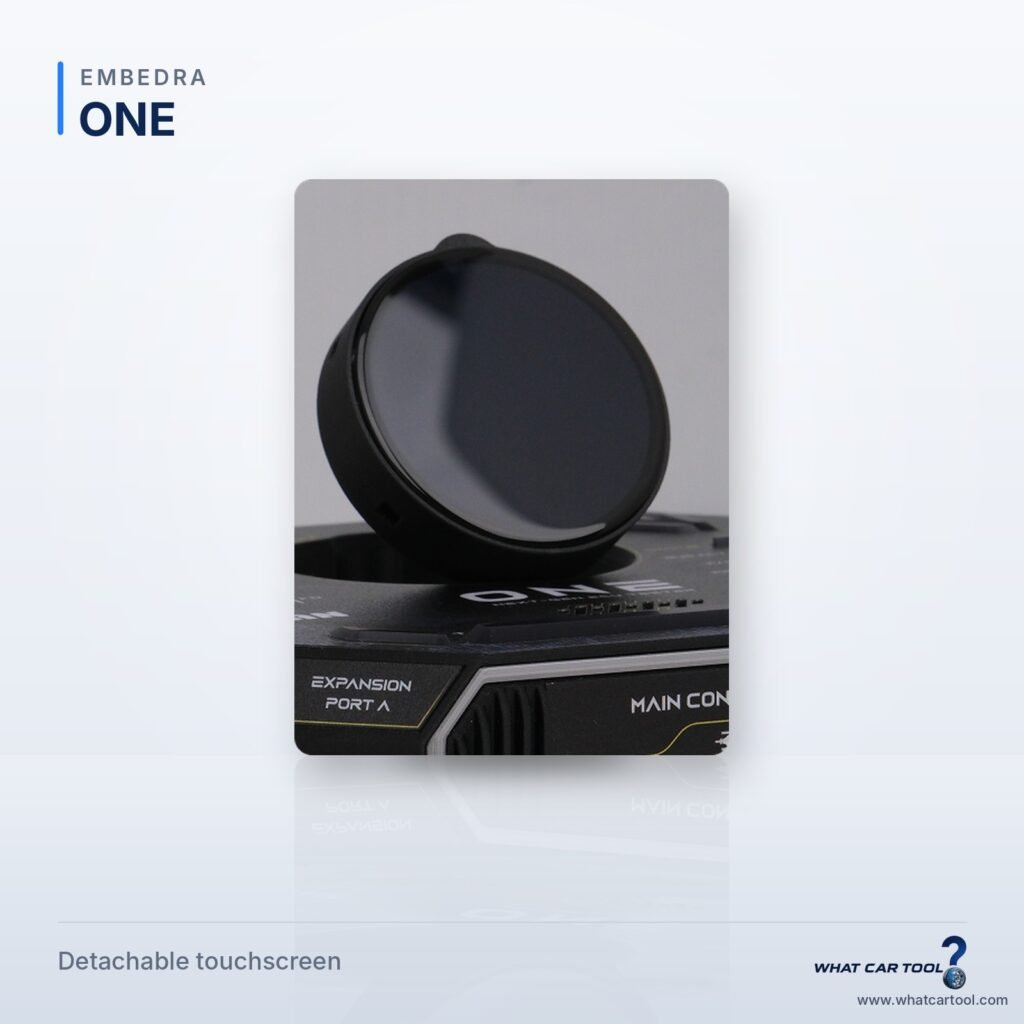

Standalone EPS tester with AMOLED touchscreen

Model code: ONE Manufacturer: Embedra

Device forumAsk questions & share experience

Description

Embedra ONE is a standalone bench tester for electric power steering (EPS) units, made to test, diagnose, flash and repair steering ECUs without leaving the workbench. Unlike the ONELite, it has a built-in AMOLED touchscreen with voice-command support that shows live voltage, current and connection status, so it can be used without a PC. It also connects to a computer over USB-C, Wi-Fi, Bluetooth or Ethernet. It delivers up to 100 A to power the steering unit on the bench and has built-in K-Line, CAN, CAN-FD and FlexRay communication, so no external protocol modules are needed. With the ONESuite desktop software (Windows, macOS) it reads live data, reads and clears fault codes, flashes and programs steering ECUs, runs brand- and model-specific special functions and creates test reports. ONESuite also includes ONEAssist, an AI assistant that analyses live ECU data and suggests repair steps. The manufacturer lists 50+ vehicle brands and adds new models with software updates. The device has an OBD-II port, a main diagnostic port, a 12 V battery connector, a pass-through charging port and two expansion (development) ports. In the box: the device, battery cable, USB-C cable, main diagnostic cable and a universal pin cable. Important: the device does not work without the ONESuite software, which is licensed per year in separate plans (Basic, Pro, Pro+, Premium, Enterprise). The licence is not included in the device price and the available functions depend on the plan. Technical data: dimensions 135 x 130 x 50 mm, weight 1 kg, carbon-fiber reinforced polymer enclosure, passive cooling through ventilation openings, 12-15 V DC input, maximum output current 100 A. The price shown is the manufacturer price converted from EUR (excl. VAT).

Specifications

Product typeDevice with pre-installed software (standalone)
OEM (Original Equipment Manufacturer) product? iNo
For which vehicleCars
Price (USD)$1,866 – $2,062
What programs does it work with?ONESuite (Embedra desktop software for Windows and macOS)
Connection with computer / tablet / phoneUSB, Bluetooth, Wi-Fi

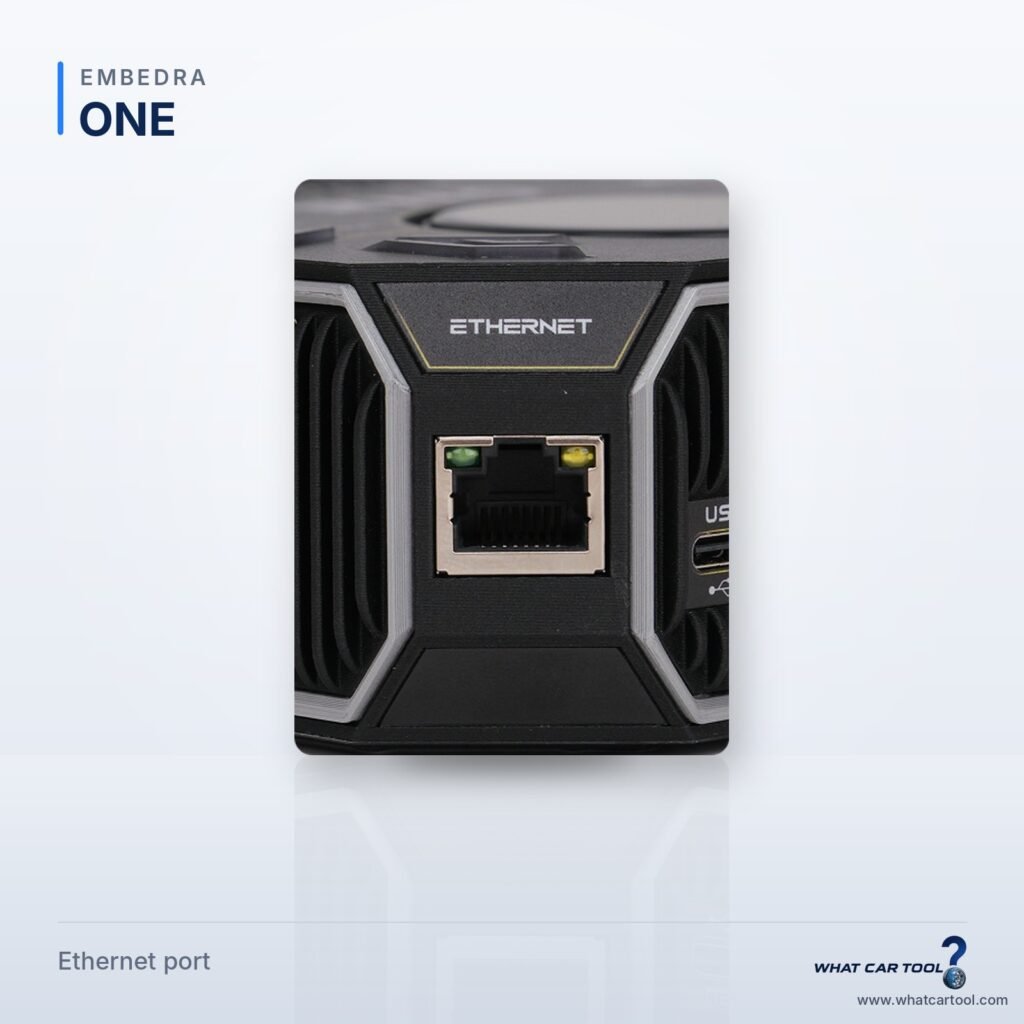

Other connection (details)Ethernet; USB-C connector
Vehicle power supply system12V
Supported protocolsK-line, CAN, CAN FD
Other protocols (details)FlexRay
Frequency of new updatesWith every ONESuite software update (new vehicles, functions and fixes)
Months of free updates12 (included while the annual ONESuite licence is active)
Annual cost (USD)ONESuite licence per year, excl. VAT: Basic EUR 750, Pro EUR 1,250, Pro+ EUR 1,800 (Premium and Enterprise on request)
Subscription model (description)Updates are delivered through ONESuite and are included in an active annual licence. Licences renew every year unless cancelled; the manufacturer offers a free 30-day freeze option.
Menu languageEnglish
Other language (details)Language list not published by the manufacturer
Warranty (months)12
Warranty details (optional)Minimum 1 year, varies by region (manufacturer)

Supported functions (12)

Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.

Actuation

  • Actuation / component test i

Coding / adaptation

  • ECU coding
    4 of 40 makes
    BMW, Ford, Opel, Volkswagen
    i $ optional
  • Adaptation (channels / values)
    1 of 40 makes
    Fiat
    i $ optional

Diagnostics

  • Read fault codes (DTC) i
  • Clear fault codes (DTC) i
  • Live data stream i

Programming

  • Software update / calibration update i
  • EEPROM read / write
    2 of 40 makes
    Ford, Volkswagen
    i $ optional
  • VIN write / programming
    3 of 40 makes
    BMW, Opel, Renault
    i $ optional
  • ECU / module virginization
    1 of 40 makes
    Renault
    i $ optional (Virginization with VIN read/write for Renault models (general Renault tool).)

Reports

  • Report export i

Service reset

  • Steering torque sensor calibration
    1 of 40 makes
    Ford
    i $ optional (Ranger EB/JB torque-sensor voltage calibration.)
Conditions for specific vehicles (273)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Alfa Romeo (2)
  • Giulietta
    Embedra lists: GIULIETTA (940) 2010 on, EPS rack, CAN
  • MiTo
    Embedra lists: MiTo (955) 2008-2018, EPS column, CAN
Audi (9)
  • A1
    Embedra lists: A1 (8X1) 2011-2018, EPS pump, CAN; A1 (8XA) 2011-2018, EPS column, CAN; A1 (GBA,GBH) 2019 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • A3
    Embedra lists: A3 (8P) 2003-2013, EPS rack, CAN; A3 (8PA) 2003-2013, EPS rack, CAN; A3 (8VA,V1) 2013 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • A4
    Embedra lists: A4 (8K) 2007-2015, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • A5
    Embedra lists: A5 (8T, 8F) 2007-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • A6
    Embedra lists: A6 (4G, 4X) 2011-2018, EPS rack, FlexRay Extras: VAG Universal Flasher (all compatible VAG group models).
  • Q3
    Embedra lists: Q3 (8U) 2012-2018, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Q5
    Embedra lists: Q5 (8R) 2008-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Q7
    Embedra lists: Q7 (4MB) 2016 on, EPS rack, FlexRay Extras: VAG Universal Flasher (all compatible VAG group models).
  • TT
    Embedra lists: TT (8J3) 2006-2014, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
BMW (9)
  • 2 series
    Embedra lists: 2 Series (F22,F23) 2014 on, EPS rack, FlexRay
  • 2 series Active Tourer
    Embedra lists: 2 Series AT (F45,F46) 2014 on, EPS rack, FlexRay
  • 4 series
    Embedra lists: 4 Series (F32,33,36,82,83) 2013 on, EPS rack, FlexRay
  • X1
    Embedra lists: X1 (F48) 2014 on, EPS rack, FlexRay
  • X2
    Embedra lists: X2 (F39) 2018 on, EPS rack, FlexRay
  • X5
    Embedra lists: X5 (F15,F85) 2013 on, EPS rack, FlexRay
  • Z4
    Embedra lists: Z4 (E85, E86) 2003-2009, EPS rack, CAN
  • 3 series
    Embedra lists: 3 Series (E90) 2005-2013, EPS rack, CAN; 3 Series (F30, F31, F80) 2011 on, EPS rack, FlexRay; 3 Series (G20,G21,G28) 2019 on, EPS rack, FlexRay Extras: BMW F-Series VIN modification (F10/F30 units); BMW F-Series coding (F10/F30 units).
  • 5 series
    Embedra lists: 5 Series (F10, F11, F18) 2010-2016, EPS rack, FlexRay Extras: BMW F-Series VIN modification (F10/F30 units); BMW F-Series coding (F10/F30 units).
Chevrolet (7)
  • Aveo
    Embedra lists: AVEO (T300) 2012-2015, EPS column, CAN
  • Camaro
    Embedra lists: CAMARO 2015 on, EPS rack, CAN
  • Colorado
    Embedra lists: COLORADO 2015 on, EPS rack, CAN
  • Cruze
    Embedra lists: CRUZE 2012 on, EPS rack, CAN
  • Equinox
    Embedra lists: EQUINOX 2009-2017, EPS rack, CAN
  • Malibu
    Embedra lists: MALIBU 2012 on, EPS rack, CAN
  • Silverado
    Embedra lists: SILVERADO 1500 MKIII 2007-2014, EPS rack, CAN
Chrysler (1)
  • 300C
    Embedra lists: 300 C 2011 on, EPS rack, CAN
Citroen (10)
  • Berlingo
    Embedra lists: BERLINGO II (B9) 2008-2018, EPS pump, CAN; BERLINGO III (K9) 2019 on, EPS rack, CAN
  • C-Elysee
    Embedra lists: C-ELYSEE (M43) 2013 on, EPS pump, CAN
  • C3
    Embedra lists: C3 (B618) 2016 on, EPS rack, CAN; C3 (FC) 2002-2009, EPS rack, CAN; C3 II (SC) 2009-2016, EPS rack, CAN
  • C4
    Embedra lists: C4 (B71) 2010-2018, EPS pump, CAN
  • C4 Cactus
    Embedra lists: C4 CACTUS (E3) 2014 on, EPS rack, CAN
  • C4 Picasso
    Embedra lists: C4 PICASSO (B58) 2006-2013, EPS pump, CAN; C4 PICASSO (B78) 2010-2018, EPS rack, CAN
  • C8
    Embedra lists: C8 (VV) 2002-2014, EPS pump, CAN
  • DS4
    Embedra lists: DS4 (B75,NX) 2011-2015, EPS pump, CAN
  • DS5
    Embedra lists: DS5 (KD,KF) 2011-2015, EPS pump, CAN
  • Jumpy
    Embedra lists: JUMPY III (G9) 2006-2015, EPS pump, CAN
Dacia (3)
  • Duster
    Embedra lists: DUSTER (XJD) 2017-2021, EPS column, CAN
  • Logan
    Embedra lists: LOGAN II 2013-2021, EPS pump, CAN
  • Sandero
    Embedra lists: SANDERO II 2012-2018, EPS pump, CAN
Daihatsu (1)
  • Sirion
    Embedra lists: SIRION 2 (M3) 2005-2011, EPS column, K-Line
Dodge (2)
  • Charger
    Embedra lists: Charger (V1) 2010-2017, EPS pump, CAN; Charger (V2) 2010-2017, EPS rack, CAN
  • Ram
    Embedra lists: RAM 2008 on, EPS rack, CAN; RAM V2 2008-2024, EPS rack, CAN
Fiat (13)
  • 124 Spider
    Embedra lists: 124 SPIDER 2016 on, EPS column, CAN
  • 500
    Embedra lists: 500 (312) 2007 on, EPS column, CAN
  • 500L
    Embedra lists: 500L (330) 2012 on, EPS column, CAN
  • 500X
    Embedra lists: 500X (334) 2015 on, EPS column, CAN
  • Bravo
    Embedra lists: BRAVO (198) 2007-2014, EPS column, CAN
  • Grande Punto
    Embedra lists: GRANDE PUNTO (199) 2006-2012, EPS column, CAN
  • Idea
    Embedra lists: IDEA (135) 2004-2012, EPS column, CAN
  • Panda
    Embedra lists: PANDA (169) V1 2003-2012, EPS column, CAN; PANDA (169) V2 2003-2012, EPS column, CAN; PANDA (312,319) 2012 on, EPS column, CAN
  • Punto
    Embedra lists: PUNTO (188) 2000-2012, EPS column, CAN; PUNTO (188) V2 2000-2012, EPS column, CAN; PUNTO (188) V3 2000-2012, EPS column, CAN; PUNTO (188) V4 2000-2012, EPS column, CAN; PUNTO EVO (199) 2009 on, EPS column, CAN
  • Scudo
    Embedra lists: SCUDO (272) 2007-2016, EPS pump, CAN
  • Stilo
    Embedra lists: STILO (192) 2001-2008, EPS column, CAN
  • Ulysse
    Embedra lists: ULYSSE (179) 2002-2011, EPS pump, CAN
  • Tipo
    Embedra lists: TIPO EGEA (356,357) 2016 on, EPS column, CAN Extras: Egea/Tipo proxy calibration (adapts the steering unit to the vehicle); Egea C1009 fault erase.
Ford (24)
  • B-MAX
    Embedra lists: B-MAX (JK) 2012-2017, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • C-Max
    Embedra lists: C-MAX (DM2) 2003-2011, EPS pump, CAN; C-MAX II (DXA) 2010-2014, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • EcoSport
    Embedra lists: ECOSPORT 2012 on, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Edge
    Embedra lists: EDGE 2016 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Explorer
    Embedra lists: EXPLORER 2015 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • F-150
    Embedra lists: F-150 2010-2015, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Fiesta
    Embedra lists: FIESTA MK VI 2008-2012, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Fusion
    Embedra lists: FUSION MK I 2002-2012, EPS pump, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Galaxy
    Embedra lists: GALAXY MK3 2006-2015, EPS pump, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Ka
    Embedra lists: KA 2008-2016, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Mondeo
    Embedra lists: MONDEO MK IV 2007-2014, EPS pump, CAN; MONDEO MK V 2014 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Mustang
    Embedra lists: MUSTANG 2010-2017, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • S-Max
    Embedra lists: S-MAX (CJ) 2015 on, EPS rack, CAN; S-MAX (WA6) 2006-2015, EPS pump, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Taurus
    Embedra lists: TAURUS 2012 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Tourneo Connect
    Embedra lists: TOURNEO CONN. (83) 2013 on, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Transit Connect
    Embedra lists: TRANSIT CONNECT MK II 2011-2015, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Tourneo Courier
    Embedra lists: TRANSIT COURIER (83) 2014 on, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Transit Custom
    Embedra lists: TRANSIT CUSTOM (80) 2013-2024, EPS rack, CAN; TRANSIT CUSTOM MK IV 2024 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Focus 2 generation, Focus 2 generation [restyling]
    Embedra lists: FOCUS MK II 2004-2012. Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Focus 4 generation
    Embedra lists: FOCUS MK IV 2019 on. Supported for model years 2019–2022 only (generation built 2018–2022). Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Focus 4 generation [restyling]
    Embedra lists: FOCUS MK IV 2019 on. Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Ranger
    Embedra lists: RANGER 2011 on, EPS rack, CAN; RANGER IV 2022 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool); Ranger EB/JB EEPROM read/write and torque-sensor voltage calibration.
  • Focus 3 generation
    Embedra lists: FOCUS MK III 2011-2015. Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool); Focus Mk3 EEPROM read/write (U3000 fix).
  • Focus 3 generation [restyling]
    Embedra lists: FOCUS MK III 2011-2015. Supported for model years 2014–2015 only (generation built 2014–2019). Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool); Focus Mk3 EEPROM read/write (U3000 fix).
GMC (3)
  • Sierra
    Embedra lists: SIERRA 2007-2014, EPS rack, CAN
  • Terrain
    Embedra lists: TERRAIN 2009 on, EPS rack, CAN
  • Yukon
    Embedra lists: YUKON 2007-2014, EPS rack, CAN
Honda (4)
  • Accord
    Embedra lists: ACCORD IX 2013 on, EPS rack, CAN
  • Civic
    Embedra lists: CIVIC 2000-2012, EPS rack, CAN; CIVIC VIII (FN,FK) 2006 on, EPS rack, CAN; CIVIC X 2016 on, EPS rack, CAN
  • CR-V
    Embedra lists: CR-V III (RE) 2007-2012, EPS rack, CAN
  • Jazz
    Embedra lists: JAZZ III (GE) 2008 on, EPS rack, CAN
Hyundai (13)
  • Accent
    Embedra lists: ACCENT (RB) 2010 on, EPS column, CAN; ACCENT ERA (MC) 2006-2011, EPS column, K-Line
  • Elantra
    Embedra lists: ELANTRA V (MD,JK) 2012-2016, EPS column, CAN
  • Genesis
    Embedra lists: GENESIS (DH) 2014 on, EPS rack, CAN
  • Getz
    Embedra lists: GETZ (TB) 2003-2011, EPS column, CAN
  • i10
    Embedra lists: I10 (IA) 2014 on, EPS column, CAN; I10 (PA) 2008-2013, EPS column, CAN
  • i20
    Embedra lists: I20 (GB) 2015 on, EPS column, CAN; I20 (PB) 2009-2014, EPS column, CAN
  • i30
    Embedra lists: I30 (FD) 2007-2011, EPS column, CAN
  • i40
    Embedra lists: I40 (VF) 2012-2019, EPS column, CAN
  • ix20
    Embedra lists: IX20 (JC) 2010 on, EPS column, CAN
  • ix35
    Embedra lists: IX35 - TUCSON (LM) 2009 on, EPS column, CAN
  • Sonata
    Embedra lists: SONATA VI 2011-2019, EPS rack, CAN
  • Tucson
    Embedra lists: TUCSON (TLE) 2015-2020, EPS rack, CAN
  • Veloster
    Embedra lists: VELOSTER (FS) 2011-2017, EPS column, CAN
IVECO (1)
  • Daily
    Embedra lists: DAILY 2019 on, EPS rack, CAN
Jaguar (5)
  • E-Pace
    Embedra lists: E-PACE 2017 on, EPS rack, CAN
  • F-Pace
    Embedra lists: F-PACE 2015 on, EPS rack, CAN
  • I-Pace
    Embedra lists: I-PACE 2018 on, EPS rack, CAN
  • XE
    Embedra lists: XE 2015 on, EPS rack, CAN
  • XF
    Embedra lists: XF 2015 on, EPS rack, CAN
Jeep (2)
  • Grand Cherokee
    Embedra lists: GRAND CHEROKEE 2011 on, EPS rack, CAN; GRAND CHEROKEE (WK2) 2011 on, EPS pump, CAN
  • Renegade
    Embedra lists: RENEGADE (BU) 2014 on, EPS column, CAN
Kia (8)
  • Carens
    Embedra lists: CARENS IV 2013 on, EPS column, CAN
  • Ceed
    Embedra lists: CEED (JD) 2012-2017, EPS column, CAN
  • Optima
    Embedra lists: OPTIMA 2010 on, EPS column, CAN
  • Picanto
    Embedra lists: PICANTO (JA) 2017 on, EPS column, CAN
  • Rio
    Embedra lists: RIO III (UB,QBR) 2011-2018, EPS column, CAN; RIO IV (YB,FB) 2017 on, EPS column, CAN
  • Soul
    Embedra lists: SOUL (PS) 2014 on, EPS column, CAN
  • Sportage
    Embedra lists: SPORTAGE (QL) 2015-2021, EPS rack, CAN
  • Venga
    Embedra lists: VENGA (YN) 2010 on, EPS column, CAN
Lancia (2)
  • Phedra
    Embedra lists: PHEDRA (180) 2002-2011, EPS pump, CAN
  • Ypsilon
    Embedra lists: YPSILON (101) 2003-2011, EPS column, CAN
Land Rover (3)
  • Discovery Sport
    Embedra lists: DISCOVERY SPORT (L550) 2015 on, EPS rack, CAN
  • Range Rover Evoque
    Embedra lists: EVOQUE (BJ32) 2011 on, EPS rack, CAN; EVOQUE (L538) 2012-2018, EPS rack, CAN
  • Range Rover Velar
    Embedra lists: VELAR 2018 on, EPS rack, CAN
Lexus (6)
  • CT
    Embedra lists: CT (ZWA1) 2010 on, EPS rack, CAN
  • GS
    Embedra lists: GS (GR19) 2005-2013, EPS rack, CAN
  • IS
    Embedra lists: IS II (GSE2) 2005-2013, EPS rack, CAN; IS III (GSE3) 2013 on, EPS rack, CAN
  • LS
    Embedra lists: LS (UVF4) 2006 on, EPS rack, CAN
  • NX
    Embedra lists: NX (ZGZ1) 2014 on, EPS rack, CAN
  • RX
    Embedra lists: RX (GYL1) 2008-2015, EPS rack, CAN
Lincoln (1)
  • MKZ
    Embedra lists: MKZ 2012-2020, EPS rack, CAN
Mazda (3)
  • 6
    Embedra lists: 6 ATENZA (GH) 2007-2013, EPS rack, CAN
  • CX-7
    Embedra lists: CX 7 2009-2014, EPS pump, CAN
  • 3
    Embedra lists: MAZDA 3 (BL) 2009-2014, EPS pump, CAN
Mercedes-Benz (9)
  • A-Class
    Embedra lists: A Class (W169) 2005-2012, EPS rack, CAN; A Class (W176) 2012-2018, EPS rack, CAN
  • B-Class
    Embedra lists: B Class (W242, W246) 2011-2018, EPS rack, CAN
  • C-Class
    Embedra lists: C Class (W204) 2007-2014, EPS rack, CAN; C Class (W205) 2013-2018, EPS rack, CAN
  • CLA
    Embedra lists: CLA (C117, X117) 2013-2019, EPS rack, CAN
  • CLS
    Embedra lists: CLS (C218) 2010-2017, EPS rack, CAN
  • E-Class
    Embedra lists: E Class (W207) 2009-2016, EPS rack, CAN; E Class (W212) 2009-2016, EPS rack, CAN; E CLASS (W213) 2016 on, EPS rack, FlexRay
  • GLA
    Embedra lists: GLA (X156) 2014-2019, EPS rack, CAN
  • M-Class
    Embedra lists: M Class (W164) 2005-2011, EPS pump, CAN; M Class (W221) 2009-2013, EPS pump, CAN
  • V-Class
    Embedra lists: V Class (W447,448,640) 2014-2018, EPS rack, CAN
Mini (3)
  • Clubman
    Embedra lists: ClubMan (F54) 2015 on, EPS rack, FlexRay
  • Countryman
    Embedra lists: CountryMan (F60) 2017 on, EPS rack, FlexRay; CountryMan (R60) 2010-2016, EPS rack, CAN
  • Hatch
    Embedra lists: MINI ONE (F55, F56) 2014 on, EPS rack, FlexRay
Mitsubishi (3)
  • ASX
    Embedra lists: ASX (GA) 2010 on, EPS column, CAN
  • Colt
    Embedra lists: COLT (Z30, Z20) 2004-2013, EPS rack, CAN
  • Lancer
    Embedra lists: LANCER X 2008 on, EPS rack, CAN
Nissan (6)
  • Altima
    Embedra lists: ALTIMA (L33) 2012 on, EPS pump, CAN
  • Juke
    Embedra lists: JUKE (F15) 2010 on, EPS pump, CAN
  • Micra
    Embedra lists: MICRA (K12) 2002-2011, EPS column, CAN
  • Note
    Embedra lists: NOTE (E11) 2006-2012, EPS column, CAN
  • NV200
    Embedra lists: NV200 2010 on, EPS column, CAN
  • Qashqai
    Embedra lists: QASHQAI (J11) 2014 on, EPS column, CAN; QASHQAI (J12) 2021 on, EPS rack, CAN
Opel (14)
  • Corsa
    Embedra lists: CORSA B (S93) 1993-2000, EPS column, K-Line; CORSA C (X01) 2001-2006, EPS column, K-Line; Corsa D (S07) 2007-2014, EPS column, CAN; CORSA E (X15) 2015 on, EPS column, CAN
  • Crossland X
    Embedra lists: CROSSLAND X (P17) 2017 on, EPS rack, CAN
  • Grandland
    Embedra lists: GRANDLAND (XA18) 2017 on, EPS rack, CAN
  • Insignia
    Embedra lists: INSIGNIA B 2017 on, EPS rack, CAN
  • Meriva
    Embedra lists: MERIVA A (X03) V1 2003-2010, EPS column, K-Line; MERIVA A (X03) V2 2003-2010, EPS column, K-Line; MERIVA B (S10) 2010-2017, EPS pump, CAN
  • Mokka
    Embedra lists: MOKKA (J13) 2012 on, EPS column, CAN
  • Movano
    Embedra lists: MOVANO B (X62) 2010 on, EPS pump, CAN
  • Vivaro
    Embedra lists: VIVARO B (X82) 2015-2018, EPS pump, CAN
  • Zafira
    Embedra lists: ZAFIRA B (A05) 2005-2014, EPS pump, CAN
  • Combo C, Combo C [restyling]
    Embedra lists: COMBO C (X01) 2001-2011.
  • Combo E
    Embedra lists: COMBO E (X19) 2019 on. Supported for model years 2019–2024 only (generation built 2018–2024).
  • Combo E [restyling]
    Embedra lists: COMBO E (X19) 2019 on.
  • Vectra
    Embedra lists: VECTRA C (Z02) 2002-2008, EPS pump, CAN Extras: Vectra C pump coding (angle sensor on/off).
  • Astra
    Embedra lists: ASTRA H (CLAS III) 2004-2012, EPS pump, CAN; ASTRA J (P10) 2010-2017, EPS rack, CAN; ASTRA K (B16) 2016 on, EPS rack, CAN Extras: Astra J VIN rewrite after steering rack replacement.
Peugeot (13)
  • 2008
    Embedra lists: 2008 (A94) 2013 on, EPS rack, CAN
  • 207
    Embedra lists: 207 (A7) 2006-2014, EPS rack, CAN
  • 208
    Embedra lists: 208 (A90, A91) 2012 on, EPS rack, CAN
  • 3008
    Embedra lists: 3008 (P84) 2016 on, EPS rack, CAN; 3008 (T84) 2009-2016, EPS pump, CAN
  • 301
    Embedra lists: 301 (M33) 2012 on, EPS rack, CAN
  • 308
    Embedra lists: 308 (T7) 2007-2013, EPS pump, CAN; 308 (T9) 2013 on, EPS rack, CAN
  • 407
    Embedra lists: 407 (D2) 2004-2012, EPS pump, CAN
  • 5008
    Embedra lists: 5008 (P87) 2016 on, EPS rack, CAN; 5008 (T87) 2009-2016, EPS pump, CAN
  • 807
    Embedra lists: 807 (VV) 2002-2014, EPS pump, CAN
  • Expert
    Embedra lists: EXPERT III (G9) 2007-2015, EPS pump, CAN
  • Partner
    Embedra lists: PARTNER (B9) 2008 on, EPS pump, CAN; PARTNER (K9) 2019 on, EPS rack, CAN
  • RCZ
    Embedra lists: RCZ (T75) 2010-2015, EPS pump, CAN
  • Rifter
    Embedra lists: RIFTER (K9) 2018 on, EPS rack, CAN
Porsche (5)
  • Boxster
    Embedra lists: BOXSTER 2012 on, EPS rack, CAN
  • Cayenne
    Embedra lists: Cayenne (9YA) 2018 on, EPS rack, CAN
  • Cayman
    Embedra lists: CAYMAN 2012 on, EPS rack, CAN
  • Macan
    Embedra lists: Macan (95B) 2014 on, EPS rack, CAN Extras: Macan (95B) special flash.
  • Panamera
    Embedra lists: PANAMERA 2012 on, EPS pump, CAN; Panamera (971) 2017 on, EPS rack, CAN
Renault (11)
  • Clio
    Embedra lists: CLIO III (X85) 2005-2013, EPS column, CAN; CLIO IV (X98) 2013-2019, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Fluence
    Embedra lists: FLUENCE (X38) 2010-2015, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Kangoo
    Embedra lists: KANGOO II (X61) 2008 on, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Laguna
    Embedra lists: LAGUNA III (X91) 2007-2015, EPS pump, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Master
    Embedra lists: MASTER IV 2010 on, EPS pump, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Megane
    Embedra lists: MEGANE II (X84) 2002-2010, EPS column, CAN; MEGANE III (X95) 2008-2016, EPS column, CAN; MEGANE IV (205HP) 2016 on, EPS rack, CAN; MEGANE IV (XFB,XFF) 2016 on, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Modus
    Embedra lists: MODUS (X77) 2008-2016, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Scenic
    Embedra lists: SCENIC II (X84) 2003-2010, EPS column, CAN; SCENIC III (X95) 2009-2016, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Talisman
    Embedra lists: TALISMAN (XFD) 2016 on, EPS rack, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Trafic
    Embedra lists: TRAFIC III (X82) 2014 on, EPS pump, CAN; TRAFIC III (X82) V2 2014 on, EPS pump, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
  • Twingo
    Embedra lists: TWINGO III (AH) 2014-2021, EPS rack, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
SEAT (16)
  • Alhambra
    Embedra lists: ALHAMBRA (71,711) 2011-2020, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Altea
    Embedra lists: ALTEA (5P1) 2004-2015, EPS rack, CAN; ALTEA (XL 5P5) 2004-2015, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Arona
    Embedra lists: ARONA (KJ7) 2018 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ateca
    Embedra lists: ATECA (KH7) V1 2017 on, EPS rack, CAN; ATECA (KH7) V2 2017 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Cordoba
    Embedra lists: CORDOBA (6L2) 2003-2010, EPS pump, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Leon
    Embedra lists: LEON II (1P1) 2006-2013, EPS rack, CAN; LEON II (1P2) 2006-2013, EPS rack, CAN; LEON III (5F1) 2013 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Mii
    Embedra lists: Mii (KF) 2012-2019, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ibiza 3 generation
    Embedra lists: IBIZA (6L1) 2002-2009. Supported for model years 2002–2008 only (generation built 2001–2008). Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ibiza 3 generation [restyling]
    Embedra lists: IBIZA (6L1) 2002-2009. Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ibiza 4 generation
    Embedra lists: IBIZA (6L1) 2002-2009; IBIZA (6P,6J) 2008-2015. Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ibiza 4 generation [restyling]
    Embedra lists: IBIZA (6P,6J) 2008-2015. Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ibiza 4 generation [2th restyling]
    Embedra lists: IBIZA (6P,6J) 2008-2015. Supported for model years 2015–2015 only (generation built 2015–2017). Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ibiza 5 generation
    Embedra lists: IBIZA (KJ1) 2018 on. Supported for model years 2018–2021 only (generation built 2017–2021). Extras: VAG Universal Flasher (all compatible VAG group models).
  • Ibiza 5 generation [2th restyling], Ibiza 5 generation [restyling]
    Embedra lists: IBIZA (KJ1) 2018 on. Extras: VAG Universal Flasher (all compatible VAG group models).
  • Toledo 3 generation
    Embedra lists: TOLEDO III (5P2) 2005-2010. Supported for model years 2005–2009 only (generation built 2004–2009). Extras: VAG Universal Flasher (all compatible VAG group models).
  • Toledo 4 generation
    Embedra lists: TOLEDO (KG3) 2013-2019. Supported for model years 2013–2019 only (generation built 2012–2019). Extras: VAG Universal Flasher (all compatible VAG group models).
Skoda (10)
  • Citigo
    Embedra lists: CITIGO (NF) 2012-2019, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Fabia
    Embedra lists: FABIA I (6Y2) 2000-2008, EPS pump, CAN; FABIA II (542) 2007-2015, EPS pump, CAN; FABIA III (NJ) 2015 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Kamiq
    Embedra lists: KAMIQ (NW) 2015 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Karoq
    Embedra lists: KAROQ (NU7) 2017 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Kodiaq
    Embedra lists: KODIAQ (NS7) 2017 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Octavia
    Embedra lists: OCTAVIA II (1Z3) 2004-2013, EPS rack, CAN; OCTAVIA II (1Z5) 2004-2013, EPS rack, CAN; OCTAVIA III (5E3) 2013 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Rapid
    Embedra lists: RAPID (NH) 2013 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Roomster
    Embedra lists: ROOMSTER (5J7) 2006-2015, EPS pump, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Superb
    Embedra lists: SUPER B (3T5) 2008-2015, EPS rack, CAN; SUPER B (3V3,5) 2015 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Yeti
    Embedra lists: YETI (5L) 2010-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
Smart (1)
  • Forfour
    Embedra lists: FORFOUR (453) 2014 on, EPS rack, CAN
Subaru (3)
  • Forester
    Embedra lists: FORESTER (SH, S4) 2008-2013, EPS rack, CAN; Forester (SJ, S4) 2013-2018, EPS rack, CAN
  • Impreza
    Embedra lists: IMPREZA (GR,GH,G3) 2009 on, EPS rack, CAN
  • Legacy
    Embedra lists: LEGACY VI (BN,BS) 2015-2020, EPS rack, CAN
Suzuki (3)
  • Baleno
    Embedra lists: BALENO (A1K) 2015 on, EPS column, CAN
  • Swift
    Embedra lists: SWIFT (AZC) 2017 on, EPS column, CAN; SWIFT (AZG) 2010-2017, EPS column, CAN
  • Vitara
    Embedra lists: VITARA - ESCUDO (APK) 2015 on, EPS column, CAN
Tesla (3)
  • Model S
    Embedra lists: MODEL S 2016 on, EPS rack, CAN; MODEL S (EJ) 2012-2016, EPS rack, CAN
  • Model X
    Embedra lists: MODEL X 2013-2016, EPS rack, CAN
  • Model Y
    Embedra lists: MODEL Y 2016-2021, EPS rack, CAN
Toyota (14)
  • Auris
    Embedra lists: AURIS 2007-2012, EPS column, CAN
  • Avensis
    Embedra lists: AVENSIS (T27) 2008-2018, EPS column, CAN
  • Aygo
    Embedra lists: AYGO (PAB4,KGB4) 2014 on, EPS column, CAN; AYGO (WNB1, KGB1) 2005-2014, EPS column, CAN
  • Camry
    Embedra lists: CAMRY (V7, VA7, VH7) 2017 on, EPS rack, CAN; CAMRY (XV5) 2011-2017, EPS column, CAN
  • Corolla
    Embedra lists: COROLLA (E18) 2013-2019, EPS column, CAN
  • GT 86, GT86
    Embedra lists: GT86 (ZN6) 2012 on, EPS column, CAN
  • Highlander
    Embedra lists: HIGHLANDER (GSU5, ASU5) 2013 on, EPS column, CAN; HIGHLANDER (MHU4, GSU4, ASU4) 2007-2014, EPS column, CAN
  • iQ
    Embedra lists: IQ 2009-2015, EPS column, CAN
  • Kluger
    Embedra lists: KLUGER 2007 on, EPS column, CAN
  • Prius
    Embedra lists: PRIUS 2009 on, EPS column, CAN
  • RAV4
    Embedra lists: RAV 4 III 2005-2012, EPS column, CAN; RAV 4 IV 2012-2018, EPS column, CAN; RAV 4 V 2019 on, EPS rack, CAN
  • Venza
    Embedra lists: VENZA 2008-2016, EPS column, CAN
  • Verso
    Embedra lists: VERSO 2009-2018, EPS column, CAN
  • Yaris
    Embedra lists: YARIS (NLP13, NSP13, NCP13, KSP13) 2011 on, EPS column, CAN; YARIS (SCP9, NSP9, KSP9, NCP9, ZSP9) 2006-2011, EPS column, CAN
Volkswagen (18)
  • Caddy
    Embedra lists: Caddy (2K,2C,9H) 2004-2015, EPS rack, CAN; Caddy (SA) 2016 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Passat CC
    Embedra lists: CC (358) 2012-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Crafter
    Embedra lists: CRAFTER (SY,SZ) 2017 on, EPS rack, CAN Extras: Crafter special flash / VAG Universal Flasher (all compatible VAG group models).
  • Eos
    Embedra lists: EOS (1F) 2006-2015, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Fox
    Embedra lists: FOX (5Z) 2004-2011, EPS pump, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Golf Sportsvan
    Embedra lists: GOLF SVAN (AM,AN) 2014 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Jetta
    Embedra lists: JETTA V (1K2) 2005-2010, EPS rack, CAN; JETTA VI (162,3) 2010 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Passat
    Embedra lists: PASSAT VI (3C) 2005-2010, EPS rack, CAN; PASSAT VII (ALL) V1 2011-2015, EPS rack, CAN; PASSAT VII (ALL) V2 2011-2015, EPS rack, CAN; PASSAT VIII (3G2,CB2) 2015 on, EPS rack, CAN; PASSAT VIII (3G5,CB5) V1 2015 on, EPS rack, CAN; PASSAT VIII (3G5,CB5) V2 2015 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models); Passat B8 DEV CODE 1 fault clear.
  • Scirocco
    Embedra lists: SCIROCCO (137,8) 2008-2018, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Sharan
    Embedra lists: SHARAN (7N1) 2010 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • T-Cross
    Embedra lists: T-CROSS (C11) 2019 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • T-Roc
    Embedra lists: T-ROC (A11) 2018 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Tiguan
    Embedra lists: TIGUAN (5N) 2008-2017, EPS rack, CAN; TIGUAN (AD,BT,BW) 2016 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Touran
    Embedra lists: TOURAN (1T1) 2003-2015, EPS rack, CAN; TOURAN (1T2) 2003-2015, EPS rack, CAN; TOURAN (1T3) 2003-2015, EPS rack, CAN; TOURAN (5TA,0R) 2016 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Transporter
    Embedra lists: TRANSPORTER (T6) 2013 on, EPS rack, CAN Extras: Transporter T6 special flash / VAG Universal Flasher (all compatible VAG group models).
  • Up, up!
    Embedra lists: UP! (12) 2011 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
  • Polo
    Embedra lists: POLO IV (9N,9A) 2002-2008, EPS pump, CAN; POLO V (6C) 2009-2017, EPS column, CAN; POLO V (6R) 2009-2017, EPS pump, CAN; POLO VI (AW) 2018 on, EPS column, CAN Extras: Polo IV angle sensor coding (activate/deactivate); VAG Universal Flasher (all compatible VAG group models).
  • Golf
    Embedra lists: GOLF PLUS V (5M) 2005-2009, EPS rack, CAN; GOLF PLUS VI (52) 2009-2014, EPS rack, CAN; Golf V (1K) 2003-2010, EPS rack, CAN; Golf VI (5K,AJ) 2009-2013, EPS rack, CAN; Golf VII (5G,BE,BA,BV,BQ) 2013 on, EPS rack, CAN; GOLF VII (5G5) 2013 on, EPS rack, CAN; Golf VIII (CD1) 2020 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models) / Golf Mk VII P-Flash R/W (switch RHD/LHD); Golf 5/6 EEPROM read/write (KWP2000 CAN).
Volvo (9)
  • S40
    Embedra lists: S40 (544, 545) V1 2004-2012, EPS pump, CAN; S40 (544,545) V2 2004-2012, EPS pump, CAN
  • S60
    Embedra lists: S60 (134) 2011-2018, EPS pump, CAN; S60 (134) V2 2011-2018, EPS pump, CAN; S60 (225) 2018 on, EPS rack, CAN
  • S80
    Embedra lists: S80 (124, 144) 180 HP 2007-2016, EPS pump, CAN; S80 (AS) V2 2010-2014, EPS pump, CAN
  • V40
    Embedra lists: V40 (525,526) 2013 on, EPS rack, CAN
  • V50
    Embedra lists: V50 (544,545) 2004-2012, EPS pump, CAN
  • V60
    Embedra lists: V60 (155,157) 2011-2018, EPS pump, CAN; V60 (225) 2018 on, EPS rack, CAN
  • V70
    Embedra lists: V70 (135,136) 180 HP 2008-2016, EPS pump, CAN
  • XC60
    Embedra lists: XC60 (156) 2009-2017, EPS pump, CAN
  • XC70
    Embedra lists: XC70 (135) 2008-2016, EPS pump, CAN

Compatibility disclosure

Embedra ONE (standalone): Source: Embedra's public vehicle catalog and special-functions list on embedra.net; Embedra publishes no real user manual (its document library holds placeholder files). Coverage is limited to electric power steering (EPS) systems, listed per model (rack, column or pump type and communication bus). Years are the span of the generations Embedra lists; some models are entered by generation only. Embedra says it supports 50+ brands but publishes no complete list, so only the models Embedra shows are entered here; CAN-FD vehicles are not listed. Check your exact vehicle before buying. A ONESuite license is required for the device to work. Entered for all listed vehicles: read and clear fault codes, live data, actuation / component test, software update / calibration and report export (Embedra says flashing is available for supported models). Special functions are entered only for the vehicles Embedra names (coding, adaptation, EEPROM read/write, VIN write, ECU virginization, steering torque sensor calibration); see each vehicle's notes. Special functions are marked as optional (paid) where listed.

Compatible vehicles (40 makes)

Check if it fits your vehicle:

Alfa Romeo (2 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Giulietta (2010–…) ✎ Embedra lists: GIULIETTA (940) 2010 on, EPS rack, CAN
    • (750/101) (1954–1963)
    • 116 (1954–1963)
    • 750/101 [2th restyling] (1960–1962)
    • (116) (1977–1985)
    • 750/101 (1977–1985)
    • 116 [restyling] (1981–1983)
    • 116 [2th restyling] (1983–1985)
    • (940) (2010–2016)
    • 940 (2010–2016)
    • 750/101 [restyling] (2016–2020)
    • 940 [restyling] (2016–2019)
  • MiTo (2008–2018) ✎ Embedra lists: MiTo (955) 2008-2018, EPS column, CAN
    • 955 (2008–2013)
    • 955 [restyling] (2013–2016)
    • 955 [2th restyling] (2016–2018)
Audi (9 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • A1 (2011–…) ✎ Embedra lists: A1 (8X1) 2011-2018, EPS pump, CAN; A1 (8XA) 2011-2018, EPS column, CAN; A1 (GBA,GBH) 2019 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (8X) (2010–2015)
    • 8X (2010–2014)
    • 1 generation (8X) [restyling] (2014–2018)
    • 8X [restyling] (2014–2020)
    • 2 generation (2018–2026)
  • A3 (2003–…) ✎ Embedra lists: A3 (8P) 2003-2013, EPS rack, CAN; A3 (8PA) 2003-2013, EPS rack, CAN; A3 (8VA,V1) 2013 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (8L) (1996–2000)
    • 8L (1996–2000)
    • 1 generation (8L) [restyling] (2000–2003)
    • 8L [restyling] (2000–2003)
    • 2 generation (8P) (2003–2005)
    • 8P (2003–2005)
    • 2 generation (8P) [restyling] (2004–2008)
    • 8P [restyling] (2004–2008)
    • 8P/8PA [restyling] (2004–2008)
    • 8P [2th restyling] (2008–2013)
    • 8P/8PA [2th restyling] (2008–2013)
    • 3 generation (8V) (2012–2016)
    • 8V (2012–2016)
    • 3 generation (8V) [restyling] (2016–2020)
    • 8V [restyling] (2016–2020)
    • 4 generation (8Y) (2020–2024)
    • 8Y (2020–2024)
    • 4 generation (8Y) [restyling] (2024–2026)
  • A4 (2007–2015) ✎ Embedra lists: A4 (8K) 2007-2015, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (B5) (1994–1999)
    • B5 (1994–1999)
    • B5 [restyling] (1997–2001)
    • 1 generation (B5) [restyling] (1999–2001)
    • 2 generation (B6) (2000–2006)
    • B6 (2000–2005)
    • 3 generation (B7) (2004–2009)
    • B7 (2004–2008)
    • 4 generation (B8) (2007–2012)
    • B8/8K (2007–2011)
    • B9 (2007–2012)
    • B8 [restyling] (2011–2015)
    • B8/8K [restyling] (2011–2015)
    • 5 generation (B9) (2015–2020)
    • 5 generation (B9) (restyling) 2020 (2019–2025)
    • B9 [restyling] (2019–2024)
  • A5 (2007–2017) ✎ Embedra lists: A5 (8T, 8F) 2007-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (8T) (2007–2011)
    • 8T (2007–2011)
    • 1 generation (8T) [restyling] (2011–2016)
    • 8T [restyling] (2011–2016)
    • 2 generation (2016–2020)
    • 2 generation (F5) [restyling] (2019–2025)
    • F5 [restyling] (2019–2024)
    • 3 generation (B10) (2024–2026)
  • A6 (2011–2018) ✎ Embedra lists: A6 (4G, 4X) 2011-2018, EPS rack, FlexRay Extras: VAG Universal Flasher (all compatible VAG group models).
    • A4/C4 (1994–1997)
    • C4 (1994–1997)
    • 4B/C5 (1997–2001)
    • C5 (1997–2001)
    • 4B/C5 [restyling] (2001–2005)
    • C5 [restyling] (2001–2005)
    • 4F/C6 (2004–2008)
    • C6 (2004–2008)
    • 4F/C6 [restyling] (2008–2011)
    • C6 [restyling] (2008–2011)
    • 4G/C7 (2011–2014)
    • C7 (2011–2014)
    • 4G/C7 [restyling] (2014–2018)
    • C7 [restyling] (2014–2018)
    • 5 generation (C8) (2018–2023)
    • C8 (2018–2023)
    • 5 generation (C8) (China Market) (2022–2023)
    • 5 generation (C8) [restyling] (2022–2025)
    • C8 (China Market) (2022–2023)
    • C8 [restyling] (2022–2024)
    • 6 generation (C9) (2025–2026)
  • Q3 (2012–2018) ✎ Embedra lists: Q3 (8U) 2012-2018, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (8U) (2011–2014)
    • 8U (2011–2014)
    • 1 generation (8U) [restyling] (2014–2018)
    • 8U [restyling] (2014–2020)
    • 2 generation (F3) (2018–2026)
    • F3 (2018–2024)
    • 3 generation (2025–2026)
  • Q5 (2008–2017) ✎ Embedra lists: Q5 (8R) 2008-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (8R) (2008–2012)
    • 8R (2008–2012)
    • 1 generation (8R) [restyling] (2012–2017)
    • 8R [restyling] (2012–2017)
    • 2 generation (2017–2020)
    • 2 generation (FY) [restyling] (2020–2026)
    • FY [restyling] (2020–2024)
    • 3 generation (2024–2026)
    • 3 generation (GU) (2024–2026)
  • Q7 (2016–…) ✎ Embedra lists: Q7 (4MB) 2016 on, EPS rack, FlexRay Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (4L) (2005–2009)
    • 4L (2005–2009)
    • 4L [restyling] (2008–2015)
    • 1 generation (4L) [restyling] (2009–2015)
    • 2 generation (4M) (2015–2019)
    • 4M (2015–2020)
    • 2 generation ( Restyling) (2019–…)
    • 2 generation (4M) [restyling] (2019–2024)
    • 4M [restyling] (2019–2024)
    • 2 generation (4M) [2th restyling] (2024–2026)
    • 4M [2th restyling] (2024)
    • 3 generation (G8) (2026)
  • TT (2006–2014) ✎ Embedra lists: TT (8J3) 2006-2014, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (8N) (1998–2003)
    • 8N (1998–2003)
    • 8N [restyling] (2002–2006)
    • 1 generation (8N) [restyling] (2003–2006)
    • 2 generation (8J) (2006–2010)
    • 8J (2006–2010)
    • 2 generation (8J) [restyling] (2010–2014)
    • 8J [restyling] (2010–2014)
    • 3 generation (8S) (2014–2019)
    • 8S (2014–2020)
    • 3 generation (8S) [restyling] (2018–2023)
    • 8S [restyling] (2018–2023)
BMW (9 models) 8 of 12 functions Actuation 1/1 Coding / adaptation 1/2 Diagnostics 3/3 Programming 2/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Coding / adaptation: ECU coding

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update, VIN write / programming

Reports: Report export

  • 2 series (2014–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: ECU coding, VIN write / programming

    ✎ Embedra lists: 2 Series (F22,F23) 2014 on, EPS rack, FlexRay
    • F22/F23 (2013–2017)
    • F22/F23 [restyling] (2017–2021)
    • F44 (2019–2024)
    • G42 (2021–2024)
    • G42 [restyling] (2023–2026)
    • F74 (2024)
    • F74/78 (2024–2026)
  • 2 series Active Tourer (2014–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: ECU coding, VIN write / programming

    ✎ Embedra lists: 2 Series AT (F45,F46) 2014 on, EPS rack, FlexRay
    • F45 (2014–2018)
    • F45 [restyling] (2018–2021)
    • U06 (2021–2026)
  • 3 series (2005–…)
    all 8 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update, VIN write / programming $

    Reports: Report export

    ✎ Embedra lists: 3 Series (E90) 2005-2013, EPS rack, CAN; 3 Series (F30, F31, F80) 2011 on, EPS rack, FlexRay; 3 Series (G20,G21,G28) 2019 on, EPS rack, FlexRay Extras: BMW F-Series VIN modification (F10/F30 units); BMW F-Series coding (F10/F30 units).
    • E21 (1975–1983)
    • E30 (1982–1987)
    • E30 [restyling] (1987–1994)
    • E36 (1990–2000)
    • E46 (1997–2003)
    • E46 [restyling] (2001–2006)
    • E90/E91/E92/E93 (2004–2010)
    • E90/E91/E92/E93 [restyling] (2008–2013)
    • F30/F31/F34 (2011–2016)
    • 330i (2015–…)
    • F30/F31/F34 [restyling] (2015–2020)
    • G20 (2018–2022)
    • G20 [restyling] (2022–2024)
    • G20 [2th restyling] (2024–2026)
  • 4 series (2013–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: ECU coding, VIN write / programming

    ✎ Embedra lists: 4 Series (F32,33,36,82,83) 2013 on, EPS rack, FlexRay
    • F32/F33/F36 (2013–2017)
    • F32/F33/F36 [restyling] (2017–2021)
    • G22, G23, G26 (2020–2022)
    • G22, G23 [restyling] (2024)
    • G22, G23, G26 [restyling] (2024–2026)
  • 5 series (2010–2016)
    all 8 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update, VIN write / programming $

    Reports: Report export

    ✎ Embedra lists: 5 Series (F10, F11, F18) 2010-2016, EPS rack, FlexRay Extras: BMW F-Series VIN modification (F10/F30 units); BMW F-Series coding (F10/F30 units).
    • E12 (1972–1976)
    • E12 [restyling] (1976–1981)
    • E28 (1981–1988)
    • E34 (1988–1996)
    • E39 (1995–2000)
    • E39 [restyling] (2000–2004)
    • E60/E61 (2003–2007)
    • E60/E61 [restyling] (2007–2010)
    • F07/F10/F11 (2009–2013)
    • F07/F10/F11 [restyling] (2013–2017)
    • G30, G31 (2016–2020)
    • 7 generation (G30/G31/G38) (2017–2020)
    • 7 generation (G30/G31/G38) [restyling] (2020–2023)
    • G30/G31 [restyling] (2020–2023)
    • G60 (2023)
  • X1 (2014–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: ECU coding, VIN write / programming

    ✎ Embedra lists: X1 (F48) 2014 on, EPS rack, FlexRay
    • 1 generation (E84) (2009–2012)
    • E84 (2009–2012)
    • 1 generation (E84) [restyling] (2012–2015)
    • E84 [restyling] (2012–2015)
    • 2 generation (F48) (2015–2019)
    • F48 (2015–2020)
    • 2 generation (F48) [restyling] (2019–2022)
    • F48 (restyling) (2 generation) (2019–…)
    • F48 [restyling] (2019–2024)
    • 3 generation (U11) (2022–2023)
    • 3 generation (U11/U12) (2022–2026)
    • U11 (2022–2024)
    • U11, U12 (2022–2023)
  • X2 (2018–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: ECU coding, VIN write / programming

    ✎ Embedra lists: X2 (F39) 2018 on, EPS rack, FlexRay
    • 1 generation (F39) (2017–2023)
    • F39 (2017–2023)
    • 2 generation (U10) (2023–2026)
    • U10 (2024)
  • X5 (2013–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: ECU coding, VIN write / programming

    ✎ Embedra lists: X5 (F15,F85) 2013 on, EPS rack, FlexRay
    • 1 generation (E53) (1999–2003)
    • E53 (1999–2003)
    • 1 generation (E53) [restyling] (2003–2006)
    • E53 [restyling] (2003–2006)
    • 2 generation (E70) (2006–2010)
    • E70 (2006–2010)
    • 2 generation (E70) [restyling] (2010–2013)
    • E70 [restyling] (2010–2013)
    • 3 generation (F15) (2013–2018)
    • F15 (2013–2018)
    • 4 generation (G05/G18) (2018–2023)
    • G05 (2018–2023)
    • G05, G18 (2018–2023)
    • 4 generation (G05) [restyling] (2023)
    • 4 generation (G05/G18) [restyling] (2023–2026)
    • G05 [restyling] (2023)
    • G05, G18 [restyling] (2023–2024)
  • Z4 (2003–2009)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: ECU coding, VIN write / programming

    ✎ Embedra lists: Z4 (E85, E86) 2003-2009, EPS rack, CAN
    • 1 generation (E85/E86) (2002–2005)
    • E85 (2002–2005)
    • E85 [restyling] (2005–2009)
    • E85/E86 [restyling] (2005–2009)
    • 2 generation (E89) (2009–2013)
    • E89 (2009–2016)
    • 2 generation E89 [restyling] (2013–2017)
    • E89 [restyling] (2013–2017)
    • 3 generation (G29) (2018–2022)
    • G29 (2018–2022)
    • 3 generation (G29) [restyling] (2022–2026)
    • G29 [restyling] (2022–2024)
Chevrolet (7 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Aveo (2012–2015) ✎ Embedra lists: AVEO (T300) 2012-2015, EPS column, CAN
    • 1 generation (2002–2011)
    • T200 (2003–2008)
    • 1 generation [restyling] (2006–2012)
    • T250 [restyling] (2006–2012)
    • 2 generation (2011–2020)
    • T300 (2011–2020)
    • 2 generation [restyling] (2015–2020)
    • Aveo 2020 (2019–…)
    • 3 generation (2023–2026)
  • Camaro (2015–…) ✎ Embedra lists: CAMARO 2015 on, EPS rack, CAN
    • 1 generation (1967–1969)
    • 1 generation [restyling] (1968–…)
    • 1 generation [2th restyling] (1969–…)
    • 2 generation (1970–1981)
    • 2 generation [restyling] (1974–1977)
    • 2 generation [2th restyling] (1978–1981)
    • 3 generation (1982–1985)
    • 3 generation [restyling] (1985–1992)
    • 3 generation [2th restyling] (1991–1992)
    • 4 generation (1992–1998)
    • 4 generation [restyling] (1998–2002)
    • 5 generation (2009–2013)
    • 5 generation [restyling] (2013–2015)
    • 6 generation (2015–2018)
    • 6 generation [restyling] (2018–2024)
  • Colorado (2015–…) ✎ Embedra lists: COLORADO 2015 on, EPS rack, CAN
    • 1 generation (2004–2012)
    • 2 generation (2012–2022)
    • 3 generation (2022–2026)
  • Cruze (2012–…) ✎ Embedra lists: CRUZE 2012 on, EPS rack, CAN
    • HR (2001–2008)
    • J300 (2008–2012)
    • J300 [restyling] (2012–2016)
    • 2 generation (2015–2023)
    • 3 generation (2015–2020)
  • Equinox (2009–2017) ✎ Embedra lists: EQUINOX 2009-2017, EPS rack, CAN
    • 1 generation (2004–2009)
    • 2 generation (2009–2015)
    • 2 generation [restyling] (2015–2017)
    • 3 generation (2017–2021)
    • 3 generation [restyling] (2020–2024)
    • 4 generation (2024–2026)
  • Malibu (2012–…) ✎ Embedra lists: MALIBU 2012 on, EPS rack, CAN
    • 1 generation (1978–…)
    • 4 generation (1978–1983)
    • 1 generation [restyling] (1979–…)
    • 1 generation [2th restyling] (1980–…)
    • 1 generation [3th restyling] (1981–…)
    • 1 generation [4th restyling] (1982–1983)
    • 5 generation (1996–2000)
    • 2 generation (1997–1999)
    • 2 generation [restyling] (2000–2003)
    • 5 generation [restyling] (2000–2003)
    • 6 generation (2003–2006)
    • 3 generation (2004–2006)
    • 3 generation [restyling] (2006–2007)
    • 6 generation [restyling] (2006–2008)
    • 7 generation (2008–2012)
    • 8 generation (2011–2014)
    • 8 generation [restyling] (2013–2016)
    • 9 generation (2015–2018)
    • 9 generation [restyling] (2018–2026)
  • Silverado (2007–2014) ✎ Embedra lists: SILVERADO 1500 MKIII 2007-2014, EPS rack, CAN
    • 1 generation (GMT800) (1998–2003)
    • GMT800 (1999–2002)
    • 1 generation (GMT800) [restyling] (2002–2007)
    • GMT800 [restyling] (2002–2007)
    • 2 generation (GMT900) (2007–2013)
    • GMT900 (2007–2013)
    • 3 generation (K2XX) (2013–2015)
    • GMT K2XX (2013–2015)
    • 3 generation (K2XX) [restyling] (2015–2019)
    • GMT K2XX [restyling] (2015–2019)
    • 4 generation (T1XX) (2019–2022)
    • GMT T1XX (2019–2022)
    • 4 generation (T1XX) [restyling] (2022–2026)
    • GMT T1XX [restyling] (2022–2024)
Chrysler (1 model) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • 300C (2011–…) ✎ Embedra lists: 300 C 2011 on, EPS rack, CAN
    • 1 generation (2004–2011)
    • 2 generation (2011–2015)
    • 2 generation [restyling] (2015–2023)
Citroen (10 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Berlingo (2008–…) ✎ Embedra lists: BERLINGO II (B9) 2008-2018, EPS pump, CAN; BERLINGO III (K9) 2019 on, EPS rack, CAN
    • All versions
    • 1 generation (1996–2002)
    • 1 generation [restyling] (2002–2012)
    • 2 generation (2008–2012)
    • 2 generation [restyling] (2012–2015)
    • 2 generation [2th restyling] (2015–2022)
    • 3 generation (2018–2024)
    • 3 generation [restyling] (2024–2026)
  • C-Elysee (2013–…) ✎ Embedra lists: C-ELYSEE (M43) 2013 on, EPS pump, CAN
    • 2 generation (2012–2016)
    • 2 generation [restyling] (2016–2022)
  • C3 (2002–…) ✎ Embedra lists: C3 (B618) 2016 on, EPS rack, CAN; C3 (FC) 2002-2009, EPS rack, CAN; C3 II (SC) 2009-2016, EPS rack, CAN
    • 1 generation (2002–2006)
    • 1 generation [restyling] (2005–2010)
    • 2 generation (2009–2013)
    • 2 generation [restyling] (2013–2016)
    • 3 generation (2016–2020)
    • 3 generation [restyling] (2020–2024)
    • 4 generation (2024–2026)
  • C4 (2010–2018) ✎ Embedra lists: C4 (B71) 2010-2018, EPS pump, CAN
    • 1 generation (2004–2014)
    • 1 generation [restyling] (2008–2011)
    • 2 generation (2010–2016)
    • 2 generation [restyling] (2015–2022)
    • 3 generation (2020–2024)
    • 3 generation [restyling] (2024–2026)
  • C4 Cactus (2014–…) ✎ Embedra lists: C4 CACTUS (E3) 2014 on, EPS rack, CAN
    • 1 generation (2014–2017)
    • 1 generation [restyling] (2018–2024)
  • C4 Picasso (2006–2018) ✎ Embedra lists: C4 PICASSO (B58) 2006-2013, EPS pump, CAN; C4 PICASSO (B78) 2010-2018, EPS rack, CAN
    • 1 generation (2006–2013)
    • 2 generation (2013–2016)
    • 2 generation [restyling] (2016–2018)
  • C8 (2002–2014) ✎ Embedra lists: C8 (VV) 2002-2014, EPS pump, CAN
    • 1 generation (2002–2008)
    • 2 generation (2002–2012)
    • 1 generation [restyling] (2008–2014)
  • DS4 (2011–2015) ✎ Embedra lists: DS4 (B75,NX) 2011-2015, EPS pump, CAN
    • 1 generation (2010–2015)
  • DS5 (2011–2015) ✎ Embedra lists: DS5 (KD,KF) 2011-2015, EPS pump, CAN
    • 1 generation (2012–2015)
  • Jumpy (2006–2015) ✎ Embedra lists: JUMPY III (G9) 2006-2015, EPS pump, CAN
    • All versions
    • 1 generation (1994–2007)
    • 2 generation (2006–2012)
    • 2 generation [restyling] (2012–2016)
    • 3 generation (2016–2024)
    • 3 generation [restyling] (2024–2026)
Dacia (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Duster (2017–2021) ✎ Embedra lists: DUSTER (XJD) 2017-2021, EPS column, CAN
    • 1 generation (2010–2013)
    • 1 generation [restyling] (2013–2017)
    • 2 generation (2017–2021)
    • 2 generation [restyling] (2021–2022)
    • 2 generation [2th restyling] (2022–2024)
    • 3 generation (2023–2026)
  • Logan (2013–2021) ✎ Embedra lists: LOGAN II 2013-2021, EPS pump, CAN
    • 1 generation (2004–2008)
    • 1 generation [restyling] (2004–2012)
    • 2 generation (2012–2016)
    • 2 generation [restyling] (2016–2020)
    • 3 generation (2020–2022)
    • 3 generation [restyling] (2022–2025)
    • 3 generation [2th restyling] (2025–2026)
  • Sandero (2012–2018) ✎ Embedra lists: SANDERO II 2012-2018, EPS pump, CAN
    • 1 generation (2007–2012)
    • 2 generation (2012–2016)
    • 2 generation [restyling] (2016–2020)
    • 3 generation (2020–2022)
    • 3 generation [restyling] (2022–2025)
    • 3 generation [2th restyling] (2025–2026)
Daihatsu (1 model) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Sirion (2005–2011) ✎ Embedra lists: SIRION 2 (M3) 2005-2011, EPS column, K-Line
    • 1 generation (1998–2004)
    • M1 (1998–2004)
    • 1 generation [restyling] (2001–2004)
    • 2 generation (2004–2007)
    • M3 (2004–2007)
    • 2 generation [restyling] (2007–2015)
    • M3 [restyling] (2007–2015)
Dodge (2 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Charger (2010–2017) ✎ Embedra lists: Charger (V1) 2010-2017, EPS pump, CAN; Charger (V2) 2010-2017, EPS rack, CAN
    • 1 generation (1966–1967)
    • 2 generation (1968–1970)
    • 2 generation [restyling] (1968–1969)
    • 2 generation [2th restyling] (1969–1970)
    • 3 generation (1971–1974)
    • 3 generation [restyling] (1971–1972)
    • 3 generation [2th restyling] (1972–1975)
    • 4 generation (1975–1978)
    • 5 generation (1982–1987)
    • L-body (1982–1987)
    • 6 generation (LX) (2005–2010)
    • LX (2005–2010)
    • LX-1 (2005–2010)
    • 6 generation (LD) (2010–2014)
    • 7 generation (LD) (2010–2014)
    • LD (2010–2014)
    • 6 generation (LD) [restyling] (2014–2023)
    • 7 generation (LD) [restyling] (2014–2023)
    • LD [restyling] (2014–2024)
    • 7 generation (2024)
    • 8 generation (2024–2026)
  • Ram (2008–…) ✎ Embedra lists: RAM 2008 on, EPS rack, CAN; RAM V2 2008-2024, EPS rack, CAN
    • 1 generation (D/W) (1980–1993)
    • 1 generation (1981–1993)
    • 2 generation (BR/BE) (1993–2002)
    • 2 generation (1994–2002)
    • 3 generation (2001–2005)
    • 3 generation (DR/DH) (2001–2009)
    • 3 generation [restyling] (2005–2009)
    • 4 generation (2008–2023)
    • 4 generation (DS/DJ) (2008–2019)
    • 5 generation (2018–2019)
Fiat (13 models) 7 of 12 functions Actuation 1/1 Coding / adaptation 1/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Coding / adaptation: Adaptation (channels / values)

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • 124 Spider (2016–…)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: 124 SPIDER 2016 on, EPS column, CAN
    • 1 generation (2016–2020)
  • 500 (2007–…)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: 500 (312) 2007 on, EPS column, CAN
    • Topolino (1936–1955)
    • 1 generation (1957–1975)
    • 2 generation (2007–2015)
    • 2 generation [restyling] (2015–2024)
    • 3 generation (2020–2026)
  • 500L (2012–…)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: 500L (330) 2012 on, EPS column, CAN
    • 1 generation (2012–2017)
    • 1 generation [restyling] (2017–2022)
  • 500X (2015–…)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: 500X (334) 2015 on, EPS column, CAN
    • 1 generation (2014–2018)
    • 1 generation [restyling] (2018–2023)
  • Bravo (2007–2014)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: BRAVO (198) 2007-2014, EPS column, CAN
    • 1 generation (1995–2001)
    • 198 (2007–2014)
    • 2 generation (2007–2014)
  • Grande Punto (2006–2012)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: GRANDE PUNTO (199) 2006-2012, EPS column, CAN
    • 1 generation (2006–2008)
    • 2 generation (2008–2011)
  • Idea (2004–2012)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: IDEA (135) 2004-2012, EPS column, CAN
    • 1 generation (2003–2016)
  • Panda (2003–…)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: PANDA (169) V1 2003-2012, EPS column, CAN; PANDA (169) V2 2003-2012, EPS column, CAN; PANDA (312,319) 2012 on, EPS column, CAN
    • 1 generation (1980–1986)
    • 3 generation ( Restyling) (1981–2003)
    • 1 generation [restyling] (1986–2002)
    • 2 generation (2003–2012)
    • 3 generation (2011–2026)
  • Punto (2000–…)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: PUNTO (188) 2000-2012, EPS column, CAN; PUNTO (188) V2 2000-2012, EPS column, CAN; PUNTO (188) V3 2000-2012, EPS column, CAN; PUNTO (188) V4 2000-2012, EPS column, CAN; PUNTO EVO (199) 2009 on, EPS column, CAN
    • 1 generation (1993–1999)
    • 3 generation (1993–1999)
    • 2 generation (1999–2003)
    • 2 generation [restyling] (2003–2011)
    • 3 generation Grande Punto (2005–2010)
    • 3 generation Punto Evo (2009–2012)
    • 3 generation Punto Evo [restyling] (2009–2012)
    • 3 generation [restyling] (2009–2012)
    • 3 generation Punto (2012–2018)
    • 3 generation [2th restyling] (2012–2020)
  • Scudo (2007–2016)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: SCUDO (272) 2007-2016, EPS pump, CAN
    • 1 generation (1995–2007)
    • 2 generation (2007–2016)
    • 3 generation (2021–2023)
    • 3 generation [restyling] (2024–2026)
  • Stilo (2001–2008)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: STILO (192) 2001-2008, EPS column, CAN
    • 1 generation (2001–2007)
  • Tipo (2016–…)
    all 7 functions

    Actuation: Actuation / component test

    Coding / adaptation: Adaptation (channels / values) $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    ✎ Embedra lists: TIPO EGEA (356,357) 2016 on, EPS column, CAN Extras: Egea/Tipo proxy calibration (adapts the steering unit to the vehicle); Egea C1009 fault erase.
    • 1 generation (1988–1995)
    • 356 (2 generation) (2015–2020)
    • 3 generation (2018–2019)
    • 356 [restyling] (2020–2026)
  • Ulysse (2002–2011)
    6 of 7 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: Adaptation (channels / values)

    ✎ Embedra lists: ULYSSE (179) 2002-2011, EPS pump, CAN
    • 1 generation (1994–1998)
    • 1 generation [restyling] (1998–2002)
    • 2 generation (2002–2010)
    • 3 generation (2022–2026)
Ford (20 models) 9 of 12 functions Actuation 1/1 Coding / adaptation 1/2 Diagnostics 3/3 Programming 2/4 Reports 1/1 Service reset 1/1
Functions for this make:

Actuation: Actuation / component test

Coding / adaptation: ECU coding

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update, EEPROM read / write

Reports: Report export

Service reset: Steering torque sensor calibration

  • B-MAX (2012–2017)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: B-MAX (JK) 2012-2017, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (2012–2018)
  • C-Max (2003–2014)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: C-MAX (DM2) 2003-2011, EPS pump, CAN; C-MAX II (DXA) 2010-2014, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (2003–2007)
    • 1 generation [restyling] (2007–2010)
    • 2 generation (2010–2015)
    • 2 generation [restyling] (2015–2019)
  • EcoSport (2012–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: ECOSPORT 2012 on, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (2003–2007)
    • 1 generation [restyling] (2007–2012)
    • 2 generation (2012–2018)
    • 2 generation [restyling] (2017–2023)
  • Edge (2016–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: EDGE 2016 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (2006–2010)
    • 1 generation [restyling] (2010–2014)
    • 2 generation (2015–2018)
    • 2 generation [restyling] (2018–2023)
    • 3 generation (L) (2023–2026)
  • Explorer (2015–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: EXPLORER 2015 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (1990–1994)
    • 2 generation (1994–2001)
    • 2 generation [2th restyling] (2001–2003)
    • 2 generation [restyling] (2001–2003)
    • 3 generation (2001–2006)
    • 4 generation (2005–2010)
    • 5 generation (2010–2015)
    • 5 generation [restyling] (2015–2018)
    • 5 generation [2th restyling] (2017–2019)
    • 6 generation (2019–2026)
    • 6 generation [restyling] (China Market) (2022–2026)
    • 6 generation [restyling] (2024–2026)
  • F-150 (2010–2015)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: F-150 2010-2015, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 7 generation (1979–1986)
    • 8 generation (1986–1991)
    • 9 generation (1991–1996)
    • 10 generation (1996–2004)
    • 11 generation (2003–2008)
    • 12 generation (2008–2014)
    • 13 generation (2014–2018)
    • 13 generation [restyling] (2017–2020)
    • 14 generation (2020–2024)
    • 14 generation [restyling] (2024–2026)
  • Fiesta (2008–2012)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: FIESTA MK VI 2008-2012, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (1976–1983)
    • Mk1 (1976–1983)
    • 2 generation (1983–1989)
    • Mk2 (1983–1989)
    • 3 generation (1989–1996)
    • Mk3 (1989–1996)
    • Mk4 (1995–1999)
    • 4 generation (1996–2000)
    • 4 generation [restyling] (1999–2002)
    • Mk4 [restyling] (1999–2002)
    • 5 generation (2001–2007)
    • Mk5 (2002–2008)
    • 5 generation [restyling] (2005–2010)
    • 5 generation [2th restyling] (2008–2010)
    • 6 generation (2008–2013)
    • Mk6 (2008–2013)
    • Mk6 [restyling] (2012–2019)
    • 6 generation [restyling] (2013–2020)
    • 7 generation (2017–2021)
    • Mk7 (2017–2021)
    • 7 generation [restyling] (2021–2024)
    • Mk7 [restyling] (2021–2023)
  • Focus (2004–2025)
    up to 8 of 9 functions — varies by version

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update, EEPROM read / write $

    Reports: Report export

    Not for this vehicle: Steering torque sensor calibration

    ✎ notes on some versions — see the conditions below
    • 2 generation (2004–2008)
      7 of 9 functions

      Actuation: Actuation / component test

      Coding / adaptation: ECU coding $

      Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

      Programming: Software update / calibration update

      Reports: Report export

      Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

      ✎ Embedra lists: FOCUS MK II 2004-2012. Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 2 generation [restyling] (2007–2011)
      7 of 9 functions

      Actuation: Actuation / component test

      Coding / adaptation: ECU coding $

      Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

      Programming: Software update / calibration update

      Reports: Report export

      Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

      ✎ Embedra lists: FOCUS MK II 2004-2012. Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 3 generation (2011–2015)
      8 of 9 functions

      Actuation: Actuation / component test

      Coding / adaptation: ECU coding $

      Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

      Programming: Software update / calibration update, EEPROM read / write $

      Reports: Report export

      Not for this vehicle: Steering torque sensor calibration

      ✎ Embedra lists: FOCUS MK III 2011-2015. Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool); Focus Mk3 EEPROM read/write (U3000 fix).
    • 3 generation [restyling] (2014–2019)
      8 of 9 functions

      Actuation: Actuation / component test

      Coding / adaptation: ECU coding $

      Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

      Programming: Software update / calibration update, EEPROM read / write $

      Reports: Report export

      Not for this vehicle: Steering torque sensor calibration

      ✎ Embedra lists: FOCUS MK III 2011-2015. Supported for model years 2014–2015 only (generation built 2014–2019). Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool); Focus Mk3 EEPROM read/write (U3000 fix).
    • 4 generation (2018–2022)
      7 of 9 functions

      Actuation: Actuation / component test

      Coding / adaptation: ECU coding $

      Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

      Programming: Software update / calibration update

      Reports: Report export

      Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

      ✎ Embedra lists: FOCUS MK IV 2019 on. Supported for model years 2019–2022 only (generation built 2018–2022). Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 4 generation [restyling] (2021–2025)
      7 of 9 functions

      Actuation: Actuation / component test

      Coding / adaptation: ECU coding $

      Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

      Programming: Software update / calibration update

      Reports: Report export

      Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

      ✎ Embedra lists: FOCUS MK IV 2019 on. Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
  • Fusion (2002–2012)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: FUSION MK I 2002-2012, EPS pump, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (2002–2005)
    • 1 generation [restyling] (2005–2012)
  • Galaxy (2006–2015)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: GALAXY MK3 2006-2015, EPS pump, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (1995–2000)
    • 1 generation [restyling] (2000–2006)
    • 2 generation (2006–2010)
    • 2 generation [restyling] (2010–2015)
    • 3 generation (2015–2019)
    • 3 generation [restyling] (2019–2023)
  • Ka (2008–2016)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: KA 2008-2016, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (1996–2008)
    • 2 generation (2008–2016)
    • 3 generation (2014–2021)
  • Mondeo (2007–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: MONDEO MK IV 2007-2014, EPS pump, CAN; MONDEO MK V 2014 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (1993–1996)
    • 2 generation (1996–2000)
    • 3 generation (2000–2003)
    • 3 generation [restyling] (2003–2007)
    • 4 generation (2006–2010)
    • 4 generation [restyling] (2010–2014)
    • 5 generation (2014–2019)
    • 5 generation [restyling] (2019–2022)
    • 6 generation (2022–2026)
    • 6 generation [restyling] (2025–2026)
  • Mustang (2010–2017)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: MUSTANG 2010-2017, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (1964–1974)
    • 5 generation [2th restyling] (1964–1973)
    • 2 generation (1974–1978)
    • 3 generation (1978–1986)
    • 3 generation [restyling] (1986–1993)
    • 4 generation (1993–1998)
    • 4 generation [restyling] (1998–2004)
    • 5 generation (2004–2009)
    • 5 generation [restyling] (2009–2014)
    • 6 generation (2014–2017)
    • 6 generation [restyling] (2017–2023)
    • 7 generation (2023–2026)
  • Ranger (2011–…)
    all 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update, EEPROM read / write $

    Reports: Report export

    Service reset: Steering torque sensor calibration $

    ✎ Embedra lists: RANGER 2011 on, EPS rack, CAN; RANGER IV 2022 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool); Ranger EB/JB EEPROM read/write and torque-sensor voltage calibration.
    • 4 generation [2th restyling]
    • 1 generation (1998–2006)
    • 2 generation (2006–2009)
    • 3 generation (2007–2009)
    • 2 generation [restyling] (2009–2011)
    • 3 generation [restyling] (2009–2011)
    • T6 (2011–2015)
    • 4 generation (2012–2021)
    • 4 generation [restyling] (2015–2022)
    • T6 [restyling] (2015–2019)
    • T6 [2th restyling] (2018–2022)
    • T6.2 (2022–2026)
  • S-Max (2006–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: S-MAX (CJ) 2015 on, EPS rack, CAN; S-MAX (WA6) 2006-2015, EPS pump, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (2006–2010)
    • 1 generation [restyling] (2010–2015)
    • 2 generation (2015–2019)
    • 2 generation [restyling] (2019–2023)
  • Taurus (2012–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: TAURUS 2012 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (1985–1991)
    • 2 generation (1991–1995)
    • 3 generation (1995–1999)
    • 4 generation (1999–2004)
    • 4 generation [restyling] (2003–2006)
    • 5 generation (2007–2009)
    • 6 generation (2009–2012)
    • 6 generation [restyling] (2012–2019)
    • 8 generation (2022–2025)
    • 8 generation [restyling] (2025–2026)
  • Tourneo Connect (2013–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: TOURNEO CONN. (83) 2013 on, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • All versions
    • 1 generation (2002–2009)
    • 1 generation [restyling] (2009–2013)
    • 2 generation (2012–2018)
    • 2 generation [restyling] (2018–2022)
    • 3 generation (2021–2026)
  • Tourneo Courier (2014–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: TRANSIT COURIER (83) 2014 on, EPS column, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • 1 generation (2014–2018)
    • 1 generation [restyling] (2018–2023)
    • 2 generation (2023–2026)
  • Transit Connect (2011–2015)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: TRANSIT CONNECT MK II 2011-2015, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • All versions
    • 1 generation (2002–2009)
    • 1 generation [restyling] (2009–2013)
    • 2 generation (2012–2018)
    • 2 generation [restyling] (2018–2024)
  • Transit Custom (2013–…)
    7 of 9 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, Steering torque sensor calibration

    ✎ Embedra lists: TRANSIT CUSTOM (80) 2013-2024, EPS rack, CAN; TRANSIT CUSTOM MK IV 2024 on, EPS rack, CAN Extras: VBFflasher - Ford ECU programmer (general Ford tool); Ford AsBuilt Writer via Configuration Manager (general Ford tool).
    • All versions
    • 1 generation (2012–2018)
    • 1 generation [restyling] (2017–2023)
    • 1 generation (China Market) (2023–2026)
    • 2 generation (2023–2026)
GMC (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Sierra (2007–2014) ✎ Embedra lists: SIERRA 2007-2014, EPS rack, CAN
    • 1 generation (GMT800) (1998–2007)
    • GMT800 (1999–2007)
    • 1 generation (2002–2020)
    • 2 generation (GMT900) (2006–2014)
    • GMT900 (2007–2014)
    • 3 generation (K2XX) (2013–2015)
    • K2XX (2013–2015)
    • 3 generation (K2XX) [restyling] (2015–2018)
    • K2XX [restyling] (2015–2022)
    • 4 generation (2018–2022)
    • 4 generation [restyling] (2022–2026)
  • Terrain (2009–…) ✎ Embedra lists: TERRAIN 2009 on, EPS rack, CAN
    • 1 generation (2009–2015)
    • 1 generation [restyling] (2015–2017)
    • 2 generation (2017–2021)
    • 2 generation [restyling] (2021–2024)
    • 3 generation (2024–2026)
  • Yukon (2007–2014) ✎ Embedra lists: YUKON 2007-2014, EPS rack, CAN
    • 1 generation (1991–1999)
    • 1 generation (GMT400) (1991–1999)
    • 2 generation (1999–2006)
    • GMT800 (1999–2006)
    • 3 generation (2006–2014)
    • GMT900 (2006–2014)
    • 4 generation (2014–2021)
    • 4 generation (GMT K2UG) (2014–2020)
    • 5 generation (2020–2024)
    • 5 generation [restyling] (2024–2026)
Honda (4 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Accord (2013–…) ✎ Embedra lists: ACCORD IX 2013 on, EPS rack, CAN
    • 1 generation (1976–1981)
    • 2 generation (1981–1985)
    • 3 generation (1985–1989)
    • 4 generation (1989–1994)
    • 5 generation (1993–1998)
    • 5 generation [restyling] (1996–1998)
    • 6 generation (1997–2002)
    • 6 generation [restyling] (2000–2002)
    • 7 generation (2002–2006)
    • 7 generation [restyling] (2005–2008)
    • 8 generation (2007–2011)
    • 8 generation [restyling] (2011–2015)
    • 9 generation (2012–2016)
    • 9 generation (CIS) [restyling] (2014–2015)
    • 9 generation [restyling] (CIS) (2014–2015)
    • 9 generation [restyling] (2015–2019)
    • 10 generation (2017–2020)
    • 10 generation [restyling] (2020–2023)
    • 11 generation (2023–2026)
    • 11 generation [restyling] (2024–2026)
  • CR-V (2007–2012) ✎ Embedra lists: CR-V III (RE) 2007-2012, EPS rack, CAN
    • 1 generation (1995–1999)
    • 1 generation [restyling] (1999–2001)
    • 2 generation (2001–2004)
    • 2 generation [restyling] (2004–2006)
    • 3 generation (2006–2009)
    • 3 generation [restyling] (2009–2012)
    • 4 generation (2011–2015)
    • 4 generation [restyling] (2014–2018)
    • 5 generation (2016–2023)
    • 5 generation [restyling] (2019–2023)
    • 6 generation (2022–2026)
  • Civic (2000–…) ✎ Embedra lists: CIVIC 2000-2012, EPS rack, CAN; CIVIC VIII (FN,FK) 2006 on, EPS rack, CAN; CIVIC X 2016 on, EPS rack, CAN
    • 1 generation (1972–1979)
    • 8 generation [2th restyling] (1972–1979)
    • 2 generation (1979–1983)
    • 3 generation (1983–1987)
    • 4 generation (1987–1996)
    • 5 generation (1991–1997)
    • 6 generation (1995–1999)
    • 6 generation [restyling] (1998–2002)
    • 7 generation (2000–2003)
    • 7 generation [restyling] (2003–2006)
    • 8 generation (2005–2009)
    • 8 generation [restyling] (2008–2012)
    • 9 generation (2011–2015)
    • 9 generation [restyling] (2013–2017)
    • 10 generation (2015–2019)
    • 10 generation [restyling] (2018–2022)
    • 11 generation (2021–2026)
    • 11 generation [restyling] (2024–2026)
  • Jazz (2008–…) ✎ Embedra lists: JAZZ III (GE) 2008 on, EPS rack, CAN
    • (AA) (1983–1986)
    • AA (1983–1986)
    • 1 generation (2001–2004)
    • 1 generation [restyling] (2005–2008)
    • 2 generation (2008–2010)
    • 2 generation [restyling] (2011–2014)
    • 3 generation (2014–2017)
    • 3 generation [restyling] (2017–2020)
    • 4 generation (2020–2023)
    • 4 generation [restyling] (2023–2026)
Hyundai (13 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Accent (2006–…) ✎ Embedra lists: ACCENT (RB) 2010 on, EPS column, CAN; ACCENT ERA (MC) 2006-2011, EPS column, K-Line
    • X3 (1994–2000)
    • X3 [restyling] (1997–2000)
    • LC (1999–2012)
    • LC [restyling] (2002–2005)
    • MC (2006–2011)
    • RB (2010–2019)
    • 5 generation (2017–2020)
    • 5 generation [restyling] (2020–2022)
    • 6 generation (BN7) (2023–2026)
  • Elantra (2012–2016) ✎ Embedra lists: ELANTRA V (MD,JK) 2012-2016, EPS column, CAN
    • 1 generation (1990–1995)
    • J1 (1990–1995)
    • J1 [restyling] (1993–1995)
    • 2 generation (1995–2000)
    • J2 (1995–2000)
    • J2 [restyling] (1998–2000)
    • 3 generation (2000–2003)
    • XD (2000–2003)
    • 3 generation [restyling] (2003–2010)
    • XD [restyling] (2003–2010)
    • 4 generation (2006–2011)
    • HD (2006–2011)
    • 5 generation (2010–2014)
    • MD (2010–2014)
    • 5 generation [restyling] (2013–2016)
    • MD [restyling] (2013–2016)
    • 6 generation (2015–2019)
    • AD (2015–2019)
    • 6 generation [restyling] (2018–2020)
    • AD [restyling] (2018–2020)
    • 7 generation (2020–2023)
    • 7 generation (CN7) (2020–2023)
    • 7 generation (CN7) [restyling] (2023–2026)
    • 7 generation [restyling] (2023–2024)
  • Genesis (2014–…) ✎ Embedra lists: GENESIS (DH) 2014 on, EPS rack, CAN
    • 1 generation (2008–2011)
    • 1 generation [restyling] (2011–2013)
    • 2 generation (2013–2016)
  • Getz (2003–2011) ✎ Embedra lists: GETZ (TB) 2003-2011, EPS column, CAN
    • 1 generation (2002–2005)
    • 1 generation [restyling] (2005–2011)
  • Sonata (2011–2019) ✎ Embedra lists: SONATA VI 2011-2019, EPS rack, CAN
    • Y2 (1988–1993)
    • Y2 [restyling] (1991–1993)
    • Y3 (1993–1996)
    • 3 generation [restyling] (1996–1998)
    • Y3 [restyling] (1996–1998)
    • 4 generation (1998–2001)
    • EF (1998–2001)
    • 4 generation (EF) [restyling] (2001–2012)
    • 4 generation [restyling] (2001–2012)
    • EF New [restyling] (2001–2013)
    • NF (2004–2008)
    • 5 generation (NF) [restyling] (2008–2010)
    • NF [restyling] (2008–2010)
    • 6 generation (2009–2014)
    • YF (2009–2014)
    • 7 generation (2014–2017)
    • LF (2014–2017)
    • 7 generation [restyling] (2017–2019)
    • LF [restyling] (2017–2020)
    • 8 generation (2019–2023)
    • 8 generation (DN8) (2019–2023)
    • 8 generation (DN8) [restyling] (2023–2026)
    • 8 generation [restyling] (2023)
    • DN8 [restyling] (2023–2024)
  • Tucson (2015–2020) ✎ Embedra lists: TUCSON (TLE) 2015-2020, EPS rack, CAN
    • 1 generation (2004–2010)
    • 2 generation (2009–2015)
    • 3 generation (2015–2018)
    • 3 generation [restyling] (2018–2021)
    • 3 generation [restyling] (China Market) (2018–2020)
    • 4 generation (2020–2025)
    • 4 generation [restyling] (2023–2026)
  • Veloster (2011–2017) ✎ Embedra lists: VELOSTER (FS) 2011-2017, EPS column, CAN
    • 1 generation (2011–2015)
    • [restyling] (2015–2017)
    • 2 generation (2018–2022)
  • i10 (2008–…) ✎ Embedra lists: I10 (IA) 2014 on, EPS column, CAN; I10 (PA) 2008-2013, EPS column, CAN
    • 1 generation (2007–2009)
    • 1 generation [restyling] (2007–2013)
    • 2 generation (2013–2016)
    • 2 generation [restyling] (2016–2019)
    • 3 generation (2019–2023)
    • 3 generation [restyling] (2023–2026)
  • i20 (2009–…) ✎ Embedra lists: I20 (GB) 2015 on, EPS column, CAN; I20 (PB) 2009-2014, EPS column, CAN
    • 1 generation (2008–2012)
    • PB (2008–2012)
    • 1 generation [restyling] (2012–2014)
    • PB [restyling] (2012–2014)
    • 2 generation (GB) (2014–2018)
    • IB (2014–2020)
    • 2 generation [restyling] (2018–2020)
    • IB [restyling] (2018–2020)
    • 3 generation (2020–2024)
    • 3 generation [restyling] (2023–2026)
  • i30 (2007–2011) ✎ Embedra lists: I30 (FD) 2007-2011, EPS column, CAN
    • FD (2007–2010)
    • 1 generation [restyling] (2010–2012)
    • FD [restyling] (2010–2012)
    • GD (2011–2015)
    • 2 generation [restyling] (2015–2017)
    • GD [restyling] (2015–2017)
    • PD (2017–2018)
    • 3 generation [restyling] (2018–2020)
    • 3 generation [2th restyling] (2020–2026)
  • i40 (2012–2019) ✎ Embedra lists: I40 (VF) 2012-2019, EPS column, CAN
    • VF (2011–2015)
    • 1 generation [restyling] (2015–2019)
    • VF [restyling] (2015–2020)
  • ix20 (2010–…) ✎ Embedra lists: IX20 (JC) 2010 on, EPS column, CAN
    • 1 generation (2010–2015)
    • 1 generation [restyling] (2015–2019)
  • ix35 (2009–…) ✎ Embedra lists: IX35 - TUCSON (LM) 2009 on, EPS column, CAN
    • 1 generation (2010–2013)
    • 1 generation [restyling] (2013–2015)
    • 2 generation (2017–2022)
    • 2 generation [restyling] (2020–2023)
IVECO (1 model) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Daily (2019–…) ✎ Embedra lists: DAILY 2019 on, EPS rack, CAN
    • All versions
Jaguar (5 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • E-Pace (2017–…) ✎ Embedra lists: E-PACE 2017 on, EPS rack, CAN
    • 1 generation (2017–2021)
    • 1 generation [restyling] (2020–2024)
  • F-Pace (2015–…) ✎ Embedra lists: F-PACE 2015 on, EPS rack, CAN
    • 1 generation (2016–2020)
    • 1 generation [restyling] (2020–2025)
    • [restyling] (2020)
  • I-Pace (2018–…) ✎ Embedra lists: I-PACE 2018 on, EPS rack, CAN
    • 1 generation (2018–2024)
  • XE (2015–…) ✎ Embedra lists: XE 2015 on, EPS rack, CAN
    • 1 generation (2014–2019)
    • X760 (2015–2019)
    • 1 generation [restyling] (2019–2024)
    • X760 [restyling] (2019–2020)
  • XF (2015–…) ✎ Embedra lists: XF 2015 on, EPS rack, CAN
    • X250 (2007–2011)
    • 1 generation [restyling] (2011–2015)
    • X250 [restyling] (2011–2016)
    • X260 (2015–2020)
    • 2 generation [restyling] (2020–2024)
Jeep (2 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Grand Cherokee (2011–…) ✎ Embedra lists: GRAND CHEROKEE 2011 on, EPS rack, CAN; GRAND CHEROKEE (WK2) 2011 on, EPS pump, CAN
    • ZJ (1991–1999)
    • 1 generation (ZJ) (1992–1996)
    • 1 generation (ZJ) [restyling] (1996–1998)
    • ZJ [restyling] (1996–1998)
    • 2 generation (WJ) (1998–2004)
    • WJ (1999–2004)
    • 3 generation (WK) (2004–2010)
    • WK (2004–2010)
    • 4 generation (WK2) (2010–2013)
    • WK2 (2010–2014)
    • 4 generation (WK2) [restyling] (2013–2022)
    • WK2 [restyling] (2013–2023)
    • 5 generation (WL) (2021–2026)
    • WL (2021–2024)
    • 5 generation (WL) [restyling] (2025–2026)
  • Renegade (2014–…) ✎ Embedra lists: RENEGADE (BU) 2014 on, EPS column, CAN
    • 1 generation (2014–2019)
    • 1 generation [restyling] (2018–2025)
    • 1 generation [2th restyling] (2026)
Kia (8 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Carens (2013–…) ✎ Embedra lists: CARENS IV 2013 on, EPS column, CAN
    • 1 generation (1999–2002)
    • 1 generation (RS) (1999–2002)
    • 1 generation (RS) [restyling] (2002–2006)
    • 2 generation (2006–2012)
    • 3 generation (2006–2010)
    • 3 generation [restyling] (2010–2012)
    • 3 generation (RP) (2013–2019)
    • 4 generation (2013–2020)
    • 4 generation (KY) (2022–2026)
  • Ceed (2012–2017) ✎ Embedra lists: CEED (JD) 2012-2017, EPS column, CAN
    • 1 generation (2006–2010)
    • 1 generation [restyling] (2010–2012)
    • 2 generation (2012–2015)
    • 2 generation [restyling] (2015–2018)
    • 3 generation (2018–2021)
    • 3 generation [restyling] (2021–2026)
  • Optima (2010–…) ✎ Embedra lists: OPTIMA 2010 on, EPS column, CAN
    • 1 generation (2000–2002)
    • 1 generation [restyling] (2002–2005)
    • 2 generation (2005–2008)
    • 2 generation [restyling] (2008–2010)
    • 3 generation (2010–2013)
    • 3 generation [restyling] (2013–2015)
    • 4 generation (2015–2018)
    • 4 generation [restyling] (2018–2020)
  • Picanto (2017–…) ✎ Embedra lists: PICANTO (JA) 2017 on, EPS column, CAN
    • 1 generation (2004–2007)
    • 1 generation [restyling] (2007–2011)
    • 1 generation [2th restyling] (2008–2011)
    • 1 generation [3th restyling] (2010–2011)
    • 2 generation (2011–2015)
    • 2 generation [restyling] (2015–2017)
    • 3 generation (2017–2021)
    • 3 generation [restyling] (2021–2023)
    • 3 generation [2th restyling] (2023–2026)
  • Rio (2011–…) ✎ Embedra lists: RIO III (UB,QBR) 2011-2018, EPS column, CAN; RIO IV (YB,FB) 2017 on, EPS column, CAN
    • 1 generation (1999–2002)
    • 1 generation [restyling] (2002–2005)
    • 2 generation (2005–2009)
    • 2 generation [restyling] (2009–2011)
    • 3 generation (2011–2015)
    • 3 generation [restyling] (2015–2017)
    • 4 generation (2017–2020)
    • 4 generation (Global market) (2017–2020)
    • 4 generation [restyling] (2020–2022)
    • 4 generation [restyling] (Global market) (2020–2023)
  • Soul (2014–…) ✎ Embedra lists: SOUL (PS) 2014 on, EPS column, CAN
    • 1 generation (2008–2011)
    • 1 generation [restyling] (2011–2014)
    • 2 generation (2013–2016)
    • 2 generation [restyling] (2016–2019)
    • 3 generation (2019–2022)
    • 3 generation [restyling] (2022–2025)
  • Sportage (2015–2021) ✎ Embedra lists: SPORTAGE (QL) 2015-2021, EPS rack, CAN
    • 1 generation (1993–2006)
    • 2 generation (2004–2008)
    • 2 generation [restyling] (2008–2010)
    • 3 generation (2010–2014)
    • 3 generation [restyling] (2014–2016)
    • 4 generation (2015–2018)
    • 4 generation [restyling] (2018–2022)
    • 5 generation (2021–2026)
    • 5 generation [restyling] (2024–2026)
  • Venga (2010–…) ✎ Embedra lists: VENGA (YN) 2010 on, EPS column, CAN
    • 1 generation (2009–2014)
    • 1 generation [restyling] (2014–2018)
Lancia (2 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Phedra (2002–2011) ✎ Embedra lists: PHEDRA (180) 2002-2011, EPS pump, CAN
    • 2 generation (2002–2010)
  • Ypsilon (2003–2011) ✎ Embedra lists: YPSILON (101) 2003-2011, EPS column, CAN
    • I (Type 840) (1995–2003)
    • 1 generation (2003–2006)
    • 2 generation (Type 843) (2003–2006)
    • II (Type 843) [restyling] (2006–2011)
    • III (Type 846) (2011–2015)
    • III (Type 846) [restyling] (2015–2024)
    • 4 generation (Type L21) (2024–2026)
Land Rover (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Discovery Sport (2015–…) ✎ Embedra lists: DISCOVERY SPORT (L550) 2015 on, EPS rack, CAN
    • 1 generation (2014–2020)
    • 1 generation [restyling] (2014–2019)
    • 1 generation ( Restyling) (2019–2026)
  • Range Rover Evoque (2011–…) ✎ Embedra lists: EVOQUE (BJ32) 2011 on, EPS rack, CAN; EVOQUE (L538) 2012-2018, EPS rack, CAN
    • L538 (2011–2015)
    • L538 [restyling] (2015–2018)
    • L551 (2018–2024)
    • 2 generation [restyling] (2023–2026)
  • Range Rover Velar (2018–…) ✎ Embedra lists: VELAR 2018 on, EPS rack, CAN
    • 1 generation (2017–2023)
    • 1 generation [restyling] (2023–2026)
Lexus (6 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • CT (2010–…) ✎ Embedra lists: CT (ZWA1) 2010 on, EPS rack, CAN
    • 1 generation (2010–2014)
    • 1 generation [restyling] (2014–2018)
    • 1 generation [2th restyling] (2017–2022)
  • GS (2005–2013) ✎ Embedra lists: GS (GR19) 2005-2013, EPS rack, CAN
    • 1 generation (1993–1997)
    • 2 generation (1997–2000)
    • 2 generation [restyling] (2000–2004)
    • 3 generation (2004–2007)
    • 3 generation [restyling] (2007–2011)
    • 4 generation (2011–2015)
    • 4 generation [restyling] (2015–2020)
  • IS (2005–…) ✎ Embedra lists: IS II (GSE2) 2005-2013, EPS rack, CAN; IS III (GSE3) 2013 on, EPS rack, CAN
    • XE10 (1999–2005)
    • XE20 (2005–2008)
    • 2 generation [restyling] (2008–2010)
    • XE20 [restyling] (2010–2016)
    • XE30 (2013–2016)
    • XE30 [restyling] (2016–2020)
    • 3 generation [2th restyling] (2020–2026)
    • 4 generation (2020–2021)
    • 3 generation [3th restyling] (2025–2026)
  • LS (2006–…) ✎ Embedra lists: LS (UVF4) 2006 on, EPS rack, CAN
    • 1 generation (1989–1994)
    • 2 generation (1994–2000)
    • 3 generation (2000–2003)
    • 3 generation [restyling] (2003–2006)
    • 4 generation (2006–2009)
    • 4 generation [restyling] (2009–2012)
    • 4 generation [2th restyling] (2012–2017)
    • 5 generation (2017–2021)
    • 5 generation [restyling] (2021–2026)
  • NX (2014–…) ✎ Embedra lists: NX (ZGZ1) 2014 on, EPS rack, CAN
    • 1 generation (2014–2017)
    • 1 generation [restyling] (2017–2021)
    • 2 generation (2021–2026)
  • RX (2008–2015) ✎ Embedra lists: RX (GYL1) 2008-2015, EPS rack, CAN
    • 1 generation (1997–2003)
    • 2 generation (2003–2006)
    • 2 generation [restyling] (2006–2009)
    • 3 generation (2008–2012)
    • 3 generation [restyling] (2012–2015)
    • 4 generation (2015–2019)
    • 4 generation [restyling] (2019–2022)
    • 5 generation (2022–2026)
Lincoln (1 model) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • MKZ (2012–2020) ✎ Embedra lists: MKZ 2012-2020, EPS rack, CAN
    • 1 generation (2006–2009)
    • 1 generation [restyling] (2009–2012)
    • 2 generation (2012–2016)
    • 2 generation [restyling] (2016–2020)
Mazda (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • 3 (2009–2014) ✎ Embedra lists: MAZDA 3 (BL) 2009-2014, EPS pump, CAN
    • 1 generation (BK) (2003–2006)
    • BK (2003–2006)
    • 1 generation (BK) [restyling] (2006–2009)
    • BK [restyling] (2006–2009)
    • 2 generation (BL) (2008–2011)
    • BL (2009–2013)
    • 2 generation (BL) [restyling] (2011–2013)
    • BL [restyling] (2011–2013)
    • 3 generation (BM) (2013–2017)
    • BM (2013–2016)
    • 3 generation (BM) [restyling] (2016–2019)
    • BM [restyling] (2016–2019)
    • 4 generation (BP) (2018–2026)
    • BP (2019–2024)
  • 6 (2007–2013) ✎ Embedra lists: 6 ATENZA (GH) 2007-2013, EPS rack, CAN
    • 1 generation (GG) (2002–2005)
    • GG (2002–2005)
    • 1 generation (GG) [restyling] (2005–2008)
    • GG [restyling] (2005–2007)
    • 2 generation (GH) (2007–2009)
    • GH (2007–2012)
    • 2 generation (GH) [restyling] (2009–2013)
    • GH [restyling] (2009–2013)
    • 3 generation (GJ) (2012–2015)
    • GJ (2012–2015)
    • 3 generation (GJ) [restyling] (2015–2018)
    • GJ [restyling] (2015–2020)
    • GJ [2th restyling] (2017–2024)
    • 3 generation (GJ) [2th restyling] (2018–2024)
  • CX-7 (2009–2014) ✎ Embedra lists: CX 7 2009-2014, EPS pump, CAN
    • 1 generation (2006–2009)
    • 1 generation [restyling] (2009–2012)
Mercedes-Benz (9 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • A-Class (2005–2018) ✎ Embedra lists: A Class (W169) 2005-2012, EPS rack, CAN; A Class (W176) 2012-2018, EPS rack, CAN
    • 1 generation (W168) (1997–2001)
    • 1 generation (W168) [restyling] (2001–2004)
    • 2 generation (W169) (2004–2008)
    • 2 generation (W169) [restyling] (2008–2012)
    • 3 generation (W176) (2012–2015)
    • 3 generation (W176) [restyling] (2015–2018)
    • 4 generation (W177) (2018–2022)
    • 4 generation (W177/V177) (2018–2022)
    • 4 generation (W177) [restyling] (2022–2026)
  • B-Class (2011–2018) ✎ Embedra lists: B Class (W242, W246) 2011-2018, EPS rack, CAN
    • 1 generation (W245) (2005–2009)
    • W245 (2005–2008)
    • 1 generation (W245) [restyling] (2008–2011)
    • 2 generation (W246) (2011–2014)
    • W246 (2011–2015)
    • 2 generation (W246) [restyling] (2014–2018)
    • W246 [restyling] (2014–2020)
    • 3 generation (W247) (2018–2022)
    • 3 generation (W247) [restyling] (2022–2026)
    • W247 [restyling] (2022–2024)
  • C-Class (2007–2018) ✎ Embedra lists: C Class (W204) 2007-2014, EPS rack, CAN; C Class (W205) 2013-2018, EPS rack, CAN
    • W201 (1982–1988)
    • W201 [restyling] (1988–1993)
    • 1 generation (W202) (1993–1997)
    • W202/S202 (1993–1997)
    • 1 generation (W202) [restyling] (1997–2001)
    • W202/S202 [restyling] (1997–2001)
    • 2 generation (W203) (2000–2004)
    • W203/S203/CL203 (2000–2004)
    • 2 generation (W203) [restyling] (2004–2008)
    • W203/S203/CL203 [restyling] (2004–2008)
    • 3 generation (W204) (2006–2011)
    • W204/S204 (2006–2011)
    • 3 generation (W204) [restyling] (2011–2015)
    • W204/S204/C204 [restyling] (2011–2015)
    • 4 generation (W205) (2014–2018)
    • W205/S205/C205 (2014–2018)
    • 4 generation (W205) [restyling] (2018–2023)
    • W205/S205/C205 [restyling] (2018–2023)
    • 5 generation (W206) (2021–2026)
    • W206 (2021–2024)
    • electric (W520) (2026)
  • CLA (2013–2019) ✎ Embedra lists: CLA (C117, X117) 2013-2019, EPS rack, CAN
    • C117 (2013–2016)
    • C117 [restyling] (2016–2019)
    • C118 (2019–2023)
    • 2 generation (C118, X118) [restyling] (2023–2025)
    • 3 generation (C174, C178) (2025–2026)
  • CLS (2010–2017) ✎ Embedra lists: CLS (C218) 2010-2017, EPS rack, CAN
    • 1 generation (C219) (2004–2008)
    • 1 generation (C219) [restyling] (2008–2010)
    • 2 generation (C218) (2010–2014)
    • C218/X218 (2010–2014)
    • C218/X218 [restyling] (2014–2017)
    • 3 generation (C257) (2017–2021)
    • 3 generation (C257) [restyling] (2021–2023)
    • C257 [restyling] (2021–2024)
  • E-Class (2009–…) ✎ Embedra lists: E Class (W207) 2009-2016, EPS rack, CAN; E Class (W212) 2009-2016, EPS rack, CAN; E CLASS (W213) 2016 on, EPS rack, FlexRay
    • W123 (1975–1986)
    • W124 (1984–1989)
    • W124 [restyling] (1987–1993)
    • 1 generation (W124) (1992–1997)
    • W124 [2th restyling] (1993–1997)
    • 2 generation (W210, S210) (1995–1999)
    • 2 generation (W210, S210) [restyling] (1999–2003)
    • W210/S210 [restyling] (1999–2002)
    • 3 generation (W211, S211) (2002–2006)
    • 3 generation (W211, S211) [restyling] (2006–2009)
    • 4 generation (W212, S212, C207, A207) (2009–2013)
    • 4 generation (W212, S212, C207) [restyling] (2013–2016)
    • W212/S212/C207/A207 [restyling] (2013–2017)
    • 5 generation (W213, S213, C238) (2016–2021)
    • W213/S213/C238/A238 (2016–2020)
    • E 220 (2019–…)
    • 5 generation (W213, S213, C238) [restyling] (2020–2023)
    • W213 [restyling] (2020–2024)
    • 6 generation (W214, S214) (2023–2026)
    • W214 (2023–2024)
  • GLA (2014–2019) ✎ Embedra lists: GLA (X156) 2014-2019, EPS rack, CAN
    • 1 generation (X156) (2013–2017)
    • X156 (2013–2017)
    • 1 generation (X156) [restyling] (2017–2020)
    • X156 [restyling] (2017–2020)
    • H247 (2019–2023)
    • 2 generation (H247) (2020–2023)
    • 2 generation (H247) [restyling] (2023–2026)
    • H247 [restyling] (2023–2024)
  • M-Class (2005–2013) ✎ Embedra lists: M Class (W164) 2005-2011, EPS pump, CAN; M Class (W221) 2009-2013, EPS pump, CAN
    • 1 generation (W163) (1997–2001)
    • 1 generation (W163) [restyling] (2001–2005)
    • 2 generation (W164) (2005–2008)
    • 2 generation (W164) [restyling] (2008–2011)
    • 3 generation (W166) (2011–2015)
  • V-Class (2014–2018) ✎ Embedra lists: V Class (W447,448,640) 2014-2018, EPS rack, CAN
    • W447 [restyling]
    • W638 (1996–2003)
    • W638, W639 (1996–2003)
    • 2 generation (W639) (2006–2011)
    • 2 generation (W639) [restyling] (2011–2015)
    • 2 generation (2014–2024)
    • 3 generation (W447) (2014–2019)
    • W447 (2014–2024)
    • 2 generation [restyling] (2019–2024)
    • 3 generation (W447) [restyling] (2019–2026)
    • 2 generation [2th restyling] (2023–2024)
    • 3 generation (W447) [2th restyling] (2023–2026)
Mini (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Clubman (2015–…) ✎ Embedra lists: ClubMan (F54) 2015 on, EPS rack, FlexRay
    • 1 generation (2007–2010)
    • R55 (2007–2010)
    • 1 generation [restyling] (2010–2014)
    • R55 [restyling] (2010–2014)
    • 2 generation (2015–2019)
    • F54 (2015–2019)
    • 2 generation [restyling] (2019–2026)
    • F54 [restyling] (2019–2024)
  • Countryman (2010–…) ✎ Embedra lists: CountryMan (F60) 2017 on, EPS rack, FlexRay; CountryMan (R60) 2010-2016, EPS rack, CAN
    • 1 generation (R60) (2010–2016)
    • R60 (2010–2016)
    • 2 generation (F60) (2016–2020)
    • F60 (2016–2020)
    • 2 generation (F60) [restyling] (2020–2023)
    • 2 generation [restyling] (2020–2024)
    • 3 generation (2023–2026)
    • 3 generation (U25) (2023–2024)
  • Hatch (2014–…) ✎ Embedra lists: MINI ONE (F55, F56) 2014 on, EPS rack, FlexRay
    • 1 generation (R50) (2000–2006)
    • R50 (2001–2006)
    • 2 generation (R56) (2006–2010)
    • R56 (2006–2010)
    • 2 generation (R56) [restyling] (2010–2013)
    • R56 [restyling] (2010–2014)
    • F55/F56 (2013–2018)
    • F56 (2013–2018)
    • 3 generation (F55/F56) [restyling] (2018–2021)
    • F55/F56 [restyling] (2018–2021)
    • F56 [restyling] (2018–2019)
    • 3 generation (F55/F56) [2th restyling] (2021–2024)
    • F55/F56 [2th restyling] (2021–2024)
    • 4 generation (F65/F66/J01) (2024–2026)
    • 4 generation (F66/J01) (2024)
Mitsubishi (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • ASX (2010–…) ✎ Embedra lists: ASX (GA) 2010 on, EPS column, CAN
    • 1 generation (2010–2012)
    • 1 generation (4 restyling) (2010–2013)
    • 1 generation [restyling] (2012–2016)
    • 1 generation [2th restyling] (2016–2020)
    • 1 generation [3th restyling] (2020–2026)
    • 2 generation (2023–2024)
    • 2 generation [restyling] (2024–2026)
  • Colt (2004–2013) ✎ Embedra lists: COLT (Z30, Z20) 2004-2013, EPS rack, CAN
    • A150
    • A150 [restyling]
    • C10
    • 1 generation (1978–1984)
    • 1 generation (A150) (1978–1984)
    • 2 generation (1984–1988)
    • 2 generation (C10) (1984–1988)
    • 3 generation (1988–1992)
    • 3 generation (C50) (1988–1992)
    • C50 (1988–1992)
    • 4 generation (1992–1996)
    • 4 generation (CA0) (1992–1996)
    • CAO (1992–1996)
    • 5 generation (1995–2003)
    • 5 generation (CJ) (1995–2003)
    • CJO (1996–2002)
    • 6 generation (2002–2012)
    • 6 generation (Z20/Z30) (2002–2012)
    • Z30 (2002–2009)
    • 6 generation [restyling] (2008–2012)
    • Z30 [restyling] (2008–2012)
    • 7 generation (2023–2026)
  • Lancer (2008–…) ✎ Embedra lists: LANCER X 2008 on, EPS rack, CAN
    • A70 (1973–1985)
    • A70 [restyling] (1974–1985)
    • A70 [2th restyling] (1976–1985)
    • 2 generation (A140) (1979–1987)
    • EX (1982–1984)
    • 4 generation (1983–1992)
    • EX [restyling] (1983–1987)
    • 5 generation (1988–1994)
    • VI [restyling] (1988–1990)
    • VI [2th restyling] (1990–1996)
    • VI (1991–2001)
    • VII (1995–2000)
    • VIII (1995–1997)
    • VIII [restyling] (1997–2000)
    • IX (2000–2007)
    • IX [restyling] (2005–2010)
    • X (2007–2010)
    • Y12 (2007–2017)
    • X [restyling] (2011–2015)
    • X [2th restyling] (2015–2017)
Nissan (6 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Altima (2012–…) ✎ Embedra lists: ALTIMA (L33) 2012 on, EPS pump, CAN
    • U13 (1992–1997)
    • U13 [restyling] (1995–1997)
    • L30 (1997–1999)
    • L30 [restyling] (2000–2001)
    • L31 (2001–2004)
    • L31 [restyling] (2004–2006)
    • L32 (2006–2009)
    • L32 [restyling] (2009–2013)
    • L33 (2012–2015)
    • L33 [restyling] (2015–2018)
    • L34 (2018–2022)
    • 6 generation (L34) [restyling] (2022–2026)
  • Juke (2010–…) ✎ Embedra lists: JUKE (F15) 2010 on, EPS pump, CAN
    • 1 generation (2010–2014)
    • YF15 (2010–2014)
    • YF15 [restyling] (2012–2020)
    • 1 generation [restyling] (2014–2019)
    • YF15 [2th restyling] (2018–2020)
    • 2 generation (2019–2024)
    • 2 generation [restyling] (2024–2026)
  • Micra (2002–2011) ✎ Embedra lists: MICRA (K12) 2002-2011, EPS column, CAN
    • 1 generation (1982–1992)
    • K10 (1982–1992)
    • 2 generation (1992–2002)
    • K11 (1992–2002)
    • K11B [restyling] (1997–1999)
    • K11C [2th restyling] (1999–2003)
    • 3 generation (2002–2010)
    • K12 (2002–2010)
    • K12C [restyling] (2007–2010)
    • 4 generation (2010–2013)
    • 4 generation (K13) (2010–2013)
    • K13 (2013–2016)
    • K13 [restyling] (2013–2016)
    • 5 generation [restyling] (2017–2019)
    • K14 (2017–2022)
    • 6 generation (2025–2026)
  • NV200 (2010–…) ✎ Embedra lists: NV200 2010 on, EPS column, CAN
    • All versions
    • 1 generation (2009–2026)
  • Note (2006–2012) ✎ Embedra lists: NOTE (E11) 2006-2012, EPS column, CAN
    • E11 (2005–2008)
    • E11 [restyling] (2008–2013)
    • 2 generation (2012–2016)
    • E12 (2016–2020)
    • 3 generation (2020–2023)
    • 3 generation [restyling] (2023–2026)
  • Qashqai (2014–…) ✎ Embedra lists: QASHQAI (J11) 2014 on, EPS column, CAN; QASHQAI (J12) 2021 on, EPS rack, CAN
    • 1 generation (2006–2010)
    • J10 (2006–2010)
    • 1 generation [restyling] (2010–2013)
    • J10 [restyling] (2010–2013)
    • 2 generation (2013–2019)
    • J11 (2013–2019)
    • 2 generation [restyling] (2017–2024)
    • J11 [restyling] (2017–2022)
    • 3 generation (2021–2026)
    • J12 (2021–2024)
    • 2 generation [2th restyling] (2024–2026)
    • 3 generation [restyling] (2024–2026)
Opel (12 models) 8 of 12 functions Actuation 1/1 Coding / adaptation 1/2 Diagnostics 3/3 Programming 2/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Coding / adaptation: ECU coding

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update, VIN write / programming

Reports: Report export

  • Astra (2004–…)
    7 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update, VIN write / programming $

    Reports: Report export

    Not for this vehicle: ECU coding

    ✎ Embedra lists: ASTRA H (CLAS III) 2004-2012, EPS pump, CAN; ASTRA J (P10) 2010-2017, EPS rack, CAN; ASTRA K (B16) 2016 on, EPS rack, CAN Extras: Astra J VIN rewrite after steering rack replacement.
    • F (1991–2002)
    • F [restyling] (1994–2002)
    • G (1998–2009)
    • H (2004–2007)
    • Family/H [restyling] (2005–2015)
    • H [restyling] (2006–2014)
    • J (2009–2012)
    • J [restyling] (2011–2018)
    • K (2015–2019)
    • K [restyling] (2019–2022)
    • L (2021–2026)
    • L [restyling] (2026)
  • Combo (2001–2026)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ notes on some versions — see the conditions below
    • C (2001–2003) ✎ Embedra lists: COMBO C (X01) 2001-2011.
    • C [restyling] (2003–2011) ✎ Embedra lists: COMBO C (X01) 2001-2011.
    • E (2018–2024) ✎ Embedra lists: COMBO E (X19) 2019 on. Supported for model years 2019–2024 only (generation built 2018–2024).
    • E [restyling] (2024–2026) ✎ Embedra lists: COMBO E (X19) 2019 on.
  • Corsa (1993–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: CORSA B (S93) 1993-2000, EPS column, K-Line; CORSA C (X01) 2001-2006, EPS column, K-Line; Corsa D (S07) 2007-2014, EPS column, CAN; CORSA E (X15) 2015 on, EPS column, CAN
    • A [2th restyling]
    • A [restyling]
    • A (1982–1993)
    • B (1993–2000)
    • B [restyling] (1997–2000)
    • C (2000–2003)
    • C [restyling] (2003–2006)
    • D (2006–2010)
    • D [restyling] (2010–2020)
    • D [restyling] 1 generation (2010–2011)
    • D [restyling] _1 generation (2010–2011)
    • D [restyling] _2 generation (2011–2014)
    • D [restyling]1 generation (2011–2014)
    • E (2014–2019)
    • F (2019–2023)
    • F (6 generation) (2019–…)
    • F [restyling] (2023–2026)
  • Crossland X (2017–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: CROSSLAND X (P17) 2017 on, EPS rack, CAN
    • 1 generation (2017–2020)
    • 1 generation [restyling] (2020–2024)
  • Grandland (2017–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: GRANDLAND (XA18) 2017 on, EPS rack, CAN
    • 1 generation (2017–2021)
    • 1 generation (10 generation) (2017–2022)
    • 1 generation [restyling] (2021–2024)
    • 2 generation (2024–2026)
  • Insignia (2017–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: INSIGNIA B 2017 on, EPS rack, CAN
    • A (2008–2013)
    • A [restyling] (2013–2017)
    • B (2017–2020)
    • 2 generation [restyling] (2020–2022)
  • Meriva (2003–2017)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: MERIVA A (X03) V1 2003-2010, EPS column, K-Line; MERIVA A (X03) V2 2003-2010, EPS column, K-Line; MERIVA B (S10) 2010-2017, EPS pump, CAN
    • 1 generation (2002–2006)
    • A (2003–2006)
    • 1 generation [restyling] (2004–2010)
    • A [restyling] (2006–2010)
    • 2 generation (2010–2014)
    • B (2010–2014)
    • 2 generation [restyling] (2013–2020)
    • B [restyling] (2014–2018)
  • Mokka (2012–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: MOKKA (J13) 2012 on, EPS column, CAN
    • 1 generation (2012–2016)
    • X [restyling] (2016–2019)
    • 2 generation (2021–2024)
    • 2 generation [restyling] (2024–2026)
  • Movano (2010–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: MOVANO B (X62) 2010 on, EPS pump, CAN
    • All versions
  • Vectra (2002–2008)
    7 of 8 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming

    ✎ Embedra lists: VECTRA C (Z02) 2002-2008, EPS pump, CAN Extras: Vectra C pump coding (angle sensor on/off).
    • A (1988–1995)
    • B (1995–2000)
    • B [restyling] (1999–2002)
    • C (2002–2005)
    • C [restyling] (2005–2008)
  • Vivaro (2015–2018)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: VIVARO B (X82) 2015-2018, EPS pump, CAN
    • All versions
    • A (2001–2006)
    • A [restyling] (2006–2014)
    • B (2014–2019)
    • C (2019–2024)
    • C [restyling] (2024–2026)
  • Zafira (2005–2014)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: VIN write / programming, ECU coding

    ✎ Embedra lists: ZAFIRA B (A05) 2005-2014, EPS pump, CAN
    • A (1999–2003)
    • A [restyling] (2003–2006)
    • B (2005–2008)
    • B [restyling] (2008–2014)
    • Family [restyling] (2008–2015)
    • C (2011–2016)
    • C [restyling] (2016–2019)
Peugeot (13 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • 207 (2006–2014) ✎ Embedra lists: 207 (A7) 2006-2014, EPS rack, CAN
    • 1 generation (2006–2009)
    • 1 generation [restyling] (2009–2015)
  • 208 (2012–…) ✎ Embedra lists: 208 (A90, A91) 2012 on, EPS rack, CAN
    • 1 generation (2012–2015)
    • 1 generation [restyling] (2015–2019)
    • 2 generation (2019–2023)
    • 2 generation [restyling] (2023–2026)
  • 301 (2012–…) ✎ Embedra lists: 301 (M33) 2012 on, EPS rack, CAN
    • 2 generation (2012–2016)
    • 2 generation [restyling] (2016–2022)
  • 308 (2007–…) ✎ Embedra lists: 308 (T7) 2007-2013, EPS pump, CAN; 308 (T9) 2013 on, EPS rack, CAN
    • T7 (2007–2011)
    • T7 [restyling] (2011–2015)
    • T9 (2013–2017)
    • T9 [restyling] (2017–2021)
    • 3 generation (2021–2026)
    • 3 generation [restyling] (2025–2026)
  • 407 (2004–2012) ✎ Embedra lists: 407 (D2) 2004-2012, EPS pump, CAN
    • 1 generation (2004–2010)
    • 1 generation [restyling] (2004–2011)
  • 807 (2002–2014) ✎ Embedra lists: 807 (VV) 2002-2014, EPS pump, CAN
    • 1 generation (2002–2008)
    • 1 generation [restyling] (2008–2014)
  • 2008 (2013–…) ✎ Embedra lists: 2008 (A94) 2013 on, EPS rack, CAN
    • 1 generation (2013–2016)
    • 1 generation [restyling] (2016–2019)
    • 2 generation (2019–2026)
    • 2 generation [restyling] (2023–2026)
  • 3008 (2009–…) ✎ Embedra lists: 3008 (P84) 2016 on, EPS rack, CAN; 3008 (T84) 2009-2016, EPS pump, CAN
    • 1 generation (2009–2013)
    • 1 generation [restyling] (2013–2016)
    • 2 generation (2016–2020)
    • 2 generation [restyling] (2020–2024)
    • 3 generation (2023–2026)
  • 5008 (2009–…) ✎ Embedra lists: 5008 (P87) 2016 on, EPS rack, CAN; 5008 (T87) 2009-2016, EPS pump, CAN
    • 1 generation (2009–2013)
    • 1 generation [restyling] (2013–2016)
    • 2 generation (2017–2020)
    • 2 generation [restyling] (2020–2024)
    • 3 generation (2024–2026)
  • Expert (2007–2015) ✎ Embedra lists: EXPERT III (G9) 2007-2015, EPS pump, CAN
    • All versions
    • 1 generation (1995–2006)
    • 2 generation (2007–2012)
    • 2 generation [restyling] (2012–2016)
    • 3 generation (2016–2023)
    • 3 generation [restyling] (2024–2026)
  • Partner (2008–…) ✎ Embedra lists: PARTNER (B9) 2008 on, EPS pump, CAN; PARTNER (K9) 2019 on, EPS rack, CAN
    • All versions
    • 1 generation (1997–2002)
    • 1 generation [restyling] (2002–2012)
    • 2 generation (2008–2012)
    • 2 generation [restyling] (2012–2015)
    • 2 generation [2th restyling] (2015–2026)
    • 3 generation (2018–2024)
    • 3 generation [restyling] (2024–2026)
  • RCZ (2010–2015) ✎ Embedra lists: RCZ (T75) 2010-2015, EPS pump, CAN
    • 1 generation (2010–2012)
    • 1 generation [restyling] (2012–2015)
  • Rifter (2018–…) ✎ Embedra lists: RIFTER (K9) 2018 on, EPS rack, CAN
    • 1 generation (2018–2024)
    • 1 generation [restyling] (2024–2026)
Porsche (5 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Boxster (2012–…) ✎ Embedra lists: BOXSTER 2012 on, EPS rack, CAN
    • 986 (1996–2002)
    • 986 [restyling] (2002–2004)
    • 987 (2004–2009)
    • 987 [restyling] (2008–2012)
    • 987 [2th restyling] (2009–2012)
    • 981 (2012–2015)
    • 982 (2016–2024)
  • Cayenne (2018–…) ✎ Embedra lists: Cayenne (9YA) 2018 on, EPS rack, CAN
    • 955 (2002–2007)
    • 957 [restyling] (2007–2010)
    • 958 (2010–2014)
    • 958 [restyling] (2014–2018)
    • 3 generation (2017–2023)
    • PO536 (2017–2020)
    • 3 generation [restyling] (2023–2026)
    • 4 generation (2025–2026)
  • Cayman (2012–…) ✎ Embedra lists: CAYMAN 2012 on, EPS rack, CAN
    • 1 generation (987C) (2005–2009)
    • 987C (2005–2009)
    • 981C (2008–2013)
    • 1 generation (987) [restyling] (2009–2012)
    • 987C [restyling] (2009–2012)
    • 981C [restyling] (2012–2016)
    • 2 generation (981) (2013–2016)
    • 3 generation 718 (982) (2016–2025)
    • 982 (2016–2024)
  • Macan (2014–…) ✎ Embedra lists: Macan (95B) 2014 on, EPS rack, CAN Extras: Macan (95B) special flash.
    • 1 generation (2014–2018)
    • 1 generation [restyling] (2018–2021)
    • 1 generation [2th restyling] (2021–2026)
    • 2 generation (2024–2026)
  • Panamera (2012–…) ✎ Embedra lists: PANAMERA 2012 on, EPS pump, CAN; Panamera (971) 2017 on, EPS rack, CAN
    • 970 (2009–2013)
    • 1 generation [restyling] (2013–2016)
    • 970 [restyling] (2013–2016)
    • 971 (2016–2020)
    • 2 generation [restyling] (2020–2024)
    • 3 generation (2023–2026)
Renault (11 models) 8 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 3/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update, VIN write / programming, ECU / module virginization

Reports: Report export

  • Clio (2005–2019) ✎ Embedra lists: CLIO III (X85) 2005-2013, EPS column, CAN; CLIO IV (X98) 2013-2019, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (1990–1998)
    • 1 generation [restyling] (1996–1998)
    • 2 generation (1998–2002)
    • 2 generation [restyling] (2001–2003)
    • 2 generation [2th restyling] (2003–2013)
    • 3 generation (2005–2009)
    • Campus [2th restyling] (2006–2009)
    • 3 generation [restyling] (2009–2014)
    • Campus [3th restyling] (2009–2012)
    • 4 generation (2012–2016)
    • 4 generation [restyling] (2016–2019)
    • 5 generation (2019–2023)
    • 5 generation [restyling] (2023–2026)
    • 6 generation (2025–2026)
  • Fluence (2010–2015) ✎ Embedra lists: FLUENCE (X38) 2010-2015, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (2009–2013)
    • 1 generation [restyling] (2012–2017)
  • Kangoo (2008–…) ✎ Embedra lists: KANGOO II (X61) 2008 on, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • All versions
    • 1 generation (1997–2003)
    • 1 generation [restyling] (2003–2009)
    • 2 generation (2007–2013)
    • 2 generation [restyling] (2013–2021)
    • 3 generation (2021–2026)
  • Laguna (2007–2015) ✎ Embedra lists: LAGUNA III (X91) 2007-2015, EPS pump, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (1993–1998)
    • 1 generation [restyling] (1993–2001)
    • 2 generation (2001–2005)
    • 2 generation [restyling] (2005–2008)
    • 3 generation (2007–2012)
    • 3 generation [restyling] (2010–2015)
  • Master (2010–…) ✎ Embedra lists: MASTER IV 2010 on, EPS pump, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • All versions
  • Megane (2002–…) ✎ Embedra lists: MEGANE II (X84) 2002-2010, EPS column, CAN; MEGANE III (X95) 2008-2016, EPS column, CAN; MEGANE IV (205HP) 2016 on, EPS rack, CAN; MEGANE IV (XFB,XFF) 2016 on, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (1995–1999)
    • 1 generation [restyling] (1999–2003)
    • 2 generation (2002–2006)
    • 2 generation [restyling] (2006–2009)
    • 3 generation (2008–2014)
    • 3 generation [restyling] (2012–2014)
    • 3 generation [2th restyling] (2014–2016)
    • 4 generation (2016–2020)
    • 4 generation [restyling] (2020–2024)
  • Modus (2008–2016) ✎ Embedra lists: MODUS (X77) 2008-2016, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (2004–2007)
    • 2 generation (2004–2008)
    • 1 generation [restyling] (2007–2012)
  • Scenic (2003–2016) ✎ Embedra lists: SCENIC II (X84) 2003-2010, EPS column, CAN; SCENIC III (X95) 2009-2016, EPS column, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (1996–1999)
    • 1 generation [restyling] (1999–2003)
    • 2 generation (2003–2006)
    • 2 generation [restyling] (2006–2009)
    • 3 generation (2009–2012)
    • 3 generation [restyling] (2012–2013)
    • 3 generation [2th restyling] (2013–2016)
    • 4 generation (2016–2022)
    • E-Tech (2023–2024)
    • E-Tech 5 generation (2024–2026)
  • Talisman (2016–…) ✎ Embedra lists: TALISMAN (XFD) 2016 on, EPS rack, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (2015–2020)
    • 1 generation [restyling] (2020–2022)
  • Trafic (2014–…) ✎ Embedra lists: TRAFIC III (X82) 2014 on, EPS pump, CAN; TRAFIC III (X82) V2 2014 on, EPS pump, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • All versions
    • 1 generation (1980–1989)
    • 1 generation [restyling] (1989–1994)
    • 1 generation [2th restyling] (1994–2001)
    • 2 generation (2001–2006)
    • X83 (2001–2006)
    • 2 generation [restyling] (2006–2014)
    • X83 [restyling] (2006–2014)
    • 3 generation (2014–2021)
    • 3 generation [restyling] (2021–2026)
    • 4 generation (2025–2026)
  • Twingo (2014–2021) ✎ Embedra lists: TWINGO III (AH) 2014-2021, EPS rack, CAN Extras: Renault VIN read/write and virginization (general Renault tool).
    • 1 generation (1993–2007)
    • 1 generation [restyling] (1998–2000)
    • 1 generation [2th restyling] (2000–2004)
    • 1 generation [3th restyling] (2004–2007)
    • 2 generation (2007–2011)
    • 2 generation [restyling] (2011–2014)
    • 3 generation (2014–2019)
    • 3 generation [restyling] (2019–2024)
    • 4 generation (2025–2026)
SEAT (9 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Alhambra (2011–2020) ✎ Embedra lists: ALHAMBRA (71,711) 2011-2020, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (1996–2000)
    • 1 generation [restyling] (2000–2010)
    • 2 generation (2010–2015)
    • 2 generation [restyling] (2015–2020)
  • Altea (2004–2015) ✎ Embedra lists: ALTEA (5P1) 2004-2015, EPS rack, CAN; ALTEA (XL 5P5) 2004-2015, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2004–2009)
    • 1 generation [restyling] (2009–2015)
  • Arona (2018–…) ✎ Embedra lists: ARONA (KJ7) 2018 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2017–2021)
    • 1 generation [restyling] (2021–2026)
  • Ateca (2017–…) ✎ Embedra lists: ATECA (KH7) V1 2017 on, EPS rack, CAN; ATECA (KH7) V2 2017 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2016–2020)
    • 1 generation [restyling] (2020–2026)
  • Cordoba (2003–2010) ✎ Embedra lists: CORDOBA (6L2) 2003-2010, EPS pump, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (1993–1999)
    • 3 generation (1993–1999)
    • 1 generation [restyling] (1999–2003)
    • 2 generation (2003–2006)
    • 2 generation [restyling] (2006–2009)
  • Ibiza (2001–2026) ✎ notes on some versions — see the conditions below
    • 3 generation (2001–2008) ✎ Embedra lists: IBIZA (6L1) 2002-2009. Supported for model years 2002–2008 only (generation built 2001–2008). Extras: VAG Universal Flasher (all compatible VAG group models).
    • 3 generation [restyling] (2006–2008) ✎ Embedra lists: IBIZA (6L1) 2002-2009. Extras: VAG Universal Flasher (all compatible VAG group models).
    • 4 generation (2008–2012) ✎ Embedra lists: IBIZA (6L1) 2002-2009; IBIZA (6P,6J) 2008-2015. Extras: VAG Universal Flasher (all compatible VAG group models).
    • 4 generation [restyling] (2012–2015) ✎ Embedra lists: IBIZA (6P,6J) 2008-2015. Extras: VAG Universal Flasher (all compatible VAG group models).
    • 4 generation [2th restyling] (2015–2017) ✎ Embedra lists: IBIZA (6P,6J) 2008-2015. Supported for model years 2015–2015 only (generation built 2015–2017). Extras: VAG Universal Flasher (all compatible VAG group models).
    • 5 generation (2017–2021) ✎ Embedra lists: IBIZA (KJ1) 2018 on. Supported for model years 2018–2021 only (generation built 2017–2021). Extras: VAG Universal Flasher (all compatible VAG group models).
    • 5 generation [restyling] (2021–2026) ✎ Embedra lists: IBIZA (KJ1) 2018 on. Extras: VAG Universal Flasher (all compatible VAG group models).
    • 5 generation [2th restyling] (2025–2026) ✎ Embedra lists: IBIZA (KJ1) 2018 on. Extras: VAG Universal Flasher (all compatible VAG group models).
  • Leon (2006–…) ✎ Embedra lists: LEON II (1P1) 2006-2013, EPS rack, CAN; LEON II (1P2) 2006-2013, EPS rack, CAN; LEON III (5F1) 2013 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (1999–2006)
    • 2 generation (2005–2009)
    • 2 generation [restyling] (2009–2012)
    • 3 generation (2012–2016)
    • 3 generation [restyling] (2016–2020)
    • 4 generation (2020–2026)
  • Mii (2012–2019) ✎ Embedra lists: Mii (KF) 2012-2019, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2011–2021)
  • Toledo (2004–2019) ✎ notes on some versions — see the conditions below
    • 3 generation (2004–2009) ✎ Embedra lists: TOLEDO III (5P2) 2005-2010. Supported for model years 2005–2009 only (generation built 2004–2009). Extras: VAG Universal Flasher (all compatible VAG group models).
    • 4 generation (2012–2019) ✎ Embedra lists: TOLEDO (KG3) 2013-2019. Supported for model years 2013–2019 only (generation built 2012–2019). Extras: VAG Universal Flasher (all compatible VAG group models).
Skoda (10 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Citigo (2012–2019) ✎ Embedra lists: CITIGO (NF) 2012-2019, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2011–2017)
    • 1 generation [restyling] (2017–2020)
  • Fabia (2000–…) ✎ Embedra lists: FABIA I (6Y2) 2000-2008, EPS pump, CAN; FABIA II (542) 2007-2015, EPS pump, CAN; FABIA III (NJ) 2015 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 6Y (1999–2004)
    • 1 generation [restyling] (2004–2007)
    • 6Y [restyling] (2004–2007)
    • 5J (2007–2010)
    • 2 generation [restyling] (2010–2014)
    • 5J [restyling] (2010–2014)
    • 3 generation (2014–2018)
    • NJ (2014–2018)
    • 3 generation [restyling] (2018–2021)
    • NJ [restyling] (2018–2020)
    • 4 generation (2021–2026)
  • Kamiq (2015–…) ✎ Embedra lists: KAMIQ (NW) 2015 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (China Market) (2018–2026)
    • 1 generation (China Market) (China Market) (2018–2024)
    • 1 generation (2019–2023)
    • 1 generation [restyling] (2023–2026)
  • Karoq (2017–…) ✎ Embedra lists: KAROQ (NU7) 2017 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2017–2026)
    • 1 generation [restyling] (2021–2026)
  • Kodiaq (2017–…) ✎ Embedra lists: KODIAQ (NS7) 2017 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2016–2022)
    • 1 generation [restyling] (2021–2026)
    • 2 generation (2023–2026)
  • Octavia (2004–…) ✎ Embedra lists: OCTAVIA II (1Z3) 2004-2013, EPS rack, CAN; OCTAVIA II (1Z5) 2004-2013, EPS rack, CAN; OCTAVIA III (5E3) 2013 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • Type 985 (1959–1971)
    • 1 generation (1996–2000)
    • Tour (1996–2000)
    • 1 generation [restyling] (2000–2011)
    • Tour [restyling] (2000–2011)
    • 2 generation (2004–2009)
    • A5 (2004–2009)
    • 2 generation [restyling] (2008–2013)
    • A5 [restyling] (2008–2013)
    • 3 generation (2013–2017)
    • A7 (2013–2017)
    • 3 generation [restyling] (2017–2023)
    • A7 [restyling] (2017–2024)
    • 4 generation (2019)
    • 4 generation (A8) (2019–2025)
    • A8 (2019–2024)
    • COMBI (2019–…)
    • 4 generation (A8) [restyling] (2024–2026)
  • Rapid (2013–…) ✎ Embedra lists: RAPID (NH) 2013 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2012–2017)
    • 3 generation (2012–2017)
    • 1 generation [restyling] (2017–2020)
    • 3 generation [restyling] (2017–2020)
    • 2 generation (2020–2023)
    • 3 generation ( 2 Restyling) (2020)
  • Roomster (2006–2015) ✎ Embedra lists: ROOMSTER (5J7) 2006-2015, EPS pump, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2006–2010)
    • 1 generation [restyling] (2010–2015)
    • 5J [restyling] (2010–2015)
  • Superb (2008–…) ✎ Embedra lists: SUPER B (3T5) 2008-2015, EPS rack, CAN; SUPER B (3V3,5) 2015 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2001–2006)
    • 1 generation [restyling] (2006–2008)
    • 2 generation (2008–2013)
    • 2 generation [restyling] (2013–2015)
    • 3 generation (2015–2019)
    • 3 generation [restyling] (2019–2026)
    • 4 generation (2023–2026)
  • Yeti (2010–2017) ✎ Embedra lists: YETI (5L) 2010-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2009–2014)
    • 1 generation [restyling] (2013–2018)
Smart (1 model) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Forfour (2014–…) ✎ Embedra lists: FORFOUR (453) 2014 on, EPS rack, CAN
    • 1 generation (2004–2006)
    • 2 generation (2004–2006)
Subaru (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Forester (2008–2018) ✎ Embedra lists: FORESTER (SH, S4) 2008-2013, EPS rack, CAN; Forester (SJ, S4) 2013-2018, EPS rack, CAN
    • 1 generation (1997–2000)
    • SF (1997–2000)
    • 1 generation [restyling] (2000–2002)
    • SF [restyling] (2000–2002)
    • 2 generation (2002–2005)
    • SG (2002–2005)
    • 2 generation [restyling] (2005–2008)
    • SG [restyling] (2005–2008)
    • 3 generation (2007–2011)
    • SH (2007–2011)
    • 3 generation [restyling] (2010–2013)
    • SH [restyling] (2011–2013)
    • 4 generation (2012–2015)
    • SJ (2012–2015)
    • 4 generation [restyling] (2015–2016)
    • SJ [restyling] (2015–2016)
    • 4 generation [2th restyling] (2016–2019)
    • SJ [2th restyling] (2016–2018)
    • 5 generation (2018–2021)
    • SK (2018–2021)
    • 5 generation [restyling] (2021–2026)
    • SK [restyling] (2021–2024)
    • 6 generation (2024–2026)
    • SL (2024)
  • Impreza (2009–…) ✎ Embedra lists: IMPREZA (GR,GH,G3) 2009 on, EPS rack, CAN
    • 1 generation (1992–2000)
    • 1 generation [restyling] (1996–2000)
    • 2 generation (2000–2002)
    • 2 generation [restyling] (2002–2005)
    • 2 generation [2th restyling] (2005–2007)
    • 3 generation (2007–2011)
    • 3 generation [restyling] (2010–2014)
    • 4 generation (2011–2015)
    • 4 generation [restyling] (2014–2016)
    • 5 generation (2016–2019)
    • 5 generation [restyling] (2019–2023)
    • 6 generation (2023–2026)
  • Legacy (2015–2020) ✎ Embedra lists: LEGACY VI (BN,BS) 2015-2020, EPS rack, CAN
    • 1 generation (1989–1994)
    • 2 generation (1993–1999)
    • 3 generation (1998–2004)
    • 4 generation (2003–2006)
    • 4 generation [restyling] (2006–2009)
    • 5 generation (2009–2012)
    • 5 generation [restyling] (2012–2014)
    • 6 generation (2014–2017)
    • 6 generation [restyling] (2017–2020)
    • 7 generation (2019–2023)
    • 7 generation [restyling] (2023–2025)
Suzuki (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Baleno (2015–…) ✎ Embedra lists: BALENO (A1K) 2015 on, EPS column, CAN
    • 1 generation (1995–2002)
    • 2 generation (2015–2022)
    • 3 generation (2022–2026)
  • Swift (2010–…) ✎ Embedra lists: SWIFT (AZC) 2017 on, EPS column, CAN; SWIFT (AZG) 2010-2017, EPS column, CAN
    • 1 generation [restyling] (1986–1988)
    • 2 generation (1989–1995)
    • 2 generation [restyling] (1995–2003)
    • 1 generation (2000–2004)
    • Sw1 generationft I (Japan) (2000–2004)
    • Swift 1 generation (Japan) (2000–2004)
    • 3 generation (2004–2011)
    • 4 generation (2010–2013)
    • 4 generation [restyling] (2013–2017)
    • 5 generation (2016–2026)
    • 5 generation [restyling] (2020–2026)
    • 6 generation (2023–2026)
  • Vitara (2015–…) ✎ Embedra lists: VITARA - ESCUDO (APK) 2015 on, EPS column, CAN
    • TA (1988–2006)
    • 2 generation (2014–2019)
    • 2 generation [restyling] (2018–2024)
    • 2 generation [2th restyling] (2024–2026)
Tesla (3 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Model S (2012–…) ✎ Embedra lists: MODEL S 2016 on, EPS rack, CAN; MODEL S (EJ) 2012-2016, EPS rack, CAN
    • 1 generation (2012–2016)
    • 1 generation [restyling] (2016–2021)
    • 1 generation [2th restyling] (2021–2026)
  • Model X (2013–2016) ✎ Embedra lists: MODEL X 2013-2016, EPS rack, CAN
    • 1 generation (2015–2021)
    • 1 generation [restyling] (2021–2026)
  • Model Y (2016–2021) ✎ Embedra lists: MODEL Y 2016-2021, EPS rack, CAN
    • 1 generation (2020–2025)
    • 1 generation [restyling] (2025–2026)
Toyota (15 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • Auris (2007–2012) ✎ Embedra lists: AURIS 2007-2012, EPS column, CAN
    • 1 generation (2006–2010)
    • 1 generation [restyling] (2009–2012)
    • 2 generation (2012–2015)
    • 2 generation [restyling] (2015–2018)
  • Avensis (2008–2018) ✎ Embedra lists: AVENSIS (T27) 2008-2018, EPS column, CAN
    • 1 generation (1997–2000)
    • 1 generation [restyling] (2000–2003)
    • 2 generation (2003–2006)
    • 2 generation [restyling] (2006–2009)
    • 3 generation (2008–2011)
    • 3 generation [restyling] (2011–2015)
    • 3 generation [2th restyling] (2015–2018)
  • Aygo (2005–…) ✎ Embedra lists: AYGO (PAB4,KGB4) 2014 on, EPS column, CAN; AYGO (WNB1, KGB1) 2005-2014, EPS column, CAN
    • 1 generation (2005–2009)
    • 1 generation [restyling] (2009–2012)
    • 1 generation [2th restyling] (2012–2014)
    • 2 generation (2014–2018)
    • 2 generation [restyling] (2018–2022)
  • Camry (2011–…) ✎ Embedra lists: CAMRY (V7, VA7, VH7) 2017 on, EPS rack, CAN; CAMRY (XV5) 2011-2017, EPS column, CAN
    • (A40/A50) (1980–1982)
    • A40/A50 (1980–1982)
    • 1 generation (V10) (1982–1988)
    • V10 (1982–1984)
    • V10 [restyling] (1984–1986)
    • 2 generation (V20) (1986–1991)
    • V20 (1986–1991)
    • V30 (1990–1994)
    • 3 generation (XV10) (1991–1997)
    • XV10 (1991–1994)
    • V30 [restyling] (1992–1994)
    • V40 (1994–1998)
    • XV10 [restyling] (1994–1996)
    • 4 generation (XV20) (1996–2000)
    • V40 [restyling] (1996–1998)
    • XV20 (1997–2000)
    • 4 generation (XV20) [restyling] (1999–2002)
    • XV20 [restyling] (2000–2001)
    • 5 generation (XV30) (2001–2004)
    • XV30 (2001–2004)
    • 5 generation (XV30) [restyling] (2004–2006)
    • XV30 [restyling] (2004–2006)
    • 15 generation40 (2006–2009)
    • 6 generation (XV40) (2006–2009)
    • XV40 (2006–2009)
    • 6 generation (XV40) [restyling] (2009–2011)
    • XV40 [restyling] (2009–2011)
    • 7 generation (XV50) (2011–2014)
    • XV50 (2011–2014)
    • 7 generation (XV50) [restyling] (2014–2017)
    • VX50 [restyling] (2014–2017)
    • XV50 [restyling] (2014–2018)
    • 7 generation (XV50) [2th restyling] (2017–2018)
    • 8 generation (XV70) (2017–2021)
    • XV50 [2th restyling] (2017–2018)
    • XV70 (2017–2021)
    • 8 generation (XV70) [restyling] (2020–2026)
    • XV70 [restyling] (2020–2024)
    • 9 generation (XV80) China Market (2023–2026)
    • 9 generation (XV80) (2024–2026)
    • XV80 (2024)
  • Corolla (2013–2019) ✎ Embedra lists: COROLLA (E18) 2013-2019, EPS column, CAN
    • 1 generation (E10) (1966–1970)
    • E10 (1966–1970)
    • 2 generation (E20) (1970–1974)
    • E20 (1970–1974)
    • 3 generation (E30, E40, E50, E60) (1972–1980)
    • E30 (1972–1980)
    • E50 [restyling] (1976–1981)
    • 4 generation (E70) (1979–1987)
    • E70 (1979–1983)
    • E70 [restyling] (1982–1983)
    • 5 generation (E80) (1983–1988)
    • E80 (1983–1987)
    • 6 generation (E90) (1987–1993)
    • E90 (1987–1991)
    • 7 generation (E100) (1991–2002)
    • E100 (1991–2002)
    • 8 generation (E110) (1995–2000)
    • E110 (1995–2001)
    • 8 generation (E110) [restyling] (1997–2002)
    • E110 [restyling] (1997–2002)
    • E120 (2000–2004)
    • E120/E130 (2000–2004)
    • 9 generation (E120, E130) [restyling] (2003–2007)
    • E120/E130 [restyling] (2003–2007)
    • E130 [restyling] (2004–2007)
    • E140 (2006–2010)
    • E140/E150 (2006–2010)
    • E15 (2006–2013)
    • 10 generation (E140, E150) [restyling] (2008–2013)
    • E150 [restyling] (2008–2013)
    • E140/E150 [restyling] (2010–2013)
    • 11 generation (E160, E170, E180) (2012–2016)
    • E160 (2012–2016)
    • E170 (11 generation) (2013–2018)
    • 11 generation (E160, E170, E180) [restyling] (2015–2019)
    • E160 [restyling] (2015–2023)
    • E170 [restyling] (2015–2020)
    • 11 generation (E160, E170) [2th restyling] (2017–2025)
    • E160 [2th restyling] (2017–2024)
    • 12 generation (E210) (2018–2026)
    • E210 (2019–2024)
    • 12 generation (E210) [restyling] (2022–2026)
    • 12 generation (E210) [2th restyling] (2025–2026)
  • GT 86 (2012–…) ✎ Embedra lists: GT86 (ZN6) 2012 on, EPS column, CAN
    • 1 generation (2012–2016)
    • 1 generation [restyling] (2016–2020)
  • GT86 (2012–…) ✎ Embedra lists: GT86 (ZN6) 2012 on, EPS column, CAN
    • 1 generation (2012–2016)
    • 1 generation [restyling] (2016–2021)
  • Highlander (2007–…) ✎ Embedra lists: HIGHLANDER (GSU5, ASU5) 2013 on, EPS column, CAN; HIGHLANDER (MHU4, GSU4, ASU4) 2007-2014, EPS column, CAN
    • 1 generation (2001–2003)
    • 1 generation (U20) (2001–2003)
    • 1 generation (XU20) (2001–2003)
    • 1 generation (U20) [restyling] (2003–2007)
    • 1 generation (XU20) [restyling] (2003–2007)
    • 1 generation [restyling] (2004–2007)
    • 2 generation (U40) (2007–2010)
    • 2 generation (XU40) (2007–2010)
    • 2 generation (2008–2010)
    • 2 generation (U40) [restyling] (2010–2013)
    • 2 generation (XU40) [restyling] (2010–2013)
    • 2 generation [restyling] (2010–2014)
    • 3 generation (2013–2016)
    • 3 generation (U50) (2013–2016)
    • 3 generation (XU50) (2013–2016)
    • 3 generation (U50) [restyling] (2016–2021)
    • 3 generation (XU50) [restyling] (2016–2021)
    • 3 generation [restyling] (2016–2020)
    • 4 generation (2019–2024)
    • 4 generation (U70) (2019–2026)
    • 4 generation (XU70) (2019–2026)
    • 5 generation (2026)
  • Kluger (2007–…) ✎ Embedra lists: KLUGER 2007 on, EPS column, CAN
    • 1 generation (2000–2003)
    • XU20 (2000–2003)
    • 1 generation [restyling] (2003–2007)
    • XU20 [restyling] (2003–2007)
    • 2 generation (2007–2010)
    • XU40 (2007–2010)
    • 2 generation [restyling] (2010–2013)
  • Prius (2009–…) ✎ Embedra lists: PRIUS 2009 on, EPS column, CAN
    • 1 generation (1997–2000)
    • XW10 (1997–2000)
    • 1 generation [restyling] (XW10) (2000–2003)
    • XW10 [restyling] (2000–2003)
    • 2 generation (2003–2005)
    • XW20 (2003–2005)
    • 2 generation [restyling] (XW20) (2005–2011)
    • XW20 [restyling] (2005–2011)
    • 3 generation (2009–2011)
    • XW30 (2009–2011)
    • 3 generation [restyling] (2011–2016)
    • XW30 [restyling] (2011–2015)
    • 4 generation (2015–2023)
    • 4 generation XW50 (2015–2024)
    • 4 generation XW50 [restyling] (2018–2022)
    • 4 generation [restyling] (XW50) (2018–2022)
    • 5 generation (XW60) (2022–2026)
    • 5 generation XW60 (2022–2024)
    • 5 generation (2023)
  • RAV4 (2005–…) ✎ Embedra lists: RAV 4 III 2005-2012, EPS column, CAN; RAV 4 IV 2012-2018, EPS column, CAN; RAV 4 V 2019 on, EPS rack, CAN
    • 1 generation (1994–1998)
    • 1 generation (XA10) (1994–2000)
    • XA10 (1994–2000)
    • 1 generation [restyling] (1998–2000)
    • 2 generation (2000–2003)
    • 2 generation (XA20) (2000–2003)
    • XA20 (2000–2003)
    • 2 generation [restyling] (2003–2006)
    • CA20 [restyling] (2003–2006)
    • XA20 [restyling] (2003–2006)
    • 3 generation (2005–2008)
    • 3 generation (XA30) (2005–2010)
    • 5 generation (XA30) (2005–2010)
    • XA30 (2005–2010)
    • 3 generation [restyling] (2008–2010)
    • 3 generation [2th restyling] (2010–2013)
    • CA30 [restyling] (2010–2016)
    • XA30 [restyling] (2010–2016)
    • 4 generation (2012–2015)
    • 4 generation (XA40) (2012–2015)
    • XA40 (2012–2015)
    • 4 generation (CA40) [restyling] (2015–2019)
    • 4 generation (XA40) [restyling] (2015–2019)
    • 4 generation [restyling] (2015–2020)
    • XA40 [restyling] (2015–2019)
    • 5 generation (2018–2020)
    • 5 generation (XA50) (2018–2026)
    • XA50 (2018–2024)
    • 6 generation (XA60) (2025–2026)
  • Venza (2008–2016) ✎ Embedra lists: VENZA 2008-2016, EPS column, CAN
    • 1 generation (2008–2012)
    • 1 generation [restyling] (2012–2017)
    • 2 generation (2020–2026)
  • Verso (2009–2018) ✎ Embedra lists: VERSO 2009-2018, EPS column, CAN
    • 1 generation (2009–2012)
    • 1 generation [restyling] (2012–2018)
  • Yaris (2006–…) ✎ Embedra lists: YARIS (NLP13, NSP13, NCP13, KSP13) 2011 on, EPS column, CAN; YARIS (SCP9, NSP9, KSP9, NCP9, ZSP9) 2006-2011, EPS column, CAN
    • 1 generation (1999–2003)
    • P1 (1999–2003)
    • 1 generation [restyling] (2003–2005)
    • P1 [restyling] (2003–2005)
    • 2 generation (2005–2009)
    • XP9 (2005–2009)
    • 2 generation [restyling] (2009–2012)
    • XP9 [restyling] (2009–2012)
    • 3 generation (2010–2014)
    • XP130 (2011–2014)
    • XP150 (2013–2017)
    • 3 generation [restyling] (2014–2017)
    • XP130 [restyling] (2014–2017)
    • XP130 [2th restyling] (2015–2020)
    • DJ/DL (2016–2020)
    • XP150 [restyling] (2016–2026)
    • 3 generation [2th restyling] (2017–2020)
    • 4 generation (2020–2026)
    • XP150 [2th restyling] (2023–2026)
    • 4 generation [restyling] (2024–2026)
  • iQ (2009–2015) ✎ Embedra lists: IQ 2009-2015, EPS column, CAN
    • 1 generation (2008–2015)
Volkswagen (19 models) 8 of 12 functions Actuation 1/1 Coding / adaptation 1/2 Diagnostics 3/3 Programming 2/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Coding / adaptation: ECU coding

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update, EEPROM read / write

Reports: Report export

  • Caddy (2004–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: Caddy (2K,2C,9H) 2004-2015, EPS rack, CAN; Caddy (SA) 2016 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • All versions
    • 1 generation (1979–1995)
    • 2 generation (1995–2004)
    • 3 generation (2004–2010)
    • 3 generation [restyling] (2010–2015)
    • 4 generation (2015–2020)
    • 5 generation (2020–2026)
  • Crafter (2017–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: CRAFTER (SY,SZ) 2017 on, EPS rack, CAN Extras: Crafter special flash / VAG Universal Flasher (all compatible VAG group models).
    • All versions
  • Eos (2006–2015)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: EOS (1F) 2006-2015, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2006–2011)
    • 1 generation [restyling] (2010–2015)
  • Fox (2004–2011)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: FOX (5Z) 2004-2011, EPS pump, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (1987–1991)
    • 1 generation [restyling] (1991–1994)
    • 2 generation (2003–2009)
    • 2 generation [restyling] (2009–2011)
    • 3 generation (2009–2020)
  • Golf (2003–…)
    7 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update, EEPROM read / write $

    Reports: Report export

    Not for this vehicle: ECU coding

    ✎ Embedra lists: GOLF PLUS V (5M) 2005-2009, EPS rack, CAN; GOLF PLUS VI (52) 2009-2014, EPS rack, CAN; Golf V (1K) 2003-2010, EPS rack, CAN; Golf VI (5K,AJ) 2009-2013, EPS rack, CAN; Golf VII (5G,BE,BA,BV,BQ) 2013 on, EPS rack, CAN; GOLF VII (5G5) 2013 on, EPS rack, CAN; Golf VIII (CD1) 2020 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models) / Golf Mk VII P-Flash R/W (switch RHD/LHD); Golf 5/6 EEPROM read/write (KWP2000 CAN).
    • 1 generation (1974–1993)
    • 2 generation (1983–1992)
    • 3 generation (1991–2000)
    • 4 generation (1997–2006)
    • 5 generation (2003–2009)
    • 6 generation (2008–2012)
    • 7 generation (2012–2017)
    • 7 generation [restyling] (2017–2020)
    • 8 generation (2019–2024)
    • 8 generation [restyling] (2024–2026)
  • Golf Sportsvan (2014–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: GOLF SVAN (AM,AN) 2014 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2014–2017)
    • 1 generation [restyling] (2017–2020)
  • Jetta (2005–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: JETTA V (1K2) 2005-2010, EPS rack, CAN; JETTA VI (162,3) 2010 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 2 generation [restyling] (1978–1984)
    • 1 generation (1979–1984)
    • 2 generation (1984–1992)
    • 3 generation (1992–1998)
    • 4 generation (1998–2005)
    • 5 generation (2005–2011)
    • 6 generation (2010–2015)
    • SportWagen (2010–2015)
    • SportWagen (USA) (2010–2015)
    • 2 generation (China Market) (2013–2016)
    • 2 generation (China Market) (China Market) (2013–2016)
    • 6 generation [restyling] (2014–2018)
    • 2 generation (China Market) [restyling] -cn (China Market) (2016–2019)
    • 2 generation [restyling] (China Market) (2016–2019)
    • 7 generation (2018–2021)
    • 7 generation [restyling] (2021–2024)
    • 7 generation [2th restyling] (2024–2026)
  • Passat (2005–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: PASSAT VI (3C) 2005-2010, EPS rack, CAN; PASSAT VII (ALL) V1 2011-2015, EPS rack, CAN; PASSAT VII (ALL) V2 2011-2015, EPS rack, CAN; PASSAT VIII (3G2,CB2) 2015 on, EPS rack, CAN; PASSAT VIII (3G5,CB5) V1 2015 on, EPS rack, CAN; PASSAT VIII (3G5,CB5) V2 2015 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models); Passat B8 DEV CODE 1 fault clear.
    • B1 (1973–1981)
    • B1 [restyling] (1977–1981)
    • B2 (1980–1988)
    • B3 (1988–1993)
    • B4 (1993–1997)
    • B5 (1996–2001)
    • B5+ [restyling] (2000–2005)
    • B5.5 [restyling] (2000–2005)
    • B6 (2005–2010)
    • B7 (2011–2015)
    • B8 (2014–2020)
    • B8 [restyling] (2019–2023)
    • B9 (2023–2026)
  • Passat CC (2012–2017)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: CC (358) 2012-2017, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2008–2012)
    • 1 generation [restyling] (2011–2017)
    • 2 generation (2018–2020)
    • 2 generation [restyling] (2020–2026)
  • Polo (2002–…)
    7 of 8 functions

    Actuation: Actuation / component test

    Coding / adaptation: ECU coding $

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write

    ✎ Embedra lists: POLO IV (9N,9A) 2002-2008, EPS pump, CAN; POLO V (6C) 2009-2017, EPS column, CAN; POLO V (6R) 2009-2017, EPS pump, CAN; POLO VI (AW) 2018 on, EPS column, CAN Extras: Polo IV angle sensor coding (activate/deactivate); VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (1975–1979)
    • 1 generation [restyling] (1975–1988)
    • 2 generation (1981–1994)
    • 2 generation [restyling] (1990–1994)
    • 3 generation (1994–2002)
    • 3 generation [restyling] (1999–2001)
    • 4 generation (2001–2005)
    • 4 generation [restyling] (2005–2009)
    • 5 generation (2009–2015)
    • 5 generation [restyling] (2014–2020)
    • 6 generation (EU Market) (2017–2021)
    • Plus (China Market) (2019–2026)
    • Plus (China Market) (China Market) (2019–2024)
    • 6 generation (2020–2022)
    • 6 generation (EU Market) [restyling] (2021–2024)
    • 6 generation [restyling] (EU Market) (2021–2026)
  • Scirocco (2008–2018)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: SCIROCCO (137,8) 2008-2018, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (1974–1977)
    • 1 generation [restyling] (1974–1981)
    • 2 generation (1981–1992)
    • 3 generation (2008–2014)
    • 3 generation [restyling] (2014–2017)
  • Sharan (2010–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: SHARAN (7N1) 2010 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (1995–2000)
    • 1 generation [restyling] (2000–2004)
    • 1 generation [2th restyling] (2003–2010)
    • 2 generation (2010–2015)
    • 2 generation [restyling] (2015–2022)
  • T-Cross (2019–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: T-CROSS (C11) 2019 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2018–2023)
    • 1 generation (China Market) (2018–2026)
    • 1 generation [restyling] (2023–2026)
  • T-Roc (2018–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: T-ROC (A11) 2018 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2017–2021)
    • 1 generation (China Market) (2018–2026)
    • 1 generation [restyling] (2021–2026)
    • 1 generation (China Market) [restyling] (2023–2026)
    • 2 generation (2025–2026)
  • Tiguan (2008–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: TIGUAN (5N) 2008-2017, EPS rack, CAN; TIGUAN (AD,BT,BW) 2016 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2007–2011)
    • 1 generation [restyling] (2011–2018)
    • 2 generation (2016–2021)
    • 2 generation (China Market) (2017–2021)
    • 2 generation [restyling] (2020–2026)
    • 2 generation [restyling] (China Market) (2020–2026)
    • 3 generation (2023–2026)
    • 3 generation (China Market) (2024–2026)
    • 3 generation (NA Market) (2025–2026)
  • Touran (2003–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: TOURAN (1T1) 2003-2015, EPS rack, CAN; TOURAN (1T2) 2003-2015, EPS rack, CAN; TOURAN (1T3) 2003-2015, EPS rack, CAN; TOURAN (5TA,0R) 2016 on, EPS rack, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2003–2006)
    • 1 generation [restyling] (2006–2010)
    • 1 generation [2th restyling] (2010–2015)
    • 2 generation (2015–2026)
    • 3 generation (2015–2024)
  • Transporter (2013–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: TRANSPORTER (T6) 2013 on, EPS rack, CAN Extras: Transporter T6 special flash / VAG Universal Flasher (all compatible VAG group models).
    • All versions
    • T1 (1950–1967)
    • T1 [restyling] (1963–1967)
    • T2 (1967–1970)
    • T2 [restyling] (1970–1979)
    • T3 (1979–1992)
    • T3 [restyling] (1982–1992)
    • T4 (1990–2003)
    • T5 (2003–2009)
    • T5 [restyling] (2009–2015)
    • T6 (2015–2019)
    • T6 [restyling] (2019–2024)
    • T7 (2024–2026)
  • Up (2011–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: UP! (12) 2011 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2011–2020)
  • up! (2011–…)
    6 of 8 functions

    Actuation: Actuation / component test

    Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

    Programming: Software update / calibration update

    Reports: Report export

    Not for this vehicle: EEPROM read / write, ECU coding

    ✎ Embedra lists: UP! (12) 2011 on, EPS column, CAN Extras: VAG Universal Flasher (all compatible VAG group models).
    • 1 generation (2012–2016)
    • 1 generation [restyling] (2016–2023)
Volvo (9 models) 6 of 12 functions Actuation 1/1 Coding / adaptation 0/2 Diagnostics 3/3 Programming 1/4 Reports 1/1 Service reset 0/1
Functions for this make:

Actuation: Actuation / component test

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream

Programming: Software update / calibration update

Reports: Report export

  • S40 (2004–2012) ✎ Embedra lists: S40 (544, 545) V1 2004-2012, EPS pump, CAN; S40 (544,545) V2 2004-2012, EPS pump, CAN
    • 1 generation (1995–1999)
    • 1 generation [restyling] (1999–2004)
    • 2 generation (2004–2007)
    • 2 generation [restyling] (2007–2012)
  • S60 (2011–…) ✎ Embedra lists: S60 (134) 2011-2018, EPS pump, CAN; S60 (134) V2 2011-2018, EPS pump, CAN; S60 (225) 2018 on, EPS rack, CAN
    • 1 generation (2000–2004)
    • 1 generation [restyling] (2004–2009)
    • 2 generation (2010–2013)
    • 2 generation [restyling] (2013–2018)
    • 3 generation (2018–2026)
  • S80 (2007–2016) ✎ Embedra lists: S80 (124, 144) 180 HP 2007-2016, EPS pump, CAN; S80 (AS) V2 2010-2014, EPS pump, CAN
    • 1 generation (1998–2003)
    • 1 generation [restyling] (2003–2006)
    • 2 generation (2006–2010)
    • 2 generation [restyling] (2009–2013)
    • 2 generation [2th restyling] (2013–2016)
  • V40 (2013–…) ✎ Embedra lists: V40 (525,526) 2013 on, EPS rack, CAN
    • 1 generation [2th restyling] (1995–1999)
    • 1 generation (1996–2000)
    • 1 generation [restyling] (1999–2004)
    • 2 generation (2012–2016)
    • 2 generation [restyling] (2016–2020)
  • V50 (2004–2012) ✎ Embedra lists: V50 (544,545) 2004-2012, EPS pump, CAN
    • 1 generation (2004–2007)
    • 1 generation [restyling] (2007–2012)
  • V60 (2011–…) ✎ Embedra lists: V60 (155,157) 2011-2018, EPS pump, CAN; V60 (225) 2018 on, EPS rack, CAN
    • 1 generation (2010–2013)
    • 1 generation [restyling] (2013–2018)
    • 2 generation (2018–2026)
  • V70 (2008–2016) ✎ Embedra lists: V70 (135,136) 180 HP 2008-2016, EPS pump, CAN
    • 1 generation (1997–2000)
    • 2 generation (2000–2004)
    • 2 generation [restyling] (2004–2007)
    • 3 generation (2007–2013)
    • 3 generation [restyling] (2013–2016)
  • XC60 (2009–2017) ✎ Embedra lists: XC60 (156) 2009-2017, EPS pump, CAN
    • 1 generation (2008–2013)
    • 1 generation [restyling] (2013–2017)
    • 2 generation (2017–2021)
    • 2 generation [restyling] (2021–2025)
    • 2 generation [2th restyling] (2025–2026)
  • XC70 (2008–2016) ✎ Embedra lists: XC70 (135) 2008-2016, EPS pump, CAN
    • 1 generation (1998–2000)
    • 3 generation [restyling] (2000–2004)
    • 1 generation [restyling] (2004–2007)
    • 2 generation (2007–2013)
    • 2 generation [restyling] (2013–2016)
    • 3 generation (2025–2026)
Possibly compatible — the same vehicle under another brand (27)

The manufacturer does not list these vehicles itself. They are the same vehicle as a model it does list, sold under another brand, so the device MAY also work — there is no guarantee.

  • Cadillac Escalade (2007–2014)
    Not confirmed by the manufacturer. The manufacturer states that this device works with GMC Yukon. Because Cadillac Escalade is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Chevrolet Silverado (2007–2014)
    Not confirmed by the manufacturer. The manufacturer states that this device works with GMC Sierra. Because Chevrolet Silverado is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Chevrolet Tahoe (2007–2014)
    Not confirmed by the manufacturer. The manufacturer states that this device works with GMC Yukon. Because Chevrolet Tahoe is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Citroen Berlingo (2018–…)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Peugeot Partner / Peugeot Rifter / Opel Combo. Because Citroen Berlingo is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Citroen C1 (2005–2021)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Toyota Aygo. Because Citroen C1 is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Fiat Doblo (2022–…)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Citroen Berlingo / Peugeot Partner / Peugeot Rifter / Opel Combo. Because Fiat Doblo is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Fiat Scudo (2007–2015)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Citroen Jumpy / Peugeot Expert. Because Fiat Scudo is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Fiat Talento (2016–2020)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Vivaro / Renault Trafic. Because Fiat Talento is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • GMC Sierra (2007–2014)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Chevrolet Silverado. Because GMC Sierra is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • MAN TGE (2017–…)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Volkswagen Crafter. Because MAN TGE is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Nissan Interstar (2010)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Movano / Renault Master. Because Nissan Interstar is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Nissan NV300 (2016–2020)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Vivaro / Renault Trafic. Because Nissan NV300 is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Nissan NV400 (2012–2021)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Movano / Renault Master. Because Nissan NV400 is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Nissan Primastar (2014)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Renault Trafic. Because Nissan Primastar is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Opel Combo (2018–…)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Citroen Berlingo / Peugeot Partner / Peugeot Rifter. Because Opel Combo is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Opel Movano (2010–2021)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Renault Master. Because Opel Movano is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Opel Vivaro (2014–2019)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Renault Trafic. Because Opel Vivaro is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Peugeot 107 (2005–2014)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Toyota Aygo. Because Peugeot 107 is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Peugeot 108 (2014–2021)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Toyota Aygo. Because Peugeot 108 is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Renault Master (2010–2021)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Movano. Because Renault Master is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Renault Trafic (2015–2018)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Vivaro. Because Renault Trafic is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Toyota ProAce (2013–2016)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Citroen Jumpy / Fiat Scudo / Peugeot Expert. Because Toyota ProAce is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Toyota ProAce City (2019–…)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Citroen Berlingo / Peugeot Partner / Peugeot Rifter / Opel Combo. Because Toyota ProAce City is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Vauxhall Combo (2018–…)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Citroen Berlingo / Peugeot Partner / Peugeot Rifter / Opel Combo. Because Vauxhall Combo is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Vauxhall Movano (2010–2021)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Movano / Renault Master. Because Vauxhall Movano is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Vauxhall Vivaro (2014–2019)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Opel Vivaro / Renault Trafic. Because Vauxhall Vivaro is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.
  • Volkswagen Amarok (2022–…)
    Not confirmed by the manufacturer. The manufacturer states that this device works with Ford Ranger. Because Volkswagen Amarok is the same vehicle sold under another brand, the device MAY also work with it – but the manufacturer does not guarantee this.

Where to buy

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Embedra

Embedra (Embedra Teknoloji Hizmetleri A.S.) is an automotive diagnostics company based in Izmir, Turkey. Its ONE and ONELite are bench testers for electric power steering (EPS) units with built-in K-Line, CAN, CAN-FD and FlexRay communication. They work with the ONESuite desktop software for Windows and macOS, which includes the ONEAssist AI assistant, flashing, programming and special functions for steering ECUs.

https://embedra.net/ ↗

Related devices

Device forum

Forums
Forum for all diagn...
Embedra
Embedra ONE

Notifications
Clear all
Embedra ONE

General information about the device

Description of the model, target users, key features.
Topics: 1   /   Posts: 1

Files and resources

Manuals, supported vehicle lists, configuration backups, important links.
Topics: 0   /   Posts: 0

Problems and troubleshooting

Errors, failures, freezing, communication issues.
Topics: 0   /   Posts: 0

Updates and firmware

New versions, changelogs, issues after updates.
Topics: 0   /   Posts: 0

Diagnostic features

Scanning, live data, active tests, coding, adaptations.
Topics: 0   /   Posts: 0

Accessories and compatibility

VCI, cables, adapters, DOIP, J2534, laptops, tablets.
Topics: 0   /   Posts: 0

Instructions and tutorials

Step-by-step guides, checklists for new users.
Topics: 0   /   Posts: 0

User opinions and experiences

Real-world use cases, pros, cons, comparisons.
Topics: 0   /   Posts: 0

Marketplace / buy-sell / spare parts

Buy, sell and spare-parts offers for this device.
Topics: 0   /   Posts: 0

Embedra ONE

Everything about the Embedra ONE: questions, problems, updates, tips and files.
Add topic

No topics were found here

Share:
