VDIAGTOOL D501

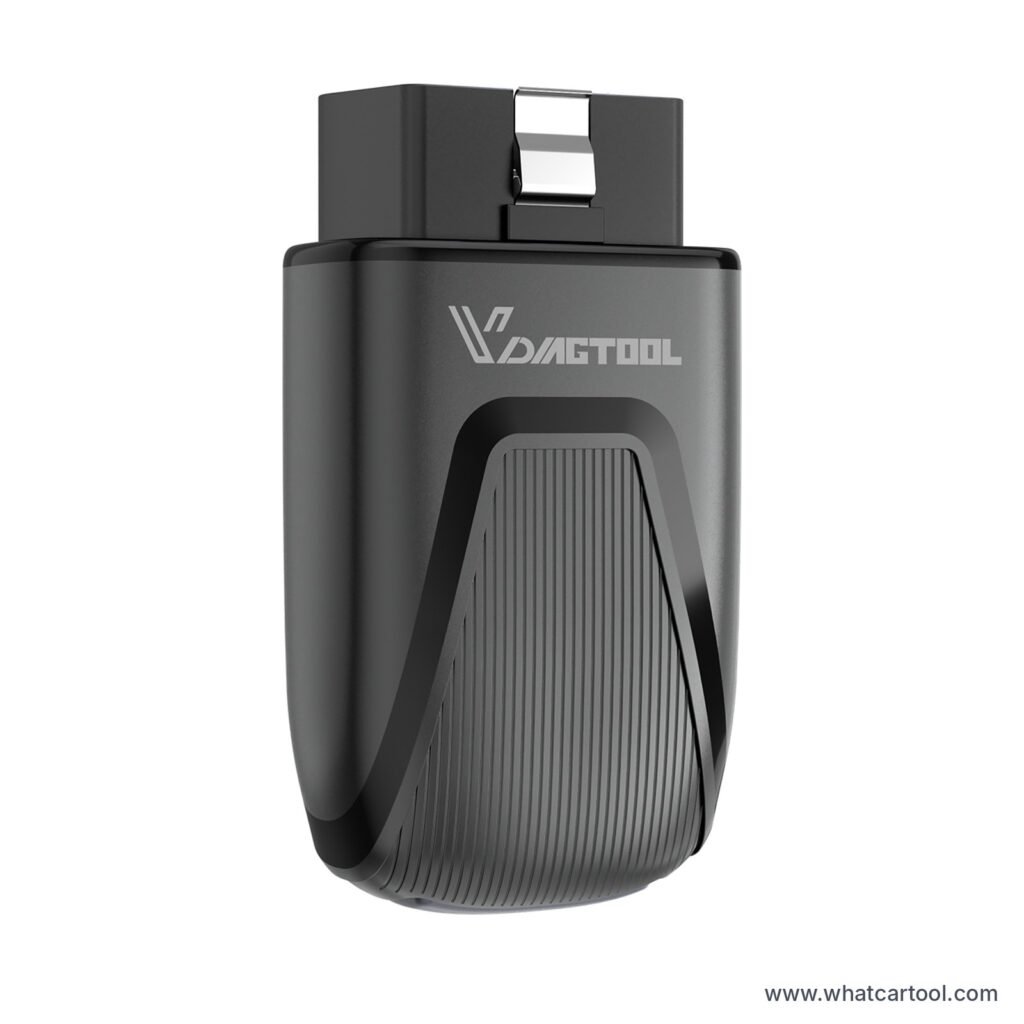

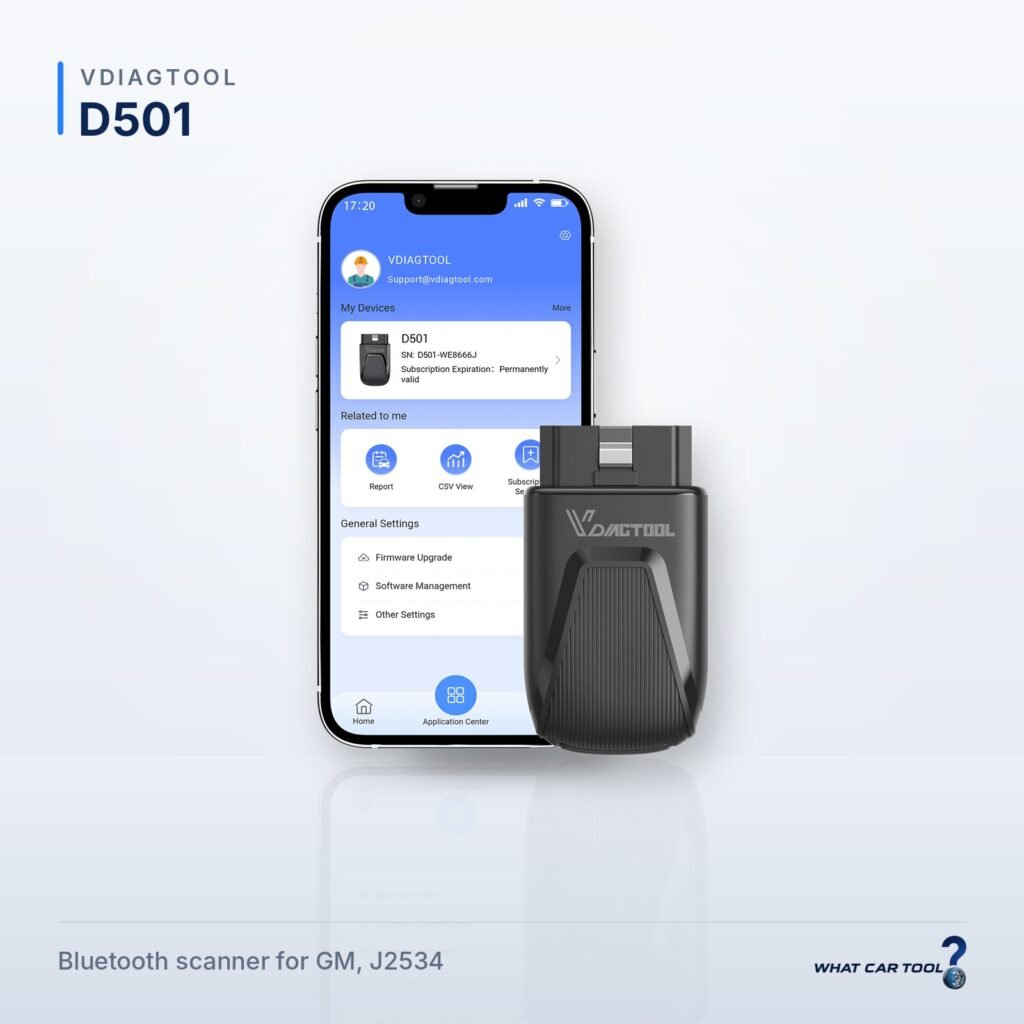

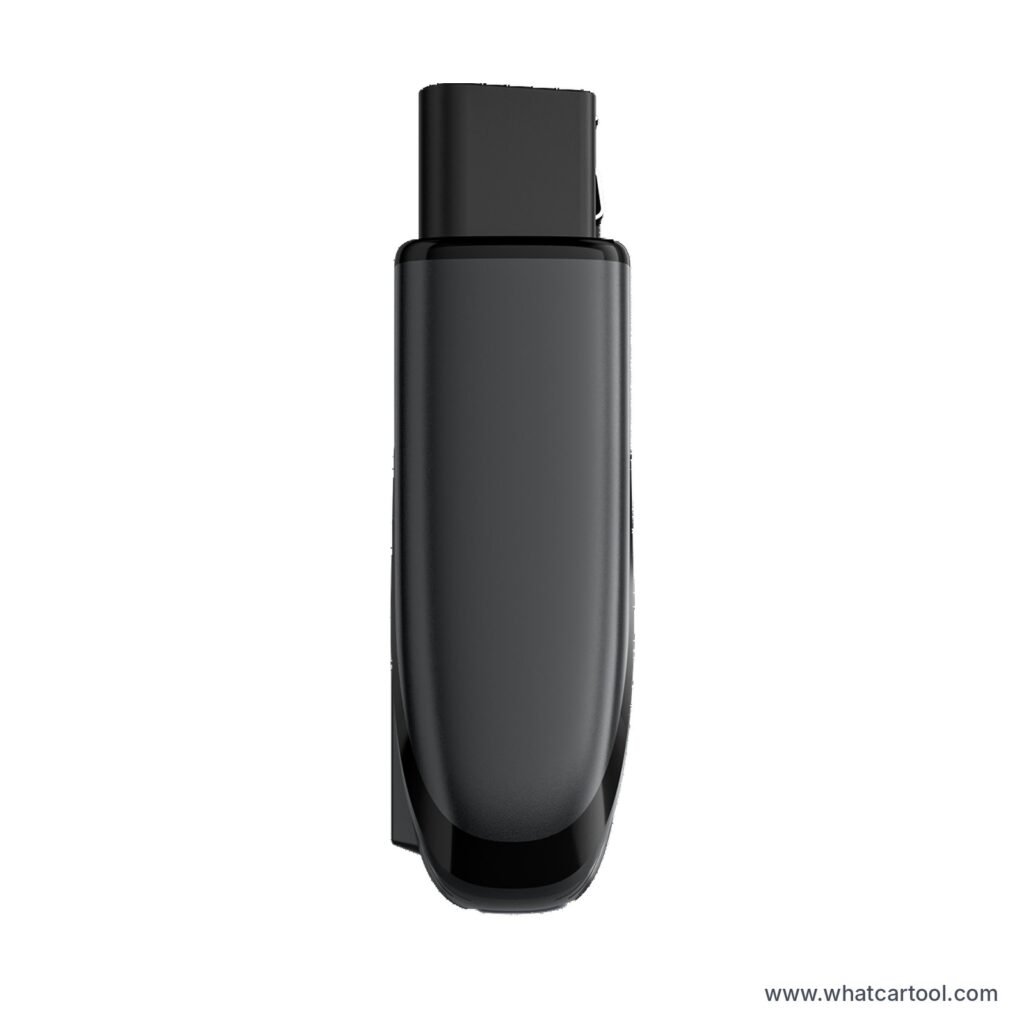

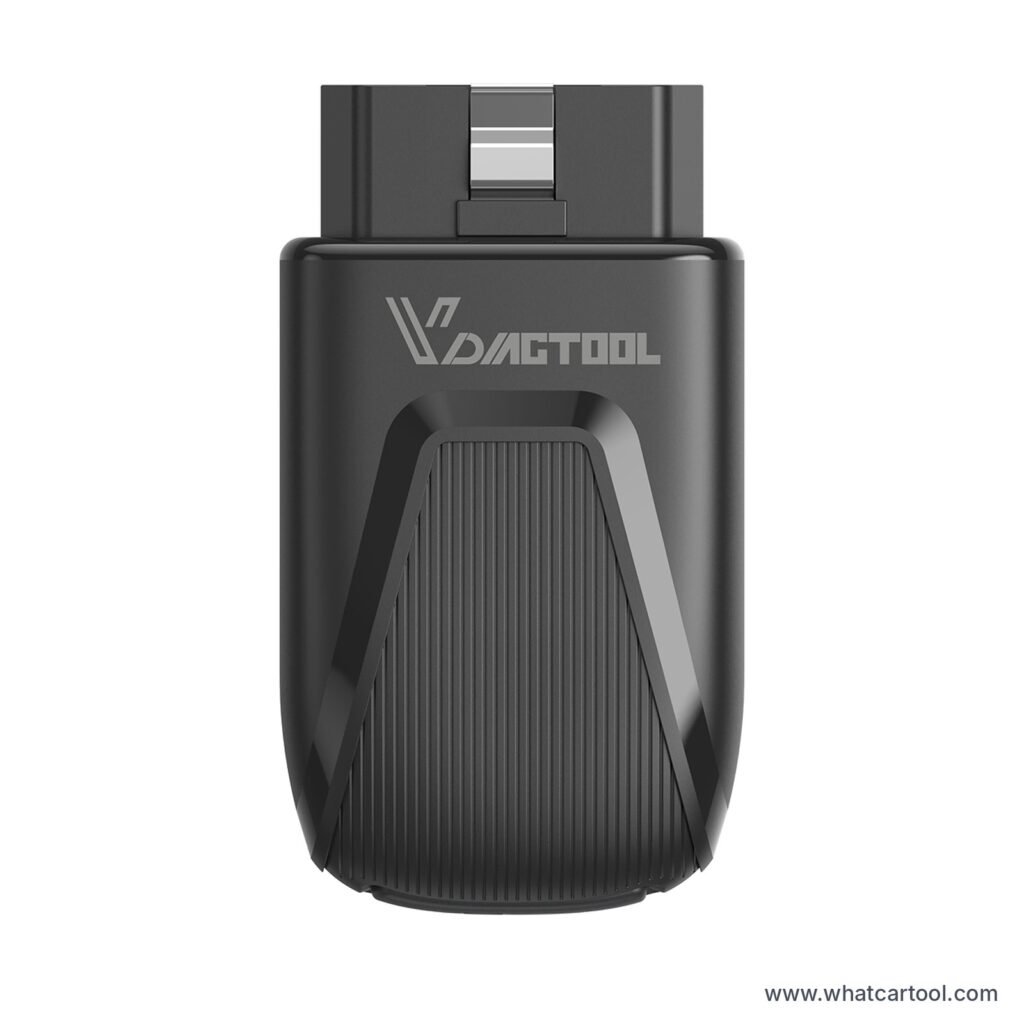

VDIAGTOOL D501 bluetooth scanner studio product shot
VDIAGTOOL D501 bluetooth scanner studio product shotVDIAGTOOL D501 bluetooth scanner front viewVDIAGTOOL D501 bluetooth scanner viewVDIAGTOOL D501 bluetooth scanner viewVDIAGTOOL D501 bluetooth scanner view

Bluetooth full-system scanner for GM vehicles (Chevrolet, Buick, Cadillac, GMC) with bidirectional control and J2534 pass-thru (paid unlock)

Model code: D501 Manufacturer: Vdiagtool

📄 VDIAGTOOL D501 D502 D503 User Manual ↗

Device forumAsk questions & share experience

Description

VDIAGTOOL D501 is a brand-specific Bluetooth scanner for GM vehicles (Chevrolet, Buick, Cadillac, GMC). Used with the VDIAGTOOL app on iOS or Android, it gives full-system diagnostics across all ECUs (engine, transmission, ABS, SRS, BCM and more): read/clear codes, 8-channel live data, freeze frame, ECU information, auto scan and vehicle performance test. Generic OBD2 functions work on any OBD2 vehicle.

Bidirectional control activates ABS pumps, fans, injectors, windows, door locks, solenoids and valves. 28+ GM-specific special functions include service resets, relearns, adaptations, calibrations, battery matching, steering angle reset, injector coding, ABS bleeding and TPMS relearn. Supports CAN FD (no DoIP). J2534 pass-thru is available as a paid add-on ("D501 J2534 Programming Lifetime Unlock" in the VDIAGTOOL Function Store): with a Windows 10+ PC, the VDIAGTOOL J2534 driver and the official OEM software you can then reprogram modules. Diagnostic packages for other brands can be purchased.

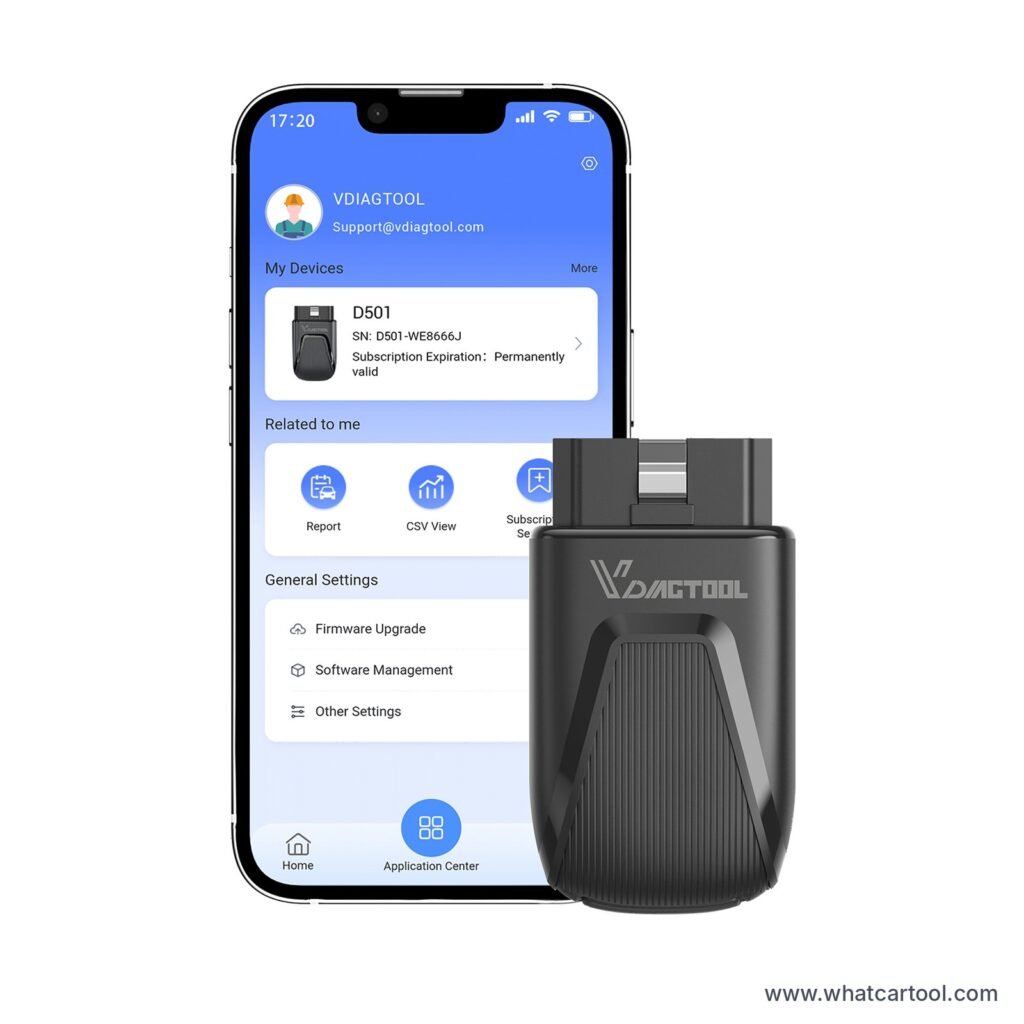

The D-series is a compact Bluetooth VCI (no screen, no battery) used with the free VDIAGTOOL app for Android and iOS: download the app, register, scan the QR code on the device to activate it and plug it into the OBD2 port. Updates are free for life through the app.

Coverage and functions vary by make, model and year – check your VIN with VDIAGTOOL before buying. OEM software and licences are not included.

Specifications

Product typeDevice with software installed on a computer / tablet / phone
OEM (Original Equipment Manufacturer) product? iNo
For which vehicleCars
Price (USD)$180 – $220
Operating systemWindows 10, Windows 11
Other OS (details)Windows PC needed only for J2534 pass-thru
Can be installed on a mobile phoneYes
Mobile operating systemAndroid, iOS (iPhone)
Connection with computer / tablet / phoneBluetooth, USB
Other connection (details)Bluetooth to the phone; USB Type-C to a Windows PC for J2534
Vehicle power supply system12V
Supported protocolsK-line, KWP2000, SAE J1850, CAN, CAN FD, UDS, J1979, J2534 standard API passthru
Months of free updatesfree for life
Subscription model (description)Lifetime free app/firmware updates; other brand packages can be purchased.
Menu languageEnglish
Other language (details)22 app languages (see manufacturer)

Supported functions (47)

Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.

Actuation

  • Actuation / component test
    10 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saab, Saturn
    i (Bidirectional control – varies by vehicle.)
  • Injector / cylinder test
    9 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Power balance test.)
  • Fuel pump test
    9 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Fuel pump priming.)

Advanced Diagnostics

  • O2 sensor data
    72 of 73 makes
    Abarth, Acura, Alfa Romeo, Alpine, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Cupra, Dacia, Daewoo, Daihatsu, Dodge, DS, Ferrari, Fiat, Ford, Genesis, GMC, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Lotus, Maserati, Mazda, McLaren, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Plymouth, Pontiac, Porsche, RAM, Ravon, Renault, Rolls-Royce, Rover, Saab, Saturn, Scion, SEAT, Skoda, Smart, SsangYong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (O2 sensor test (Mode 05).)
  • Permanent DTC review
    72 of 73 makes
    Abarth, Acura, Alfa Romeo, Alpine, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Cupra, Dacia, Daewoo, Daihatsu, Dodge, DS, Ferrari, Fiat, Ford, Genesis, GMC, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Lotus, Maserati, Mazda, McLaren, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Plymouth, Pontiac, Porsche, RAM, Ravon, Renault, Rolls-Royce, Rover, Saab, Saturn, Scion, SEAT, Skoda, Smart, SsangYong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i
  • Manufacturer-specific DTCs
    10 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saab, Saturn
    i
  • Data logging / replay
    10 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saab, Saturn
    i (Data recording and playback (CSV).)
  • Live data graphing
    10 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saab, Saturn
    i

Coding / adaptation

  • Adaptation (channels / values)
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Injector adaptation.)
  • Language / units change
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: LANGUAGE CHANGE.)

Diagnostics

  • Reading the VIN i conditions · 1
  • Read fault codes (DTC) i conditions · 2
  • Clear fault codes (DTC) i conditions · 2
  • Live data stream i
  • Freeze frame data i
  • Full system (all modules) scan
    10 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saab, Saturn
    i (Auto scan of all available systems.)
  • I/M readiness monitors
    72 of 73 makes
    Abarth, Acura, Alfa Romeo, Alpine, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Cupra, Dacia, Daewoo, Daihatsu, Dodge, DS, Ferrari, Fiat, Ford, Genesis, GMC, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Lotus, Maserati, Mazda, McLaren, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Plymouth, Pontiac, Porsche, RAM, Ravon, Renault, Rolls-Royce, Rover, Saab, Saturn, Scion, SEAT, Skoda, Smart, SsangYong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Smog / emissions readiness.)
  • EVAP system test i conditions · 2
  • On-board monitor test (Mode 06)
    72 of 73 makes
    Abarth, Acura, Alfa Romeo, Alpine, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Cupra, Dacia, Daewoo, Daihatsu, Dodge, DS, Ferrari, Fiat, Ford, Genesis, GMC, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Lotus, Maserati, Mazda, McLaren, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Plymouth, Pontiac, Porsche, RAM, Ravon, Renault, Rolls-Royce, Rover, Saab, Saturn, Scion, SEAT, Skoda, Smart, SsangYong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i
  • ECU information i

Programming

  • ECU flashing / J2534 reprogramming
    10 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saab, Saturn
    i $ optional (J2534 pass-thru: requires "D501 J2534 Programming Lifetime Unlock" (about $199, VDIAGTOOL Function Store), a Windows PC and the vehicle maker's OEM software.)

Reports

  • Report export
    10 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saab, Saturn
    i (Diagnostic / health report.)

Service reset

  • Oil / service / inspection reset
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Maintenance reset.)
  • Electronic parking brake (EPB) service
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: EPB.)
  • Steering angle sensor (SAS) reset
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: EPS / steering angle calibration.)
  • Battery management (BMS) registration
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: BMS.)
  • DPF / FAP regeneration
    4 of 73 makes
    Buick, Chevrolet, GMC, Holden
    i (VDIAGTOOL: DPF.)
  • Throttle body adaptation
    9 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Throttle matching.)
  • TPMS reset / relearn
    1 of 73 makes
    GMC
    i (VDIAGTOOL: TPMS.)
  • ABS brake bleeding
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: ABS BLEEDING.)
  • Gearbox / transmission adaptation
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Clutch adaptation, Gear learning, TCM service reset.)
  • AdBlue / SCR reset
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: ADBLUE.)
  • EGR adaptation / reset
    9 of 73 makes
    Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: EGR.)
  • Injector coding
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Injector coding.)
  • NOx sensor reset / adaptation
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: NOx sensor reset.)
  • Airbag / SRS reset
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Airbag reset / SRS.)
  • Headlight / AFS calibration
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Headlight.)
  • Start/stop system reset
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: One-key start/stop.)
  • Coolant system bleeding
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Coolant system functions.)
  • Transport mode on / off
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Deactivate transport mode.)
  • Turbocharger / VGT adaptation
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: VGT.)
  • A/F (fuel mixture) adjustment
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: A/F setting.)
  • Sunroof initialization
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: Sunroof Initialization.)
  • Window / door calibration
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: WINDOW INITIALIZATION.)
  • Seat / occupant sensor calibration
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: SEAT PROGRAMMING.)
  • Air suspension level calibration
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: AIR SUSPENSION.)
  • A/C compressor relearn
    8 of 73 makes
    Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn
    i (VDIAGTOOL: ACRELEARN.)
Conditions for specific vehicles (9)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Alpine (1)
  • Alpine
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Buick (1)
  • Buick
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Cadillac (1)
  • Cadillac
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Chevrolet (1)
  • Chevrolet
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Citroen (1)
  • Citroen
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Cupra (1)
  • Cupra
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
DS (1)
  • DS
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Dacia (1)
  • Dacia
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Daewoo (1)
  • Daewoo
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Daihatsu (1)
  • Daihatsu
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
GMC (1)
  • GMC
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Holden (1)
  • Holden
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Hummer (1)
  • Hummer
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Lancia (1)
  • Lancia
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
MG (1)
  • MG
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Opel (1)
  • Opel
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Peugeot (1)
  • Peugeot
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Pontiac (1)
  • Pontiac
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Ravon (1)
  • Ravon
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Renault (1)
  • Renault
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Rover (1)
  • Rover
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
SEAT (1)
  • SEAT
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Saab (1)
  • Saab
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Saturn (1)
  • Saturn
    VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Skoda (1)
  • Skoda
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
SsangYong (1)
  • SsangYong
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Vauxhall (1)
  • Vauxhall
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Reading the VIN

  • AutoVIN. — Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac and 2 more

Read fault codes (DTC)

  • All available modules. — Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac and 2 more
  • Generic, pending and permanent emission codes. — Abarth, Acura, Alfa Romeo, Alpine, Aston Martin, Audi, BMW, Bentley and 55 more

Clear fault codes (DTC)

  • All available modules. — Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac and 2 more
  • Turns off the check engine light. — Abarth, Acura, Alfa Romeo, Alpine, Aston Martin, Audi, BMW, Bentley and 55 more

EVAP system test

  • VDIAGTOOL: EVAP Test. — Buick, Cadillac, Chevrolet, Daewoo, GMC, Holden, Hummer, Pontiac and 1 more
  • EVAP / component test (Mode 08), where the vehicle supports it. — Abarth, Acura, Alfa Romeo, Alpine, Aston Martin, Audi, BMW, Bentley and 56 more

Compatibility disclosure

D501 is a GM-specific scanner: full-system diagnostics and service functions for Buick, Cadillac, Chevrolet, GMC, Daewoo, Holden, Hummer, Pontiac, Saab and Saturn (per VDIAGTOOL's coverage list); other makes get generic OBD2 only – diagnostic packages for other brands can be bought in the Function Store. VDIAGTOOL sells a "D501 J2534 Programming Lifetime Unlock" (needs OEM software on a Windows PC). Makes and service functions are taken from VDIAGTOOL's own online coverage database (vdiagtool.com/support/vehicle-coverage, checked 2026-10-08). VDIAGTOOL publishes no model-year ranges per make, so makes are listed from 1996 – the real coverage depends on model, year and system; check your VIN with VDIAGTOOL before buying. Generic OBD2/EOBD functions work on the other common makes (US-market vehicles from 1996, EU-market petrol from 2001 and diesel from 2004). Chinese-market joint-venture versions (e.g. SAIC-VW, FAW-VW, Beijing Benz, Brilliance BMW), Brazilian GM and commercial vehicles beyond the heavy-duty packs are not listed here. Truck and bus coverage (Hyundai, Isuzu, GAZ, PAZ, Jinlong, JMC, depending on the model) comes from VDIAGTOOL's heavy-duty packs; VDIAGTOOL is a 12 V tool, so 24 V vehicles may need an adapter. Further service functions in VDIAGTOOL's list without a matching function on WhatCarTool: cam/crank sensor and tooth learning, glow plug reset, gateway reset, rain/light sensor, tyre size, speed limit, electric pump activation, odometer reading and VIN writing (availability varies by make).

Compatible vehicles (73 makes)

Check if it fits your vehicle:

Abarth (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Acura (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Alfa Romeo (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Alpine (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Aston Martin (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Audi (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
BMW (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Bentley (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Bugatti (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Buick (all models) 46 of 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 2/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 24/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Cadillac (all models) 45 of 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 2/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 23/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Chevrolet (all models) 46 of 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 2/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 24/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Chrysler (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Citroen (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Cupra (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
DS (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Dacia (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Daewoo (all models) 22 of 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 0/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 2/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Throttle body adaptation, EGR adaptation / reset

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Daihatsu (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Dodge (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Ferrari (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Fiat (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Ford (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
GMC (all models) all 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 2/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 25/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Genesis (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Holden (all models) 42 of 47 functions Actuation 3/3 Advanced Diagnostics 3/5 Coding / adaptation 2/2 Diagnostics 8/10 Programming 1/1 Reports 1/1 Service reset 24/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, EVAP system test, ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Honda (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Hummer (all models) 45 of 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 2/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 23/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Hyundai (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Infiniti (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Isuzu (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Jaguar (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Jeep (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Kia (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Lamborghini (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Lancia (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Land Rover (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Lexus (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Lincoln (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Lotus (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
MG (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Maserati (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Mazda (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
McLaren (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Mercedes-Benz (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Mercury (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Mini (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Mitsubishi (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Nissan (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Oldsmobile (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Opel (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Peugeot (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Plymouth (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Pontiac (all models) 45 of 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 2/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 23/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Porsche (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
RAM (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Ravon (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Renault (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Rolls-Royce (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Rover (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
SEAT (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Saab (all models) 18 of 47 functions Actuation 1/3 Advanced Diagnostics 5/5 Coding / adaptation 0/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 0/25
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Saturn (all models) 45 of 47 functions Actuation 3/3 Advanced Diagnostics 5/5 Coding / adaptation 2/2 Diagnostics 10/10 Programming 1/1 Reports 1/1 Service reset 23/25
Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

Advanced Diagnostics: O2 sensor data, Permanent DTC review, Manufacturer-specific DTCs, Data logging / replay, Live data graphing

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Programming: ECU flashing / J2534 reprogramming

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

  • All models of this make (1996–…) ✎ VDIAGTOOL lists no model years for this make – check your VIN at vdiagtool.com/support/vehicle-coverage.
Scion (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Skoda (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Smart (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
SsangYong (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Subaru (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Suzuki (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Toyota (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Vauxhall (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Volkswagen (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Volvo (all models) 11 of 47 functions Actuation 0/3 Advanced Diagnostics 2/5 Coding / adaptation 0/2 Diagnostics 9/10 Programming 0/1 Reports 0/1 Service reset 0/25
Functions for this make:

Advanced Diagnostics: O2 sensor data, Permanent DTC review

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)

Where to buy

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Vdiagtool

VDIAGTOOL is an automotive diagnostic tool brand founded in 2017 by a team of engineers with more than 20 years of experience in car repair and maintenance. The company researches, develops, manufactures and sells automotive diagnostic, maintenance and testing tools for DIYers and professional technicians: OBD2 code readers, handheld scanners, Android diagnostic tablets with bidirectional control and ECU coding, Bluetooth app-based scanners (including brand-specific GM, Ford and BMW scanners with J2534 pass-thru), circuit testers, battery testers and TPMS tools. VDIAGTOOL products are sold in more than 50 countries, including the United States, the United Kingdom, the EU, Saudi Arabia and Australia, with US-based support.

https://www.vdiagtool.com/ ↗

Related devices

Device forum

Forums
Forum for all diagn...
Vdiagtool
VDIAGTOOL D501

Notifications
Clear all
VDIAGTOOL D501

General information about the device

Description of the model, target users, key features.
Topics: 1   /   Posts: 1

Files and resources

Manuals, supported vehicle lists, configuration backups, important links.
Topics: 0   /   Posts: 0

Problems and troubleshooting

Errors, failures, freezing, communication issues.
Topics: 0   /   Posts: 0

Updates and firmware

New versions, changelogs, issues after updates.
Topics: 0   /   Posts: 0

Diagnostic features

Scanning, live data, active tests, coding, adaptations.
Topics: 0   /   Posts: 0

Accessories and compatibility

VCI, cables, adapters, DOIP, J2534, laptops, tablets.
Topics: 0   /   Posts: 0

Instructions and tutorials

Step-by-step guides, checklists for new users.
Topics: 0   /   Posts: 0

User opinions and experiences

Real-world use cases, pros, cons, comparisons.
Topics: 0   /   Posts: 0

Marketplace / buy-sell / spare parts

Buy, sell and spare-parts offers for this device.
Topics: 0   /   Posts: 0

VDIAGTOOL D501

Everything about the VDIAGTOOL D501: questions, problems, updates, tips and files.
RSS

No topics were found here

Share:
