UDIAG X-50

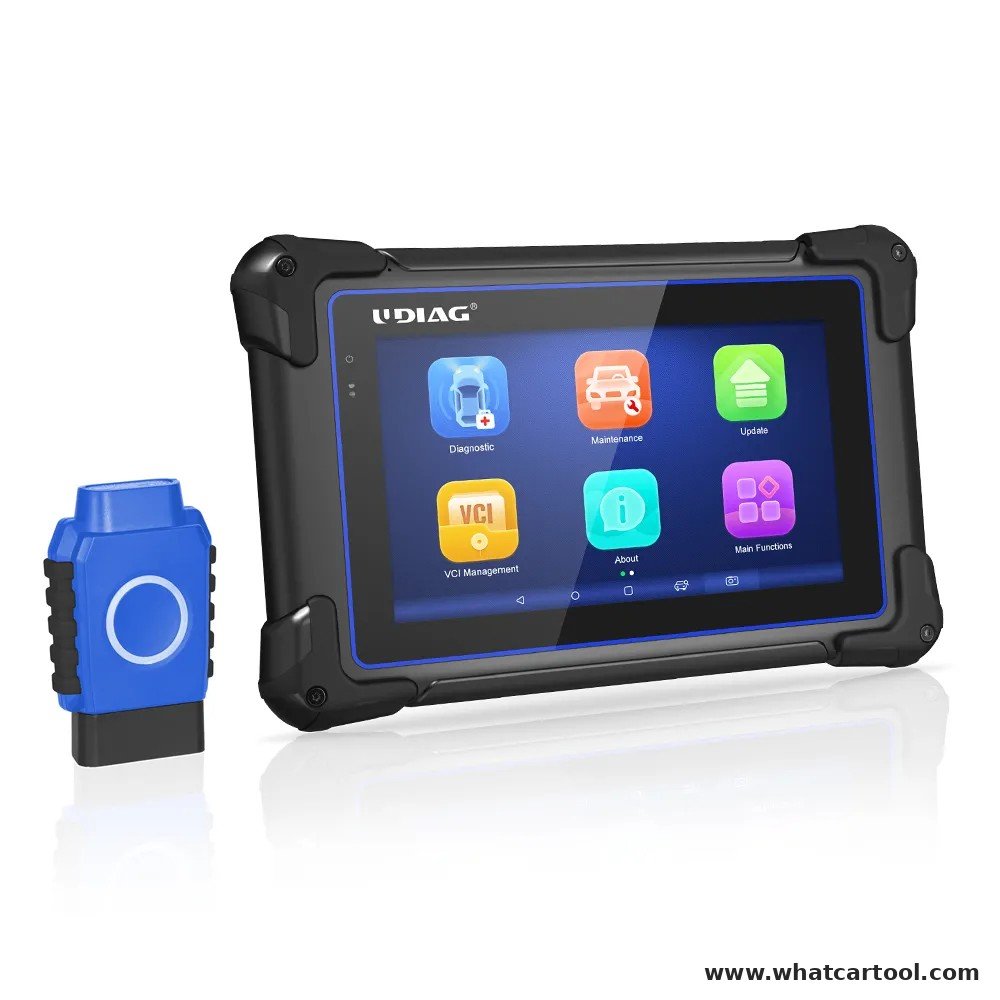

UDIAG x 50 diagnostic tablet front view with vci
UDIAG x 50 diagnostic tablet front view with vciUDIAG x 50 diagnostic tablet screen viewUDIAG x 50 diagnostic tablet angle view

7" Android full-system diagnostic tablet with Bluetooth VCI

Model code: X-50 Manufacturer: Udiag

📄 UDIAG X50 X30 User Manual ↗

Device forumAsk questions & share experience

Description

UDIAG X-50 is a full-system diagnostic tablet with a 7" IPS touchscreen (1024x600), Android 7.1, Cortex-A7 1.4 GHz processor, 1 GB RAM and a 7,200 mAh battery (10-15 hours of use per the manual). The VCI X001 connects to the OBDII port and talks to the tablet over Bluetooth.

Coverage: 100-130+ US, European and Asian makes (1996-2025) with Auto VIN. Functions: OE-level diagnostics of all systems - read/clear codes, live data with graphing, freeze frame, ECU information, bi-directional active tests, adaptation, matching and coding, all 10 OBDII modes and 40+ service functions (oil reset, EPB, SAS, DPF, injector coding, battery matching, AT adaptation, throttle alignment and more). Supports CAN FD and DoIP. Immobilizer and EEPROM functions are optional. Remote support via TeamViewer, data logging, Wi-Fi printing.

Mileage-related functions may only be used to recalibrate a replacement or repaired instrument cluster to the true mileage. Function availability depends on make, model and year. OEM dealer software and licences are not included.

Specifications

Product typeDevice with pre-installed software (standalone)
OEM (Original Equipment Manufacturer) product? iNo
For which vehicleCars
Connection with computer / tablet / phoneBluetooth, Wi-Fi, USB
Other connection (details)Bluetooth VCI X001; USB Type-C; TF card slot
Vehicle power supply system12V
Supported protocolsK-line, KWP2000, SAE J1850, CAN, J1979, UDS, CAN FD, DoIP
Months of free updates24
Subscription model (description)2 years of free software updates via Wi-Fi; renewal price not published by UDIAG.
Menu languageEnglish
Other language (details)Multi-language interface (list not published by UDIAG)

Supported functions (48)

Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.

Actuation

  • Actuation / component test i (Bi-directional actuation tests. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)

Advanced Diagnostics

  • O2 sensor data i (O2 sensor test (Mode 05).)
  • Data logging / replay i
  • Remote diagnosis i (Remote support (TeamViewer).)
  • FCA AutoAuth / SGW bypass
    7 of 72 makes
    Abarth, Alfa Romeo, Chrysler, Dodge, Fiat, Jeep, RAM
    i $ optional (FCA secure gateway – requires an AutoAuth account or the UDIAG FCA SGW access package (paid).)
  • Guided tests / Guided component tests
    5 of 72 makes
    Audi, Cupra, SEAT, Skoda, Volkswagen
    i (Guided functions for VW group vehicles. Availability depends on make, model, year and installed control modules.)
  • Live data graphing i

Coding / adaptation

  • ECU coding i (ECU coding. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Adaptation (channels / values) i (Adaptation and security access. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Hidden features / retrofit coding
    4 of 72 makes
    Audi, Porsche, Skoda, Volkswagen
    i (Refresh hidden features (VW, Audi, Skoda, Porsche). Availability depends on make, model, year and installed control modules.)
  • Language / units change i (Change language. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)

Diagnostics

  • Reading the VIN i (Auto VIN.)
  • Read fault codes (DTC) i (All available control modules.)
  • Clear fault codes (DTC) i
  • Live data stream i
  • Freeze frame data i
  • Full system (all modules) scan i (All systems / all modules. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • I/M readiness monitors i
  • EVAP system test i (EVAP test. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • On-board monitor test (Mode 06) i
  • ECU information i

Key / immobilizer

  • Key / fob programming i $ optional (Smart key matching / programming – optional UDIAG immobilizer package (paid). UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Immobilizer reset / IMMO i $ optional (Optional UDIAG immobilizer package (paid). UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)

Programming

  • Offline programming
    1 of 72 makes
    Ford
    i (Offline coding for Ford. Availability depends on make, model, year and installed control modules.)
  • Mileage/odometer correction i $ optional (Optional UDIAG EEPROM package (paid). Mileage functions may only be used to recalibrate a replacement or repaired instrument cluster to the true mileage. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)

Reports

  • Report export i
  • Print / share i (Wi-Fi print.)

Service reset

  • Oil / service / inspection reset i (Oil / service reset. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Electronic parking brake (EPB) service i (EPB service. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Steering angle sensor (SAS) reset i (Steering angle (SAS). UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Battery management (BMS) registration i (Battery registration (BRT). UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • DPF / FAP regeneration i (DPF / GPF regeneration. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Throttle body adaptation i (Throttle reset. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • TPMS reset / relearn i (TPMS reset / change tire. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • ABS brake bleeding i (ABS bleeding. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Gearbox / transmission adaptation i (Gearbox / clutch adaptation, gear learning. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • EGR adaptation / reset i (EGR reset. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Injector coding i (Injector coding. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Airbag / SRS reset i (Airbag / SRS reset. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Headlight / AFS calibration i (Headlight / AFS. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Start/stop system reset i (Stop/start reset. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Transport mode on / off i (Transport mode. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Turbocharger / VGT adaptation i (Turbo. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • A/F (fuel mixture) adjustment i (A/F adjustment. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Sunroof initialization i (Sunroof initialization. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Window / door calibration i (Window calibration. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Seat / occupant sensor calibration i (Seat matching. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
  • Air suspension level calibration i (Suspension. UDIAG states 100+ supported makes without a public list – availability depends on make, model, year and installed control modules; check your VIN with UDIAG before buying.)
Conditions for specific vehicles (1)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Alpine (1)
  • Alpine
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Citroen (1)
  • Citroen
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Cupra (1)
  • Cupra
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
DS (1)
  • DS
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Dacia (1)
  • Dacia
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Daihatsu (1)
  • Daihatsu
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Lancia (1)
  • Lancia
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
MG (1)
  • MG
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Opel (1)
  • Opel
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Peugeot (1)
  • Peugeot
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Ravon (1)
  • Ravon
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Renault (1)
  • Renault
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Rover (1)
  • Rover
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
SEAT (1)
  • SEAT
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Skoda (1)
  • Skoda
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
SsangYong (1)
  • SsangYong
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Vauxhall (1)
  • Vauxhall
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Compatibility disclosure

Full-system diagnostics for 100–130+ makes (1996–2025) with bi-directional tests, coding, adaptation, CAN FD, DoIP and 40+ service functions. Immobilizer and EEPROM functions are optional paid packages. Model years are not published by UDIAG; entries start at 1996 (EU-only makes 2001; diesel EOBD 2004). Function availability depends on make, model, year and installed control modules – check your VIN with UDIAG before buying. OEM dealer software and licences are not included.

Compatible vehicles (72 makes)

Check if it fits your vehicle:

Abarth (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Acura (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Alfa Romeo (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Alpine (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Aston Martin (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Audi (all models) 46 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 4/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
BMW (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Bentley (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Bugatti (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Buick (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Cadillac (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Chevrolet (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Chrysler (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Citroen (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Cupra (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
DS (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Dacia (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Daewoo (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Daihatsu (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Dodge (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Ferrari (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Fiat (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Ford (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 2/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Offline programming, Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
GMC (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Genesis (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Honda (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Hummer (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Hyundai (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Infiniti (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Isuzu (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Jaguar (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Jeep (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Kia (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Lamborghini (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Lancia (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Land Rover (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Lexus (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Lincoln (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Lotus (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
MG (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Maserati (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Mazda (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
McLaren (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Mercedes-Benz (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Mercury (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Mini (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Mitsubishi (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Nissan (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Oldsmobile (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Opel (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Peugeot (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Plymouth (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Pontiac (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Porsche (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 4/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
RAM (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Ravon (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Renault (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Rolls-Royce (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Rover (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
SEAT (all models) 45 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Saab (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Saturn (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Scion (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Skoda (all models) 46 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 4/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Smart (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
SsangYong (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Subaru (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Suzuki (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Toyota (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Vauxhall (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Volkswagen (all models) 46 of 48 functions Actuation 1/1 Advanced Diagnostics 5/6 Coding / adaptation 4/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)
Volvo (all models) 44 of 48 functions Actuation 1/1 Advanced Diagnostics 4/6 Coding / adaptation 3/4 Diagnostics 10/10 Key / immobilizer 2/2 Programming 1/2 Reports 2/2 Service reset 21/21
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Data logging / replay, Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export, Print / share

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

  • All models of this make (1996–…)

Where to buy

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Udiag

UDIAG TECH CO., LTD. is an automotive diagnostic equipment manufacturer based in Shenzhen, China, with more than 13 years of experience in the automotive aftermarket. The company designs and sells OE-level diagnostic tablets (X-95 Pro, X-60, X-50), handheld scan tools (A-series, X-20 TPMS scanner, M200 motorcycle scanner), OBDII code readers (CR-series), TPMS tools, automotive oscilloscopes and ADAS calibration systems, as well as smoke leak detectors, video scopes and battery testers. UDIAG has a team of over 50 software engineers, invests more than 20% of annual revenue in R&D, serves customers in over 50 countries and regions, and its products carry ISO 9001, CE, FCC and RoHS certifications. Website: www.udiagtech.com

https://www.udiagtech.com/ ↗

Related devices

Device forum

Forums
Forum for all diagn...
Udiag
UDIAG X-50

Notifications
Clear all
UDIAG X-50

General information about the device

Description of the model, target users, key features.
Topics: 1   /   Posts: 1

Files and resources

Manuals, supported vehicle lists, configuration backups, important links.
Topics: 0   /   Posts: 0

Problems and troubleshooting

Errors, failures, freezing, communication issues.
Topics: 0   /   Posts: 0

Updates and firmware

New versions, changelogs, issues after updates.
Topics: 0   /   Posts: 0

Diagnostic features

Scanning, live data, active tests, coding, adaptations.
Topics: 0   /   Posts: 0

Accessories and compatibility

VCI, cables, adapters, DOIP, J2534, laptops, tablets.
Topics: 0   /   Posts: 0

Instructions and tutorials

Step-by-step guides, checklists for new users.
Topics: 0   /   Posts: 0

User opinions and experiences

Real-world use cases, pros, cons, comparisons.
Topics: 0   /   Posts: 0

Marketplace / buy-sell / spare parts

Buy, sell and spare-parts offers for this device.
Topics: 0   /   Posts: 0

UDIAG X-50

Everything about the UDIAG X-50: questions, problems, updates, tips and files.
RSS

No topics were found here

Share:
