UDIAG ADAS-B

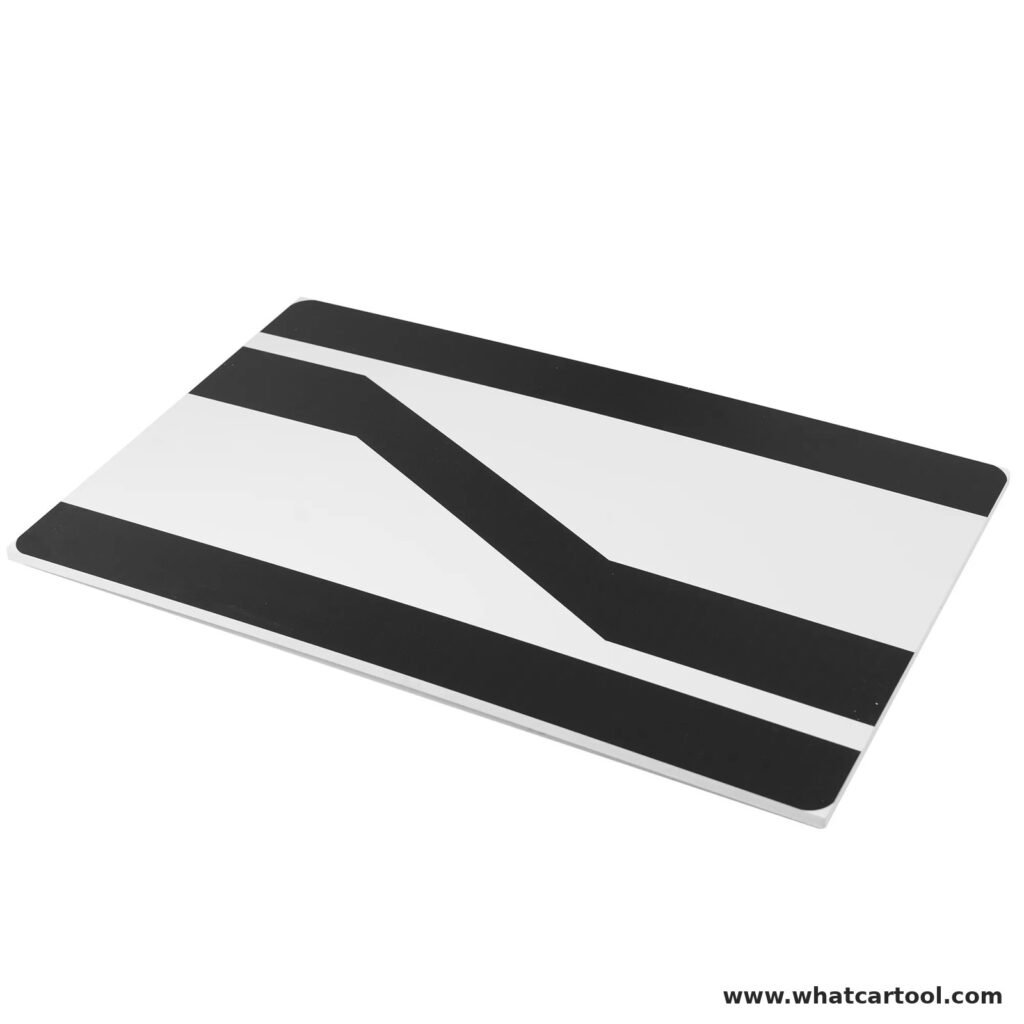

UDIAG adas b adas calibration frame ldw target

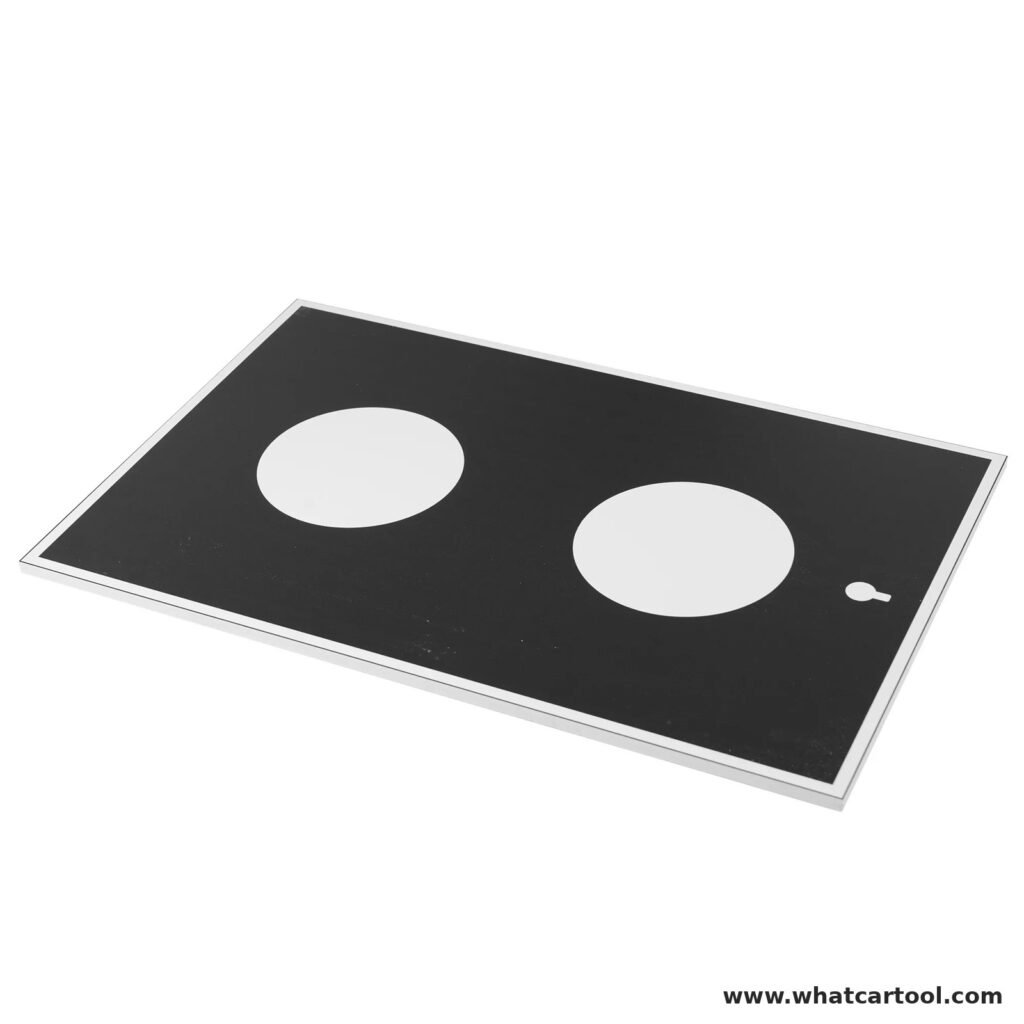

UDIAG adas b adas calibration frame camera board

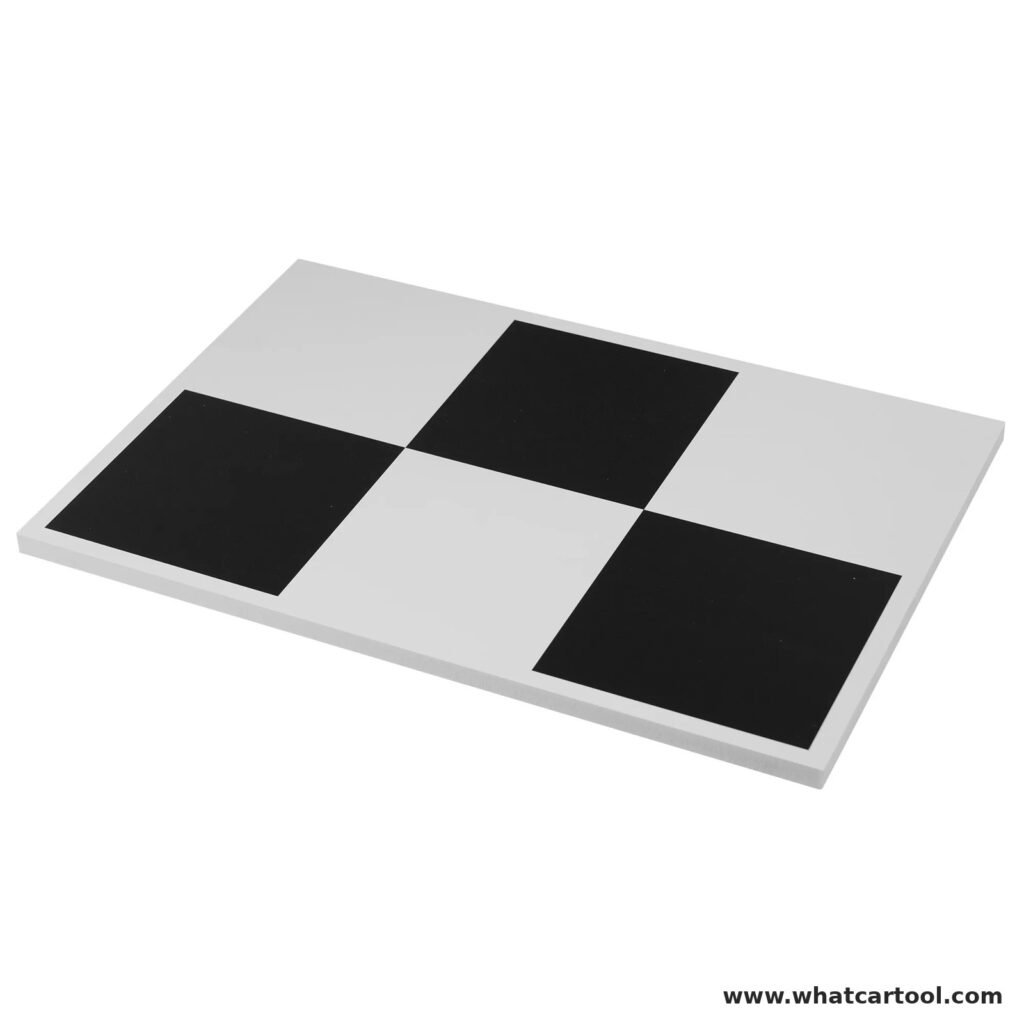

UDIAG adas b adas calibration frame checkerboard target

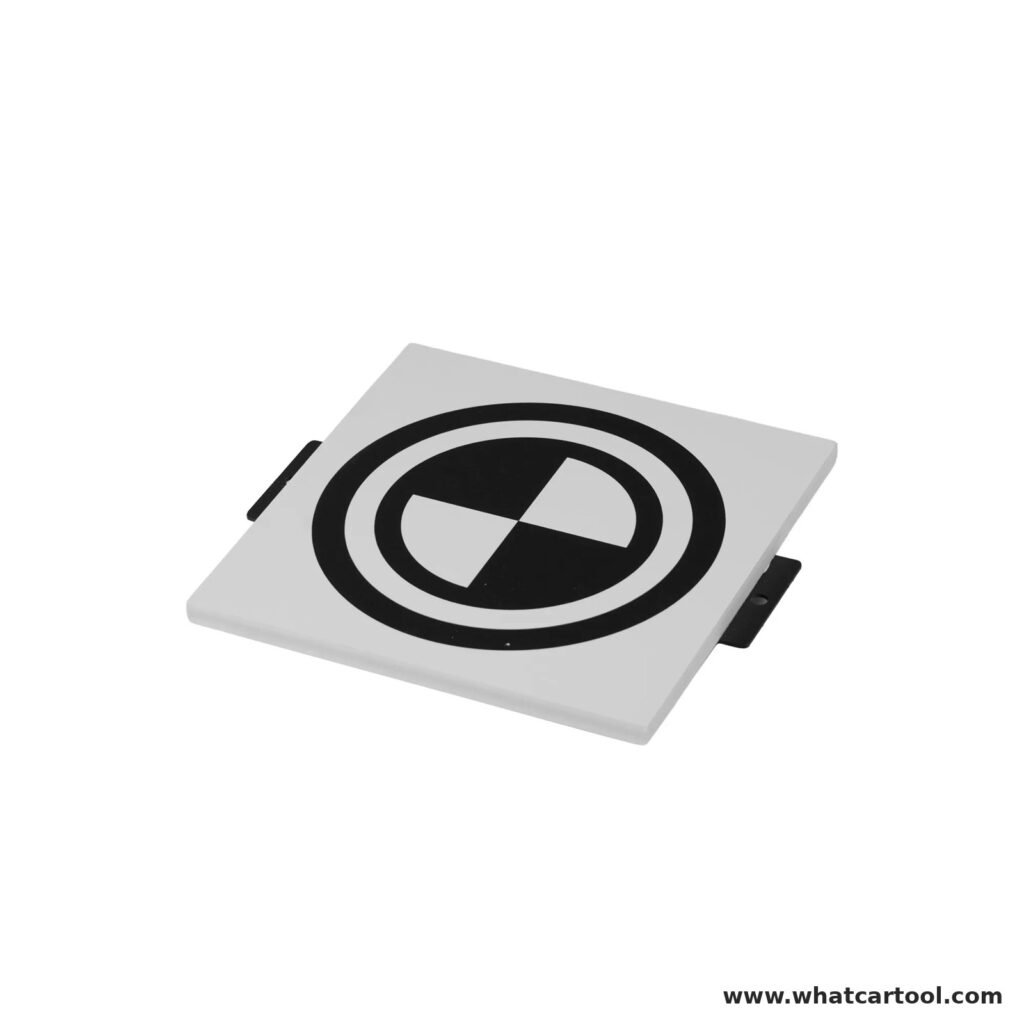

UDIAG adas b adas calibration frame circle target

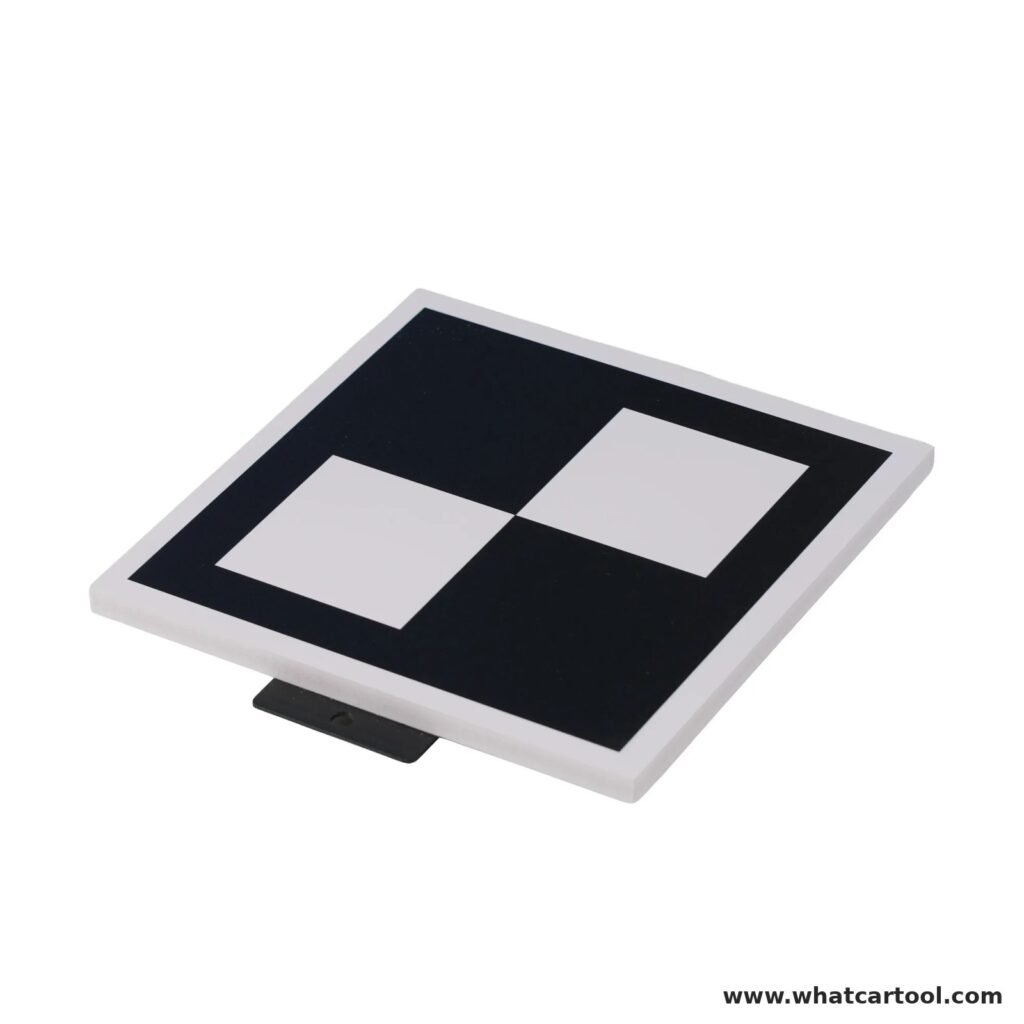

UDIAG adas b adas calibration frame square target

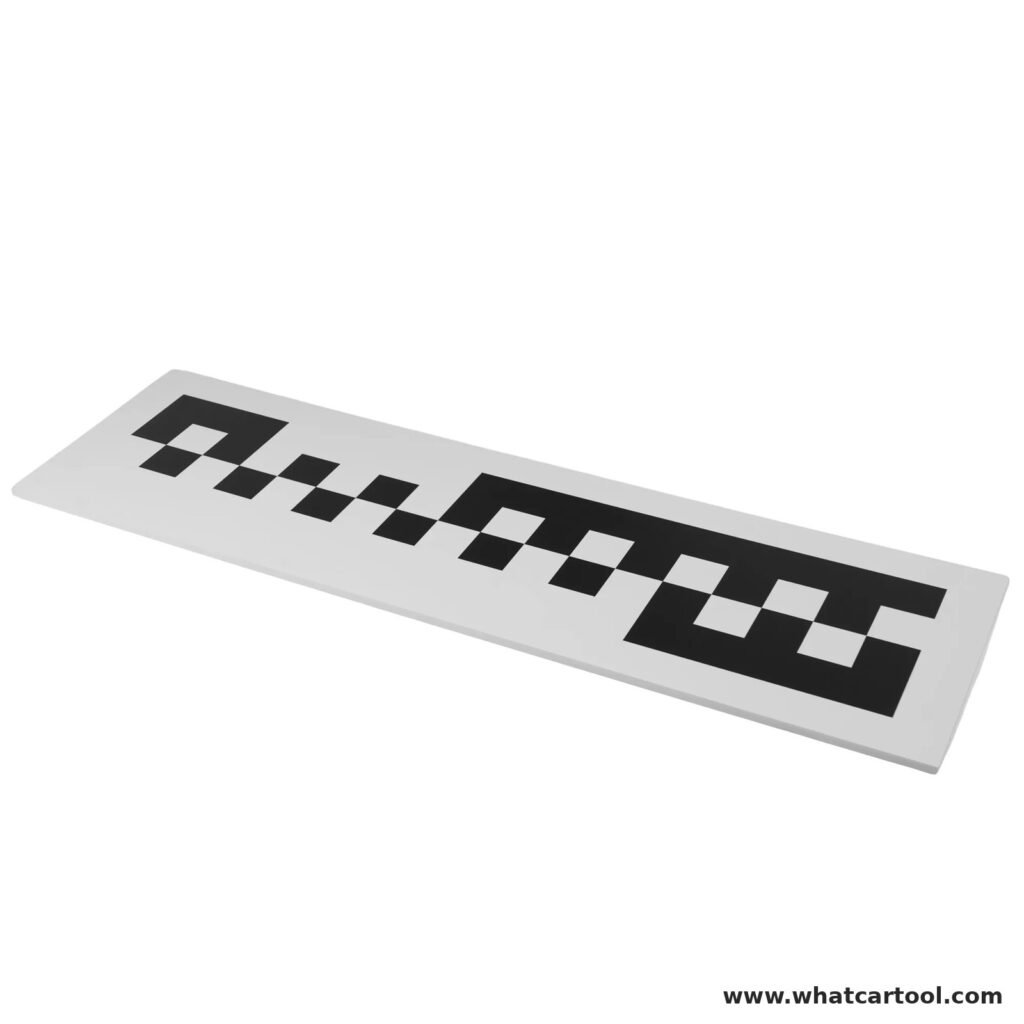

UDIAG adas b adas calibration frame pattern target

All-in-one ADAS calibration frame for radar, camera and LiDAR

Model code: ADAS-B Manufacturer: Udiag

Device forumAsk questions & share experience

Description

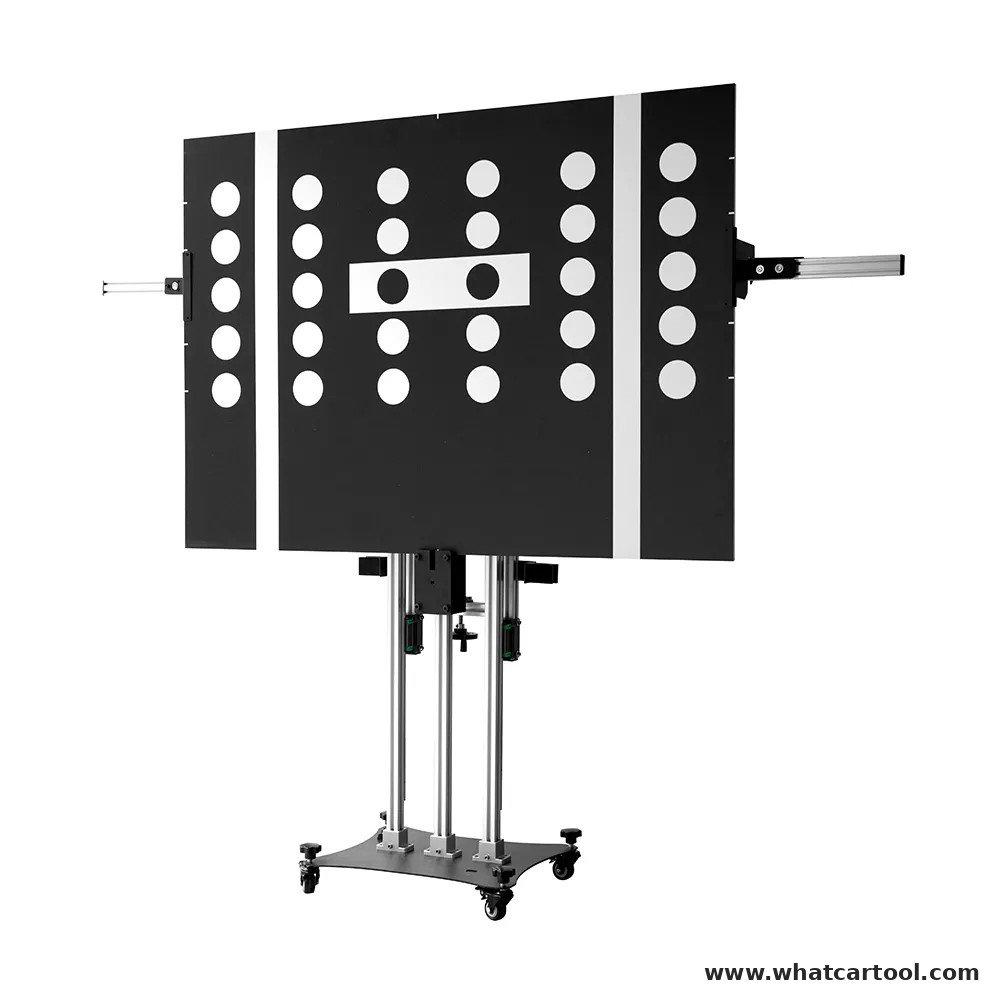

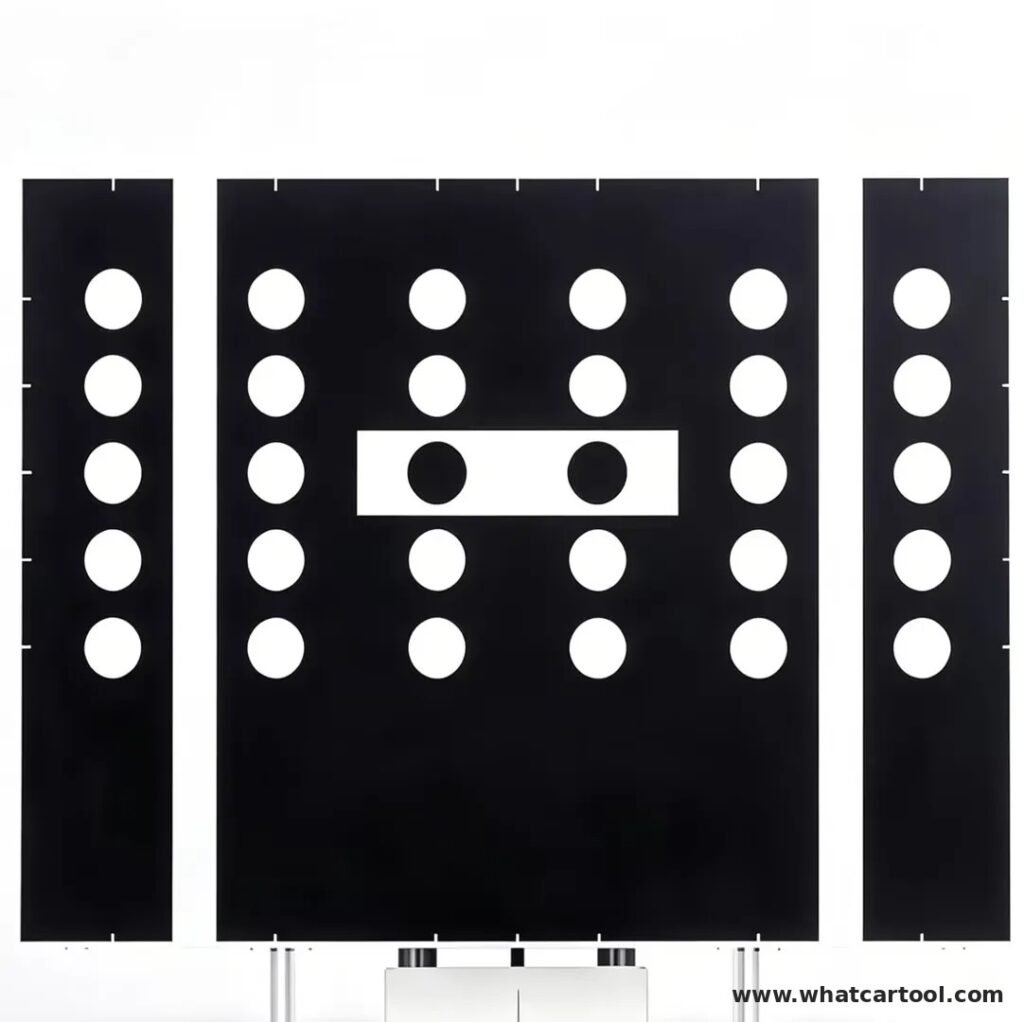

UDIAG ADAS-B is an all-in-one ADAS calibration system with a foldable multi-function main frame (movable base, adjustable beam, minimum height 1.2 m), a radar calibration set (ACC reflector, laser reflector, Doppler simulator, leveling kit) and a full camera target kit.

Calibrates radar, camera, LiDAR and 360-degree surround-view systems: ACC, Lane Departure Warning (LDW), Around View Monitoring (AVM), Rear Collision Warning (RCW), BSM, parking assist, pre-collision and front/side cameras. Brand-specific LDW/360 targets for Honda, Toyota/Lexus, Mazda, Nissan/Infiniti, Geely, BYD, VW/Audi, Hyundai/Kia and Mercedes-Benz.

Works with Dtronic (no activation needed), Meta, Langren and Special Inspect diagnostic platforms. No PDF user manual is published on udiagtech.com.

Specifications

Product type	Device with software installed on a computer / tablet / phone
OEM (Original Equipment Manufacturer) product? i	No
For which vehicle	Cars
What programs does it work with?	Dtronic (no activation), Meta, Langren and Special Inspect diagnostic platforms.

Supported functions (5)

All 14 compatible makes ·
1 function
Audi, BMW, BYD, Geely, Honda, Hyundai, Infiniti, Kia, Lexus, Mazda, Mercedes-Benz, Nissan, Toyota, Volkswagen

ADAS

Radar (ACC) calibration i conditions · 2

Only for 13 of 14 makes ·
4 functions
Audi, BYD, Geely, Honda, Hyundai, Infiniti, Kia, Lexus, Mazda, Mercedes-Benz, Nissan, Toyota, Volkswagen

ADAS

Front camera calibration i (Front camera / lane departure warning. ADAS-equipped models only; brand-specific LDW / 360° targets included for this make. Works with Dtronic, Meta, Langren and Special Inspect diagnostic platforms. UDIAG lists makes without model years.)
Around view / 360 camera calibration i (360° surround view. ADAS-equipped models only; brand-specific LDW / 360° targets included for this make. Works with Dtronic, Meta, Langren and Special Inspect diagnostic platforms. UDIAG lists makes without model years.)
Lidar calibration i (LiDAR, where fitted. ADAS-equipped models only; brand-specific LDW / 360° targets included for this make. Works with Dtronic, Meta, Langren and Special Inspect diagnostic platforms. UDIAG lists makes without model years.)
Blind spot / rear cross traffic calibration i (Blind spot / rear collision warning. ADAS-equipped models only; brand-specific LDW / 360° targets included for this make. Works with Dtronic, Meta, Langren and Special Inspect diagnostic platforms. UDIAG lists makes without model years.)

Conditions for specific vehicles (2)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Radar (ACC) calibration

ACC radar. ADAS-equipped models only; brand-specific LDW / 360° targets included for this make. Works with Dtronic, Meta, Langren and Special Inspect diagnostic platforms. UDIAG lists makes without model years. — Audi, BYD, Geely, Honda, Hyundai, Infiniti, Kia, Lexus and 5 more
ACC radar (UDIAG names BMW; no brand-specific camera target). ADAS-equipped models only; brand-specific LDW / 360° targets included for this make. Works with Dtronic, Meta, Langren and Special Inspect diagnostic platforms. UDIAG lists makes without model years. — BMW

Compatibility disclosure

ADAS calibration frame with radar set and camera targets (LDW, 360°). Works with Dtronic, Meta, Langren and Special Inspect platforms. ADAS-equipped models only; UDIAG lists makes without model years. Model years are not published by UDIAG; entries start at 1996 (EU-only makes 2001; diesel EOBD 2004). Function availability depends on make, model, year and installed control modules – check your VIN with UDIAG before buying. OEM dealer software and licences are not included.

Compatible vehicles (14 makes)

Check if it fits your vehicle:

Audi (all models) all 5 functions

All models of this make (1996–…)

BMW (all models) 1 of 5 functions · A1

All models of this make (1996–…)

BYD (all models) all 5 functions

All models of this make (1996–…)

Geely (all models) all 5 functions

All models of this make (1996–…)

Honda (all models) all 5 functions

All models of this make (1996–…)

Hyundai (all models) all 5 functions

All models of this make (1996–…)

Infiniti (all models) all 5 functions

All models of this make (1996–…)

Kia (all models) all 5 functions

All models of this make (1996–…)

Lexus (all models) all 5 functions

All models of this make (1996–…)

Mazda (all models) all 5 functions

All models of this make (1996–…)

Mercedes-Benz (all models) all 5 functions

All models of this make (1996–…)

Nissan (all models) all 5 functions

All models of this make (1996–…)

Toyota (all models) all 5 functions

All models of this make (1996–…)

Volkswagen (all models) all 5 functions

All models of this make (1996–…)
