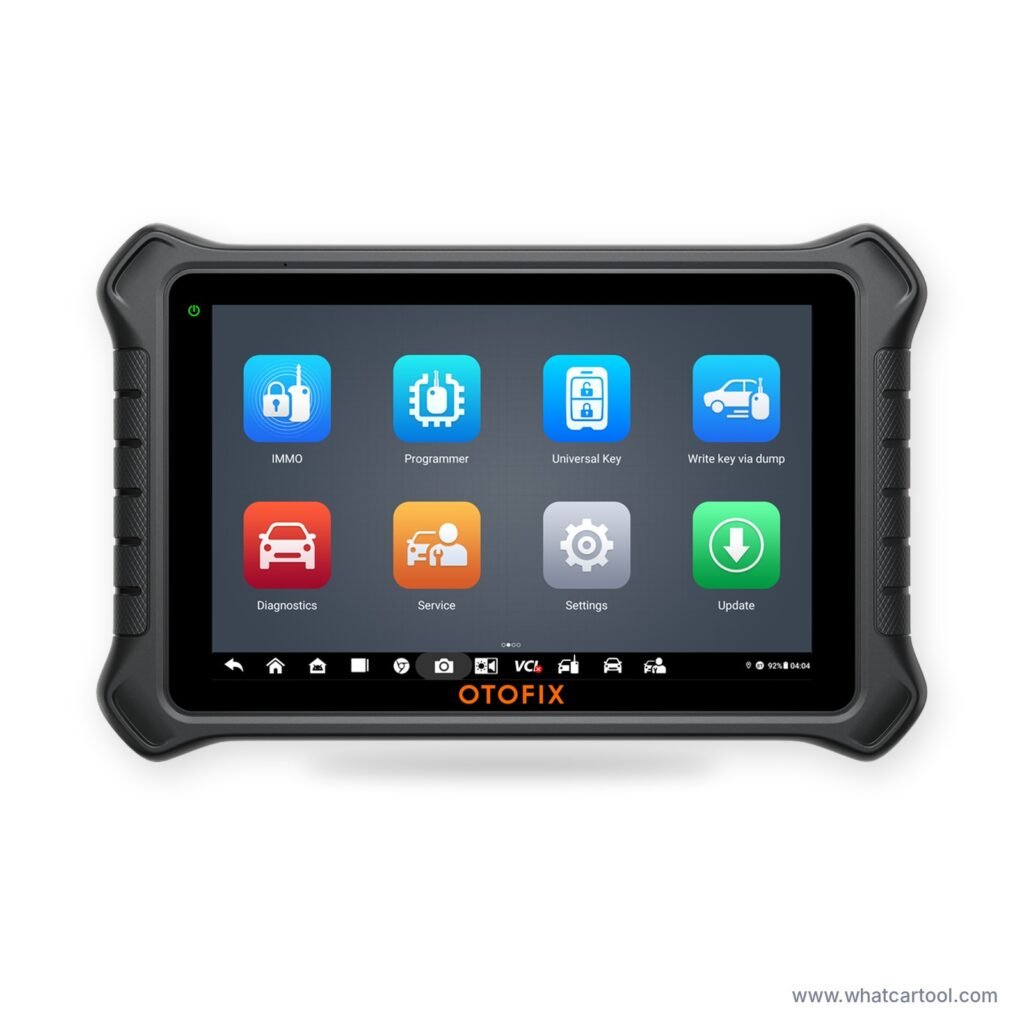

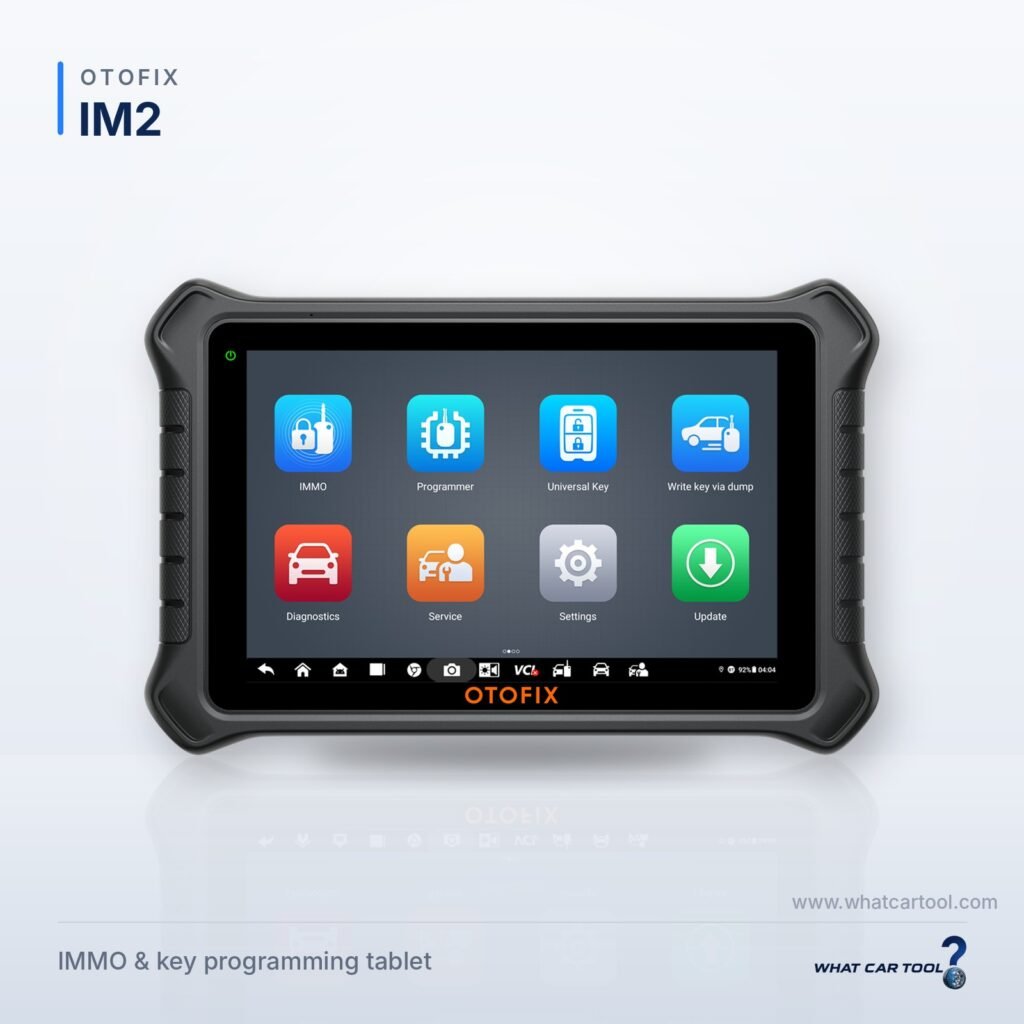

OTOFIX IM2

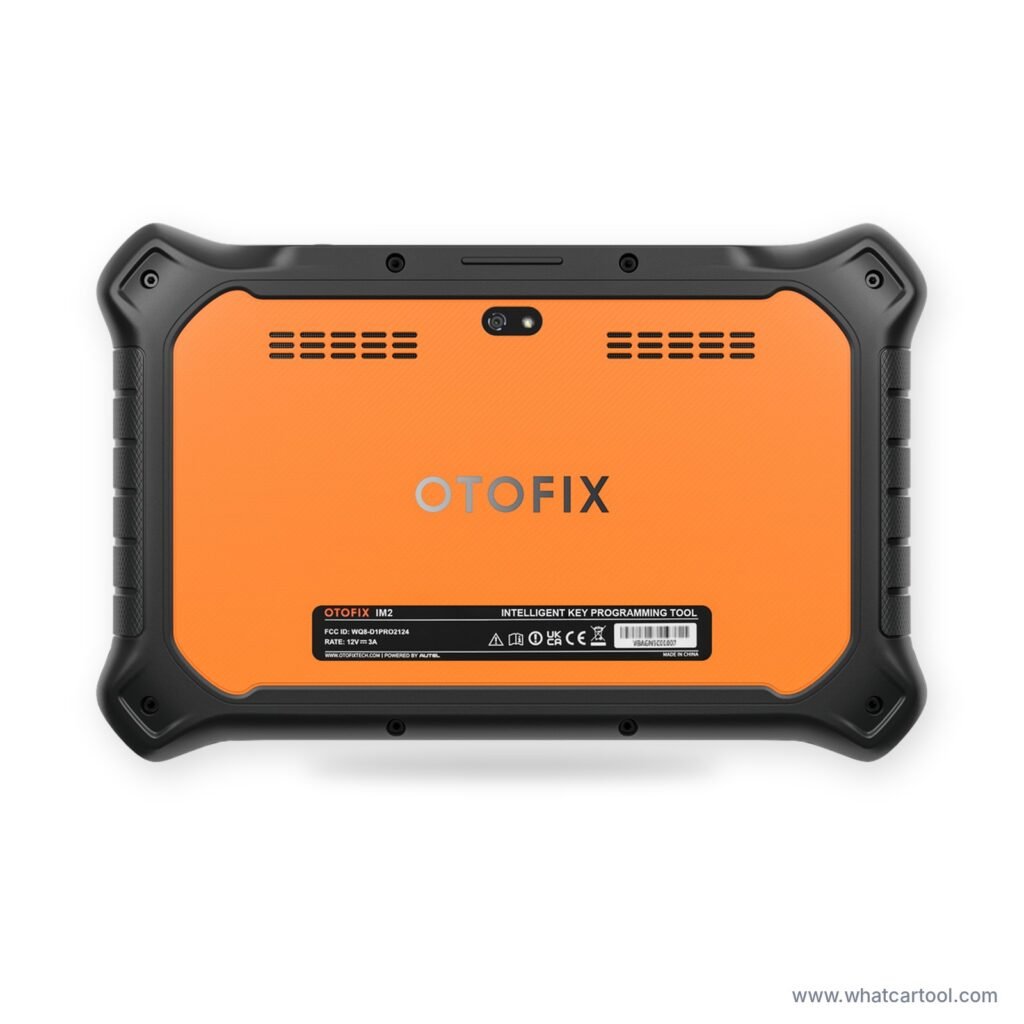

OTOFIX IM2 key programming tool back view

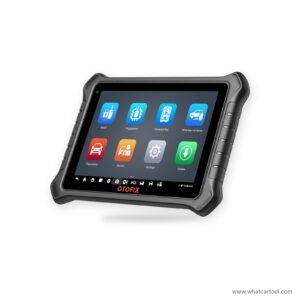

OTOFIX IM2 key programming tool angle view

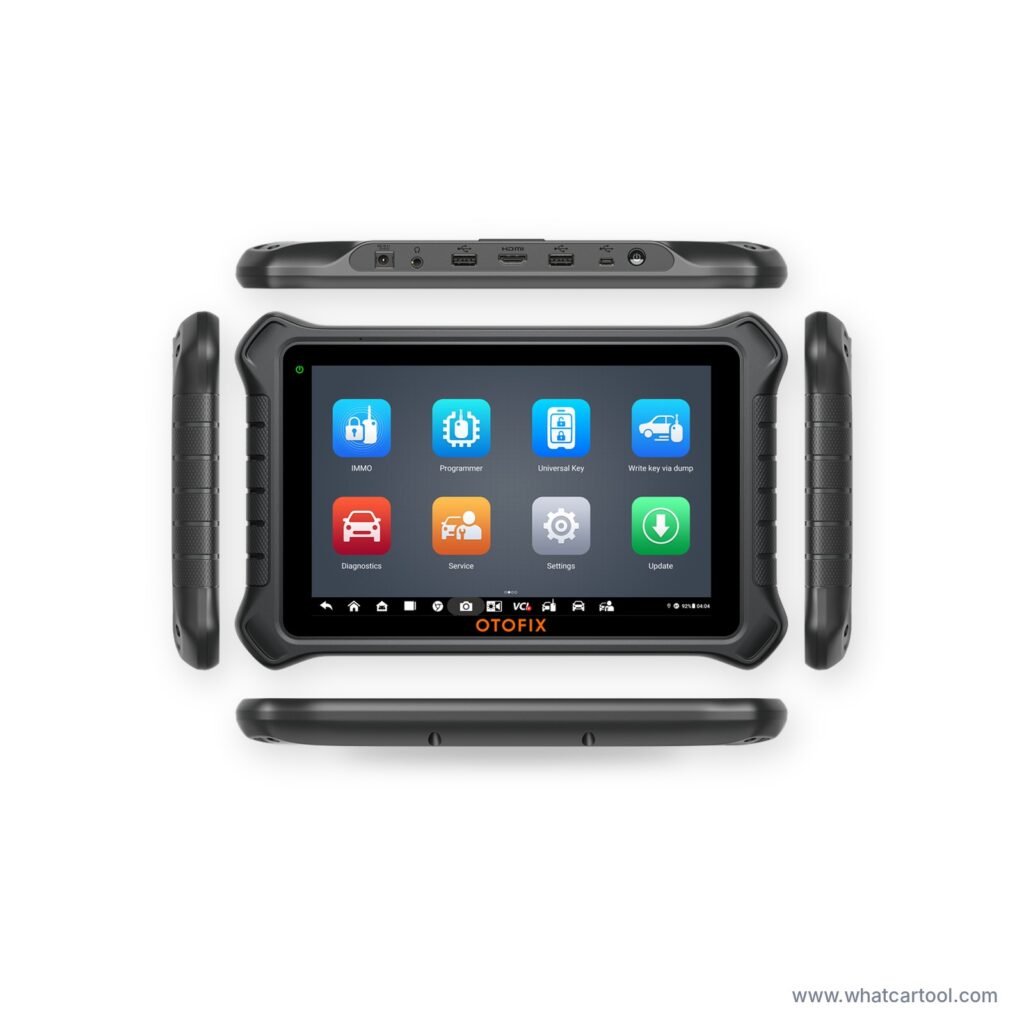

OTOFIX IM2 key programming tool all sides view

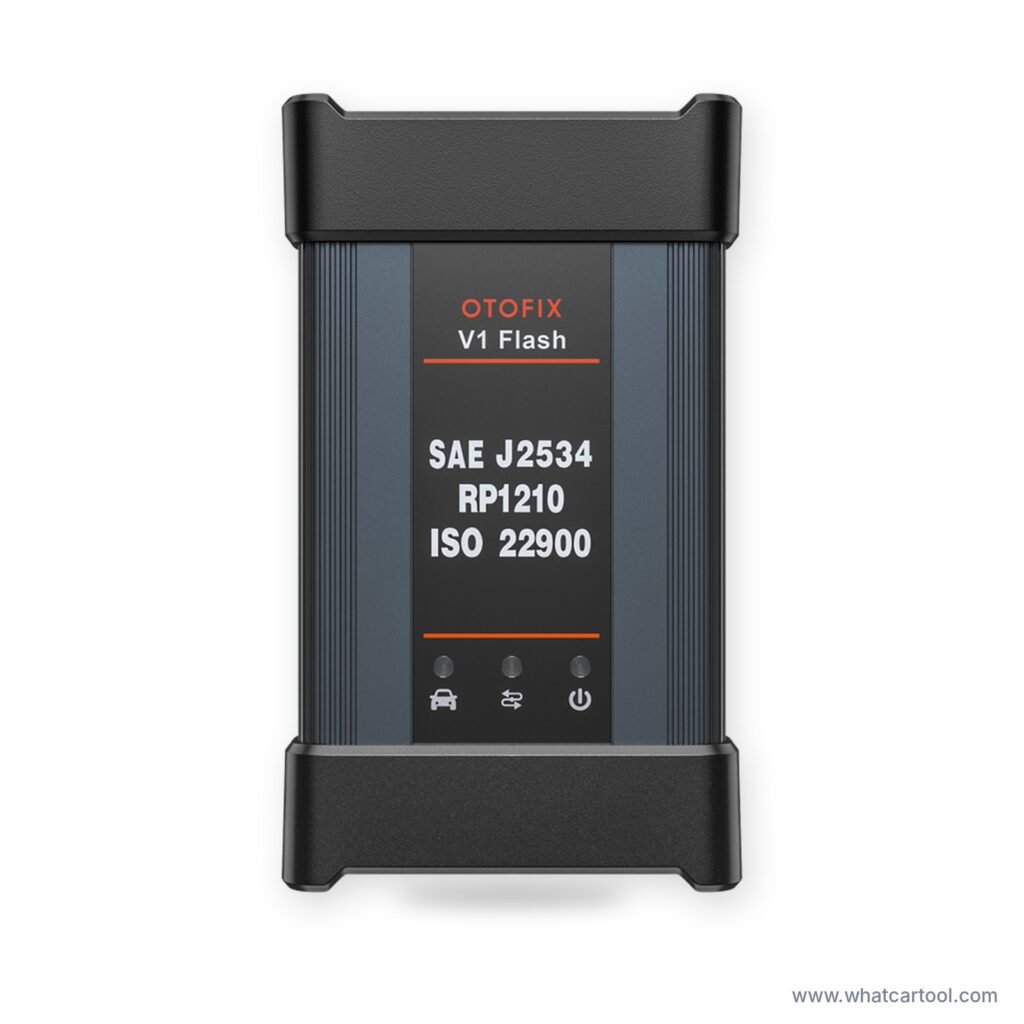

OTOFIX IM2 key programming tool vci view

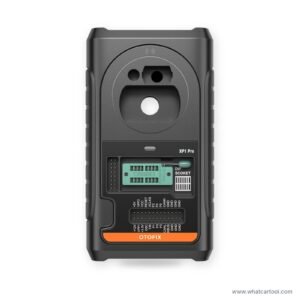

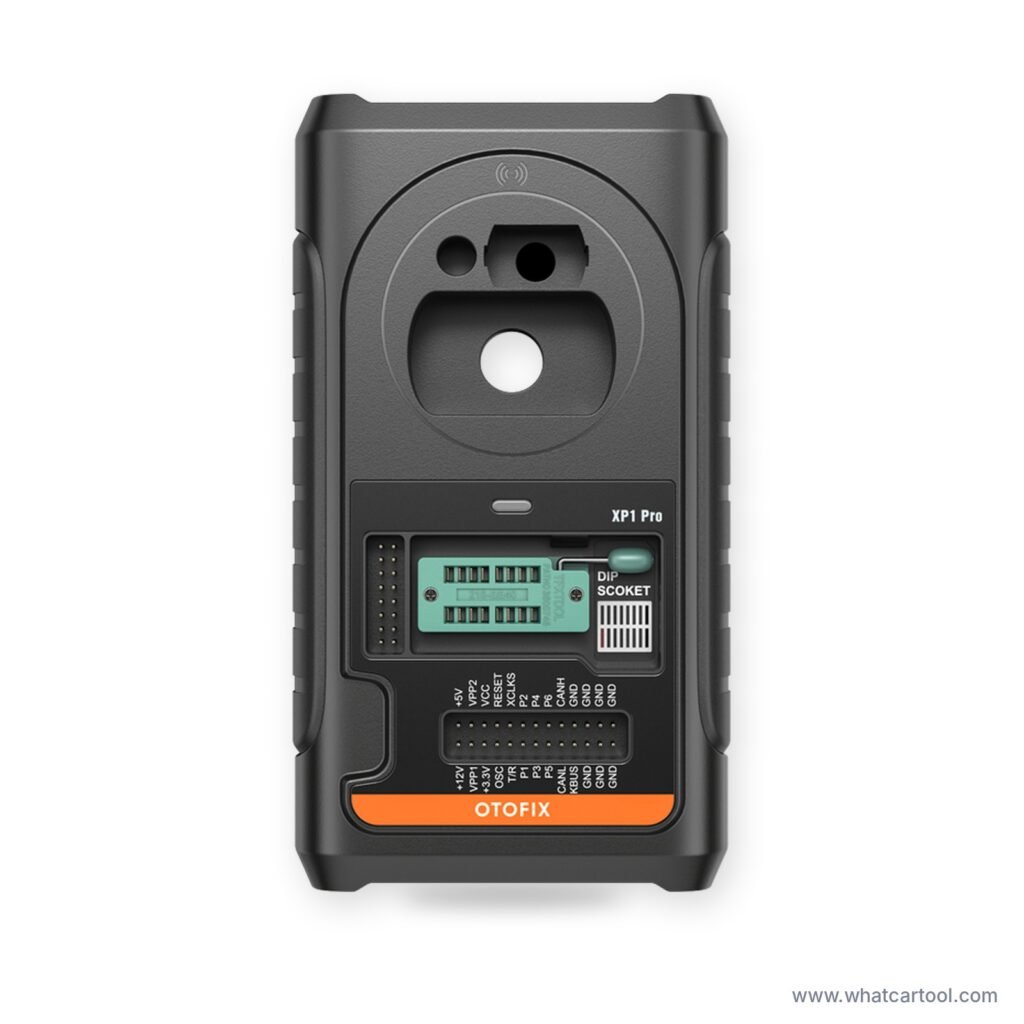

OTOFIX IM2 key programming tool xp1 pro programmer

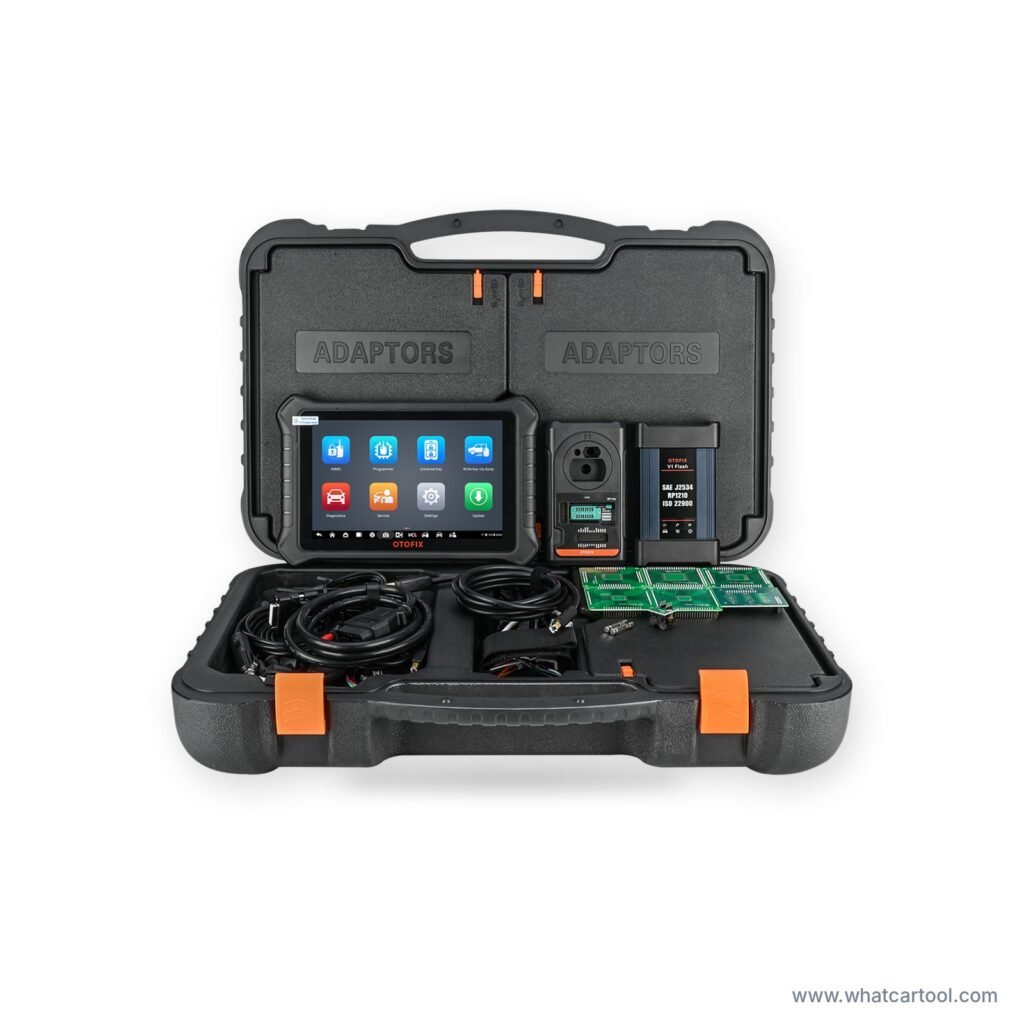

OTOFIX IM2 key programming tool kit in case

10.1" IMMO and key programming tablet with XP1 Pro programmer, coding and full-system diagnostics

Model code: IM2 Manufacturer: Otofix

Device forumAsk questions & share experience

Description

The OTOFIX IM2 is a 10.1-inch Android IMMO and key programming tablet with the V1 Flash VCI (SAE J2534, RP1210, ISO 22900) and the XP1 Pro programmer. IMMO coverage on 80+ makes, OBD key programming on about 90% of supported models: PIN/CS reading (incl. all keys lost), key generation, key learning, remote learning and activation, IMMO ECU reset/adaptation, refresh/coding, IMMO restore and data backup. Examples from OTOFIX: BMW FEM/BDC key learning, Mercedes infrared key generation, VW/Audi III/IV/V add key and AKL, MQB transponder changes, Audi Q5/A4/A5 2015-2017 PIN/CS. Built-in database shows chip type, frequency, key type and maximum number of keys. XP1 Pro reads/writes transponders, EEPROM, MCU, engine ECU and IMMO ECU data; chip simulation needs APB112; G-Box2/G-Box3 and IMKPA adapters optional.

Diagnostics: AutoVIN full-system scan, codes, live and freeze frame data, ECU information, active tests, 40 service functions, online and offline coding, hidden and guided functions (online coding and hidden functions not for Mercedes-Benz; guided functions not for Mercedes, BMW, JLR). DoIP and CAN FD need adapters. Remote expert and cloud report management.

Hardware: Qualcomm SDM660 octa-core, Android 10, 4 GB RAM, 128 GB storage, 10.1" 1920x1200 screen, 15000 mAh battery, 16 MP camera, Wi-Fi 802.11ac, Bluetooth 5.0, 2x USB-A, mini USB, HDMI, SD card, 1.58 kg. Optional endoscope.

Key programming must only be used on vehicles you own or are authorised to work on. Vehicle coverage and functions depend on make, model, year, region and software version - check your VIN with OTOFIX (service@otofix.store) before buying. OEM software and licences are not included.

Specifications

Product type	Device with pre-installed software (standalone)
OEM (Original Equipment Manufacturer) product? i	No
For which vehicle	Cars
Connection with computer / tablet / phone	Bluetooth, Wi-Fi, USB
Other connection (details)	V1 Flash VCI; XP1 Pro via USB; HDMI
Vehicle power supply system	12V
Supported protocols	CAN, J1979, J2534 standard API passthru, RP1210 API
Other protocols (details)	ISO 22900 (D-PDU); DoIP and CAN FD with adapters
Frequency of new updates	Regular online updates via Wi-Fi
Months of free updates	24
Annual cost (USD)	539
Subscription model (description)	2 years of free software updates, no IP restriction (otofix.store). Renewal: OTOFIX IM2 One Year Update Service, USD 539 at otofix.store.
Menu language	English
Other language (details)	Multi-language (list not published)
Warranty (months)	12
Warranty details (optional)	OTOFIX one-year limited warranty

Supported functions (57)

Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.

Actuation

Actuation / component test
160 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Deepal, Denza, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, Livan, LiXiang, LT3, Luxgen, Lynk & Co, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Skoda, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, Suzuki, SWM, Tank, Tata, Toyota, Vauxhall, VAZ, VAZ (Lada), VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, YueJin, ZD, Zotye, ZX
i

ADAS

Front camera calibration
82 of 205 makes
Aion, Arcfox, Baic, Baojun, Bestune, BMW, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Daewoo, Daihatsu, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DS, EXEED, FAW, Ford, GAC, Geely, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Hongqi, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, JAC, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Land Rover, LDV, Leapmotor, Lexus, Lincoln, LiXiang, Lynk & Co, Maxus, Mazda, Mercedes-Benz, MG, Mini, Nevo, Nissan, Opel, ORA, Oshan, Perodua, Peugeot, Porsche, Proton, RAM, Ravon, Renault, Roewe, Soueast, Subaru, Suzuki, SWM, Tank, Toyota, Vauxhall, VinFast, Voyah, WEY, Wuling
i
Radar (ACC) calibration
98 of 205 makes
Acura, Alfa Romeo, Arcfox, Audi, Baic, Baojun, Bentley, Bestune, BMW, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Daihatsu, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, FAW, Fiat, GAC, Geely, Genesis, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hycan, Hyundai, Infiniti, Isuzu, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Land Rover, LDV, Leapmotor, Lexus, Lifan, Lincoln, LiXiang, Lynk & Co, Maruti, Maxus, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi Fuso, Nevo, Nissan, Omoda, Opel, Oshan, Perodua, Peugeot, Porsche, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, SEAT, Seres, Seres Aito, Skoda, Soueast, Subaru, Suzuki, Toyota, Vauxhall, VinFast, Volkswagen, Volvo, Voyah, WEY, Wuling
i
Around view / 360 camera calibration
66 of 205 makes
Aion, Arcfox, Baic, Baojun, Bestune, BMW, Brilliance, BYD, Cadillac, Changan, Chery, Citroen, Deepal, Denza, DS, EXEED, FAW, Fiat, Ford, GAC, Geely, Genesis, Great Wall, Haval, HiPhi, Hongqi, Hycan, Hyundai, Infiniti, JAC, Jaecoo, Jetour, JMC, Kia, LDV, Leapmotor, Lexus, Lifan, Lincoln, Luxgen, Lynk & Co, Maxus, Mazda, Mercedes-Benz, MG, Mini, Nevo, Nissan, ORA, Oshan, Peugeot, Porsche, Renault, Roewe, Seres, Seres Aito, Soueast, SWM, Tank, Toyota, VinFast, Voyah, WEY, Wuling, Zeekr, Zotye
i
Blind spot / rear cross traffic calibration
42 of 205 makes
Baic, BMW, BYD, Changan, Chery, Citroen, Dacia, Daihatsu, Deepal, Denza, DS, FAW, Fiat, GAC, Genesis, Hongqi, Hyundai, Infiniti, JAC, JMC, Kia, LDV, Leapmotor, Lexus, Maruti, Maxus, Mazda, Mercedes-Benz, Mini, Mitsubishi Fuso, Nevo, Nissan, Oshan, Perodua, Peugeot, Porsche, Proton, Renault, SsangYong, Suzuki, Toyota, Volkswagen
i

Advanced Diagnostics

Remote diagnosis
186 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Captain, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Juma Feiteng, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LingBox, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Renault Samsung, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Skywell, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, TongJia, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), Victory Auto, VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Xvista, Yinlong, Yogomo, Yudo, YueJin, ZD, Zedriv, Zeekr, Zhongtong, Zotye, ZX
i
FCA AutoAuth / SGW bypass
7 of 205 makes
Abarth, Alfa Romeo, Chrysler, Dodge, Fiat, Jeep, RAM
i $ optional (FCA Secure Gateway (2018+) - requires your own paid AutoAuth account.)
Guided tests / Guided component tests
5 of 205 makes
Audi, Cupra, SEAT, Skoda, Volkswagen
i
Live data graphing
186 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Captain, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Juma Feiteng, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LingBox, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Renault Samsung, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Skywell, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, TongJia, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), Victory Auto, VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Xvista, Yinlong, Yogomo, Yudo, YueJin, ZD, Zedriv, Zeekr, Zhongtong, Zotye, ZX
i

Coding / adaptation

ECU coding
98 of 205 makes
Aion, Alfa Romeo, Arcfox, Audi, Baic, Baojun, Bentley, BMW, Brilliance, Bugatti, BYD, Changan, Changhe, Chery, Chrysler, Citroen, Cowin, Cupra, DAF, Daihatsu, Deepal, Denza, DFSK, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, Farizon, FAW, Fiat, Foton, GAC, Geely, Genesis, Great Wall, Haval, Hino, Hycan, Hyundai, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, LDV, Leapmotor, LT3, Mahindra, MAN, Maple, Maruti, Maxus, Maybach, Mercedes-Benz, MG, Mini, Mitsubishi, Nevo, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Porsche, Proton, RAM, Roewe, Rolls-Royce, SEAT, Seres, Seres Aito, Sinogold, Skoda, Smart, Soueast, SsangYong, Subaru, Suzuki, SWM, Tank, Tata, Toyota, Vauxhall, Volkswagen, Volvo, Voyah, WEY, Wuling, Zotye
i
Adaptation (channels / values)
13 of 205 makes
Ashok Leyland, Audi, Bentley, Bugatti, Cupra, Jetta, JMC, Lamborghini, LT3, MAN, SEAT, Skoda, Volkswagen
i
Hidden features / retrofit coding
11 of 205 makes
Audi, Bestune, BMW, Changan, Cupra, Deepal, FAW, Mini, SEAT, Skoda, Volkswagen
i
Language / units change
44 of 205 makes
Audi, Baic, Bentley, BMW, Buick, BYD, Cadillac, Changan, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Deepal, Denza, Dodge, DongFeng, FAW, GAC, GMC, Hongqi, Hummer, Infiniti, Jaguar, Jeep, LDV, Mahindra, Maxus, Mercedes-Benz, Mini, Nevo, Nissan, Oshan, Peugeot, Pontiac, RAM, Renault, Saab, Saturn, SEAT, Skoda, Suzuki, Tata, Volkswagen
i

Diagnostics

Reading the VIN
186 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Captain, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Juma Feiteng, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LingBox, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Renault Samsung, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Skywell, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, TongJia, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), Victory Auto, VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Xvista, Yinlong, Yogomo, Yudo, YueJin, ZD, Zedriv, Zeekr, Zhongtong, Zotye, ZX
i
Read fault codes (DTC)
178 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Dynapac, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Yinlong, Yogomo, Yudo, YueJin, ZD, Zedriv, Zeekr, Zotye, ZX
i
Clear fault codes (DTC)
176 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Dynapac, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Yinlong, Yogomo, Yudo, YueJin, ZD, Zedriv, Zotye, ZX
i
Live data stream
185 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Captain, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Dynapac, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Juma Feiteng, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LingBox, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Skywell, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, TongJia, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), Victory Auto, VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Xvista, Yinlong, Yogomo, Yudo, ZD, Zedriv, Zeekr, Zhongtong, Zotye, ZX
i
Freeze frame data
102 of 205 makes
Acura, Ashok Leyland, Audi, Baic, Bentley, BMW, Borgward, Brilliance, Bugatti, Buick, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, Daihatsu, Deepal, DFSK, Dodge, DongFeng, Dongfeng Forthing, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Force Motors, Foton, Geely, Geometry, GMC, Great Wall, Haval, HiPhi, Holden, Honda, Hummer, IM Motors (Zhiji), Isuzu, Jaecoo, Jeep, Jetour, Jetta, JMC, Joylong, Lamborghini, LDV, Lexus, Lifan, Livan, LT3, MAN, Maple, Maruti, Maserati, Maxus, MG, Mini, Nevo, Oldsmobile, Omoda, Opel, ORA, Oshan, Peugeot, Pontiac, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Skoda, Soueast, SRM Shineray, Subaru, Suzuki, Tank, Toyota, UD Trucks, Vauxhall, Volkswagen, WEY, Workhorse, Wuling, YueJin, ZX
i
Full system (all modules) scan
186 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Captain, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Juma Feiteng, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LingBox, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Renault Samsung, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Skywell, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, TongJia, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), Victory Auto, VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Xvista, Yinlong, Yogomo, Yudo, YueJin, ZD, Zedriv, Zeekr, Zhongtong, Zotye, ZX
i
ECU information
168 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Changan, Changhe, Chengshi, Chevrolet, Chrysler, Citroen, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DS, Dynapac, Enranger, EPai, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaguar, Jeep, Jetta, JMC, Joylong, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lifan, Lincoln, LingBox, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, UD Trucks, Vauxhall, VAZ, VAZ (Lada), VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Yogomo, Yudo, YueJin, ZD, Zedriv, Zeekr, Zotye, ZX
i
Reading fault codes (DTCs)
1 of 205 makes
BMW
(Availability depends on model, year and installed modules (OTOFIX coverage list) - check your VIN with OTOFIX before buying.)
Clearing fault codes (DTCs)
1 of 205 makes
BMW
(Availability depends on model, year and installed modules (OTOFIX coverage list) - check your VIN with OTOFIX before buying.)
Live data
1 of 205 makes
BMW
(Availability depends on model, year and installed modules (OTOFIX coverage list) - check your VIN with OTOFIX before buying.)
Freeze frame data
1 of 205 makes
BMW
(Availability depends on model, year and installed modules (OTOFIX coverage list) - check your VIN with OTOFIX before buying.)
ECU information
1 of 205 makes
BMW
(Availability depends on model, year and installed modules (OTOFIX coverage list) - check your VIN with OTOFIX before buying.)

Emissions

Truck-specific SCR / NOx / AdBlue routines
7 of 205 makes
Ashok Leyland, DAF, GMC, Hino, MAN, Mitsubishi Fuso, Volvo
i

EV / hybrid

HV battery pack diagnostics
85 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Arcfox, Baic, Bentley, BMW, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Daihatsu, Deepal, Denza, Dodge, Dongfeng Forthing, DR, DS, EXEED, FAW, Fiat, Ford, GAC, Geely, Genesis, Geometry, GMC, Great Wall, HiPhi, Holden, Honda, Hongqi, Hycan, Hyundai, IM Motors (Zhiji), JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Land Rover, LDV, Lynk & Co, Maple, Maruti, Maxus, Mercedes-Benz, MG, Mini, Nevo, Opel, ORA, Oshan, Peugeot, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Saturn, Seres, Seres Aito, Smart, Soueast, SsangYong, Subaru, Suzuki, Toyota, Vauxhall, VinFast, WEY, Zhongtong
i

Key / immobilizer

Key / fob programming
154 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Arcfox, Audi, Baic, Baojun, Bentley, Bestune, BiSu, BMW, Borgward, Brilliance, Buick, BYD, Cadillac, CFMOTO, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, CQYM, Dacia, Daewoo, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Foday, Ford, Foton, GAC, Geely, Genesis, Geometry, GMC, Great Wall, Hafei, Haima, Hanteng, Haval, Hawtai, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lancia, Landian, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LiXiang, Luxgen, Lynk & Co, Mahindra, Maple, Maruti, Maserati, Maxus, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nammi, NETA, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pontiac, Porsche, Proton, Qoros, Radar, RAM, Renault, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Skoda, Skyworth, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, Suzuki, SWM, Tank, Tata, Tengshi, Toyota, Traum, Vanderhall, Vauxhall, VinFast, Volkswagen, Volvo, Voyah, Weltmeister, WEY, Wuling, ZD, Zotye, ZX
i conditions · 1
Immobilizer reset / IMMO
154 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Audi, Baic, Baojun, Bentley, Bestune, BiSu, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, CFMOTO, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, CMC, Cowin, CQYM, Cupra, Dacia, Daewoo, Deepal, Dodge, DongFeng, Dongfeng Forthing, DR, DS, Enranger, EPai, EXEED, FAW, Ferrari, Fiat, Foday, Ford, Foton, GAC, Geely, Geometry, GMC, Great Wall, Hafei, Haima, Hanteng, Haval, Hawtai, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Landian, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LiXiang, Luxgen, Lynk & Co, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nammi, NETA, Nevo, Nissan, Oldsmobile, Omoda, Opel, Oshan, Perodua, Peugeot, Pontiac, Porsche, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Skoda, Skyworth, Smart, Sollers, Soueast, SsangYong, Subaru, Suzuki, SWM, Tank, Tata, Tengshi, Toyota, Traum, Vanderhall, Vauxhall, Volkswagen, Volvo, Voyah, Weltmeister, WEY, Wuling, Yudo, ZD, Zotye, ZX
i conditions · 1
PIN / CS code reading
103 of 205 makes
Abarth, Aion, Alfa Romeo, Audi, Baic, Bentley, BMW, Buick, BYD, Cadillac, CFMOTO, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, CMC, Cowin, CQYM, Dacia, DAF, Deepal, Dodge, DongFeng, Dongfeng Forthing, DR, EPai, EXEED, Ferrari, Fiat, Ford, Foton, Geely, GMC, Great Wall, Haima, Hanteng, Haval, Hawtai, Holden, Hyundai, Infiniti, Isuzu, JAC, Jaecoo, Jaguar, Jeep, Jetour, JMC, Kia, Lancia, Land Rover, LDV, Lexus, Lifan, Lincoln, Luxgen, Mahindra, Maple, Maruti, Maxus, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Nammi, Nevo, Nissan, Opel, Oshan, Perodua, Peugeot, Pontiac, Porsche, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, Saab, Saturn, SEAT, Seres, Seres Aito, Sinogold, Skoda, Smart, Soueast, Subaru, Suzuki, SWM, Tengshi, Toyota, Vanderhall, Vauxhall, Volkswagen, WEY, Zotye, ZX
i

Programming

Mileage/odometer correction
116 of 205 makes
Abarth, Aion, Alfa Romeo, Arcfox, Audi, Baic, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, BYD, Cadillac, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, EXEED, Farizon, FAW, Fiat, Ford, Foton, GAC, Geely, Genesis, Geometry, GMC, Great Wall, Haval, HiPhi, Holden, Hongqi, Hummer, Hycan, Hyundai, Isuzu, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, LDV, Leapmotor, Lexus, Lifan, Lincoln, Livan, LiXiang, Lynk & Co, Mahindra, MAN, Maple, Maruti, Maxus, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Opel, ORA, Oshan, Peugeot, Pontiac, Porsche, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, Ruichi, SEAT, Seres, Seres Aito, Skoda, Smart, Soueast, Subaru, Suzuki, SWM, Tank, Tata, Toyota, Vauxhall, VinFast, Volkswagen, Volvo, Voyah, WEY, YueJin, ZD, Zotye
i (Mileage functions may only be used to recalibrate a replacement or repaired instrument cluster to the true mileage.)

Reports

Report export
186 of 205 makes
Abarth, Acura, Aion, Aiways, Alfa Romeo, Arcfox, Ashok Leyland, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Captain, Changan, Changhe, Chengshi, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Dayun, Deepal, Denza, DFAC, DFSK, Dodge, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, Enranger, EPai, EXEED, Farizon, FAW, Ferrari, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, Geo, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Juma Feiteng, Keyton, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LingBox, LinkTour, Livan, LiXiang, LT3, LuTong, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pocco, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Renault Samsung, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Sitech, Skoda, Skywell, Smart, Sollers, Soueast, SRM Shineray, SsangYong, Subaru, SuDa, Suzuki, SWM, Tank, Tata, TongJia, Toyota, UD Trucks, Vauxhall, VAZ, VAZ (Lada), Victory Auto, VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, Xvista, Yinlong, Yogomo, Yudo, YueJin, ZD, Zedriv, Zeekr, Zhongtong, Zotye, ZX
i

Service reset

Oil / service / inspection reset
126 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Aston Martin, Audi, Baic, Baojun, Bentley, Bestune, BMW, Bugatti, Buick, BYD, Cadillac, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Deepal, Denza, Dodge, DongFeng, Dorcen, DR, DS, FAW, Fiat, Ford, GAC, Geely, Genesis, Geometry, GMC, Great Wall, Haval, Holden, Honda, Hongqi, Hummer, Hyundai, Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, Livan, LiXiang, Luxgen, Lynk & Co, MAN, Maruti, Maserati, Maxus, Maybach, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Polestar, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Sinogold, Skoda, Smart, Sollers, Soueast, Subaru, Suzuki, Tank, Toyota, Vauxhall, VAZ, VAZ (Lada), VinFast, Volkswagen, Volvo, Workhorse, Wuling, Zotye
i
Electronic parking brake (EPB) service
116 of 205 makes
Acura, Aion, Alfa Romeo, Arcfox, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Bugatti, Buick, BYD, Cadillac, Changan, Changhe, Chery, Chevrolet, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Deepal, Denza, DongFeng, Dongfeng Forthing, Dorcen, DR, DS, EXEED, FAW, Fiat, Ford, GAC, Geely, Genesis, Geometry, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hycan, Hyundai, IM Motors (Zhiji), Isuzu, JAC, Jaecoo, Jaguar, Jetour, Jetta, JMC, Kia, Lamborghini, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lincoln, Livan, LiXiang, Lynk & Co, M-Hero, MAN, Maple, Maruti, Maxus, Mercedes-Benz, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Omoda, Opel, ORA, Oshan, Peugeot, Polestar, Porsche, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, Scion, SEAT, Seres, Seres Aito, Sinogold, Skoda, Soueast, SRM Shineray, SsangYong, Subaru, Suzuki, SWM, Tank, Toyota, Vauxhall, VinFast, Volkswagen, Volvo, WEY, Wuling, Zotye
i
Steering angle sensor (SAS) reset
135 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Arcfox, Ashok Leyland, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Brilliance, Buick, BYD, Cadillac, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, Daihatsu, Deepal, Denza, DFSK, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, Farizon, FAW, Fiat, Ford, Foton, GAC, Geely, Genesis, Geometry, GMC, Great Wall, Haval, HiPhi, Holden, Honda, Hongqi, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LiXiang, Luxgen, Lynk & Co, M-Hero, Mahindra, MAN, Maple, Maruti, Maxus, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Ruichi, Saturn, SEAT, Seres, Seres Aito, Sinogold, Skoda, Smart, Sollers, Soueast, SsangYong, Subaru, Suzuki, SWM, Tank, Tata, Toyota, Vauxhall, VinFast, Volkswagen, Volvo, Voyah, WEY, Wuling, ZD, Zotye
i
Battery management (BMS) registration
67 of 205 makes
Acura, Aion, Alfa Romeo, Audi, Baic, Baojun, Bentley, Bestune, BMW, Bugatti, Changan, Chery, Chrysler, Citroen, Cupra, Dacia, Deepal, Dodge, DS, FAW, Fiat, Ford, Geely, Genesis, Great Wall, Haval, HiPhi, Honda, Hongqi, IM Motors (Zhiji), JAC, Jaguar, Jeep, Jetta, JMC, Lamborghini, Lancia, Land Rover, LDV, Leapmotor, Lexus, Lincoln, Lynk & Co, Mahindra, MAN, Maxus, Mazda, MG, Mini, Nevo, Nissan, ORA, Oshan, Peugeot, Porsche, RAM, Renault, Roewe, Rolls-Royce, SEAT, Seres, Skoda, Tank, Toyota, Volkswagen, Volvo, Wuling
i
DPF / FAP regeneration
112 of 205 makes
Abarth, Acura, Alfa Romeo, Ashok Leyland, Audi, Baic, Baojun, Bestune, BMW, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, FAW, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, GMC, Great Wall, Haval, Hino, Holden, Honda, Hongqi, Hyundai, Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lincoln, Livan, LiXiang, Lynk & Co, Mahindra, MAN, Maruti, Maxus, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Omoda, Opel, Oshan, Peugeot, Porsche, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, Scion, SEAT, Seres, Seres Aito, Skoda, Smart, Sollers, Soueast, SsangYong, Subaru, Suzuki, Tank, Tata, Toyota, Vauxhall, Volkswagen, Volvo, Voyah, WEY, Wuling, ZX
i
Throttle body adaptation
109 of 205 makes
Abarth, Acura, Alfa Romeo, Ashok Leyland, Audi, Baic, Baojun, Bentley, Bestune, BMW, Bugatti, Buick, Cadillac, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, FAW, Fiat, Force Motors, Ford, Foton, GAC, Geely, Genesis, GMC, Great Wall, Haval, Hino, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, LDV, Lexus, Mahindra, MAN, Maruti, Maxus, Mazda, Mercedes-Benz, Mercury, MG, Mini, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Peugeot, Pontiac, Porsche, Proton, RAM, Ravon, Renault, Roewe, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Sollers, SRM Shineray, SsangYong, Subaru, Suzuki, Tank, Tata, Toyota, Vauxhall, VinFast, Volkswagen, Volvo, Voyah, WEY, Workhorse, Wuling, ZX
i
TPMS reset / relearn
122 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Audi, Baic, Baojun, Bentley, Bestune, BMW, Borgward, Buick, BYD, Cadillac, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, Cowin, Dacia, Daewoo, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, FAW, Fiat, Ford, Foton, GAC, Geely, Genesis, Geometry, GMC, Great Wall, Haval, HiPhi, Holden, Honda, Hongqi, Hycan, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Leapmotor, Lexus, Lifan, Lincoln, LiXiang, Luxgen, Lynk & Co, Mahindra, Maple, Maruti, Maxus, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Peugeot, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Ruichi, Scion, SEAT, Seres, Seres Aito, Sinogold, Skoda, Smart, Sollers, Soueast, SsangYong, Subaru, Suzuki, SWM, Tank, Tata, Toyota, Vauxhall, VinFast, Volkswagen, Volvo, WEY, Wuling, Zotye
i
ABS brake bleeding
96 of 205 makes
Abarth, Aion, Alfa Romeo, Arcfox, Baic, Baojun, Bestune, BMW, Brilliance, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Cowin, Cupra, Daewoo, Daihatsu, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, EXEED, Farizon, FAW, Fiat, Foton, GAC, Geely, Geometry, GMC, Great Wall, Haval, Holden, Hongqi, Hummer, Hycan, Isuzu, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Lancia, Land Rover, Landwind, Leapmotor, Lexus, Lifan, Lincoln, LiXiang, Maple, Maruti, Mazda, MG, Mini, Nevo, Oldsmobile, Omoda, Opel, ORA, Oshan, Pontiac, Porsche, Proton, RAM, Roewe, Rolls-Royce, Ruichi, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Skoda, Sollers, Soueast, Subaru, Suzuki, Tank, Toyota, Vauxhall, VAZ, VAZ (Lada), Volkswagen, Voyah, WEY, Wuling, ZX
i
Gearbox / transmission adaptation
131 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Ashok Leyland, Audi, Baic, Baojun, Bentley, Bestune, BMW, Brilliance, Buick, BYD, Cadillac, Changan, Changhe, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Dacia, Daewoo, DAF, Daihatsu, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, FAW, Fiat, Ford, Foton, GAC, Geely, Genesis, GMC, Great Wall, Haval, Hino, Holden, Honda, Hongqi, Hummer, Hyundai, IM Motors (Zhiji), Infiniti, Isuzu, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Joylong, Kia, Lamborghini, Lancia, Land Rover, Landwind, LDV, Lexus, Lifan, Lincoln, Luxgen, Lynk & Co, Mahindra, MAN, Maruti, Maxus, Maybach, Mazda, Mercedes-Benz, Mercury, MG, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Pontiac, Porsche, Proton, Radar, RAM, Ravon, Renault, Roewe, Rolls-Royce, Saab, Saturn, Scion, SEAT, Seres, Seres Aito, Skoda, Smart, Sollers, Soueast, Subaru, Suzuki, SWM, Tank, Tata, Toyota, Vauxhall, VAZ, VAZ (Lada), VinFast, Volkswagen, Volvo, WEY, Workhorse, Wuling, Zotye, ZX
i
AdBlue / SCR reset
49 of 205 makes
Alfa Romeo, Baic, BMW, Cadillac, Changan, Chevrolet, Chrysler, Citroen, Dacia, Dodge, DS, Fiat, Force Motors, Ford, Foton, Genesis, GMC, Great Wall, Haval, Holden, Infiniti, Isuzu, IVECO, JAC, Jaguar, Jeep, Jetta, JMC, Land Rover, LDV, Mahindra, Maxus, Mazda, Mercedes-Benz, Mini, Nissan, Opel, Perodua, Peugeot, Porsche, RAM, Renault, Skoda, SsangYong, Tank, Tata, Toyota, Vauxhall, Volkswagen
i
EGR adaptation / reset
67 of 205 makes
Abarth, Acura, Alfa Romeo, Ashok Leyland, BMW, Buick, Cadillac, Changan, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, DAF, Deepal, DFSK, Dodge, Dongfeng Forthing, DS, Fiat, Force Motors, Foton, GMC, Great Wall, Haval, Hino, Holden, Honda, Hummer, Infiniti, Isuzu, JAC, Jaguar, Jeep, JMC, Lancia, Land Rover, LDV, Maruti, Maxus, Mazda, MG, Mini, Mitsubishi Fuso, Nevo, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Proton, RAM, Renault, Saturn, SEAT, Skoda, Sollers, SsangYong, Subaru, Suzuki, Tank, Tata, Toyota, Vauxhall, Volkswagen, Volvo
i
Injector coding
72 of 205 makes
Abarth, Acura, Alfa Romeo, Ashok Leyland, Audi, Baic, Brilliance, Buick, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, DAF, DFSK, Dodge, Dongfeng Forthing, DR, DS, Fiat, Ford, Foton, Geely, GMC, Great Wall, Haval, Hino, Holden, Honda, Hyundai, Infiniti, Isuzu, IVECO, JAC, Jaguar, Jeep, JMC, Joylong, Lancia, Land Rover, LDV, Mahindra, Maruti, Maxus, Mazda, Mercedes-Benz, MG, Mitsubishi Fuso, Nissan, Opel, Peugeot, Proton, RAM, Renault, Saturn, SEAT, Skoda, Smart, Sollers, SsangYong, Subaru, Suzuki, Tank, Tata, Vauxhall, Volkswagen, Volvo, Workhorse, ZX
i
NOx sensor reset / adaptation
35 of 205 makes
Abarth, Alfa Romeo, Baic, Cadillac, Changan, Chevrolet, Chrysler, Citroen, Dacia, Dodge, DS, Fiat, Force Motors, Ford, GMC, Great Wall, Haval, Holden, Infiniti, Isuzu, Jeep, Jetta, JMC, Lancia, Mercedes-Benz, Nissan, Opel, Peugeot, RAM, Renault, Tank, Tata, Toyota, Vauxhall, Volkswagen
i
Airbag / SRS reset
79 of 205 makes
Acura, Aion, Audi, Baic, Bentley, Bestune, BMW, Brilliance, BYD, Changan, Changhe, Chery, Chrysler, Citroen, Dacia, Daihatsu, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DS, EXEED, FAW, Force Motors, Ford, GAC, Geely, Genesis, Geometry, Great Wall, Haval, HiPhi, Honda, Hongqi, Hycan, Hyundai, JAC, Jeep, Jetour, Jetta, JMC, Kia, LDV, Leapmotor, Lincoln, Luxgen, Lynk & Co, Maruti, Maxus, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi Fuso, Nevo, ORA, Oshan, Peugeot, Porsche, Proton, RAM, Renault, Roewe, Rolls-Royce, Ruichi, SEAT, Seres, Seres Aito, Skoda, Soueast, Subaru, Suzuki, Tank, Tata, Volkswagen, WEY, Wuling, Zotye
i
Headlight / AFS calibration
83 of 205 makes
Abarth, Acura, Alfa Romeo, Audi, Baic, Bestune, BMW, Buick, BYD, Cadillac, Changan, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Daihatsu, Deepal, Denza, Dodge, DongFeng, DS, EXEED, FAW, Fiat, Ford, GAC, Geely, Genesis, GMC, Great Wall, Haval, Hino, HiPhi, Holden, Honda, Hongqi, Hyundai, IM Motors (Zhiji), Infiniti, JAC, Jaguar, Jeep, Jetta, Kia, Lamborghini, Lancia, Land Rover, LDV, Lexus, Lifan, Lincoln, MAN, Maruti, Maxus, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi Fuso, Nevo, Nissan, Opel, Oshan, Perodua, Peugeot, Porsche, Proton, RAM, Renault, Roewe, Rolls-Royce, SEAT, Skoda, Suzuki, Tank, Tata, Toyota, Vauxhall, Volkswagen, Volvo, Voyah, Zotye
i
Start/stop system reset
55 of 205 makes
Acura, Alfa Romeo, Audi, Bestune, BMW, BYD, Cadillac, Changan, Chevrolet, Chrysler, Citroen, DAF, Deepal, Denza, Dodge, DongFeng, DS, FAW, Fiat, Force Motors, Ford, Foton, GAC, Great Wall, Haval, Holden, Honda, Infiniti, Jeep, Jetta, LDV, LiXiang, Mahindra, Maxus, Mercedes-Benz, MG, Mini, Mitsubishi Fuso, Nevo, Nissan, Opel, Oshan, Peugeot, Porsche, Proton, RAM, Renault, Roewe, Saturn, SEAT, Skoda, SRM Shineray, Tata, Vauxhall, Volkswagen
i
Coolant system bleeding
73 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Ashok Leyland, Audi, Bentley, Bestune, BMW, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Cupra, Denza, Dodge, DS, FAW, Fiat, Ford, GAC, Geely, Genesis, GMC, Great Wall, Haval, Holden, Honda, Hongqi, Hyundai, IM Motors (Zhiji), Infiniti, JAC, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lynk & Co, MAN, Maruti, Maybach, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi, Nissan, Opel, ORA, Peugeot, Porsche, Proton, RAM, Renault, Roewe, Saturn, SsangYong, Subaru, Suzuki, Tank, Toyota, Vauxhall, Volkswagen, Volvo, Voyah, WEY
i
Transport mode on / off
79 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Arcfox, Audi, Baic, Baojun, Bentley, Bestune, BMW, Bugatti, BYD, Changan, Chery, Chrysler, Citroen, Cowin, Cupra, Dacia, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DS, EXEED, FAW, Fiat, GAC, Geely, Genesis, Geometry, Great Wall, Haval, HiPhi, Honda, Hongqi, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, Leapmotor, Lifan, MAN, Maple, Mercedes-Benz, MG, Mini, Mitsubishi, Nevo, Nissan, ORA, Oshan, Peugeot, Porsche, Proton, Radar, RAM, Renault, Renault Samsung, Rolls-Royce, SEAT, Seres, Seres Aito, Skoda, Smart, Tank, Volkswagen, WEY, Wuling, Zotye
i
Turbocharger / VGT adaptation
77 of 205 makes
Abarth, Alfa Romeo, Ashok Leyland, Baic, BMW, Buick, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, DAF, Deepal, Denza, Dodge, DR, DS, EXEED, Fiat, Ford, GAC, Geely, Genesis, GMC, Great Wall, Haval, Hino, Holden, Hummer, Hyundai, Infiniti, IVECO, JAC, Jaecoo, Jaguar, Jeep, Jetour, JMC, Kia, Lancia, Land Rover, LDV, LiXiang, Maruti, Maxus, Mazda, Mercedes-Benz, MG, Mitsubishi Fuso, Nissan, Oldsmobile, Omoda, Opel, Oshan, Peugeot, Pontiac, Porsche, Proton, Radar, RAM, Renault, Saturn, Seres, Seres Aito, Skoda, Smart, Subaru, Suzuki, Tank, Tata, Toyota, Vauxhall, Volkswagen, Volvo
i
A/F (fuel mixture) adjustment
57 of 205 makes
Abarth, Acura, Alfa Romeo, Ashok Leyland, Baic, Buick, BYD, Cadillac, Changan, Changhe, Chevrolet, Chrysler, Daewoo, Dodge, Fiat, Ford, Genesis, GMC, Hino, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, IVECO, Jaguar, Jeep, Kia, Lancia, Land Rover, LDV, Lexus, Mahindra, Maruti, Maxus, Maybach, Mercedes-Benz, Mitsubishi Fuso, Nissan, Oldsmobile, Opel, Pontiac, Proton, RAM, Ravon, Renault, Saab, Saturn, Scion, Suzuki, Tata, Toyota, Vauxhall, VinFast, Volkswagen, Workhorse
i
Sunroof initialization
51 of 205 makes
Abarth, Alfa Romeo, Audi, Baic, Bentley, BMW, BYD, Changan, Chrysler, Citroen, Daihatsu, Deepal, Denza, Dodge, DongFeng, DS, Fiat, Ford, Geely, Genesis, Geometry, HiPhi, Hyundai, Infiniti, Jaguar, Jeep, Jetta, Lamborghini, Land Rover, LDV, Leapmotor, Lexus, Lynk & Co, MAN, Maple, Maxus, Mercedes-Benz, Mini, Nevo, Oshan, Peugeot, Porsche, Proton, Radar, Renault, Rolls-Royce, Toyota, Volkswagen, Volvo, Zeekr, Zotye
i
Window / door calibration
83 of 205 makes
Abarth, Acura, Alfa Romeo, Audi, Baic, BMW, Buick, BYD, Cadillac, Changan, Chery, Chevrolet, Chrysler, Citroen, Cowin, Cupra, Daewoo, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, EXEED, Fiat, Ford, GAC, Geely, Geometry, GMC, Hino, Holden, Honda, Infiniti, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, Lamborghini, Lancia, Land Rover, LDV, Leapmotor, Lexus, Lifan, Lincoln, LiXiang, Lynk & Co, MAN, Maple, Maxus, Mazda, Mercedes-Benz, Mercury, Mini, Nevo, Nissan, Omoda, Opel, Oshan, Porsche, Proton, Radar, RAM, Renault, Roewe, Rolls-Royce, Saturn, SEAT, Seres, Seres Aito, Skoda, Soueast, Subaru, Suzuki, Toyota, Vauxhall, VinFast, Volkswagen, Volvo, Zotye
i
Seat / occupant sensor calibration
96 of 205 makes
Abarth, Acura, Aion, Alfa Romeo, Arcfox, Audi, Baic, Bentley, BMW, Buick, BYD, Cadillac, Changan, Chery, Chrysler, Citroen, Cupra, Dacia, Daihatsu, Deepal, Denza, Dodge, DongFeng, Dongfeng Forthing, DR, DS, EXEED, FAW, Fiat, Ford, GAC, Geely, Genesis, Geometry, Great Wall, Haval, HiPhi, Holden, Honda, Hongqi, Hycan, Hyundai, Infiniti, JAC, Jaecoo, Jaguar, Jeep, Jetour, Jetta, JMC, Kia, Lamborghini, Lancia, Land Rover, LDV, Leapmotor, Lexus, Lincoln, LiXiang, Maruti, Maxus, Mazda, Mercedes-Benz, Mercury, Mini, Mitsubishi, Mitsubishi Fuso, Nevo, Nissan, Omoda, Opel, ORA, Oshan, Perodua, Peugeot, Porsche, Proton, Radar, RAM, Renault, Rolls-Royce, Scion, SEAT, Seres, Seres Aito, Skoda, Soueast, SsangYong, Suzuki, Tank, Toyota, Vauxhall, Volkswagen, Volvo, Voyah, WEY
i
Air suspension level calibration
52 of 205 makes
Ashok Leyland, Bentley, BMW, Buick, Cadillac, Changan, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Deepal, Denza, Dodge, DS, FAW, Ford, GMC, HiPhi, Holden, Hongqi, Hummer, IM Motors (Zhiji), Isuzu, Jaguar, Jeep, Jetour, Land Rover, LDV, Lincoln, LiXiang, Luxgen, Lynk & Co, Maxus, Mazda, Mercury, MG, Mini, Mitsubishi Fuso, Opel, Oshan, Peugeot, Porsche, RAM, Renault, Roewe, Rolls-Royce, Soueast, Tank, Vauxhall, Voyah, Zeekr
i
A/C compressor relearn
89 of 205 makes
Abarth, Acura, Alfa Romeo, Ashok Leyland, Audi, Baic, Bentley, BMW, Buick, BYD, Cadillac, Changan, Chevrolet, Chrysler, Citroen, Cupra, Dacia, Daewoo, Daihatsu, Deepal, Denza, Dodge, Dongfeng Forthing, DS, FAW, Fiat, Ford, GAC, Geely, Genesis, GMC, Great Wall, Haval, HiPhi, Holden, Honda, Hongqi, Hummer, Hycan, Hyundai, IM Motors (Zhiji), Jaguar, Jeep, Jetta, JMC, Kia, Lancia, Land Rover, LDV, Lexus, MAN, Maruti, Maxus, Maybach, Mazda, Mercedes-Benz, MG, Mini, Nevo, Nissan, Oldsmobile, Opel, Oshan, Perodua, Peugeot, Pontiac, Porsche, Proton, RAM, Ravon, Renault, Roewe, Rolls-Royce, Saturn, Scion, SEAT, Seres, Seres Aito, Skoda, Smart, Subaru, Suzuki, SWM, Tank, Tata, Toyota, Vauxhall, Volkswagen, Volvo
i

Conditions for specific vehicles (5)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Ashok Leyland (1)

Ashok Leyland
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

BMW (1)

BMW
BMW Motorrad (OTOFIX coverage list).

Chevrolet (1)

Chevrolet
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

DAF (1)

DAF
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

DFAC (1)

DFAC
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Dynapac (1)

Dynapac
Dynapac construction equipment (compaction rollers, OTOFIX coverage list) - machines with 24 V systems may need an adapter, check with OTOFIX.

GMC (1)

GMC
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Hino (1)

Hino
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

MAN (1)

MAN
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Mitsubishi Fuso (1)

Mitsubishi Fuso
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

UD Trucks (1)

UD Trucks
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Volvo (1)

Volvo
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Yinlong (1)

Yinlong
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Zhongtong (1)

Zhongtong
Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Key / fob programming

Some models only on-bench or with the XP1 / XP1 Pro programmer or APB112 / G-Box adapters. — Abarth, Acura, Alfa Romeo, Arcfox, Audi, BMW, BYD, Baic and 120 more

Immobilizer reset / IMMO

Some models only on-bench or with the XP1 / XP1 Pro programmer or APB112 / G-Box adapters. — Abarth, Acura, Alfa Romeo, Audi, BMW, BYD, Baic, Baojun and 118 more

Compatibility disclosure

OTOFIX IM2: diagnostics from the OTOFIX IM2 coverage list (same data as D1 Max2); key programming, all-keys-lost / IMMO part replacement and PIN reading from the OTOFIX IM2 (IMMO) list (OBD or on-bench; some models need the XP1 Pro programmer or APB112 / G-Box adapters). DoIP and CAN FD need adapters. Key programming only on vehicles you own or are authorised to work on. Dynapac construction equipment (CA / CC rollers): only basic diagnostics are entered - the OTOFIX list for Dynapac shows passenger-car functions that do not apply to these machines. Compatibility entered from the public OTOFIX Vehicle Coverage database (otofixtech.com, October 2026), summarised per make: a function is listed when OTOFIX shows it for at least one model of the make, so availability depends on model, year, engine and installed control modules - check your VIN with OTOFIX before buying. Very large makes were read up to 50,000 coverage rows, so rare functions of some models may be missing. Not entered: Chinese joint-venture / market versions (e.g. Beijing Hyundai, FAW-VW, SAIC-VW, Buick China) and Iranian makes. FCA vehicles 2018+ need your own paid AutoAuth account. OEM software and licences are not included.

Compatible vehicles (205 makes)

Check if it fits your vehicle:

Abarth (all models) 35 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2006–…)

Acura (all models) 34 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Aion (all models) 29 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration

All models of this make (1996–…)

Aiways (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Alfa Romeo (all models) 41 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 23/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2000–…)

Arcfox (all models) 22 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 5/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, ABS brake bleeding, Transport mode on / off, Seat / occupant sensor calibration

All models of this make (1996–…)

Ashok Leyland (all models) 24 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Adaptation (channels / values)

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Emissions: Truck-specific SCR / NOx / AdBlue routines

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Aston Martin (all models) 11 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 1/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Oil / service / inspection reset

All models of this make (2010–…)

Audi (all models) 39 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/4 Coding / adaptation 4/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

BMW (all models) 50 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 3/4 Diagnostics 12/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 22/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information, Reading fault codes (DTCs), Clearing fault codes (DTCs), Live data, Freeze frame data, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…) ✎ BMW Motorrad (OTOFIX coverage list).

BYD (all models) 38 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 17/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Baic (all models) 43 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2016–…)

Baojun (all models) 26 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (2014–…)

Bentley (all models) 34 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 3/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 14/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2004–…)

Bestune (all models) 31 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 14/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Hidden features / retrofit coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

BiSu (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (1996–…)

Borgward (all models) 17 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 3/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn

All models of this make (1996–…)

Brilliance (all models) 22 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 6/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset

All models of this make (1996–…)

Bugatti (all models) 20 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 5/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values)

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Battery management (BMS) registration, Throttle body adaptation, Transport mode on / off

All models of this make (2005–…)

Buick (all models) 36 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

CFMOTO (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

CMC (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

CQYM (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

Cadillac (all models) 41 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Captain (all models) 6 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 3/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan

Reports: Report export

All models of this make (1996–…)

Changan (all models) 48 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 3/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 25/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2019–…)

Changhe (all models) 23 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, A/F (fuel mixture) adjustment

All models of this make (1996–…)

Chengshi (all models) 11 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (1996–…)

Chery (all models) 36 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 16/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (2007–…)

Chevrolet (all models) 39 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 20/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2004–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Chrysler (all models) 45 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 24/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Citroen (all models) 45 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 23/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Cowin (all models) 26 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Cupra (all models) 31 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/4 Coding / adaptation 3/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

DAF (all models) 21 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Emissions: Truck-specific SCR / NOx / AdBlue routines

Key / immobilizer: PIN / CS code reading

Reports: Report export

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

DFAC (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

DFSK (all models) 15 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 3/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, EGR adaptation / reset, Injector coding

All models of this make (1996–…)

DR (all models) 29 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 12/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

DS (all models) 41 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 22/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2001–…)

Dacia (all models) 37 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2001–…)

Daewoo (all models) 32 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 16/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2001–…)

Daihatsu (all models) 24 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Sunroof initialization, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2001–…)

Dayun (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Deepal (all models) 42 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 3/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Denza (all models) 37 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Dodge (all models) 45 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 24/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

DongFeng (all models) 34 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 15/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration

All models of this make (1996–…)

Dongfeng Forthing (all models) 33 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 14/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Transport mode on / off, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Dorcen (all models) 12 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 2/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service

All models of this make (1996–…)

Dynapac (all models) 4 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 4/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information

All models of this make (2010–…) ✎ Dynapac construction equipment (compaction rollers, OTOFIX coverage list) - machines with 24 V systems may need an adapter, check with OTOFIX.

EPai (all models) 14 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

All models of this make (1996–…)

EXEED (all models) 32 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration

All models of this make (1996–…)

Enranger (all models) 13 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (1996–…)

FAW (all models) 39 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 3/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 17/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Farizon (all models) 16 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 2/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, ABS brake bleeding

All models of this make (1996–…)

Ferrari (all models) 13 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

All models of this make (1996–…)

Fiat (all models) 43 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 23/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Foday (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (1996–…)

Force Motors (all models) 18 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 7/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: DPF / FAP regeneration, Throttle body adaptation, AdBlue / SCR reset, EGR adaptation / reset, NOx sensor reset / adaptation, Airbag / SRS reset, Start/stop system reset

All models of this make (1996–…)

Ford (all models) 39 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 22/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Foton (all models) 26 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Start/stop system reset

All models of this make (1996–…)

GAC (all models) 37 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 17/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

GMC (all models) 39 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 1/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Emissions: Truck-specific SCR / NOx / AdBlue routines

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Geely (all models) 39 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2009–…)

Genesis (all models) 35 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2009–…)

Geo (all models) 10 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Geometry (all models) 26 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration

All models of this make (1996–…)

Great Wall (all models) 41 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2010–…)

Hafei (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (1996–…)

Haima (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

Hanteng (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

Haval (all models) 40 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2010–…)

Hawtai (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

HiPhi (all models) 29 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Hino (all models) 25 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Emissions: Truck-specific SCR / NOx / AdBlue routines

Key / immobilizer: Immobilizer reset / IMMO

Reports: Report export

Service reset: Electronic parking brake (EPB) service, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Holden (all models) 39 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Honda (all models) 34 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (1996–…)

Hongqi (all models) 35 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 16/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Hummer (all models) 24 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 9/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Hycan (all models) 26 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Hyundai (all models) 36 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 16/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

IM Motors (Zhiji) (all models) 24 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 9/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, Gearbox / transmission adaptation, Headlight / AFS calibration, Coolant system bleeding, Air suspension level calibration, A/C compressor relearn

All models of this make (2022–…)

IVECO (all models) 19 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Immobilizer reset / IMMO

Reports: Report export

Service reset: Oil / service / inspection reset, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment

All models of this make (1996–…)

Infiniti (all models) 36 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration

All models of this make (1996–…)

Isuzu (all models) 31 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 14/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

JAC (all models) 39 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration

All models of this make (1996–…)

JMC (all models) 40 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values)

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Jaecoo (all models) 30 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 12/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Jaguar (all models) 41 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 22/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Jeep (all models) 45 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 24/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Jetour (all models) 32 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

All models of this make (1996–…)

Jetta (all models) 38 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values)

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2020–…)

Joylong (all models) 14 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 3/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, Gearbox / transmission adaptation, Injector coding

All models of this make (1996–…)

Juma Feiteng (all models) 6 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 3/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan

Reports: Report export

All models of this make (1996–…)

Keyton (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Kia (all models) 35 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 15/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

LDV (all models) 43 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

LT3 (all models) 13 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values)

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Lamborghini (all models) 29 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 14/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values)

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (2009–…)

Lancia (all models) 34 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Land Rover (all models) 40 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 22/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Landian (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (1996–…)

Landwind (all models) 19 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 7/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (1996–…)

Leapmotor (all models) 30 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 12/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration

All models of this make (1996–…)

Lexus (all models) 34 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 16/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

LiXiang (all models) 26 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Start/stop system reset, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

All models of this make (1996–…)

Lifan (all models) 25 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Headlight / AFS calibration, Transport mode on / off, Window / door calibration

All models of this make (1996–…)

Lincoln (all models) 30 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

All models of this make (1996–…)

LingBox (all models) 7 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 4/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

LinkTour (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Livan (all models) 15 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/1 Reports 1/1 Service reset 3/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, DPF / FAP regeneration

All models of this make (1996–…)

LuTong (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Luxgen (all models) 20 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 6/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Air suspension level calibration

All models of this make (1996–…)

Lynk & Co (all models) 29 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 12/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Sunroof initialization, Window / door calibration, Air suspension level calibration

All models of this make (2017–…)

M-Hero (all models) 11 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 2/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset

All models of this make (1996–…)

MAN (all models) 29 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values)

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Emissions: Truck-specific SCR / NOx / AdBlue routines

Key / immobilizer: Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration, A/C compressor relearn

All models of this make (2017–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

MG (all models) 39 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Air suspension level calibration, A/C compressor relearn

All models of this make (2008–…)

Mahindra (all models) 26 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, Start/stop system reset, A/F (fuel mixture) adjustment

All models of this make (1996–…)

Maple (all models) 24 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 7/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration

All models of this make (1996–…)

Maruti (all models) 36 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 17/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2000–…)

Maserati (all models) 14 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 1/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

Service reset: Oil / service / inspection reset

All models of this make (2004–…)

Maxus (all models) 43 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Maybach (all models) 16 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 5/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Oil / service / inspection reset, Gearbox / transmission adaptation, Coolant system bleeding, A/F (fuel mixture) adjustment, A/C compressor relearn

All models of this make (2006–…)

Mazda (all models) 37 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Mercedes-Benz (all models) 42 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2000–…)

Mercury (all models) 20 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 7/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration

All models of this make (1996–…)

Mini (all models) 44 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 3/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Mitsubishi (all models) 24 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 9/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, Gearbox / transmission adaptation, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration

All models of this make (1996–…)

Mitsubishi Fuso (all models) 29 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Emissions: Truck-specific SCR / NOx / AdBlue routines

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, DPF / FAP regeneration, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, Air suspension level calibration

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

NETA (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (2023–…)

Nammi (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

Nevo (all models) 39 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 17/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Nissan (all models) 40 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

ORA (all models) 29 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 12/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration

All models of this make (2019–…)

Oldsmobile (all models) 24 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, A/C compressor relearn

All models of this make (1996–…)

Omoda (all models) 25 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (1996–…)

Opel (all models) 40 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Oshan (all models) 41 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 19/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2021–…)

Perodua (all models) 24 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 7/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Gearbox / transmission adaptation, AdBlue / SCR reset, Headlight / AFS calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2000–…)

Peugeot (all models) 44 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 22/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Pocco (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Polestar (all models) 12 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 2/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service

All models of this make (2021–…)

Pontiac (all models) 26 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Porsche (all models) 42 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 22/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (2002–…)

Proton (all models) 41 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Qoros (all models) 1 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming

All models of this make (1996–…)

RAM (all models) 45 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 24/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, FCA AutoAuth / SGW bypass, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Radar (all models) 28 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, Gearbox / transmission adaptation, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration

All models of this make (1996–…)

Ravon (all models) 19 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 7/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, A/F (fuel mixture) adjustment, A/C compressor relearn

All models of this make (2016–…)

Renault (all models) 45 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 24/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1997–…)

Renault Samsung (all models) 6 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 2/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 1/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Full system (all modules) scan

Reports: Report export

Service reset: Transport mode on / off

All models of this make (2017–…)

Roewe (all models) 36 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 16/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Rolls-Royce (all models) 35 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 17/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Ruichi (all models) 17 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 4/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset

All models of this make (1996–…)

SEAT (all models) 39 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/4 Coding / adaptation 4/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

SRM Shineray (all models) 15 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/1 Reports 1/1 Service reset 3/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Throttle body adaptation, Start/stop system reset

All models of this make (1996–…)

SWM (all models) 22 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 5/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, Gearbox / transmission adaptation, A/C compressor relearn

All models of this make (1996–…)

Saab (all models) 20 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 5/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Oil / service / inspection reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, A/F (fuel mixture) adjustment

All models of this make (1997–…)

Saturn (all models) 29 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, A/C compressor relearn

All models of this make (1996–…)

Scion (all models) 22 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (2004–…)

Seres (all models) 33 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 14/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Seres Aito (all models) 32 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 13/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Sinogold (all models) 19 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 4/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn

All models of this make (1996–…)

Sitech (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Skoda (all models) 41 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/4 Coding / adaptation 4/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 20/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Skywell (all models) 6 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 3/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan

Reports: Report export

All models of this make (1996–…)

Skyworth (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (1996–…)

Smart (all models) 26 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Sollers (all models) 21 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 9/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (1996–…)

Soueast (all models) 31 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

SsangYong (all models) 25 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Coolant system bleeding, Seat / occupant sensor calibration

All models of this make (1996–…)

SuDa (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Subaru (all models) 34 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 15/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

Suzuki (all models) 39 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 18/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1998–…)

Tank (all models) 38 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Tata (all models) 30 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 2/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 15/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, A/C compressor relearn

All models of this make (1996–…)

Tengshi (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

TongJia (all models) 6 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 3/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan

Reports: Report export

All models of this make (1996–…)

Toyota (all models) 40 of 57 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 20/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, NOx sensor reset / adaptation, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Traum (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (1996–…)

UD Trucks (all models) 10 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

VAZ (all models) 13 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 3/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Oil / service / inspection reset, ABS brake bleeding, Gearbox / transmission adaptation

All models of this make (1996–…)

VAZ (Lada) (all models) 13 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 3/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Oil / service / inspection reset, ABS brake bleeding, Gearbox / transmission adaptation

All models of this make (1996–…)

Vanderhall (all models) 3 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

All models of this make (1996–…)

Vauxhall (all models) 40 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 21/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

All models of this make (1996–…)

Victory Auto (all models) 6 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 3/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan

Reports: Report export

All models of this make (1996–…)

VinFast (all models) 24 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 1/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (2019–…)

Volkswagen (all models) 46 of 57 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/4 Coding / adaptation 4/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 24/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration, Blind spot / rear cross traffic calibration

Advanced Diagnostics: Remote diagnosis, Guided tests / Guided component tests, Live data graphing

Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…)

Volvo (all models) 33 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 17/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Radar (ACC) calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Emissions: Truck-specific SCR / NOx / AdBlue routines

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Voyah (all models) 25 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 8/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Headlight / AFS calibration, Coolant system bleeding, Seat / occupant sensor calibration, Air suspension level calibration

All models of this make (1996–…)

WEY (all models) 31 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration

All models of this make (1996–…)

Weltmeister (all models) 2 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 0/4 Coding / adaptation 0/4 Diagnostics 0/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 0/1 Service reset 0/25

Functions for this make:

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

All models of this make (1996–…)

Workhorse (all models) 16 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 5/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Oil / service / inspection reset, Throttle body adaptation, Gearbox / transmission adaptation, Injector coding, A/F (fuel mixture) adjustment

All models of this make (2004–…)

Wuling (all models) 28 of 57 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 0/1 Reports 1/1 Service reset 11/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Reports: Report export

All models of this make (2008–…)

Xvista (all models) 6 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 3/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan

Reports: Report export

All models of this make (1996–…)

Yinlong (all models) 8 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 5/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan

Reports: Report export

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Yogomo (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Yudo (all models) 10 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Immobilizer reset / IMMO

Reports: Report export

All models of this make (1996–…)

YueJin (all models) 11 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/1 Reports 1/1 Service reset 0/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Freeze frame data, Full system (all modules) scan, ECU information

Programming: Mileage/odometer correction

Reports: Report export

All models of this make (1996–…)

ZD (all models) 14 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/1 Reports 1/1 Service reset 1/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Steering angle sensor (SAS) reset

All models of this make (1996–…)

ZX (all models) 19 of 57 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 7/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 0/1 Reports 1/1 Service reset 5/25

Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Reports: Report export

Service reset: DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding

All models of this make (1996–…)

Zedriv (all models) 9 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

All models of this make (1996–…)

Zeekr (all models) 11 of 57 functions Actuation 0/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 5/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 2/25

Functions for this make:

ADAS: Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Reports: Report export

Service reset: Sunroof initialization, Air suspension level calibration

All models of this make (2021–…)

Zhongtong (all models) 7 of 57 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/4 Coding / adaptation 0/4 Diagnostics 3/12 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 0/3 Programming 0/1 Reports 1/1 Service reset 0/25

Functions for this make:

Advanced Diagnostics: Remote diagnosis, Live data graphing

Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan

EV / hybrid: HV battery pack diagnostics

Reports: Report export

All models of this make (1996–…) ✎ Truck / commercial vehicle - OTOFIX tablets are 12 V tools; 24 V vehicles may need an adapter, check with OTOFIX.

Zotye (all models) 26 of 57 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 2/4 Coding / adaptation 1/4 Diagnostics 6/12 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/1 Reports 1/1 Service reset 10/25

Functions for this make:

Actuation: Actuation / component test

ADAS: Around view / 360 camera calibration

Advanced Diagnostics: Remote diagnosis, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading

Programming: Mileage/odometer correction

Reports: Report export

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Sunroof initialization, Window / door calibration

All models of this make (1996–…)

Where to buy

Otofix.store
No reviews yet — be the first
OTOFIX IM2
Go to the shop ↗

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Otofix

OTOFIX is a brand of Autel Intelligent Technology Corp., Ltd., headquartered in Shenzhen, China. Powered by Autel diagnostics, OTOFIX makes affordable professional tools for DIY users, mobile technicians and independent workshops: the D1 series of bi-directional diagnostic tablets (D1 Lite, D1, D1 Plus, D1 ProS2, D1 Max2), the EvoScan UltraS with topology mapping and J2534 programming, the IM1 and IM2 IMMO and key programming tablets with the XP1 Pro programmer, TireGO TPMS tools, BT1 battery testers and the OTOFIX smart key watch. The tools offer cloud report management, remote expert support and a one-year limited warranty. Official websites: otofixtech.com and otofix.store.

https://otofix.store/ ↗

Device forum

Notifications

Clear all

OTOFIX IM2

General information about the device

Description of the model, target users, key features.

Topics: 1 / Posts: 1

About the OTOFIX IM2
Replies: 0

By Admin
2 weeks ago

OTOFIX IM2

Everything about the OTOFIX IM2: questions, problems, updates, tips and files.

RSS

No topics were found here

7,199 Forums
694 Topics
704 Posts
1 Online
45 Members

Forum Icons: Forum contains no unread posts Forum contains unread posts

Topic Icons: Not Replied Replied Active Hot Sticky Unapproved Solved Private Closed

OTOFIX IM2

Description

Specifications

Supported functions (57)

Actuation

ADAS

Advanced Diagnostics

Coding / adaptation

Diagnostics

Emissions

EV / hybrid

Key / immobilizer

Programming

Reports

Service reset

Notes for specific vehicles (all functions)

Key / fob programming

Immobilizer reset / IMMO

Compatibility disclosure

Compatible vehicles (205 makes)

Where to buy

About the manufacturer: Otofix

Device forum

General information about the device

Files and resources

Problems and troubleshooting

Updates and firmware

Diagnostic features

Accessories and compatibility

Instructions and tutorials

User opinions and experiences

Marketplace / buy-sell / spare parts

OTOFIX IM2

OTOFIX IM2

Description

Specifications

Supported functions (57)

Actuation

ADAS

Advanced Diagnostics

Coding / adaptation

Diagnostics

Emissions

EV / hybrid

Key / immobilizer

Programming

Reports

Service reset

Notes for specific vehicles (all functions)

Key / fob programming

Immobilizer reset / IMMO

Compatibility disclosure

Compatible vehicles (205 makes)

Where to buy

About the manufacturer: Otofix

Related devices

Device forum

OTOFIX IM2
