7-inch marine diagnostic tablet for FPT engines, 12/24 V
Model code: iScan Pro FPT Manufacturer: OBD Star

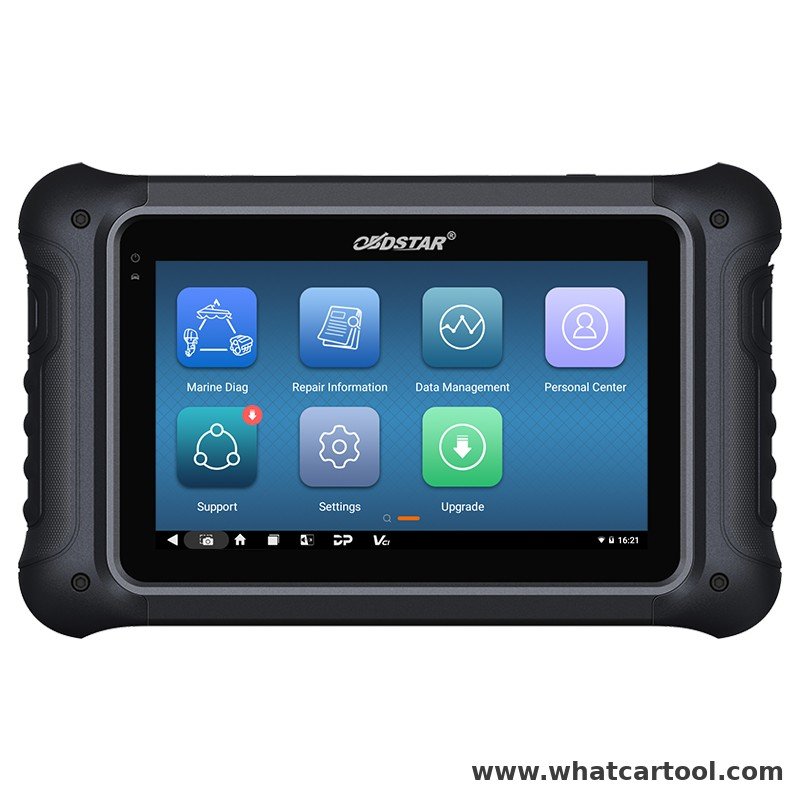

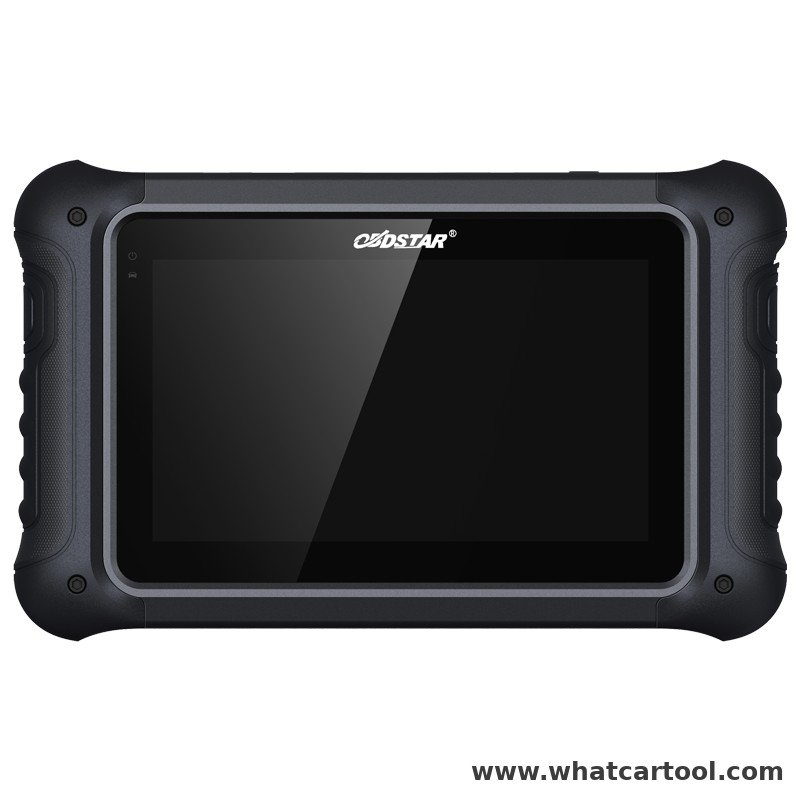

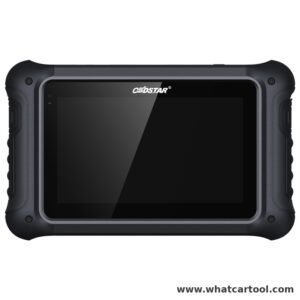

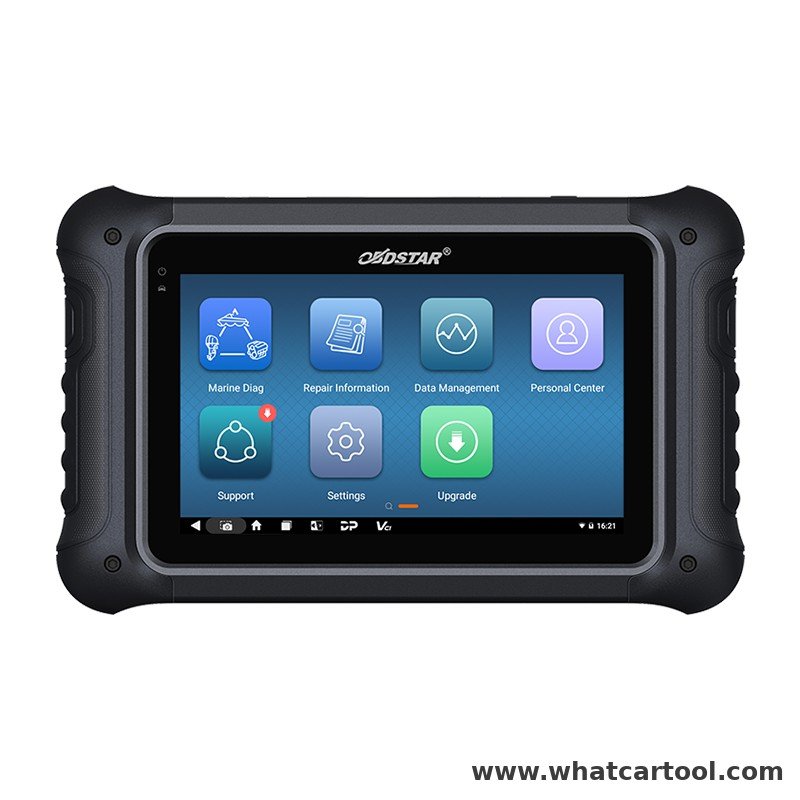

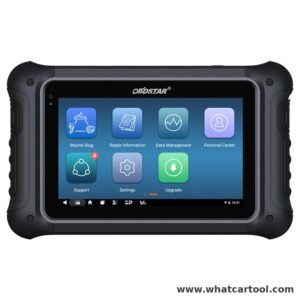

OBDSTAR iScan Pro FPT (Marine) is a 7-inch diagnostic tablet for FPT marine engines. It accepts 24 V DC input.
Functions: read/clear codes, live data (text / waveform / gauge), record and play back data, action tests, settings and coding, plus brand-specific special functions. Support Rail pressure regulating valve replacement, Rail pressure sensor replacement, Crankcase pressure sensor replacement, Oil replacement, Boost pressure sensor replacement and Exhaust flap replacement and other special functions. Support Cursor C13 ENS M33, Cursor C13 ENT M50, Cursor C13 ENT M77, Cursor C13 ENT M82, Cursor C16 ENT MP, Cursor C78 ENT M30, Cursor C78 ENT M50, Cursor C78 ENT M55, Cursor C87 ENT M38, Cursor C87 ENT M62, Cursor C87 ENT M65, NEF N40 ENT M25, NEF N60 ENT M37, NEF N60 ENT M40, NEF N60 ENT M48, NEF N67 550, NEF N67 570 EVO, NEF N67 ENT M45, NEF N67 ENT M56, NEF N67 ENT M57, S30 ENT M23 and other models.
The OBDSTAR app adds diagnostic socket locations and technical bulletins. Wi-Fi one-click updates and remote assistance.
Hardware: Android 5.1.1 tablet, RK3128 quad-core CPU, 7-inch capacitive touchscreen (1024x600), 16 GB storage, 3700 mAh battery, Wi-Fi, micro SD slot up to 32 GB, about 766 g, 243 x 148 x 36 mm.
Function coverage depends on the purchased configuration and software activations - check the coverage list on obdstar.com before buying. OEM dealer software and licences are not included.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Other (agricultural, construction, marine) |
| Connection with computer / tablet / phone | Wi-Fi |
| Other connection (details) | Connects to the vehicle with the supplied OBD / diagnostic cable |
| Vehicle power supply system | 12V, 24V |
| 24V adapter | No 24V adapter is required |
| 24V software | Separate software does not need to be purchased |
| Frequency of new updates | Online, one-click update over Wi-Fi |
| Menu language | English |
