iCarzone UR1000

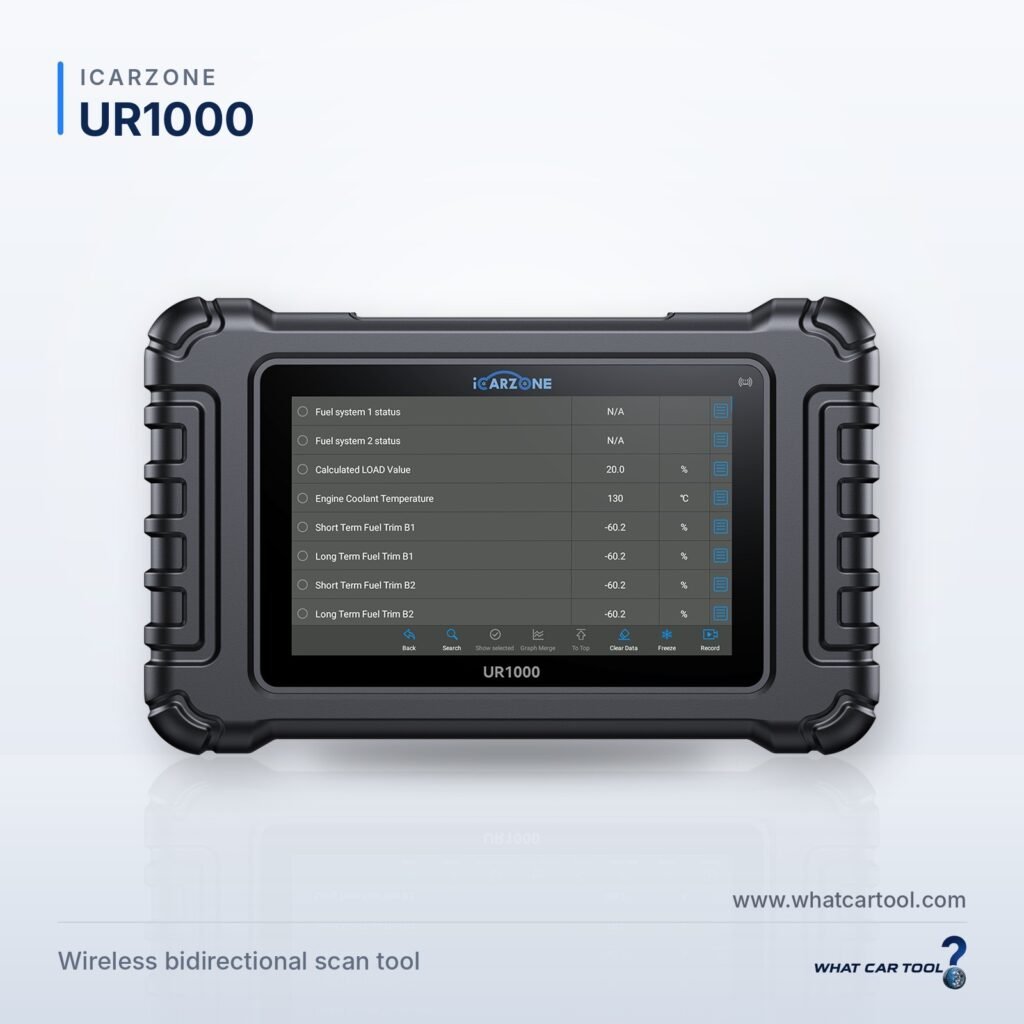

ICarzone UR1000 diagnostic tablet studio product shot
ICarzone UR1000 diagnostic tablet studio product shotICarzone UR1000 diagnostic tablet front viewICarzone UR1000 diagnostic tablet carrying caseICarzone UR1000 diagnostic tablet diagnostic menu screenICarzone UR1000 diagnostic tablet live graph screenICarzone UR1000 diagnostic tablet with bluetooth vci

7-inch wireless bidirectional scan tool with ECU coding and TPMS programming

Model code: UR1000 Manufacturer: Icarzone

📄 iCarzone UR1000 User Manual ↗

Device forumAsk questions & share experience

Description

The iCarzone UR1000 is a 7-inch Android diagnostic tablet with a Bluetooth VCI, covering about 58 makes and all OBD2/EOBD vehicles.

• Full-system diagnostics with bidirectional active tests
• OE-level ECU coding for 8 vehicle groups: BMW (2006+), VAG – VW, Audi, Škoda, SEAT (2010+), Hyundai/Kia (module backup and clone), Ford, Mazda, Renault, Chrysler/Jeep/Dodge and Subaru – personalisation, module replacement coding and parameter calibration
• TPMS: sensor activation, programming of blank sensors and relearn, TPMS code reading (sensors not included)
• 50 service functions: 9 everyday resets plus 41 advanced functions
• AutoVIN, all 10 OBD2 modes, CAN-FD; DoIP listed by iCarzone as optional

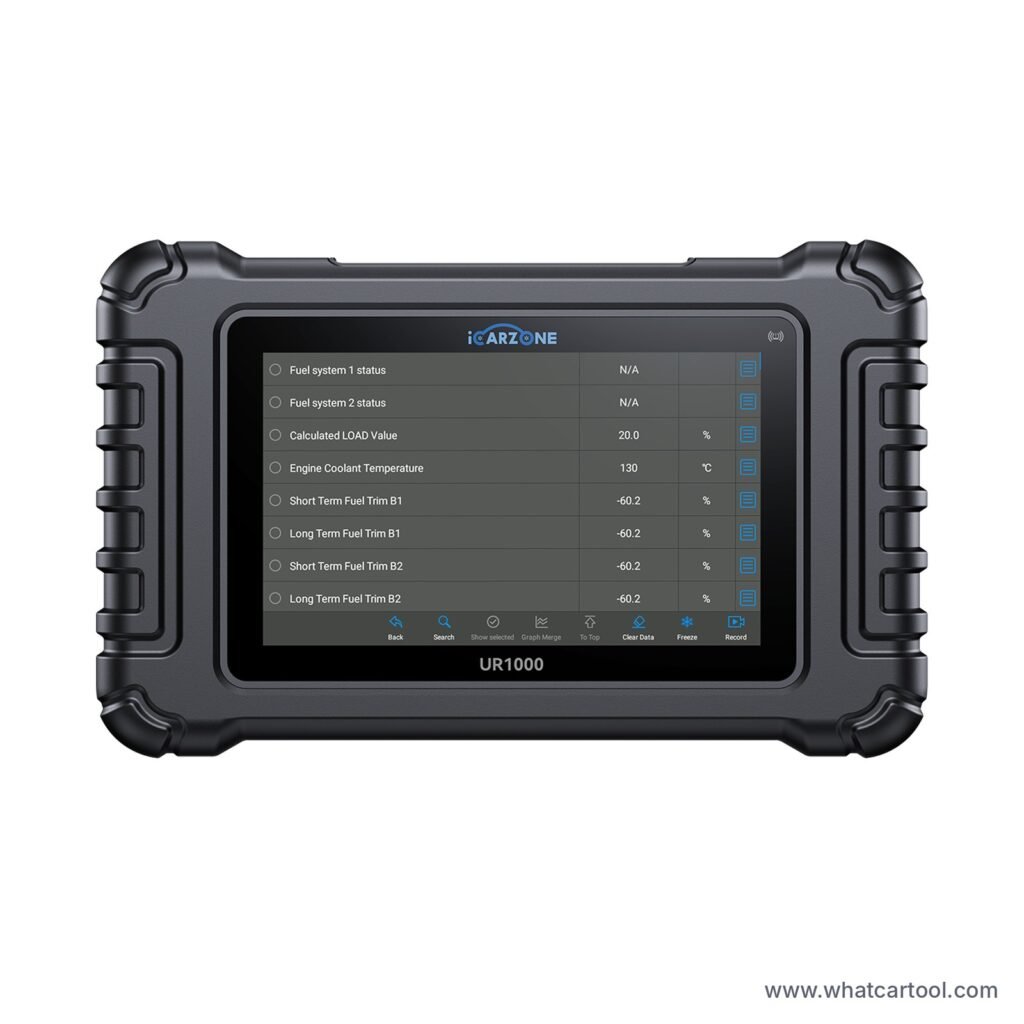

• 7" HD touchscreen (1024 × 600), quad-core 1.3 GHz, 64 GB, 5000 mAh battery, 259 × 161 × 34 mm, approx. 836 g

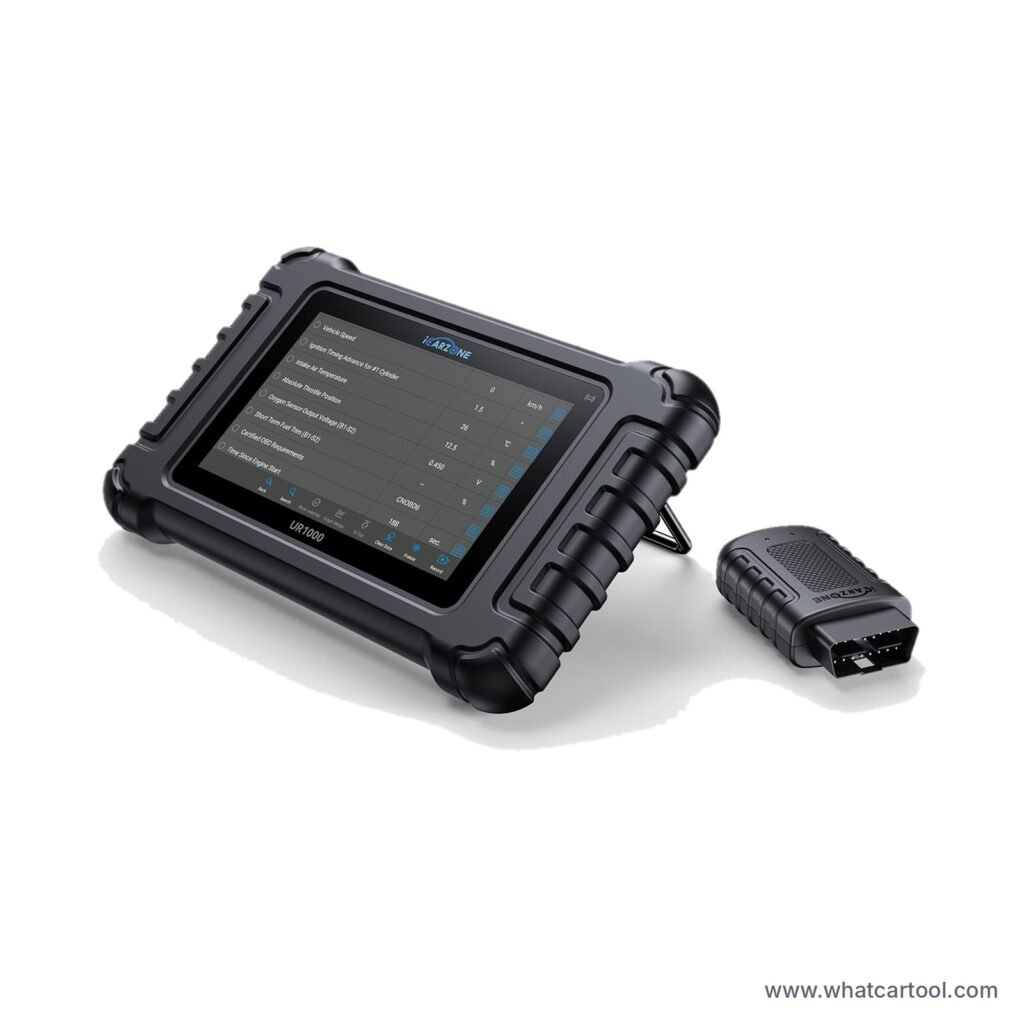

• Bluetooth 4.0 VCI, Wi-Fi, USB; lifetime free updates over Wi-Fi

Videoscope and battery clips are optional accessories. The user manual (PDF) is attached. Function availability depends on vehicle make, model, year and installed control modules – check vehicle coverage on the manufacturer's website before buying. OEM dealer software and licences are not included.

Specifications

Product typeDevice with pre-installed software (standalone)
OEM (Original Equipment Manufacturer) product? iNo
For which vehicleCars
Price (USD)$315 – $385
Connection with computer / tablet / phoneBluetooth, Wi-Fi, USB
Other connection (details)Bluetooth VCI in the OBD2 port; Mini USB / USB 2.0; Wi-Fi for updates
Vehicle power supply system12V
Supported protocolsCAN, K-line, KWP2000, SAE J1850, J1979, CAN FD, DoIP
Other protocols (details)DoIP optional (per iCarzone comparison chart)
Frequency of new updatesRegular software updates via Wi-Fi
Months of free updatesFree for life
Subscription model (description)No subscription – lifetime free software updates downloaded over Wi-Fi (manufacturer information).
Menu languageEnglish, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish, Finnish
Warranty (months)12
Warranty details (optional)1-year hardware warranty (iCarzone)

Supported functions (28)

Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.

Actuation

  • Actuation / component test
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Bidirectional active tests (e.g. ABS pump, injectors, fuel pump, windows, cooling fans, EGR/EVAP valves). Vehicle dependent – availability depends on make, model, year and installed control modules.)

Advanced Diagnostics

  • O2 sensor data i (O2 sensor test (Mode 05).)

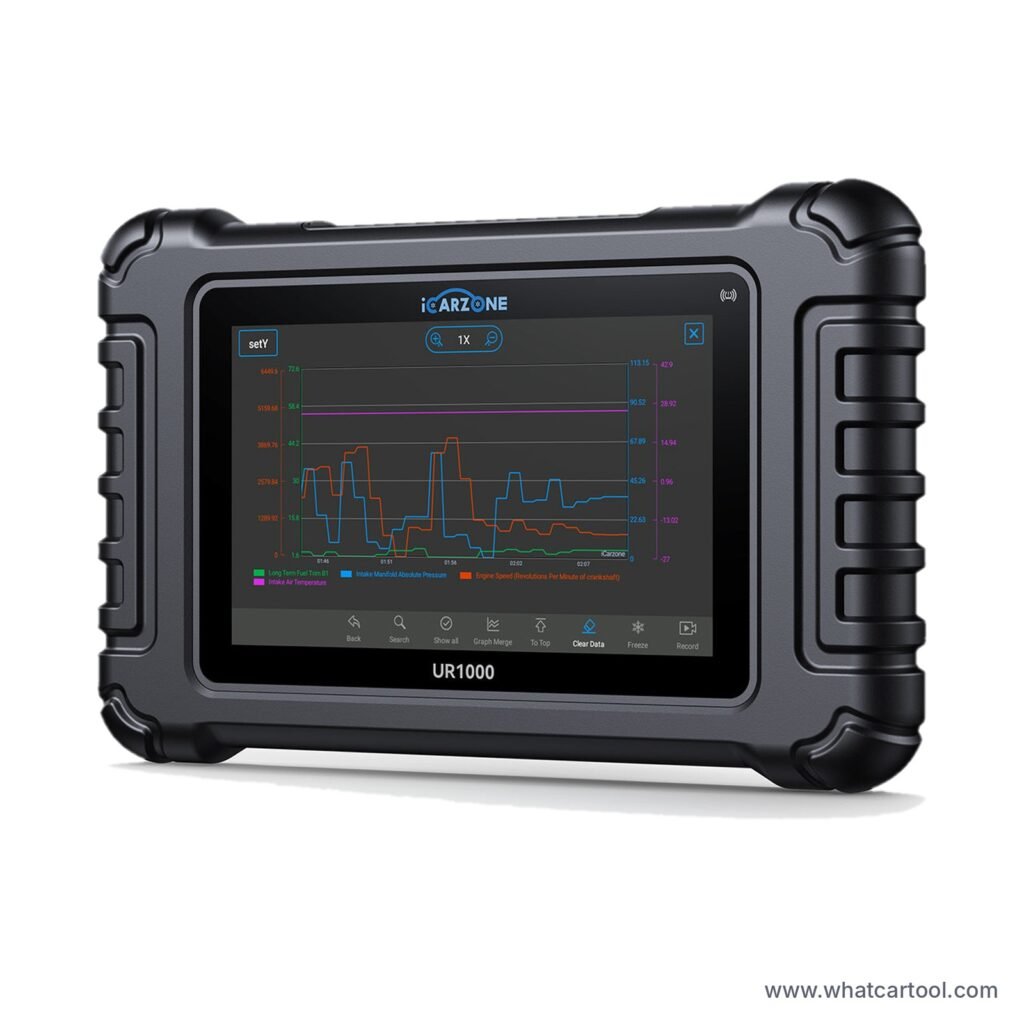

  • Live data graphing
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i

Coding / adaptation

  • ECU coding
    14 of 76 makes
    Audi, BMW, Chrysler, Dodge, Ford, Hyundai, Jeep, Kia, Mazda, Renault, SEAT, Skoda, Subaru, Volkswagen
    i conditions · 8
  • Hidden features / retrofit coding
    3 of 76 makes
    Ford, Mazda, Renault
    i conditions · 3

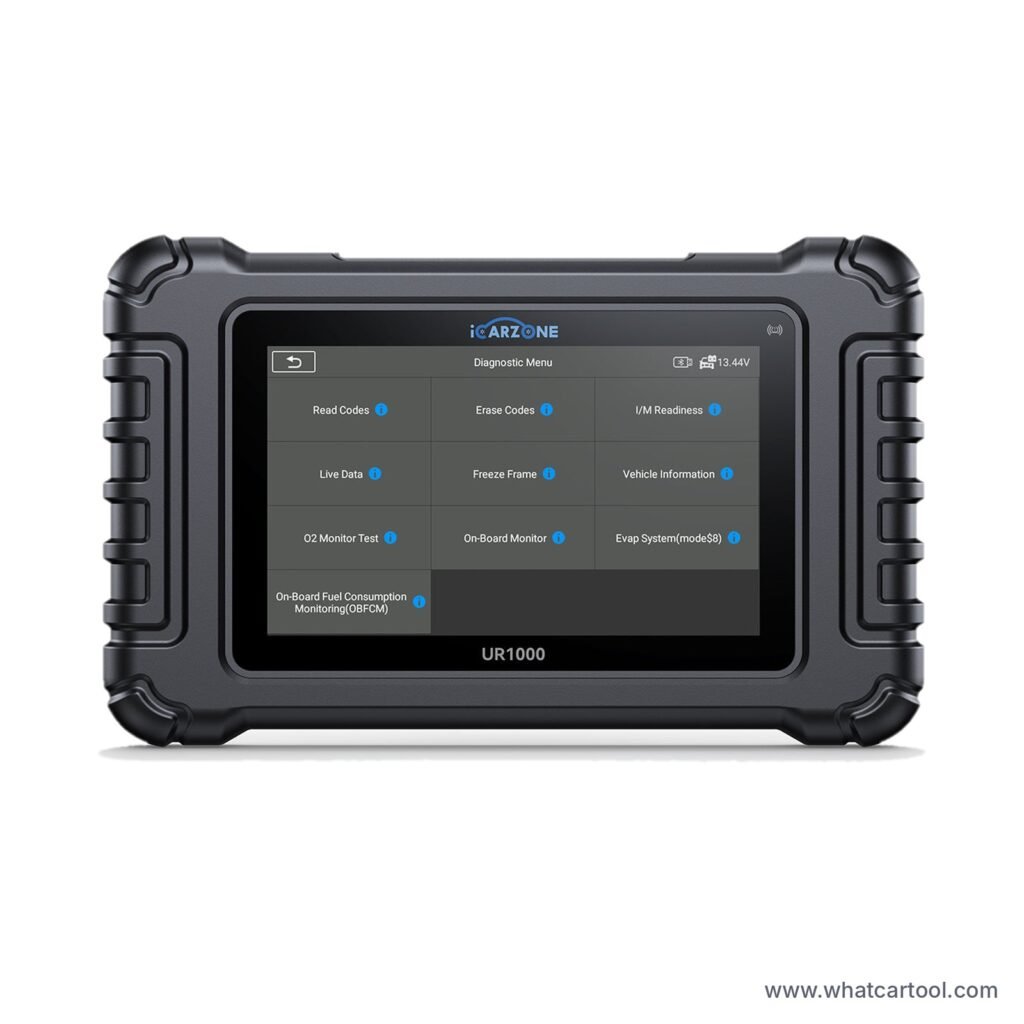

Diagnostics

  • Reading the VIN i conditions · 2
  • Read fault codes (DTC) i conditions · 2
  • Clear fault codes (DTC) i conditions · 1
  • Live data stream i conditions · 1
  • Freeze frame data i
  • Full system (all modules) scan
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Full-system scan of all available modules.)
  • I/M readiness monitors i
  • EVAP system test i (EVAP test (Mode 08), where supported by the vehicle.)
  • On-board monitor test (Mode 06) i
  • ECU information i conditions · 1

Key / immobilizer

  • Immobilizer reset / IMMO
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Immobilizer service. iCarzone lists this function for 40 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)

Programming

  • ECU replacement / cloning
    2 of 76 makes
    Hyundai, Kia
    i (Module data backup and clone (Hyundai/Kia only).)

Service reset

  • Oil / service / inspection reset
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Oil reset. iCarzone lists this function for 57 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • Electronic parking brake (EPB) service
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (EPB brake-pad reset. iCarzone lists this function for 53 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • Steering angle sensor (SAS) reset
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Steering angle reset (SAS). iCarzone lists this function for 57 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • Battery management (BMS) registration
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Battery management service (BMS). iCarzone lists this function for 48 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • DPF / FAP regeneration
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (DPF regeneration. iCarzone lists this function for 54 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • Throttle body adaptation
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Electronic throttle control relearn. iCarzone lists this function for 56 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • TPMS reset / relearn
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (TPMS sensor activation, programming of blank sensors and relearn (built-in TPMS module; sensors sold separately). iCarzone lists this function for 56 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • ABS brake bleeding
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (ABS bleeding. iCarzone lists this function for 53 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • Gearbox / transmission adaptation
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (Transmission control service / clutch matching. iCarzone lists this function for 48 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • AdBlue / SCR reset
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (AdBlue reset. iCarzone lists this function for 40 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
  • Injector coding
    61 of 76 makes
    Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS, Ferrari, Fiat, Ford, Freightliner, GMC, Holden, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac, Porsche, Renault, Renault Samsung, Rolls-Royce, Saab, Saturn, Scion, SEAT, Skoda, Smart, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo
    i (iCarzone lists this function for 54 of 58 makes. Vehicle dependent – availability depends on make, model, year and installed control modules.)
Conditions for specific vehicles (21)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Alpine (1)
  • Alpine
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Buick (1)
  • Buick
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Cadillac (1)
  • Cadillac
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Chevrolet (1)
  • Chevrolet
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Cupra (1)
  • Cupra
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Daihatsu (1)
  • Daihatsu
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Freightliner (1)
  • Sprinter
    Sprinter software.
GMC (1)
  • GMC
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Hummer (1)
  • Hummer
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
MG (1)
  • MG
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Oldsmobile (1)
  • Oldsmobile
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Pontiac (1)
  • Pontiac
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Ravon (1)
  • Ravon
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Rover (1)
  • Rover
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Saturn (1)
  • Saturn
    G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
SsangYong (1)
  • SsangYong
    EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

ECU coding

  • Chrysler/Jeep/Dodge: alert logic and basic vehicle settings – specific model years only (iCarzone gives no years). — Chrysler, Dodge, Jeep
  • BMW 2006–present: ECU troubleshooting and data recovery. — BMW
  • VAG 2010–present: component adaptation and parameter calibration. — Audi, SEAT, Skoda, Volkswagen
  • Hyundai/Kia 2010–present: module matching and data migration (backup / clone). — Hyundai, Kia
  • Ford 2003–2023: hidden function activation and personalisation (programmable parameters). — Ford
  • Mazda 2003–2020: hidden function activation and personalisation. — Mazda
  • Renault 2005–present: comfort features and system customisation. — Renault
  • Subaru 2014–present: warning systems and functional toggles. — Subaru

Hidden features / retrofit coding

  • Ford 2003–2023: hidden function activation and personalisation (programmable parameters). — Ford
  • Mazda 2003–2020: hidden function activation and personalisation. — Mazda
  • Renault 2005–present: comfort features and system customisation. — Renault

Reading the VIN

  • AutoVIN / VIN identification. — Abarth, Acura, Alfa Romeo, Audi, BMW, Bentley, Bugatti, Buick and 53 more
  • VIN and vehicle information (Mode 09). — Alpine, Aston Martin, Cupra, Daihatsu, Genesis, Lincoln, Lotus, MG and 7 more

Read fault codes (DTC)

  • All available control modules. — Abarth, Acura, Alfa Romeo, Audi, BMW, Bentley, Bugatti, Buick and 53 more
  • Generic emission-related codes (check engine light). — Alpine, Aston Martin, Cupra, Daihatsu, Genesis, Lincoln, Lotus, MG and 7 more

Clear fault codes (DTC)

  • Clears codes and turns off the MIL. — Alpine, Aston Martin, Cupra, Daihatsu, Genesis, Lincoln, Lotus, MG and 7 more

Live data stream

  • Generic OBD2 live data. — Alpine, Aston Martin, Cupra, Daihatsu, Genesis, Lincoln, Lotus, MG and 7 more

ECU information

  • Calibration IDs (Mode 09). — Alpine, Aston Martin, Cupra, Daihatsu, Genesis, Lincoln, Lotus, MG and 7 more

Compatibility disclosure

Full-system diagnostics with bidirectional tests on 58 makes (European, American and Asian, incl. G.M. group brands and VW Commercial Vehicles), ECU coding for 8 vehicle groups (BMW 2006+, VAG 2010+, Hyundai/Kia 2010+, Ford 2003–2023, Mazda 2003–2020, Renault 2005+, Chrysler/Jeep/Dodge specific years, Subaru 2014+), TPMS sensor programming, 50 service functions. Other OBD2/EOBD makes: generic OBD2 only. Other service functions listed by iCarzone for fewer makes (not entered per make): air suspension, A/C service, headlamp, body stability control, engine control, airbag reset, seat, door/window/roof, fuel pump, turbocharger, EGR, cylinder services, electronic water pump, crankshaft learning, high-voltage battery, cruise control, language setting, radar/camera, vehicle setup, speed limit assist, head-up display, control unit reset, O2 sensor, seat belt, GPF, NOx sensor, rain/light sensor, stop/start, odometer reset, mileage and VIN verification. Model years are not published by iCarzone; entries start at 1996 (OBD2/EOBD-only makes: USA 1996+, EU 2001+ petrol / 2004+ diesel). Function availability depends on make, model, year and installed control modules – check your vehicle (VIN) with iCarzone before buying. OEM dealer software and licences are not included.

Compatible vehicles (76 makes)

Check if it fits your vehicle:

Abarth (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Acura (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Alfa Romeo (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Alpine (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Aston Martin (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Audi (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
BMW (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Bentley (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Bugatti (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Buick (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Cadillac (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Chevrolet (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Chrysler (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Citroen (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Cupra (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
DS (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Dacia (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Daewoo (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Daihatsu (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Dodge (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Ferrari (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Fiat (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Ford (all models) 27 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 2/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Freightliner (1 model) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • Sprinter (1996–…) ✎ Sprinter software.
    • All versions
GMC (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Genesis (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Holden (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Honda (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Hummer (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Hyundai (all models) 27 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 1/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Programming: ECU replacement / cloning

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Infiniti (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Isuzu (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Jaguar (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Jeep (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Kia (all models) 27 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 1/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Programming: ECU replacement / cloning

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Lamborghini (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Lancia (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Land Rover (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Lexus (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Lincoln (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Lotus (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
MG (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Maserati (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Maybach (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Mazda (all models) 27 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 2/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
McLaren (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Mercedes-Benz (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Mercury (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Mini (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Mitsubishi (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Nissan (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Oldsmobile (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Opel (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Peugeot (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Plymouth (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Pontiac (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Porsche (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
RAM (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (1996–…)
Ravon (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Renault (all models) 27 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 2/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding, Hidden features / retrofit coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Renault Samsung (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Rolls-Royce (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Rover (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
SEAT (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Saab (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Saturn (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…) ✎ G.M. software (Chevrolet, GMC, Buick, Cadillac, Hummer, Pontiac, Saturn, Oldsmobile).
Scion (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Skoda (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Smart (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
SsangYong (all models) 10 of 28 functions Actuation 0/1 Advanced Diagnostics 1/2 Coding / adaptation 0/2 Diagnostics 9/10 Key / immobilizer 0/1 Programming 0/1 Service reset 0/11
Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

  • All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).
Subaru (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Suzuki (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Toyota (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Vauxhall (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Volkswagen (all models) 26 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 1/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Coding / adaptation: ECU coding

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)
Volvo (all models) 25 of 28 functions Actuation 1/1 Advanced Diagnostics 2/2 Coding / adaptation 0/2 Diagnostics 10/10 Key / immobilizer 1/1 Programming 0/1 Service reset 11/11
Functions for this make:

Actuation: Actuation / component test

Advanced Diagnostics: O2 sensor data, Live data graphing

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

Key / immobilizer: Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding

  • All models of this make (1996–…)

Where to buy

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Icarzone

iCARZONE is a brand of automotive diagnostic tools operated by Logos Nova Limited and founded in 2018. The team designs scan tools for DIY car owners and independent workshops – from plug-and-play OBD2 code readers and 2-in-1 scanners with battery testers (MA series), through handheld and tablet bidirectional scan tools with ECU coding, service functions and TPMS programming (UR and JU2000 series), to the HD S700 scanner for heavy-duty trucks. Most iCarzone tools come with lifetime free software updates and no annual subscription. iCarzone sells worldwide through its own online store icarzone.com and Amazon, shipping to more than 60 countries.

https://www.icarzone.com/ ↗

Related devices

Device forum

Forums
Forum for all diagn...
Icarzone
iCarzone UR1000

Notifications
Clear all
iCarzone UR1000

General information about the device

Description of the model, target users, key features.
Topics: 1   /   Posts: 1

Files and resources

Manuals, supported vehicle lists, configuration backups, important links.
Topics: 0   /   Posts: 0

Problems and troubleshooting

Errors, failures, freezing, communication issues.
Topics: 0   /   Posts: 0

Updates and firmware

New versions, changelogs, issues after updates.
Topics: 0   /   Posts: 0

Diagnostic features

Scanning, live data, active tests, coding, adaptations.
Topics: 0   /   Posts: 0

Accessories and compatibility

VCI, cables, adapters, DOIP, J2534, laptops, tablets.
Topics: 0   /   Posts: 0

Instructions and tutorials

Step-by-step guides, checklists for new users.
Topics: 0   /   Posts: 0

User opinions and experiences

Real-world use cases, pros, cons, comparisons.
Topics: 0   /   Posts: 0

Marketplace / buy-sell / spare parts

Buy, sell and spare-parts offers for this device.
Topics: 0   /   Posts: 0

iCarzone UR1000

Everything about the iCarzone UR1000: questions, problems, updates, tips and files.
RSS

No topics were found here

Share:
