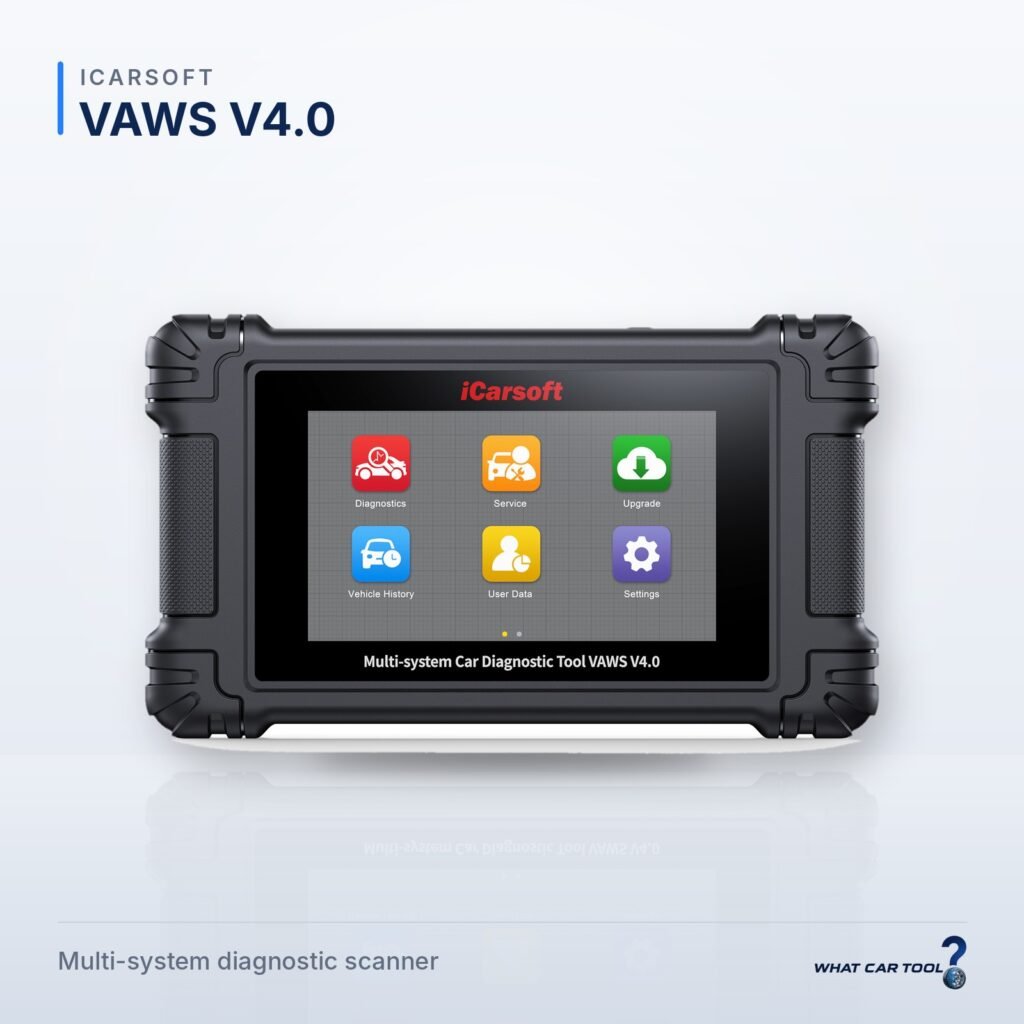

iCarsoft VAWS V4.0

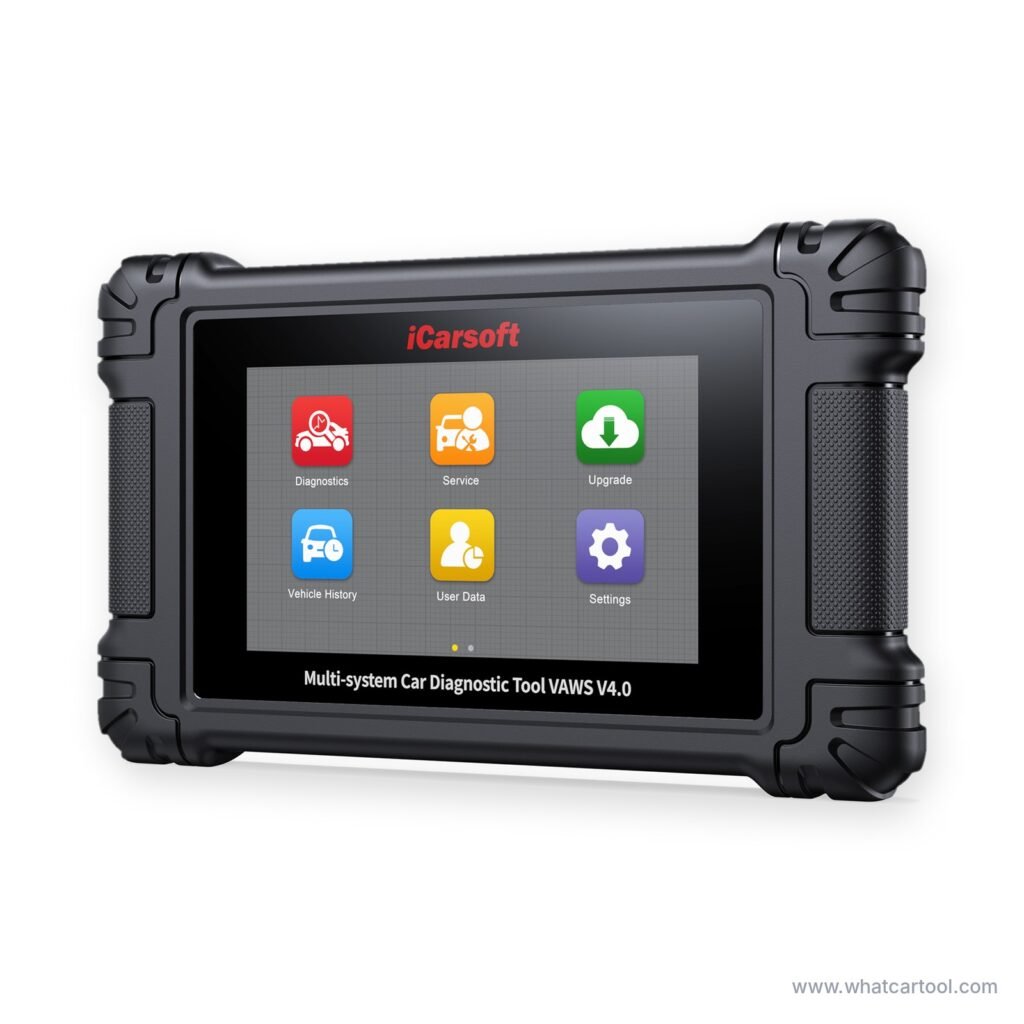

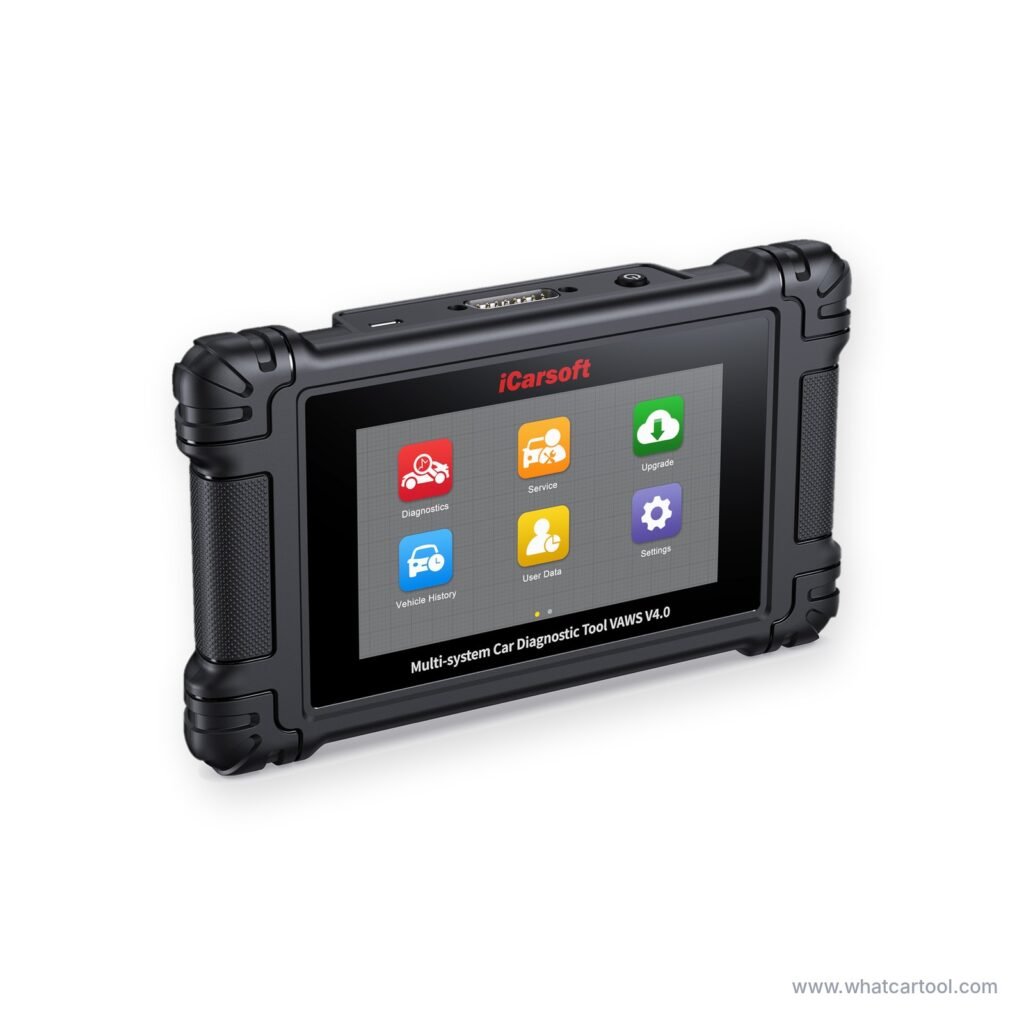

iCarsoft VAWS V4.0 – product photo, view 2

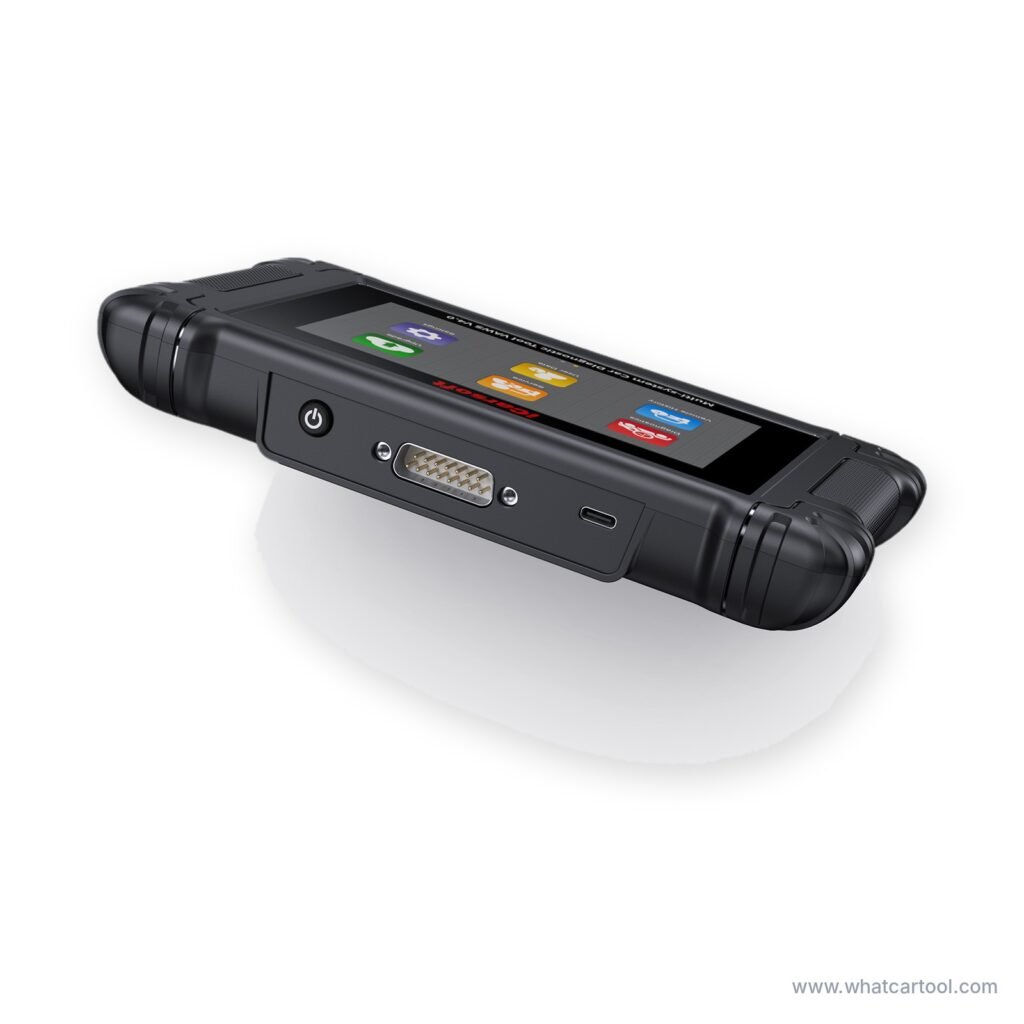

iCarsoft VAWS V4.0 – product photo, view 3

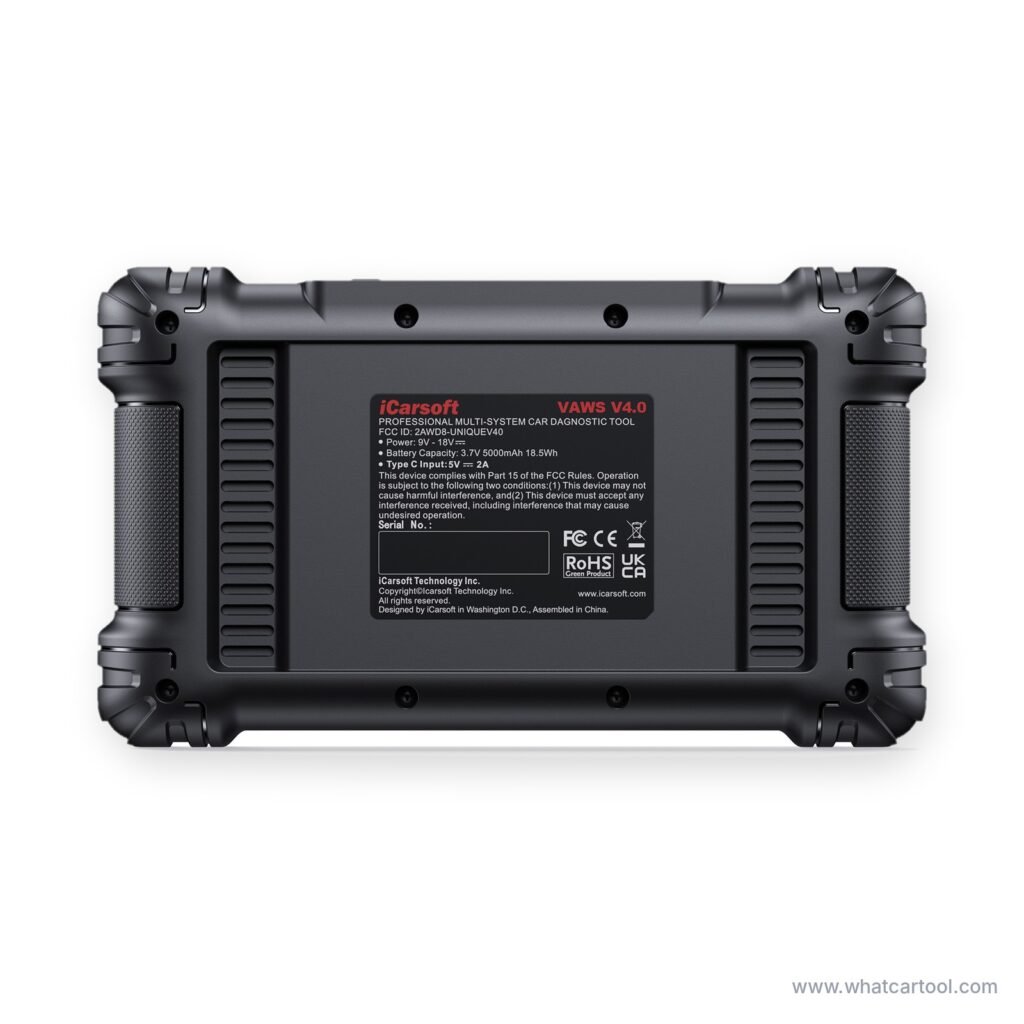

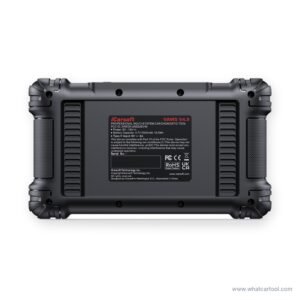

iCarsoft VAWS V4.0 – product photo, view 4

Model code: VAWS V4.0 Manufacturer: iCARSOFT

📄 iCarsoft VAWS V4.0 User Manual ↗

Device forumAsk questions & share experience

Description

The VAWS V4.0 covers every Audi / Bentley / Bugatti / Lamborghini / SEAT / Skoda / VW / VW Commercial Vehicles / VW LT3 / MAN Light-Duty system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bidirectional control, 43 service functions, and lifetime free software updates. Compatible with V.A.G group from 1996 to 2025.

Supplied with Audi/VW/Seat/Skoda/Bentley Bugatti/Lamborghini software pre-installed; 2 further vehicle make groups can be downloaded free of charge.

Key features: 5" Android Touchscreen; CAN-FD Supported; 15 Languages; Lifetime Free Updates; Full Bidirectional Control; 43 Service Functions.

Hardware: 5-inch LCD capacitive touchscreen with 854x480 resolution; Android OS; Quad Core 1.3 GHz; 32GB storage; battery 3.7V 5000mAh 18.5Wh (around 6 hours of continuous use).

Vehicle coverage and the available functions depend on the vehicle make, model, year and ECU configuration. OEM software and licences are not included. The user manual and function list are available on icarsoft.com.

Specifications

Product type	Device with pre-installed software (standalone)
OEM (Original Equipment Manufacturer) product? i	No
For which vehicle	Cars
Price (USD)	$243 – $296
Connection with computer / tablet / phone	USB, Wi-Fi
Vehicle power supply system	12V
Supported protocols	K-line, KWP2000, SAE J1850, TP2.0, CAN, CAN FD
Other protocols (details)	Flashing Code, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP1.6
Months of free updates	Lifetime
Menu language	English, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish, Finnish

Supported functions (44)

Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.

Actuation

Actuation / component test
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (Active test.)
Injector / cylinder test
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (Cylinder misfire check. Cylinder shut-off test.)
Fuel pump test
7 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen
i (Fuel pump activation / priming.)

ADAS

Front camera calibration
7 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen
i (Camera calibration.)
Radar (ACC) calibration
7 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen
i (Radar calibration.)

Advanced Diagnostics

O2 sensor data i (O2 sensor monitor test.)

Coding / adaptation

Adaptation (channels / values)
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i conditions · 2
Language / units change
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i

Diagnostics

Reading the VIN i (Vehicle information (VIN, calibration IDs).)
Read fault codes (DTC) i (Generic OBD2 codes (OBD2 test mode 03/07/0A).)
Clear fault codes (DTC) i
Live data stream i
Freeze frame data i
Full system (all modules) scan
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
I/M readiness monitors i (I/M readiness.)
EVAP system test i (EVAP system test (OBD2 mode 08), where supported by the vehicle.)
On-board monitor test (Mode 06) i (On-board monitor test (OBD2 mode 06).)
ECU information
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i

EV / hybrid

HV battery pack diagnostics
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i

Key / immobilizer

Key / fob programming
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (Key matching (basic immobilizer systems only).)
Immobilizer reset / IMMO
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (Immobilizer matching, lost keys (basic immobilizer systems only).)

Service reset

Oil / service / inspection reset
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Electronic parking brake (EPB) service
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Steering angle sensor (SAS) reset
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Battery management (BMS) registration
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
DPF / FAP regeneration
7 of 74 makes
Audi, Bentley, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i conditions · 1
Throttle body adaptation
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (Engine idle adjustment.)
TPMS reset / relearn
7 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen
i
ABS brake bleeding
7 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen
i
Gearbox / transmission adaptation
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (Clutch matching. Transmission adaptation reset.)
AdBlue / SCR reset
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
EGR adaptation / reset
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Injector coding
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
NOx sensor reset / adaptation
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Airbag / SRS reset
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (Seat belt pretensioner reset.)
Headlight / AFS calibration
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Start/stop system reset
7 of 74 makes
Audi, Bentley, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Turbocharger / VGT adaptation
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Sunroof initialization
3 of 74 makes
Audi, SEAT, Volkswagen
i (Roof / sunroof initialization.)
Window / door calibration
4 of 74 makes
Audi, SEAT, Skoda, Volkswagen
i conditions · 3
Seat / occupant sensor calibration
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
Air suspension level calibration
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i
A/C compressor relearn
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i (A/C adaptation reset, compressor and stepper motor initialization.)

Vehicle systems

Speed limiter configuration / reset
8 of 74 makes
Audi, Bentley, Bugatti, Lamborghini, MAN, SEAT, Skoda, Volkswagen
i

Conditions for specific vehicles (9)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Alpine (1)

Alpine
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Citroen (1)

Citroen
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Cupra (1)

Cupra
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

DS (1)

DS
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Dacia (1)

Dacia
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Daihatsu (1)

Daihatsu
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Lancia (1)

Lancia
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

MAN (1)

MAN
MAN light-duty vans only (e.g. TGE).

MG (1)

MG
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Opel (1)

Opel
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Peugeot (1)

Peugeot
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Ravon (1)

Ravon
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Renault (1)

Renault
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Rover (1)

Rover
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

SEAT (1)

SEAT
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Skoda (1)

Skoda
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Ssang Yong (1)

Ssang Yong
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

SsangYong (1)

SsangYong
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Vauxhall (1)

Vauxhall
EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Volkswagen (1)

Volkswagen
VW Commercial Vehicles / LT3.

Adaptation (channels / values)

Body stability (ESP/DSC) adaptation reset. Crankshaft position learning. Engine control module service (adaptation reset). Control unit reset / initialization. Oxygen sensor replacement adaptation. — Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen
Crankshaft position learning. Oxygen sensor replacement adaptation. — MAN

DPF / FAP regeneration

GPF regeneration. — Audi, Volkswagen

Window / door calibration

Door / window motor calibration. Window learning (pinch protection). — Audi, Volkswagen
Window learning (pinch protection). — SEAT
Door / window motor calibration. — Skoda

Compatibility disclosure

The VAWS V4.0 is a brand-specific iCarsoft diagnostic tool. Compatibility is based on the iCarsoft public function list (icarsoft.com/support/function-list) and the product catalog. The makes and functions listed are limited to those published for this device, and functions beyond generic OBD2 apply to those makes only. iCarsoft does not publish model years for every make; where no years are published, support is listed from 1996 - check your VIN or model year before buying.

Compatible vehicles (74 makes)

Check if it fits your vehicle:

Abarth (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Acura (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Alfa Romeo (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Alpine (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Aston Martin (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Audi (all models) all 44 functions Actuation 3/3 ADAS 2/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 22/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

Vehicle systems: Speed limiter configuration / reset

All models of this make (1996–…)

BMW (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Bentley (all models) 42 of 44 functions Actuation 3/3 ADAS 2/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 20/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

Vehicle systems: Speed limiter configuration / reset

All models of this make (1996–…)

Bugatti (all models) 40 of 44 functions Actuation 3/3 ADAS 2/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 18/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

Vehicle systems: Speed limiter configuration / reset

All models of this make (1996–…)

Buick (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Cadillac (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Chevrolet (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Chrysler (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Citroen (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Cupra (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

DS (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Dacia (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Daewoo (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Daihatsu (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Dodge (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Ferrari (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Fiat (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Ford (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

GMC (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Genesis (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Honda (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Hummer (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Hyundai (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Infiniti (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Isuzu (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Jaguar (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Jeep (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Kia (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Lamborghini (all models) 42 of 44 functions Actuation 3/3 ADAS 2/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 20/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

Vehicle systems: Speed limiter configuration / reset

All models of this make (1996–…)

Lancia (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Land Rover (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Lexus (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Lincoln (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Lotus (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

MAN (all models) 37 of 44 functions Actuation 2/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 18/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

Vehicle systems: Speed limiter configuration / reset

All models of this make (1996–…) ✎ MAN light-duty vans only (e.g. TGE).

MG (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Maserati (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Mazda (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

McLaren (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Mercedes-Benz (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Mercury (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Mini (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Mitsubishi (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Nissan (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Oldsmobile (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Opel (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Peugeot (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Plymouth (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Pontiac (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Porsche (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

RAM (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Ravon (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Renault (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Rolls-Royce (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Rover (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

SEAT (all models) all 44 functions Actuation 3/3 ADAS 2/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 22/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Vehicle systems: Speed limiter configuration / reset

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Saab (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Saturn (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Scion (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Skoda (all models) 43 of 44 functions Actuation 3/3 ADAS 2/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 21/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn

Vehicle systems: Speed limiter configuration / reset

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Smart (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Ssang Yong (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

SsangYong (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Subaru (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Suzuki (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Toyota (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Vauxhall (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (2001–…) ✎ EU-market vehicles: OBD2/EOBD from 2001 (petrol) and 2004 (diesel).

Volkswagen (all models) all 44 functions Actuation 3/3 ADAS 2/2 Advanced Diagnostics 1/1 Coding / adaptation 2/2 Diagnostics 10/10 EV / hybrid 1/1 Key / immobilizer 2/2 Service reset 22/22 Vehicle systems 1/1

Functions for this make:

Actuation: Actuation / component test, Injector / cylinder test, Fuel pump test

ADAS: Front camera calibration, Radar (ACC) calibration

Advanced Diagnostics: O2 sensor data

Coding / adaptation: Adaptation (channels / values), Language / units change

EV / hybrid: HV battery pack diagnostics

Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO

Vehicle systems: Speed limiter configuration / reset

All models of this make (1996–…) ✎ VW Commercial Vehicles / LT3.

Volvo (all models) 9 of 44 functions Actuation 0/3 ADAS 0/2 Advanced Diagnostics 1/1 Coding / adaptation 0/2 Diagnostics 8/10 EV / hybrid 0/1 Key / immobilizer 0/2 Service reset 0/22 Vehicle systems 0/1

Functions for this make:

Advanced Diagnostics: O2 sensor data

Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06)

All models of this make (1996–…)

Where to buy

Icarsoft.com
No reviews yet — be the first
iCarsoft VAWS V4.0
Go to the shop ↗
Amazon.com
No reviews yet — be the first
iCarsoft VAWS V4.0
Go to the shop ↗

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: iCARSOFT

iCarsoft Technology Inc. develops and sells automotive diagnostic tools and has been in the business since 2009. The company is best known for make-specific scanners (Mercedes-Benz, BMW, Porsche, Volvo, Land Rover, VAG, Opel and more) and also offers multi-brand car scan tools, OBD2 adapters and code readers, motorcycle scanners, a marine diagnostic tool, heavy-duty truck scanners, TPMS programming tools and extension modules such as a videoscope and an oscilloscope. Products carry FCC, CE, RoHS and UKCA marks and are sold through authorised dealers in more than 120 countries. Software and licences of the vehicle manufacturers (OEM) are not part of the products.

https://icarsoft.com/ ↗

Device forum

Notifications

Clear all

iCarsoft VAWS V4.0

General information about the device

Description of the model, target users, key features.

Topics: 1 / Posts: 1

About the iCarsoft VAWS V4.0
Replies: 0

By Admin
1 week ago

iCarsoft VAWS V4.0

Name: iCarsoft VAWS V4.0
Brand: iCARSOFT

Everything about the iCarsoft VAWS V4.0: questions, problems, updates, tips and files.

RSS

No topics were found here

6,368 Forums
613 Topics
623 Posts
0 Online
43 Members

Forum Icons: Forum contains no unread posts Forum contains unread posts

Topic Icons: Not Replied Replied Active Hot Sticky Unapproved Solved Private Closed
