GT114

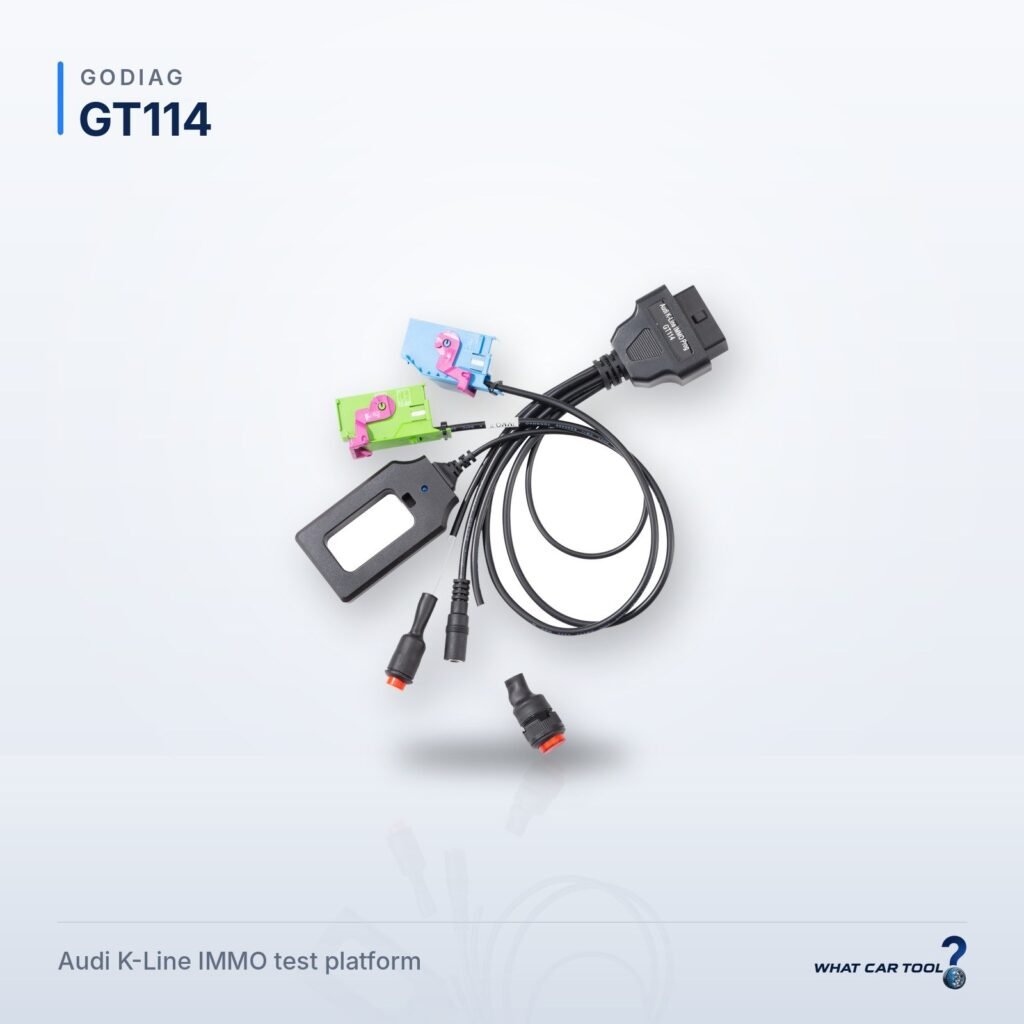

Audi K-Line IMMO test platform cable

Model code: GT114 Manufacturer: Godiag

Device forumAsk questions & share experience

Description

K-Line IMMO test platform cable for Audi A4/A6 (C5) 2nd and 3rd-generation dashboards, for immobilizer key matching. OEM software and licences are not included; the device works with third-party programming and diagnostic tools.

Specifications

Product type	Device with software installed on a computer / tablet / phone
OEM (Original Equipment Manufacturer) product? i	No
For which vehicle	Cars
What programs does it work with?	Third-party IMMO / key programmers.
Vehicle power supply system	12V
Supported protocols	K-line
Menu language	English
Warranty (months)	12

Supported functions (4)

Key / immobilizer

Key / fob programming i (All keys lost / key matching needs a Megamos ID48 key chip; Xhorse super chips fail.)
Immobilizer reset / IMMO i (K-Line IMMO dashboard bench platform for the Audi A6 C5; third-party tool required (VVDI2, Autel IM508 / IM608, VCDS, AVDI, Lonsdor, X300 DP Plus).)

Programming

Offline programming i (EEPROM / IMMO data read and write offline with the dashboard removed.)
Mileage/odometer correction i (Mileage repair on compatible Audi IMMO dashboards.)

Conditions for specific vehicles (2)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Notes for specific vehicles (all functions)

Audi (2)

A6 4B/C5
Supported for model years 2000–2001 only (generation built 1997–2001). Godiag lists the A6 C5, approx. 2000 to 2006: 2nd/3rd-generation K-Line IMMO dashboards, bench platform. Not for CAN-bus IMMO4/5, MQB or MLB.
A6 4B/C5 [restyling]
Godiag lists the A6 C5, approx. 2000 to 2006: 2nd/3rd-generation K-Line IMMO dashboards, bench platform. Not for CAN-bus IMMO4/5, MQB or MLB.

Compatibility disclosure

Audi K-Line IMMO bench platform for 2nd and 3rd-generation dashboards. Godiag names the Audi A6 C5 (approx. 2000-2006); it also lists "A4 C5", but the A4 has no C5 generation, so only the A6 C5 is listed in section 3. Passive bench cable (POGO pins, induction coil) that needs a third-party programmer (VVDI2, Autel IM508 / IM608, VCDS, AVDI, Lonsdor, X300 DP Plus). Key matching needs a Megamos ID48 chip (Xhorse super chips fail). Not for Audi CAN-bus IMMO4/5, MQB / MLB, other VAG brands, trucks, motorcycles, EVs or hybrids; the dashboard must be removed.

Compatible vehicles (1 makes)

Check if it fits your vehicle:

Audi (1 model)

A6 (1997–2005) ✎ notes on some versions — see the conditions below
- 4B/C5 (1997–2001) ✎ Supported for model years 2000–2001 only (generation built 1997–2001). Godiag lists the A6 C5, approx. 2000 to 2006: 2nd/3rd-generation K-Line IMMO dashboards, bench platform. Not for CAN-bus IMMO4/5, MQB or MLB.
- 4B/C5 [restyling] (2001–2005) ✎ Godiag lists the A6 C5, approx. 2000 to 2006: 2nd/3rd-generation K-Line IMMO dashboards, bench platform. Not for CAN-bus IMMO4/5, MQB or MLB.
