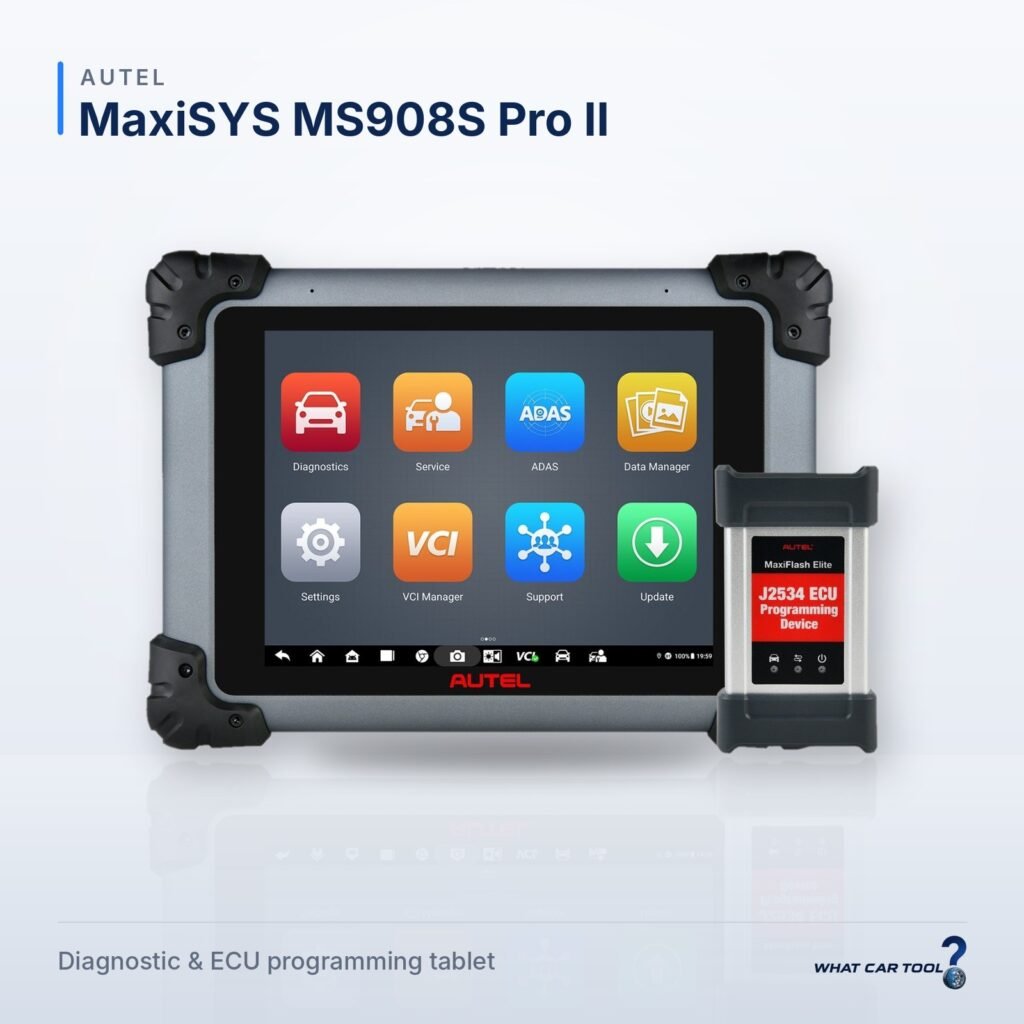

Diagnostic & ECU programming tablet
Manufacturer: Autel
Full-system diagnostic and ECU programming tablet for workshops. The MS908S Pro II runs Android 10 on a Qualcomm 660 octa-core processor with a 9.7-inch 2048x1536 touchscreen, 4 GB RAM and 128 GB of onboard storage, and is paired with the wireless MaxiFlash Elite VCI, which also works as a J2534 pass-thru programming device (ECU reprogramming and software updates).
Key features:
- Reads and erases codes on all available systems, with freeze frame and live data viewing and graphing.
- Bi-directional active tests, adaptations and ECU coding.
- Service menu for common service functions; Auto VIN / Auto Scan.
- J2534 pass-thru ECU programming with the MaxiFlash Elite VCI (Bluetooth, up to 70 m working range).
- 9.7" 2048x1536 capacitive display, 16 MP rear camera with autofocus and flashlight.
- 11000 mAh battery, about 7.5 hours of use per charge.
- Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, USB 2.0, HDMI and SD card slot (up to 64 GB).
- Optional oscilloscope, inspection camera and ADAS calibration.
- Coverage of domestic, Asian and European vehicles from 1996 onward.
This is an aftermarket tool: original-manufacturer (OEM) dealer software and licences are not included. Coverage and functions vary by vehicle, model year and software subscription.
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Cars |
| Price (USD) | $1,565 – $1,730 |
| Connection with computer / tablet / phone | Wi-Fi, Bluetooth, USB |
| Vehicle power supply system | 12V |
| Supported protocols | CAN, K-line, KWP2000, SAE J1850, TP2.0, J2534 standard API passthru |
| Other protocols (details) | SAE J1939, SAE J1708, GM UART, Honda Diag-H, TP 1.6, fault-tolerant CAN |
| Months of free updates | 12 |
Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.
Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
40 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 4/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, FCA AutoAuth / SGW bypass, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
40 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
35 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
47 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 4/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 23/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, FCA AutoAuth / SGW bypass, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
11 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 1/5 Coding / adaptation 0/4 Diagnostics 9/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 0/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information
Programming: ECU flashing / J2534 reprogramming
28 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, ABS brake bleeding, Transport mode on / off, Seat / occupant sensor calibration
25 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/5 Coding / adaptation 1/4 Diagnostics 8/11 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Adaptation (channels / values)
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information, Topology scan / network map
Emissions: Truck-specific SCR / NOx / AdBlue routines
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Air suspension level calibration, A/C compressor relearn
21 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Gearbox / transmission adaptation, A/C compressor relearn
39 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 4/5 Coding / adaptation 3/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 14/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration
49 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
41 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 16/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
50 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
31 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Transport mode on / off
37 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 4/5 Coding / adaptation 3/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
37 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 14/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off
21 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 2/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn
28 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 6/25
Actuation: Actuation / component test
ADAS: Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset
26 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Battery management (BMS) registration, Throttle body adaptation, Transport mode on / off
42 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/2 Reports 1/1 Service reset 18/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
43 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
12 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 7/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
53 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 25/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
28 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, A/F (fuel mixture) adjustment
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
42 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 16/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration
45 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 20/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Air suspension level calibration, A/C compressor relearn
46 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 4/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, FCA AutoAuth / SGW bypass, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
48 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
32 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Transport mode on / off, Window / door calibration
36 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 4/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, Coolant system bleeding, Transport mode on / off, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
22 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 2/5 Coding / adaptation 1/4 Diagnostics 7/11 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Topology scan / network map
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: PIN / CS code reading
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, DPF / FAP regeneration, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Start/stop system reset, Turbocharger / VGT adaptation
10 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/5 Coding / adaptation 0/4 Diagnostics 7/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Topology scan / network map
Reports: Report export
21 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, EGR adaptation / reset, Injector coding
35 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 12/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration
47 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
42 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
38 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 16/25
Actuation: Actuation / component test
ADAS: Front camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Air suspension level calibration, A/C compressor relearn
30 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Sunroof initialization, Seat / occupant sensor calibration, A/C compressor relearn
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
48 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 3/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
43 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 18/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
50 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 4/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 23/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, FCA AutoAuth / SGW bypass, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
40 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 15/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration
39 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 14/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Transport mode on / off, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
18 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 2/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service
17 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
38 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration
19 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 0/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
45 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 3/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Hidden features / retrofit coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
22 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 2/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, ABS brake bleeding
23 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation
41 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 4/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, FCA AutoAuth / SGW bypass, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
24 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 7/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: DPF / FAP regeneration, Throttle body adaptation, AdBlue / SCR reset, EGR adaptation / reset, NOx sensor reset / adaptation, Airbag / SRS reset, Start/stop system reset
41 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 20/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
30 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Start/stop system reset
42 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
45 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 1/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Emissions: Truck-specific SCR / NOx / AdBlue routines
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Air suspension level calibration, A/C compressor relearn
42 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 18/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
41 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 18/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Seat / occupant sensor calibration, A/C compressor relearn
16 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
32 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration
45 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, A/C compressor relearn
45 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 20/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, A/C compressor relearn
35 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
26 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/5 Coding / adaptation 1/4 Diagnostics 7/11 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 0/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Topology scan / network map
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Immobilizer reset / IMMO
Reports: Report export
Service reset: Electronic parking brake (EPB) service, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration
45 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
40 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
41 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 16/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
30 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 9/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Air suspension level calibration, A/C compressor relearn
31 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset, Seat / occupant sensor calibration, A/C compressor relearn
34 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, A/C compressor relearn
28 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 0/2 Reports 1/1 Service reset 9/25
Actuation: Actuation / component test
ADAS: Front camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, Gearbox / transmission adaptation, Headlight / AFS calibration, Coolant system bleeding, Air suspension level calibration, A/C compressor relearn
24 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment
39 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration
36 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 14/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, A/F (fuel mixture) adjustment, Air suspension level calibration
43 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration
46 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 18/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, A/C compressor relearn
36 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 12/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration
47 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
49 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 4/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, FCA AutoAuth / SGW bypass, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
38 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration
45 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 4/5 Coding / adaptation 3/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
20 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, Gearbox / transmission adaptation, Injector coding
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
37 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 14/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, A/C compressor relearn
48 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
19 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
36 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 4/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 14/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration
42 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
40 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Headlight / AFS calibration, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
23 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 7/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation
35 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 12/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration
39 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 16/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Headlight / AFS calibration, Coolant system bleeding, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
31 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Start/stop system reset, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration
31 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Headlight / AFS calibration, Transport mode on / off, Window / door calibration
29 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, Gearbox / transmission adaptation, Headlight / AFS calibration, Seat / occupant sensor calibration, Air suspension level calibration
13 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 8/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
21 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 2/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, DPF / FAP regeneration
11 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 1/5 Coding / adaptation 0/4 Diagnostics 9/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 0/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information
Programming: ECU flashing / J2534 reprogramming
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
26 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/2 Reports 1/1 Service reset 6/25
Actuation: Actuation / component test
ADAS: Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Air suspension level calibration
35 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 12/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Sunroof initialization, Window / door calibration, Air suspension level calibration
17 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 2/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset
31 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 8/11 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
Advanced Diagnostics: Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information, Topology scan / network map
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Immobilizer reset / IMMO
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration, A/C compressor relearn
43 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Air suspension level calibration, A/C compressor relearn
30 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, Injector coding, Start/stop system reset, A/F (fuel mixture) adjustment
29 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 7/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Transport mode on / off, Sunroof initialization, Window / door calibration
41 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, A/C compressor relearn
41 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration
48 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
22 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Gearbox / transmission adaptation, Coolant system bleeding, A/F (fuel mixture) adjustment, A/C compressor relearn
41 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
20 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
ADAS: Front camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Throttle body adaptation
50 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 24/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
25 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 7/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration
47 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
28 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 9/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, Gearbox / transmission adaptation, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration
30 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 2/5 Coding / adaptation 0/4 Diagnostics 7/11 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, ECU information, Topology scan / network map
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, DPF / FAP regeneration, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, Air suspension level calibration
45 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
43 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 20/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
34 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 12/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration
30 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, A/C compressor relearn
31 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration
44 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 20/25
Actuation: Actuation / component test
ADAS: Front camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
46 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 1/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
29 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 7/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Gearbox / transmission adaptation, AdBlue / SCR reset, Headlight / AFS calibration, Seat / occupant sensor calibration, A/C compressor relearn
48 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
11 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 1/5 Coding / adaptation 0/4 Diagnostics 9/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 0/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information
Programming: ECU flashing / J2534 reprogramming
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
17 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/2 Reports 1/1 Service reset 2/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service
31 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, A/C compressor relearn
47 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
28 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Seat / occupant sensor calibration, A/C compressor relearn
49 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 4/5 Coding / adaptation 2/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 23/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, FCA AutoAuth / SGW bypass, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
33 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, Gearbox / transmission adaptation, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration
25 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 7/25
Actuation: Actuation / component test
ADAS: Front camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, A/F (fuel mixture) adjustment, A/C compressor relearn
50 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 24/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
47 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
41 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 16/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Window / door calibration, Air suspension level calibration, A/C compressor relearn
39 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
11 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 1/5 Coding / adaptation 0/4 Diagnostics 9/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 0/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information
Programming: ECU flashing / J2534 reprogramming
21 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 2/2 Reports 1/1 Service reset 4/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, TPMS reset / relearn, ABS brake bleeding, Airbag / SRS reset
41 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 4/5 Coding / adaptation 3/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values), Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Transport mode on / off, Seat / occupant sensor calibration, A/C compressor relearn
21 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Throttle body adaptation, Start/stop system reset
28 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, Gearbox / transmission adaptation, A/C compressor relearn
24 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, A/F (fuel mixture) adjustment
34 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, A/C compressor relearn
28 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, A/F (fuel mixture) adjustment, Seat / occupant sensor calibration, A/C compressor relearn
39 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 14/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
38 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 13/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
25 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/2 Reports 1/1 Service reset 4/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
42 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 4/5 Coding / adaptation 4/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 17/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Start/stop system reset, Transport mode on / off, Turbocharger / VGT adaptation, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
12 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 7/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
29 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 2/2 Reports 1/1 Service reset 9/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, Transport mode on / off, Turbocharger / VGT adaptation, A/C compressor relearn
27 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 9/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding
37 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration
31 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 1/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
ADAS: Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, Coolant system bleeding, Seat / occupant sensor calibration
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
39 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 15/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Coolant system bleeding, Turbocharger / VGT adaptation, Window / door calibration, A/C compressor relearn
44 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 18/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
44 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 21/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
36 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 2/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 15/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, A/C compressor relearn
33 of 58 functions Actuation 0/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 0/2 Reports 1/1 Service reset 16/25
ADAS: Radar (ACC) calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Headlight / AFS calibration, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
12 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 7/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
44 of 58 functions Actuation 1/1 ADAS 4/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 19/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, NOx sensor reset / adaptation, Headlight / AFS calibration, Coolant system bleeding, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
11 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/5 Coding / adaptation 0/4 Diagnostics 8/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, ECU information, Topology scan / network map
Reports: Report export
19 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, ABS brake bleeding, Gearbox / transmission adaptation
19 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 3/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, ABS brake bleeding, Gearbox / transmission adaptation
44 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 20/25
Actuation: Actuation / component test
ADAS: Front camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, AdBlue / SCR reset, EGR adaptation / reset, Injector coding, NOx sensor reset / adaptation, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Window / door calibration, Seat / occupant sensor calibration, Air suspension level calibration, A/C compressor relearn
12 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 7/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
29 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming
Programming: Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Throttle body adaptation, TPMS reset / relearn, Gearbox / transmission adaptation, A/F (fuel mixture) adjustment, Window / door calibration
49 of 58 functions Actuation 1/1 ADAS 2/4 Advanced Diagnostics 4/5 Coding / adaptation 4/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 22/25
Actuation: Actuation / component test
ADAS: Radar (ACC) calibration, Blind spot / rear cross traffic calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Guided tests / Guided component tests, Live data graphing
Coding / adaptation: ECU coding, Adaptation (channels / values), Hidden features / retrofit coding, Language / units change
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Airbag / SRS reset, Headlight / AFS calibration, Start/stop system reset, Coolant system bleeding, Transport mode on / off, Turbocharger / VGT adaptation, A/F (fuel mixture) adjustment, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
36 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 1/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 15/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding, Coolant system bleeding, Turbocharger / VGT adaptation, Sunroof initialization, Window / door calibration, Seat / occupant sensor calibration, A/C compressor relearn
31 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 8/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Headlight / AFS calibration, Coolant system bleeding, Seat / occupant sensor calibration, Air suspension level calibration
36 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 2/3 Programming 2/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Coolant system bleeding, Transport mode on / off, Seat / occupant sensor calibration
22 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Throttle body adaptation, Gearbox / transmission adaptation, Injector coding, A/F (fuel mixture) adjustment
33 of 58 functions Actuation 1/1 ADAS 3/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 1/3 Programming 1/2 Reports 1/1 Service reset 11/25
Actuation: Actuation / component test
ADAS: Front camera calibration, Radar (ACC) calibration, Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, DPF / FAP regeneration, Throttle body adaptation, TPMS reset / relearn, ABS brake bleeding, Gearbox / transmission adaptation, Airbag / SRS reset, Transport mode on / off
12 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 7/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
9 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/5 Coding / adaptation 0/4 Diagnostics 6/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, Topology scan / network map
Reports: Report export
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
17 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 2/2 Reports 1/1 Service reset 0/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
18 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 2/2 Reports 1/1 Service reset 1/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Steering angle sensor (SAS) reset
25 of 58 functions Actuation 1/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 11/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 1/2 Reports 1/1 Service reset 5/25
Actuation: Actuation / component test
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
Service reset: DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, Gearbox / transmission adaptation, Injector coding
15 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 1/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Programming: ECU flashing / J2534 reprogramming
Reports: Report export
16 of 58 functions Actuation 0/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 0/4 Diagnostics 9/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 0/3 Programming 0/2 Reports 1/1 Service reset 2/25
ADAS: Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Read fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Reports: Report export
Service reset: Sunroof initialization, Air suspension level calibration
8 of 58 functions Actuation 0/1 ADAS 0/4 Advanced Diagnostics 2/5 Coding / adaptation 0/4 Diagnostics 4/11 Emissions 0/1 EV / hybrid 1/1 Key / immobilizer 0/3 Programming 0/2 Reports 1/1 Service reset 0/25
Advanced Diagnostics: Oscilloscope / waveform analysis, Live data graphing
Diagnostics: Reading the VIN, Live data stream, Full system (all modules) scan, Topology scan / network map
EV / hybrid: HV battery pack diagnostics
Reports: Report export
32 of 58 functions Actuation 1/1 ADAS 1/4 Advanced Diagnostics 3/5 Coding / adaptation 1/4 Diagnostics 10/11 Emissions 0/1 EV / hybrid 0/1 Key / immobilizer 3/3 Programming 2/2 Reports 1/1 Service reset 10/25
Actuation: Actuation / component test
ADAS: Around view / 360 camera calibration
Advanced Diagnostics: O2 sensor data, Oscilloscope / waveform analysis, Live data graphing
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Full system (all modules) scan, I/M readiness monitors, EVAP system test, On-board monitor test (Mode 06), ECU information, Topology scan / network map
Key / immobilizer: Key / fob programming, Immobilizer reset / IMMO, PIN / CS code reading
Programming: ECU flashing / J2534 reprogramming, Mileage/odometer correction
Reports: Report export
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, TPMS reset / relearn, Gearbox / transmission adaptation, Airbag / SRS reset, Headlight / AFS calibration, Transport mode on / off, Sunroof initialization, Window / door calibration
There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.
Autel Intelligent Technology Corp., Ltd. (Autel) develops and manufactures automotive diagnostic tools and related equipment, including OBD2 scanners, full-system diagnostic tablets, key and immobilizer programming tools, TPMS tools, ADAS calibration systems and EV diagnostic solutions. The company is headquartered in Shenzhen, China, and sells its products worldwide to professional workshops and DIY users.
No topics were found here
