9.7-inch heavy-duty diagnostic tablet
Model code: MS908CVII Manufacturer: Autel

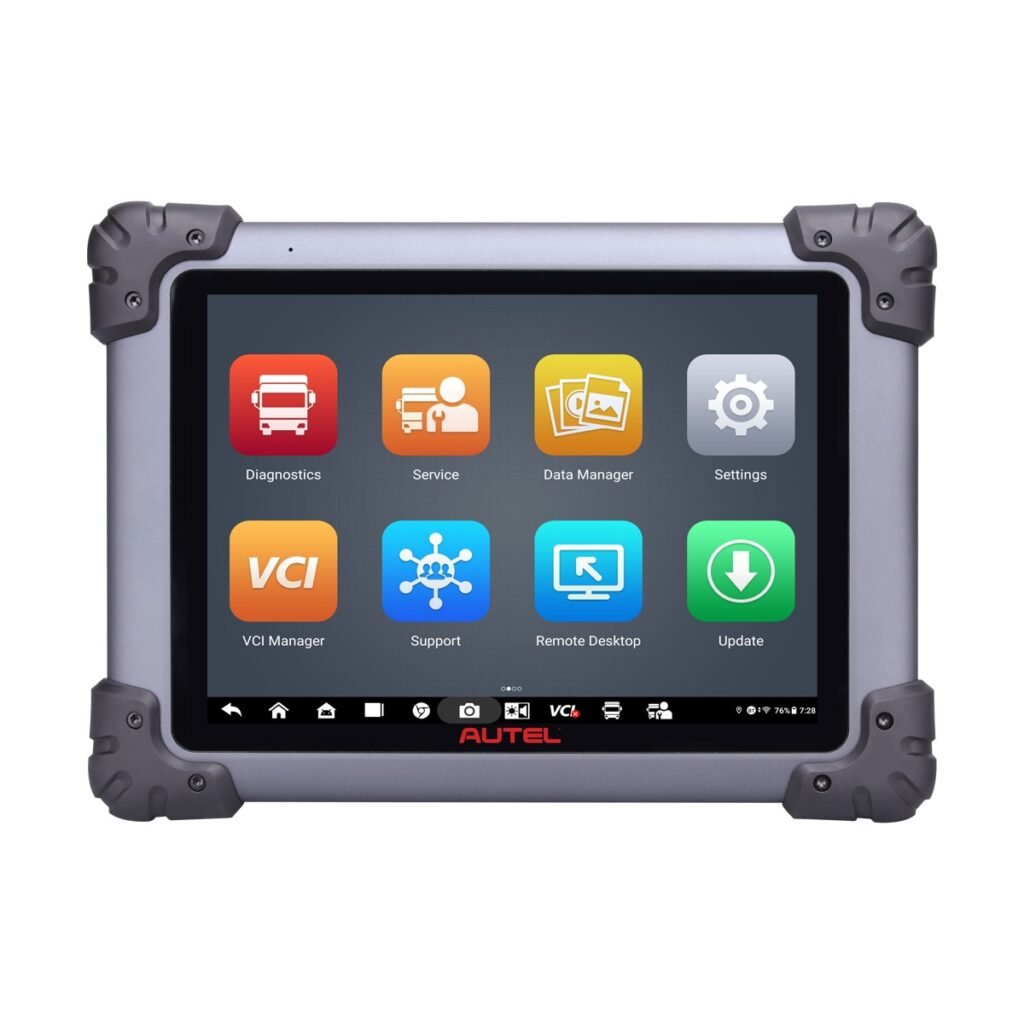

MaxiSYS MS908CVII Heavy-Duty Diagnostic Tablet
The MaxiSYS MS908CVII is a 9.7-inch wireless touchscreen tablet for diagnosing and servicing light, medium and heavy-duty vehicles. It covers fault detection with Auto Scan, code reading and erasing, live data viewing and graphing, bi-directional active tests and special functions, and an Expert Mode for direct access to system components. The service menu has more than 40 functions.
Key features:
- Diagnostics for Class 1 to Class 9 vehicles (the comparison chart lists Class 3 to 9).
- Expert Mode for OE-specific components, including engine, transmission and braking systems.
- Service menu with forced DPF regeneration, EPB and oil light service; injector cutout tests and injector coding.
- MaxiFlash wireless Bluetooth VCI / J2534 pass-thru device.
- Newer light-duty protocols are supported with the separately sold MaxiSYS VCI200.
- Authorized FCA secure gateway access with an AutoAuth account.
- Android 10, octa-core (4 x 2.2 GHz + 4 x 1.8 GHz), 4 GB RAM, 128 GB storage (SD card up to 64 GB), 9.7-inch 2048 x 1536 display, 16 MP rear camera, Wi-Fi, Bluetooth 5.0, USB 2.0 and HDMI.
- Wireless printing; one year of free software updates and a limited warranty.
This is an aftermarket tool: it is not the manufacturer's dealer tester. Specifications are taken from the Autel product page (autel.us).
| Product type | Device with pre-installed software (standalone) |
|---|---|
| OEM (Original Equipment Manufacturer) product? i | No |
| For which vehicle | Trucks |
| Price (USD) | $2,849 – $3,149 |
| Connection with computer / tablet / phone | Wi-Fi, Bluetooth, USB |
| Vehicle power supply system | 12V, 24V |
| Supported protocols | K-line, KWP2000, SAE J1850, TP2.0, CAN, J2534 standard API passthru |
| Other protocols (details) | J1939, J1708, GM UART, Honda Diag-H, TP1.6 |
| Months of free updates | 12 months |
Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.
Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
The function is supported. These notes apply only to the vehicles listed.
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
4 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
4 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
7 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: DPF / FAP regeneration
10 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 1/1 Programming 0/1 Service reset 3/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Gearbox / transmission adaptation
7 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 2/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: Electronic parking brake (EPB) service, Gearbox / transmission adaptation
6 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
8 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 1/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Emissions: Truck-specific SCR / NOx / AdBlue routines
Service reset: Gearbox / transmission adaptation
11 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 3/12 Special motorcycle-specific functions 1/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: Electronic parking brake (EPB) service, TPMS reset / relearn, Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
7 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 2/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Service reset: TPMS reset / relearn, Gearbox / transmission adaptation
5 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
8 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 1/1 Programming 0/1 Service reset 2/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Battery management (BMS) registration, TPMS reset / relearn
6 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
7 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 2/12 Special motorcycle-specific functions 1/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Electronic parking brake (EPB) service, Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
1 of 27 functions Actuation 0/2 Coding / adaptation 0/2 Diagnostics 1/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Diagnostics: Read fault codes (DTC)
10 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 4/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: Steering angle sensor (SAS) reset, Battery management (BMS) registration, Gearbox / transmission adaptation, EGR adaptation / reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
9 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 1/1 Programming 0/1 Service reset 2/12 Special motorcycle-specific functions 1/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Service reset: DPF / FAP regeneration, Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
8 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 1/1 Key / immobilizer 1/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Immobilizer reset / IMMO
Service reset: TPMS reset / relearn
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
6 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
5 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
4 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
6 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: Gearbox / transmission adaptation
6 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 1/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Gearbox / transmission adaptation
9 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 1/1 Programming 0/1 Service reset 3/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Electronic parking brake (EPB) service, TPMS reset / relearn, Gearbox / transmission adaptation
11 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 1/1 Key / immobilizer 1/1 Programming 0/1 Service reset 3/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Steering angle sensor (SAS) reset, Battery management (BMS) registration, Gearbox / transmission adaptation
4 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
6 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 1/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Key / immobilizer: Immobilizer reset / IMMO
18 of 27 functions Actuation 2/2 Coding / adaptation 1/2 Diagnostics 4/6 Emissions 1/1 Key / immobilizer 1/1 Programming 0/1 Service reset 7/12 Special motorcycle-specific functions 1/1 Vehicle systems 1/1
Actuation: Actuation / component test, Injector / cylinder test
Coding / adaptation: ECU coding
Diagnostics: Reading the VIN, Read fault codes (DTC), Live data stream, ECU information
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Oil / service / inspection reset, DPF / FAP regeneration, Throttle body adaptation, ABS brake bleeding, EGR adaptation / reset, Injector coding, Turbocharger / VGT adaptation
Special motorcycle-specific functions: Electronic suspension reset
Vehicle systems: Speed limiter configuration / reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
13 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 5/12 Special motorcycle-specific functions 1/1 Vehicle systems 1/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
Vehicle systems: Speed limiter configuration / reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
7 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 1/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
13 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 5/12 Special motorcycle-specific functions 1/1 Vehicle systems 1/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, TPMS reset / relearn, Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
Vehicle systems: Speed limiter configuration / reset
15 of 27 functions Actuation 1/2 Coding / adaptation 2/2 Diagnostics 5/6 Emissions 1/1 Key / immobilizer 1/1 Programming 0/1 Service reset 4/12 Special motorcycle-specific functions 1/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Electronic parking brake (EPB) service, Battery management (BMS) registration, TPMS reset / relearn, Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
8 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 1/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Steering angle sensor (SAS) reset
7 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 1/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: Adaptation (channels / values)
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Emissions: Truck-specific SCR / NOx / AdBlue routines
Service reset: Gearbox / transmission adaptation
6 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
11 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 5/6 Emissions 1/1 Key / immobilizer 1/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 1/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Emissions: Truck-specific SCR / NOx / AdBlue routines
Key / immobilizer: Immobilizer reset / IMMO
Service reset: Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
8 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Service reset: Battery management (BMS) registration
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
6 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
9 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 6/6 Emissions 0/1 Key / immobilizer 1/1 Programming 1/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Programming: Mileage/odometer correction
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
6 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 4/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
12 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 1/1 Programming 1/1 Service reset 4/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Reading the VIN, Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data
Key / immobilizer: Immobilizer reset / IMMO
Programming: Mileage/odometer correction
Service reset: Steering angle sensor (SAS) reset, Battery management (BMS) registration, Gearbox / transmission adaptation, EGR adaptation / reset
6 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
18 of 27 functions Actuation 1/2 Coding / adaptation 2/2 Diagnostics 5/6 Emissions 0/1 Key / immobilizer 1/1 Programming 1/1 Service reset 8/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding, Adaptation (channels / values)
Diagnostics: Read fault codes (DTC), Clear fault codes (DTC), Live data stream, Freeze frame data, ECU information
Key / immobilizer: Immobilizer reset / IMMO
Programming: Mileage/odometer correction
Service reset: Oil / service / inspection reset, Electronic parking brake (EPB) service, Steering angle sensor (SAS) reset, Battery management (BMS) registration, Throttle body adaptation, Gearbox / transmission adaptation, EGR adaptation / reset, Injector coding
7 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 1/12 Special motorcycle-specific functions 1/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
Service reset: Gearbox / transmission adaptation
Special motorcycle-specific functions: Electronic suspension reset
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
4 of 27 functions Actuation 1/2 Coding / adaptation 0/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
5 of 27 functions Actuation 1/2 Coding / adaptation 1/2 Diagnostics 3/6 Emissions 0/1 Key / immobilizer 0/1 Programming 0/1 Service reset 0/12 Special motorcycle-specific functions 0/1 Vehicle systems 0/1
Actuation: Actuation / component test
Coding / adaptation: ECU coding
Diagnostics: Read fault codes (DTC), Live data stream, ECU information
There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.
Autel Intelligent Technology Corp., Ltd. (Autel) develops and manufactures automotive diagnostic tools and related equipment, including OBD2 scanners, full-system diagnostic tablets, key and immobilizer programming tools, TPMS tools, ADAS calibration systems and EV diagnostic solutions. The company is headquartered in Shenzhen, China, and sells its products worldwide to professional workshops and DIY users.
No topics were found here
