Autel MaxiSYS MS906CV

Autel MaxiSYS MS906CV studio
Autel MaxiSYS MS906CV studio

8-inch heavy-duty diagnostic tablet

Model code: MS906CV Manufacturer: Autel

Device forumAsk questions & share experience

Description

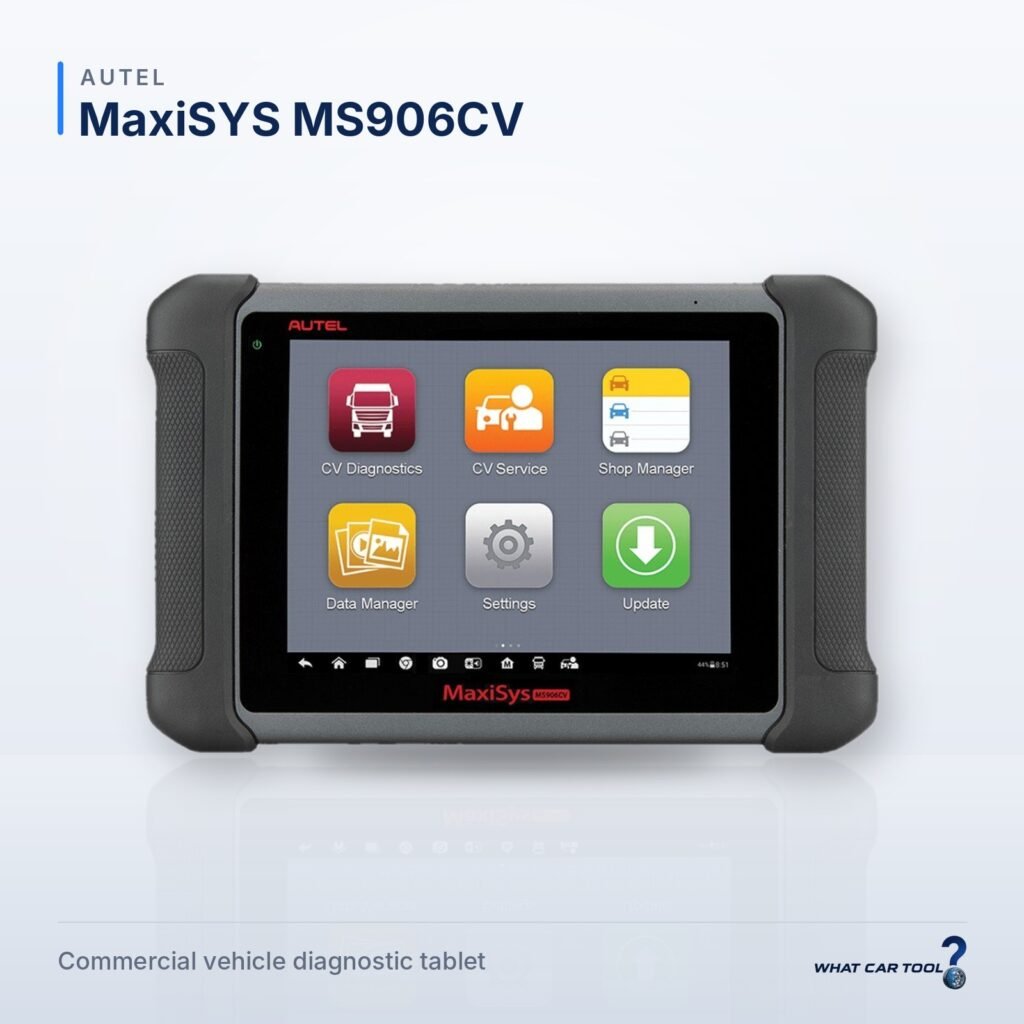

MaxiSYS MS906CV Heavy Duty Diagnostic Tablet
The MaxiSYS MS906CV is an Android-based 8-inch Wi-Fi diagnostic tablet for commercial vehicles. Autel lists it for Class 1 to Class 9 heavy-duty vehicles and more than 80 US, Asian and European makes. It connects to the vehicle directly through the supplied OBDII cable and Deutsch adapters; there is no separate VCI.

Key features:
- Trouble codes, live data, active tests, ECU information, adaptation and matching functions.
- AutoVIN vehicle identification.
- Automatic system and software updates over Wi-Fi.
- Built-in rechargeable battery rated for up to 8 hours of operation.
- Remote technical support, the MaxiFix cloud community and a data manager for job files, customers and vehicle records.

Hardware: 8.0-inch 1024x768 LED capacitive touchscreen, Samsung Exynos hexa-core processor, 2 GB RAM, 32 GB storage plus microSD slot (up to 32 GB), rear 8 MP camera with flash, 5000 mAh battery, 9-35 V DC input.

In the box: tablet, Deutsch 9-pin and 6-pin adapters, probe set, OBDII connector kit, OBDII cable and carry case. Autel lists this model as discontinued.

Specifications

Product typeDevice with pre-installed software (standalone)
OEM (Original Equipment Manufacturer) product? iNo
For which vehicleTrucks
Price (USD)$1,705 – $1,885
Connection with computer / tablet / phoneWi-Fi
Vehicle power supply system12V
Supported protocolsK-line, KWP2000, SAE J1850, TP2.0, CAN
Other protocols (details)J1939, J1708, GM UART, Honda Diag-H, TP 1.6
Months of free updates12 months

Supported functions (10)

Not every function is available for every make – the label next to a function shows for how many makes it is listed. Open a make under “Compatible vehicles” to see its functions.

Actuation

  • Actuation / component test
    9 of 20 makes
    Agrale, Chevrolet, Dodge, GMC, International, Kenworth, Mercedes-Benz, Peterbilt, Volkswagen
    i

Coding / adaptation

  • Adaptation (channels / values)
    3 of 20 makes
    Freightliner, Hino, Mitsubishi
    i

Diagnostics

  • Read fault codes (DTC) i
  • Clear fault codes (DTC)
    15 of 20 makes
    Agrale, Dodge, Fiat, Ford, Freightliner, Hyundai, International, Kenworth, Mercedes-Benz, Mitsubishi, Nissan, Peterbilt, Toyota, Volkswagen, Volvo
    i
  • Live data stream i
  • Freeze frame data
    9 of 20 makes
    Agrale, Chevrolet, Dodge, Freightliner, International, Kenworth, Peterbilt, Toyota, Volkswagen
    i
  • ECU information i

Service reset

  • Oil / service / inspection reset
    8 of 20 makes
    Freightliner, Hino, Isuzu, Kenworth, Mitsubishi, Peterbilt, Sterling, Volkswagen
    i
  • DPF / FAP regeneration
    7 of 20 makes
    Freightliner, Hino, Isuzu, Kenworth, Mitsubishi, Peterbilt, Volkswagen
    i
  • Injector coding
    8 of 20 makes
    Freightliner, Hino, Isuzu, Kenworth, Mitsubishi, Peterbilt, Sterling, Volkswagen
    i
Conditions for specific vehicles (1)

Notes added by the manufacturer that apply only to the vehicles listed below — the function itself is supported.

Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details
Applies only to some vehicles — click for details

Compatible vehicles (20 makes)

Check if it fits your vehicle:

All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)
All models of this make (1996–…)

Where to buy

There's still room here for your shop. If you're a seller and would like to include a link to your shop here, please get in touch with us.
We also accept links to online shops on platforms such as Amazon, eBay, Etsy, AliExpress, Walmart Marketplace, etc.

About the manufacturer: Autel

Autel Intelligent Technology Corp., Ltd. (Autel) develops and manufactures automotive diagnostic tools and related equipment, including OBD2 scanners, full-system diagnostic tablets, key and immobilizer programming tools, TPMS tools, ADAS calibration systems and EV diagnostic solutions. The company is headquartered in Shenzhen, China, and sells its products worldwide to professional workshops and DIY users.

https://www.autel.com/ ↗
